Geon x Nuxros KeySnap

Geon x Nuxros KeySnap is an alternative solution to gummy o-ring mount which sandwiches the Keysnap between the PCB and plate for an interesting and unique mounting style.

Geon x Nuxros KeySnap Features:

• 6 included in each set
• Alternative option to Gummy O-Ring Mount

  • KeySnap attaches on the PCB and sits on the bottom case
• Materials: Silicone 70A / FKM 70A / Silicone 50A

  • Material Comparison: Silicone is softer than FKM so FKM will have a more stiff typing feel
• Confirmed Compatible PCB:

  • Venom60 MX 6.25U / 7U
  • Venom60 HE 6.25U / 7U
  • Glare60
• Confirmed Compatible Cases:

  • Frog Mini
  • Frog Mini Leggera / Pesante
  • Glare60
  • Sebas
  • Note: it may be compatible with other PCB/Case options but returns/refunds due to incompatibility will not be accepted
• Compatible with hotswap PCB but recommended to use the silicone material (gray). Fitment will be tight.

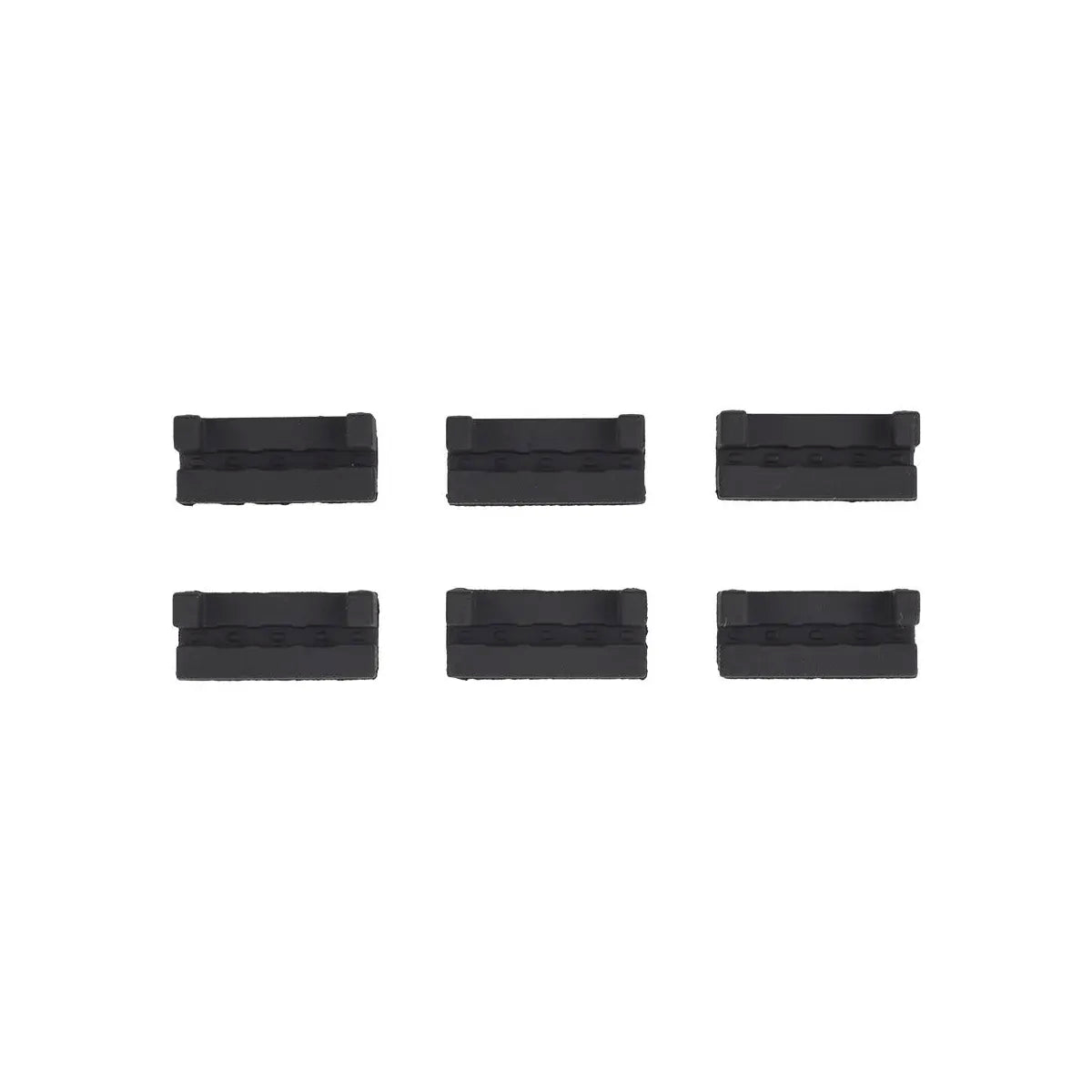

• When using the FKM material (black), it is recommended to use no more than two on the top side

Also see:

• NuxrosKB PCBsnap

Includes:

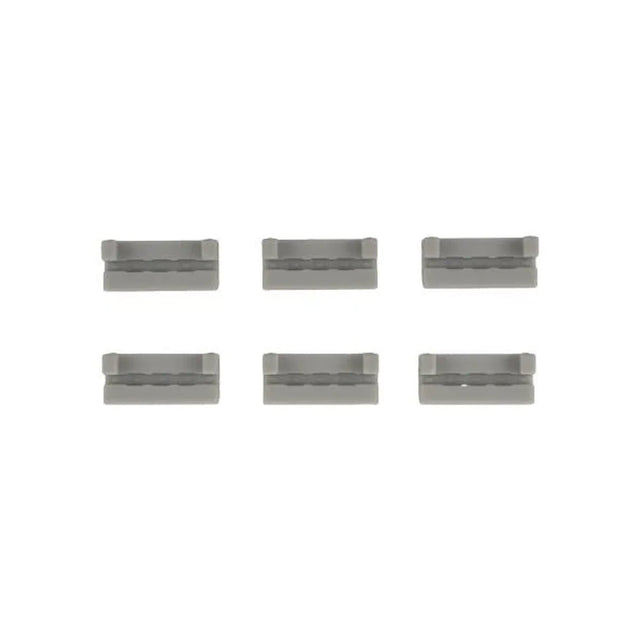

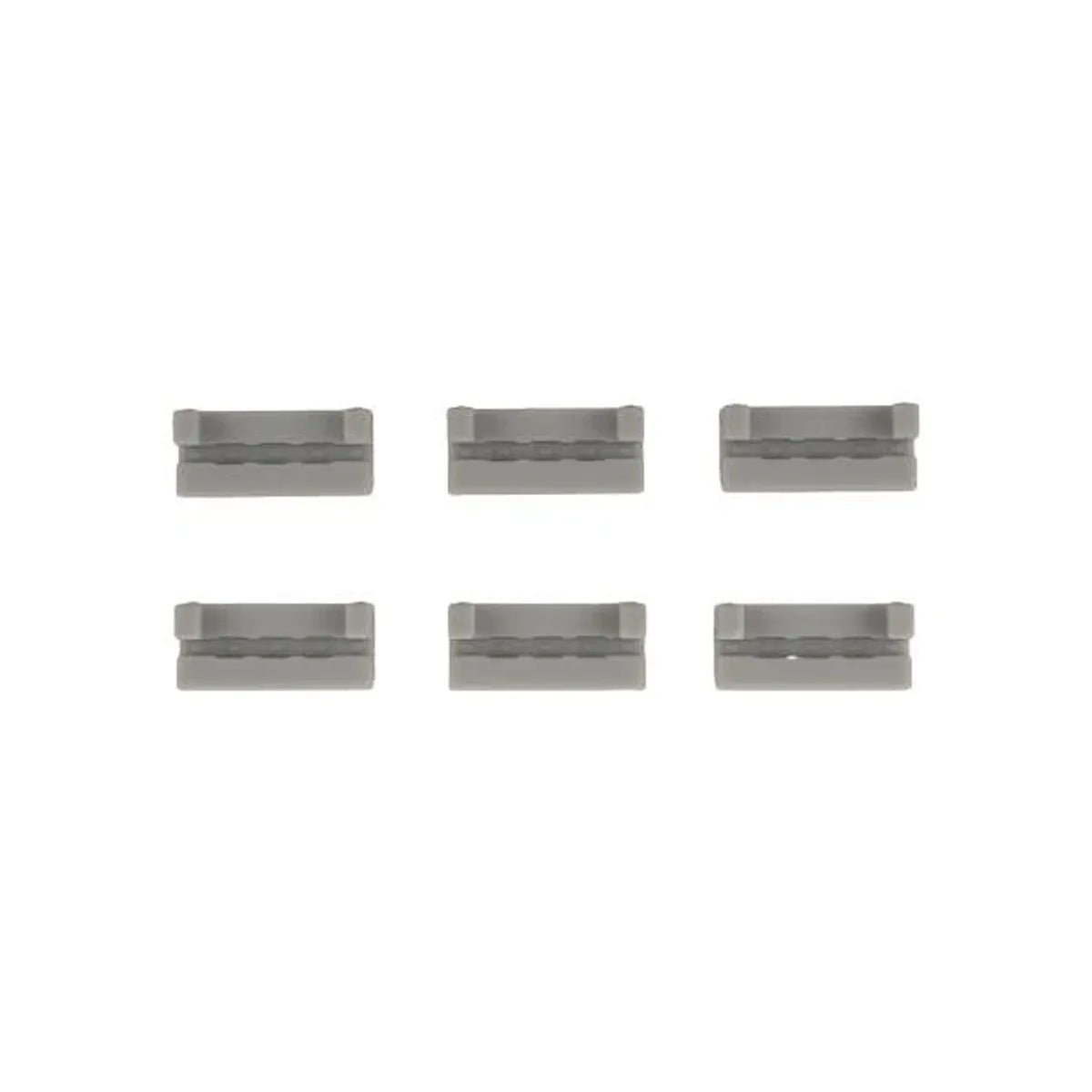

• 6 Geon x Nuxros KeySnap

Examples on how to mount the KeySnap onto the PCB/Plate:

Make sure to install the KeySnap avoiding the indicated area:

• If the KeySnap is installed and overlaps the marked area, it will interfere with the bottom case and prevent proper case assembly
