KBDfans Agar Micro Keyboard

KBDfans Agar Micro Keyboard takes the Agar aesthetic into the 40%, split-Alice space. Staying true to the curvature of the blockers and side profile while improving on the gasket design.

Groupbuy Period: June 25 - July 25, 2026

Estimated Ship Date: Late Q4 2026

KBDfans Agar Micro Keyboard Features:

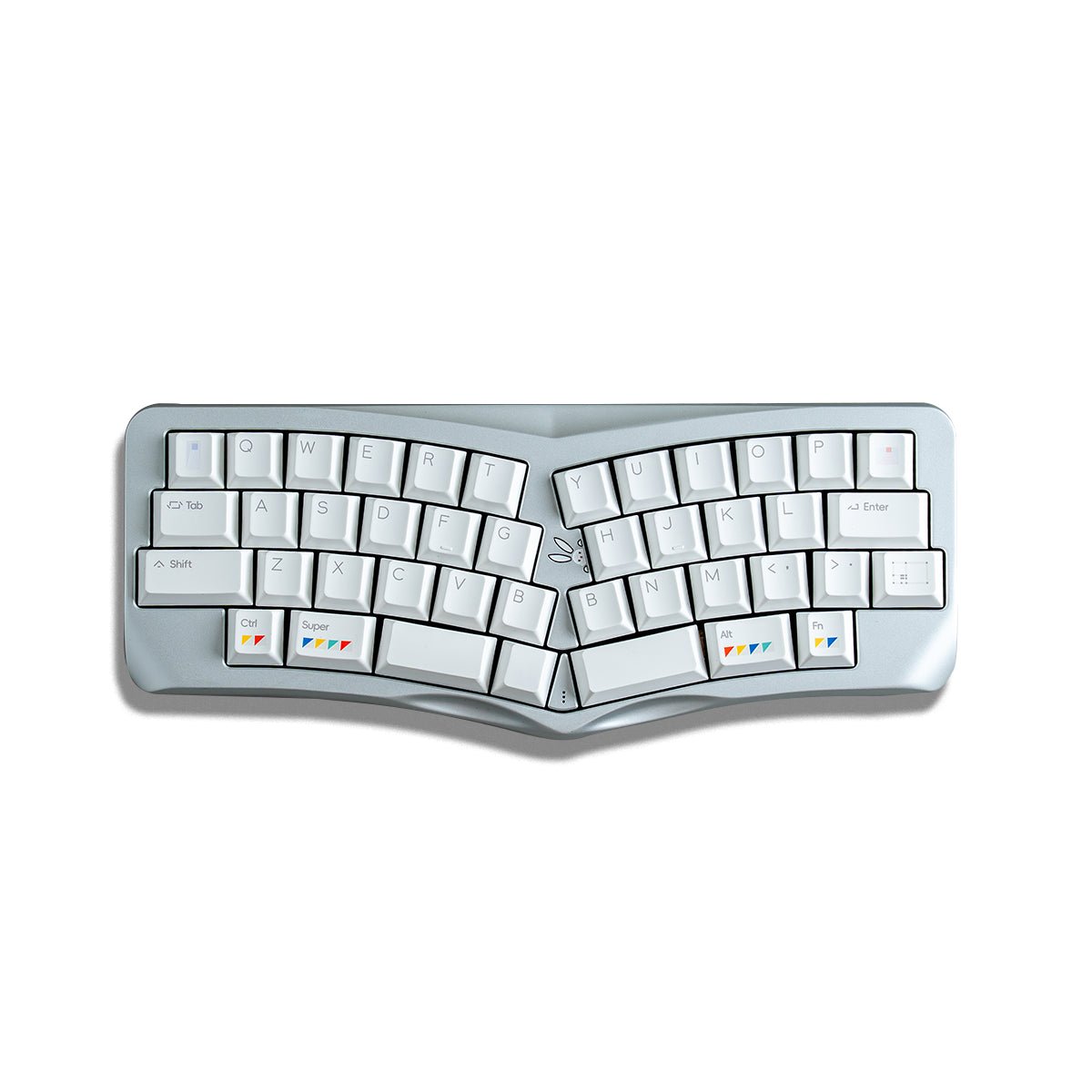

40%, Alice Layout
Mount: PCB Gasket

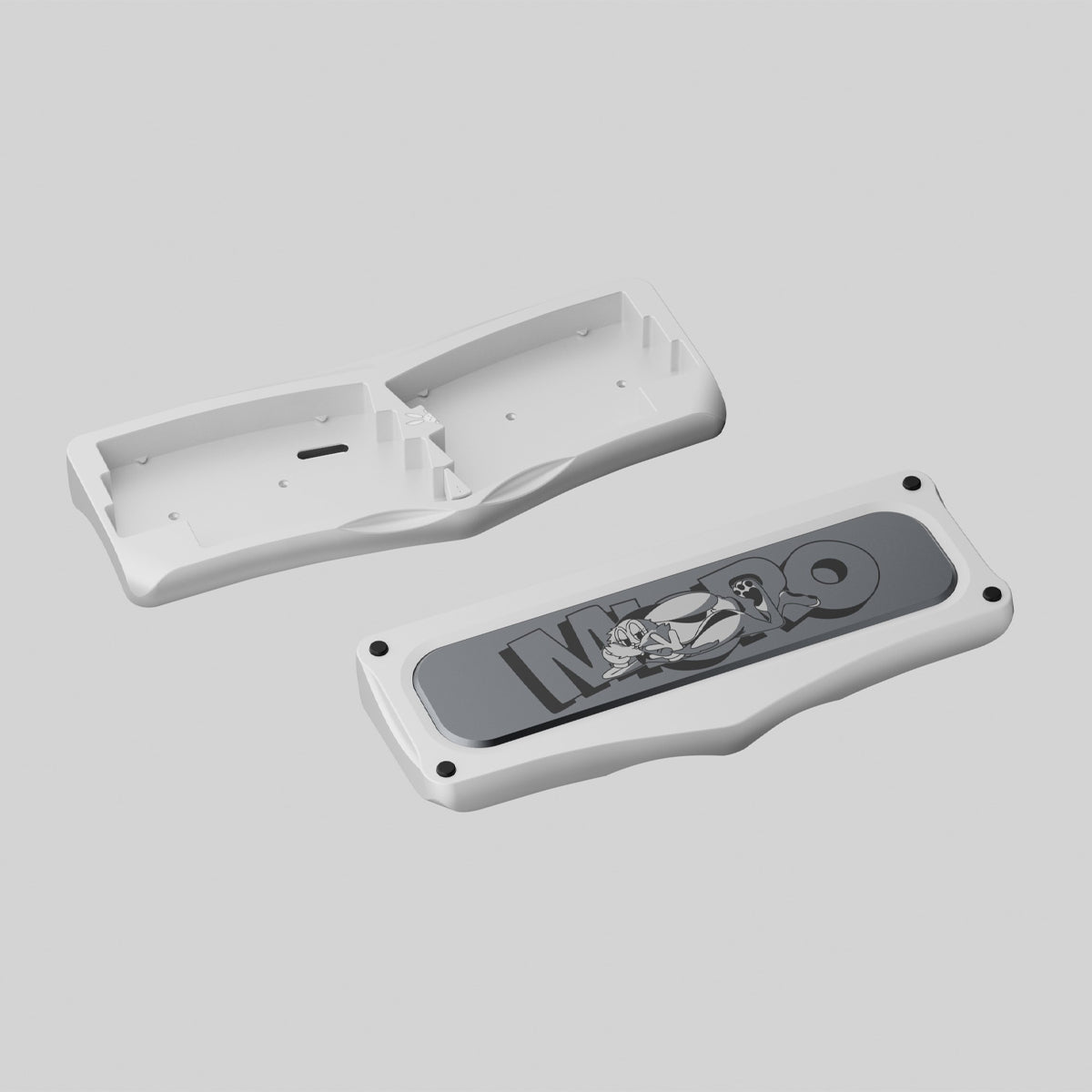

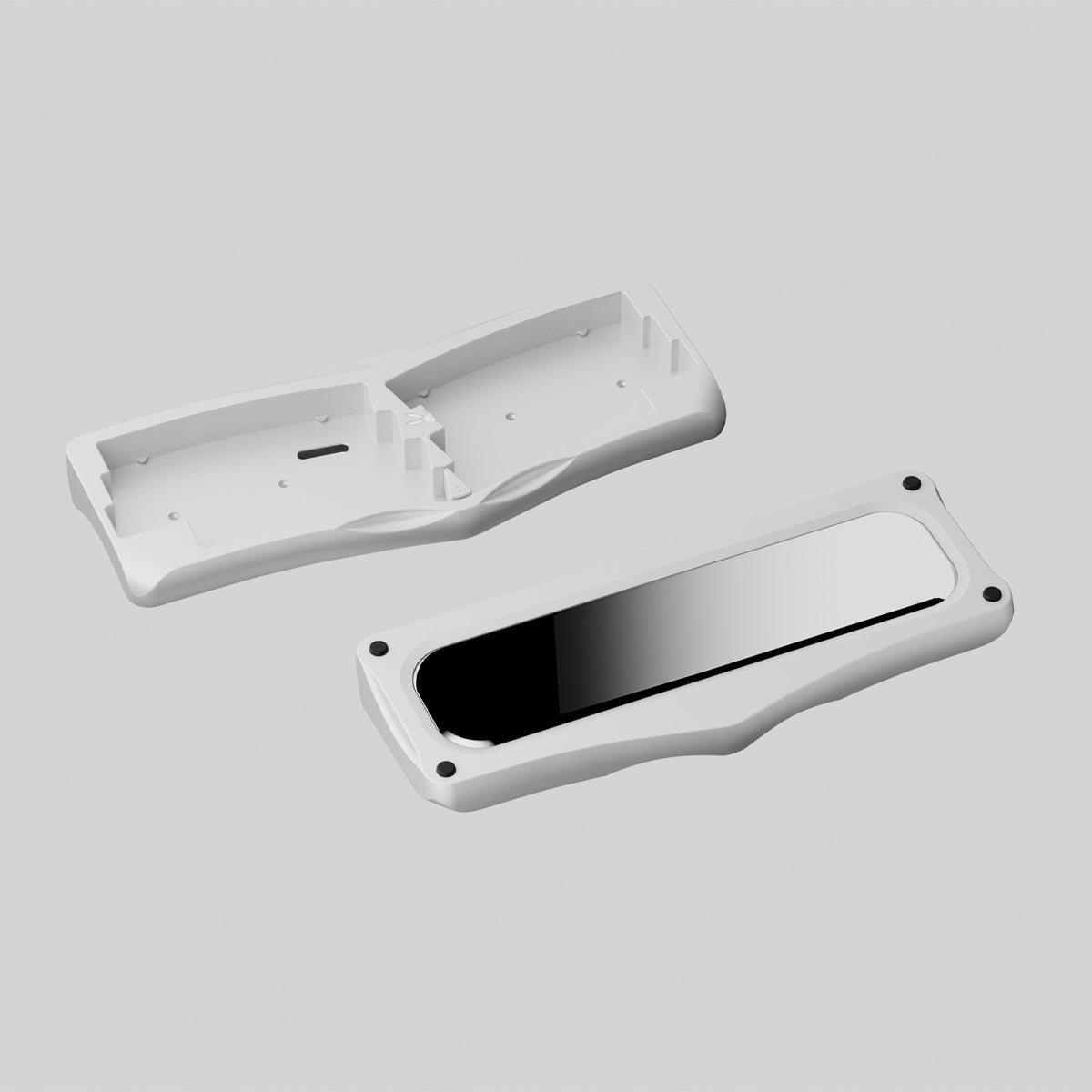

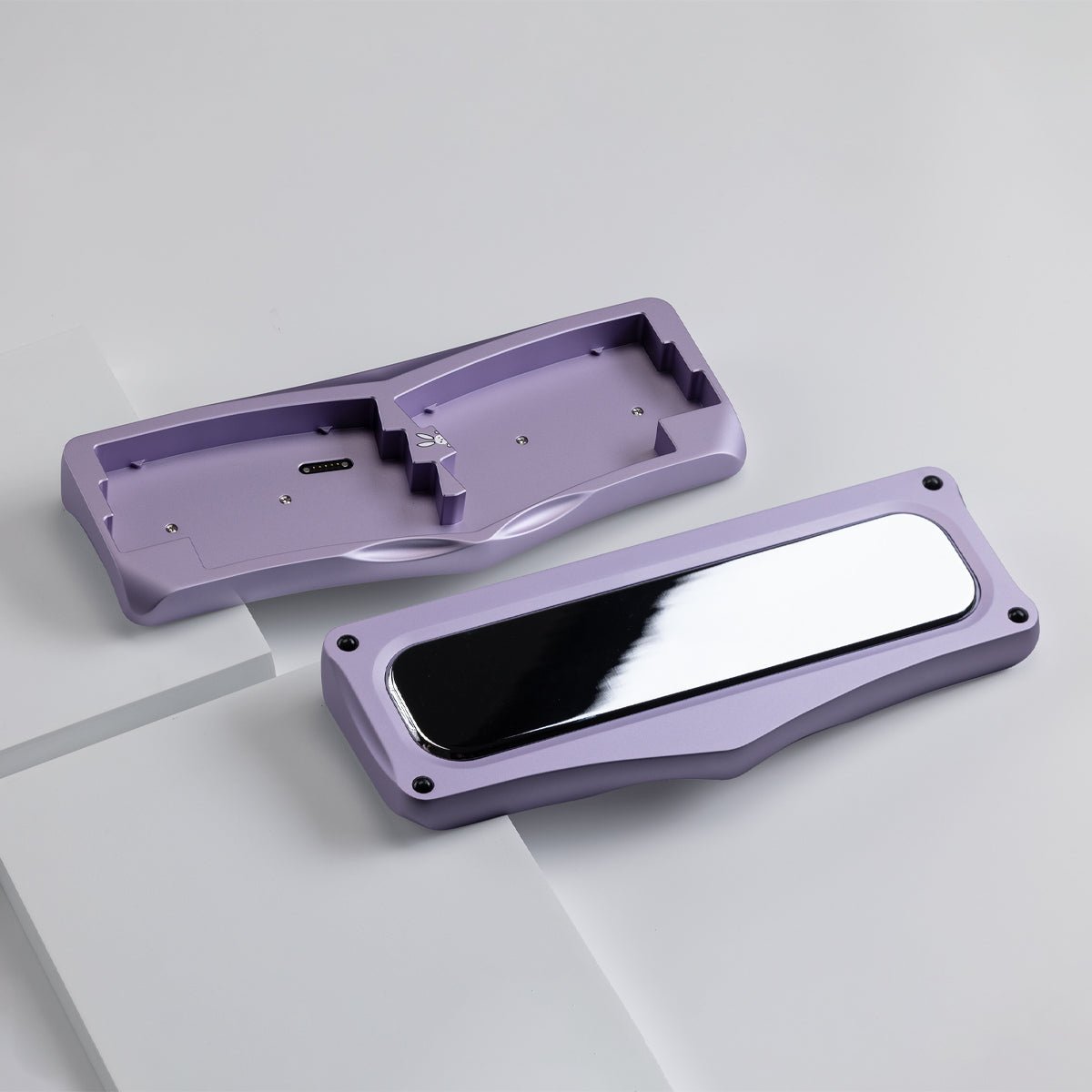

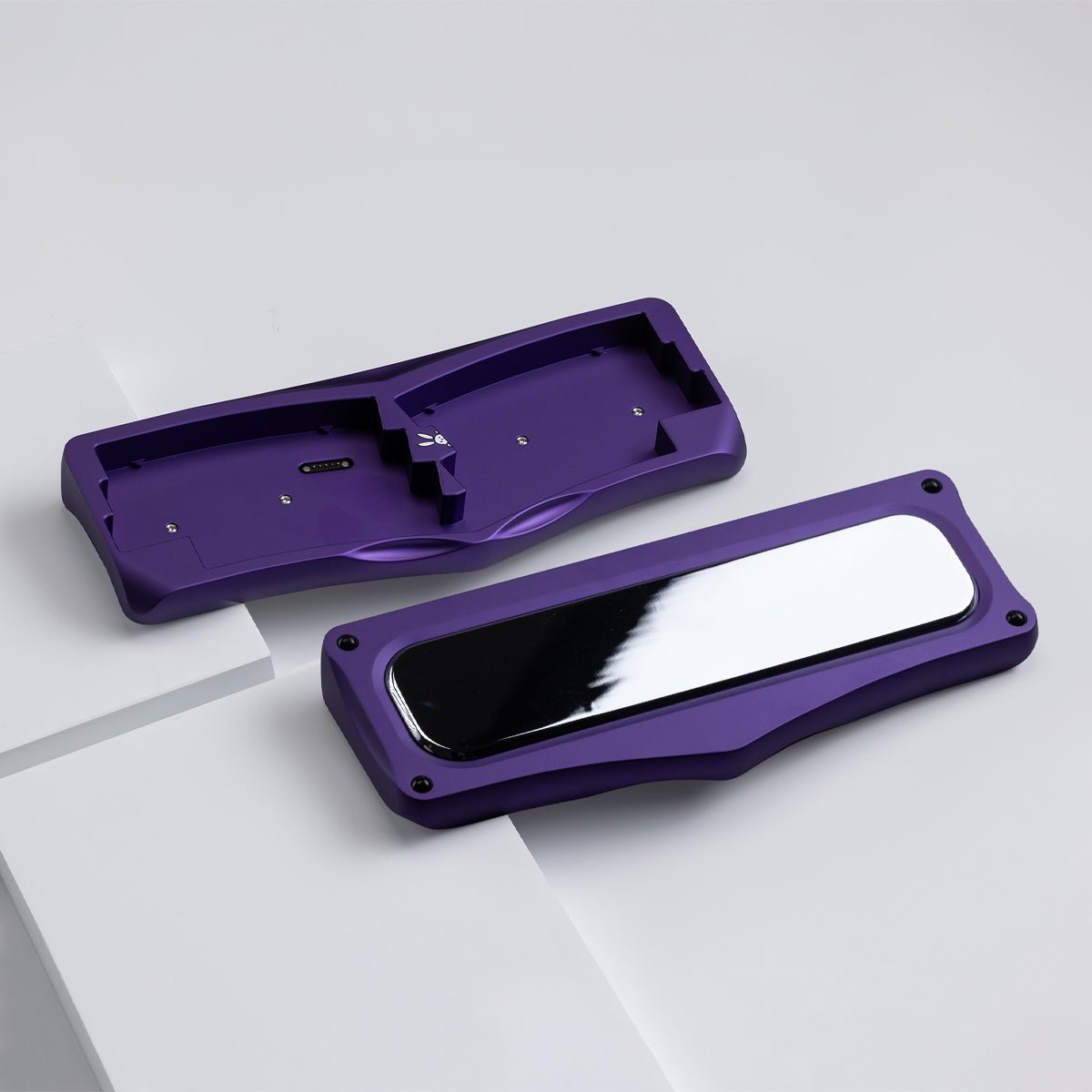

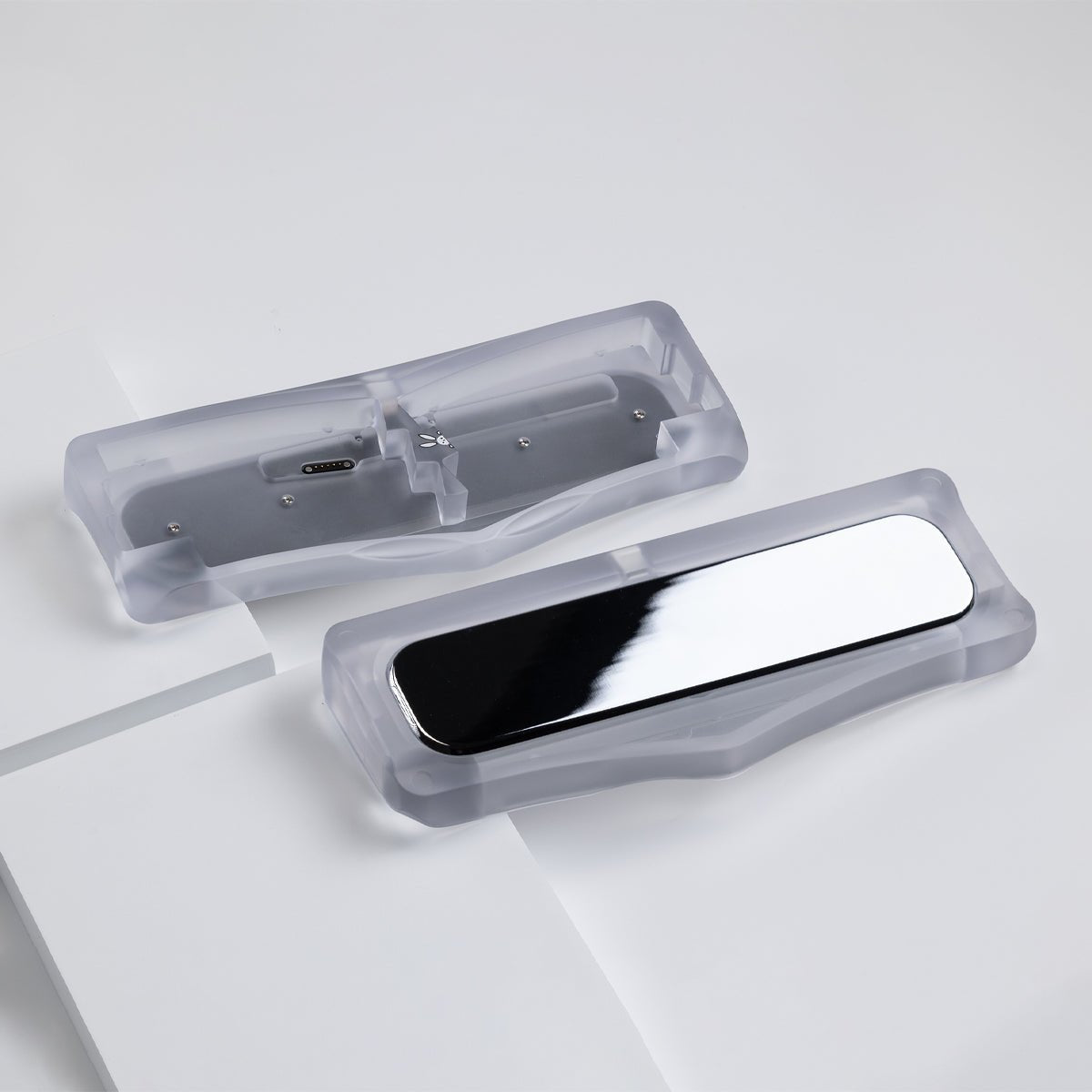

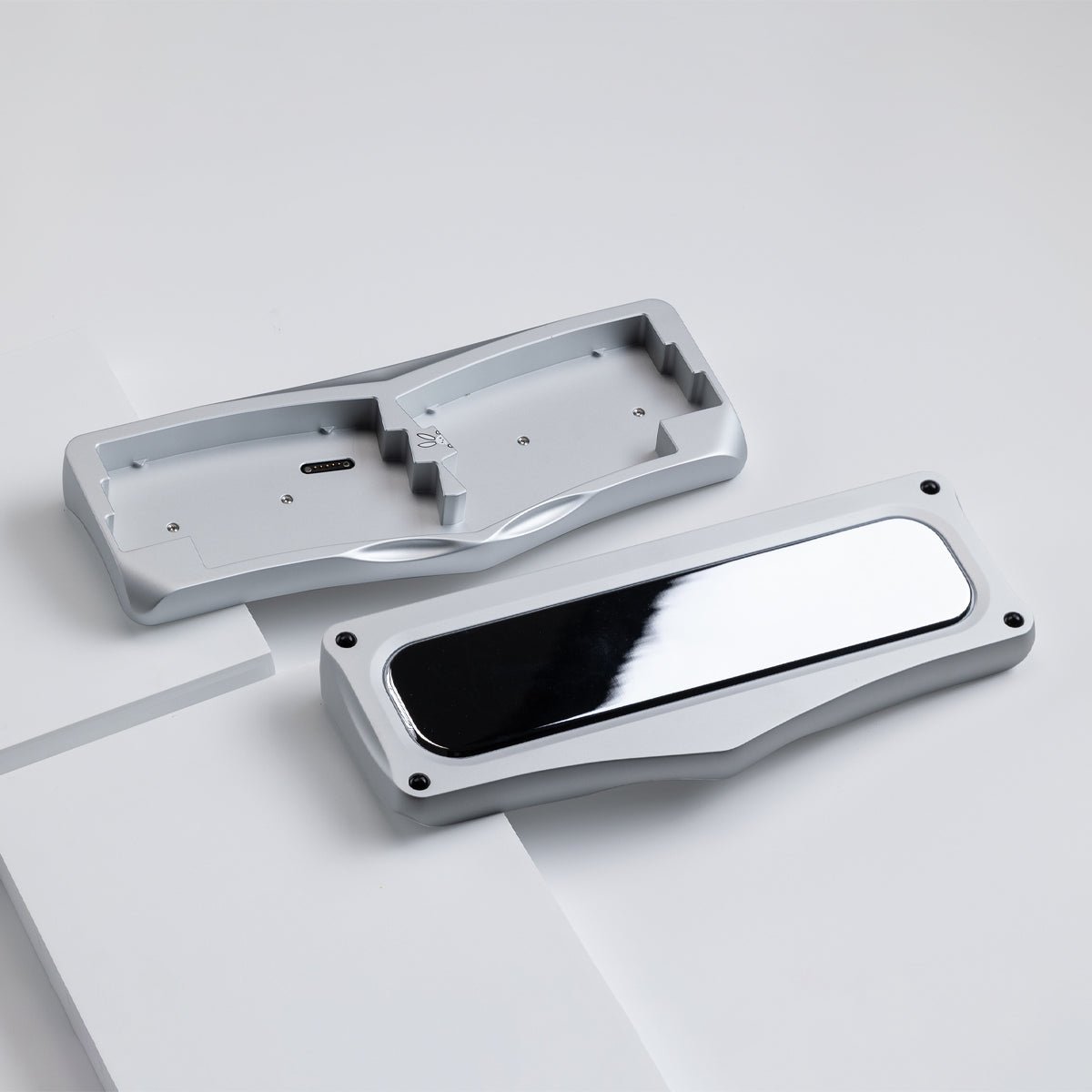

Case:

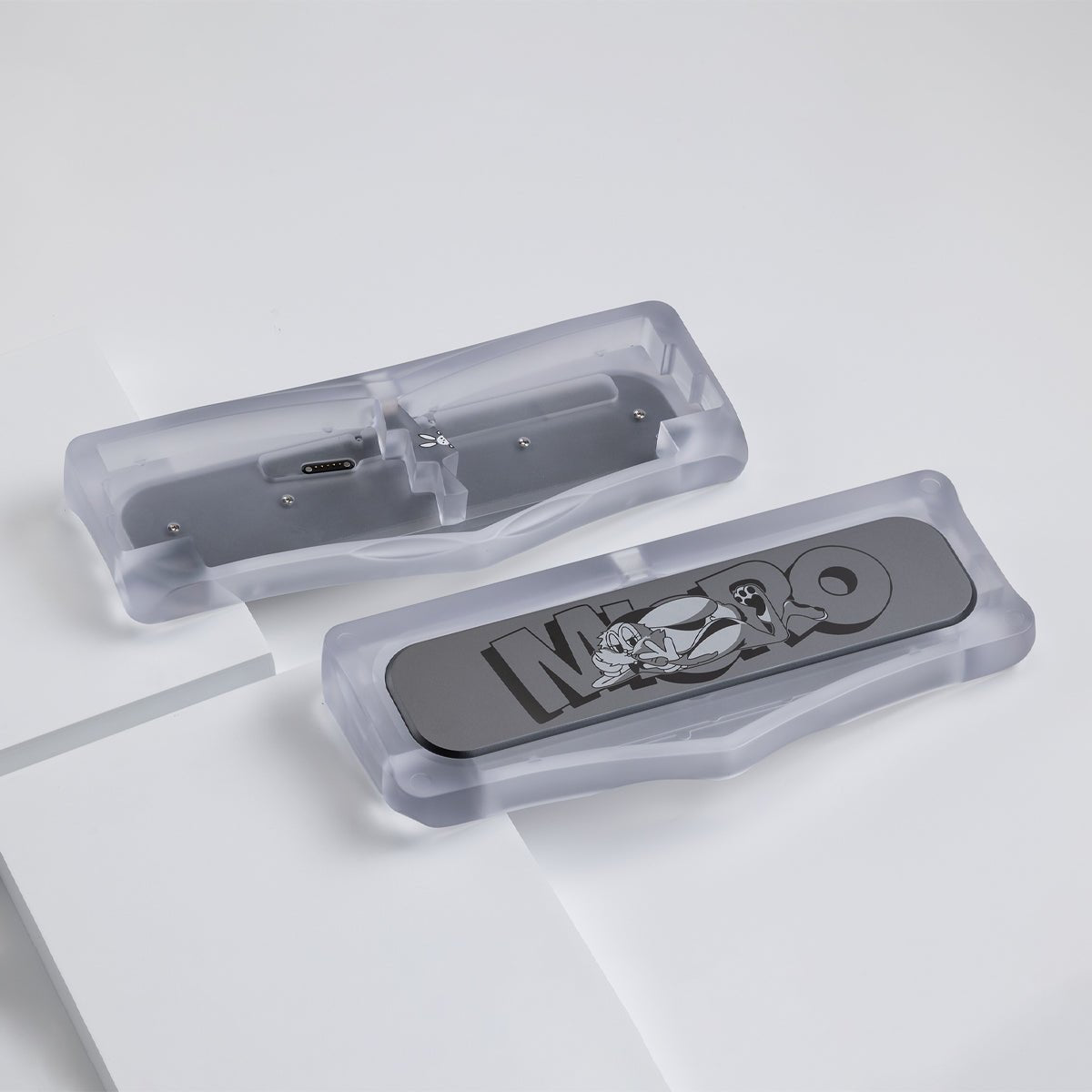

- Materials: PC or Aluminum
- Finishing: Anodized, E-coated, or Stone-wash
Weight Bar:

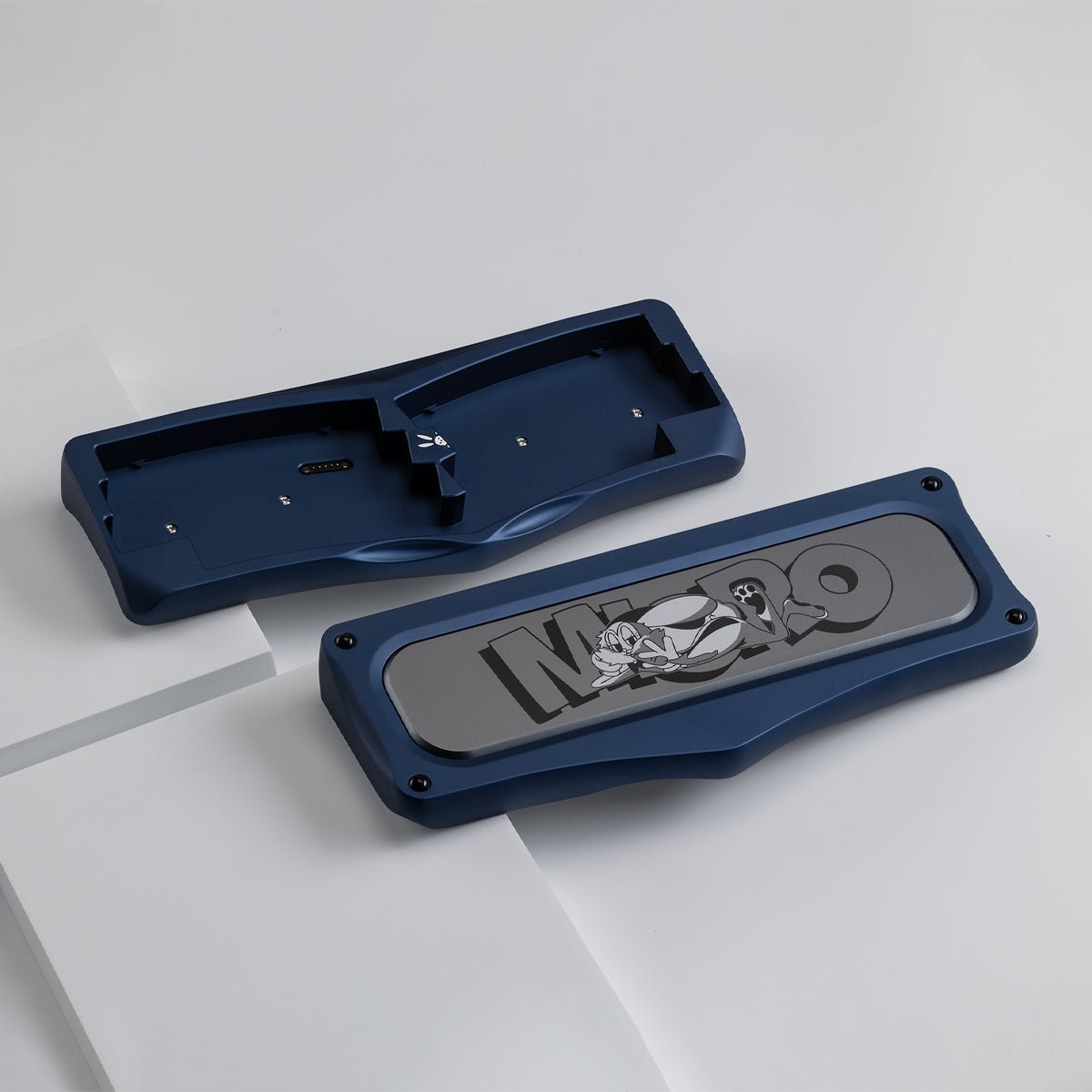

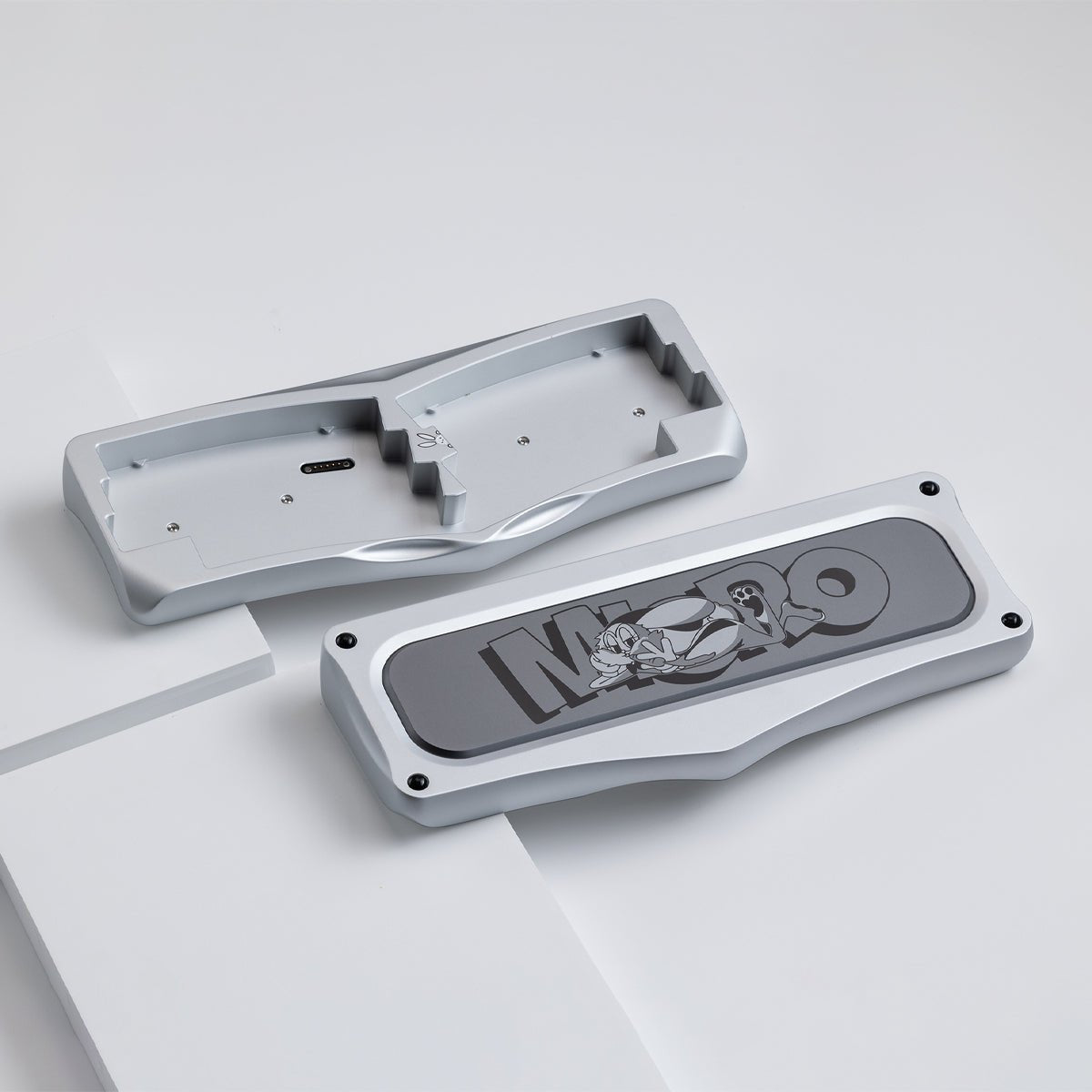

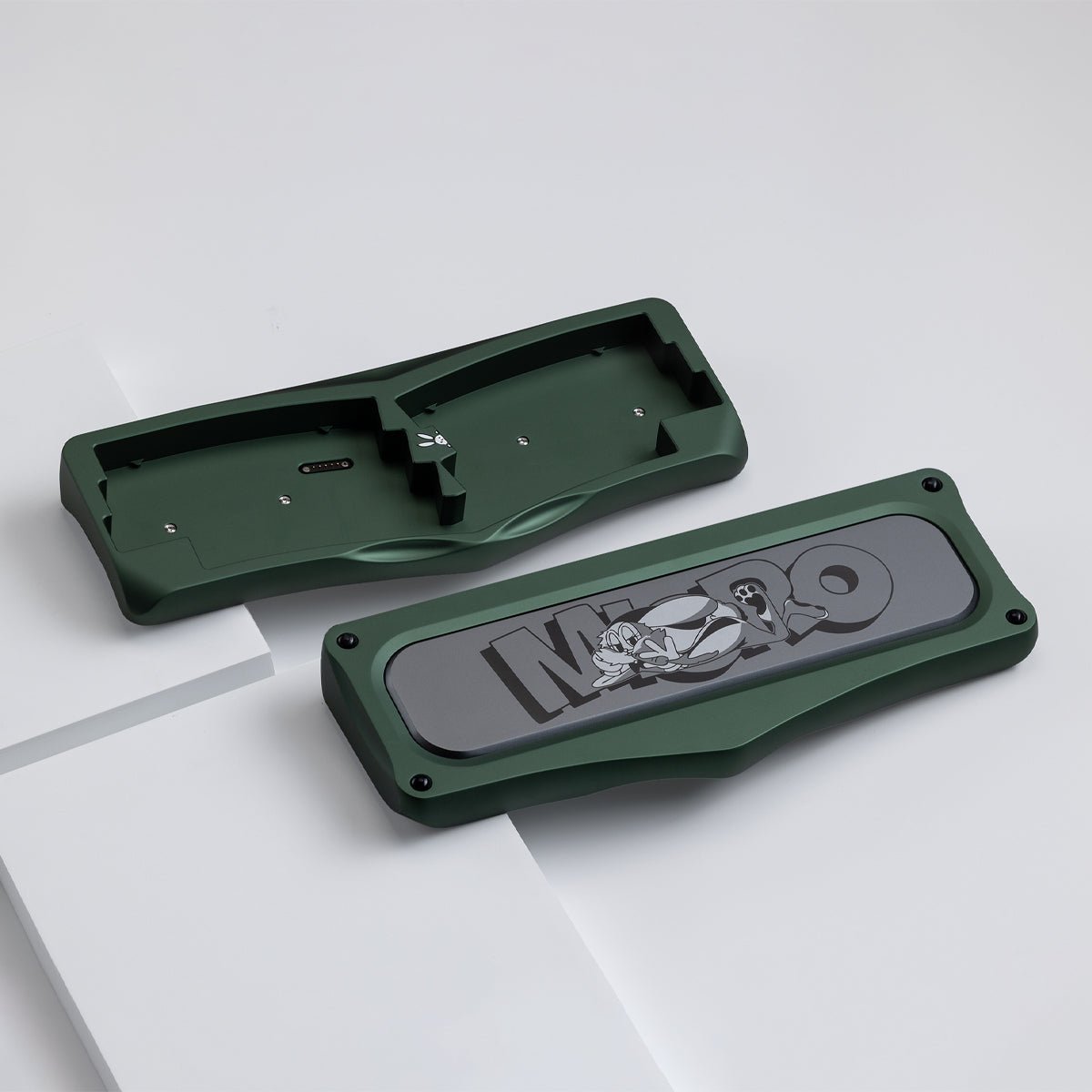

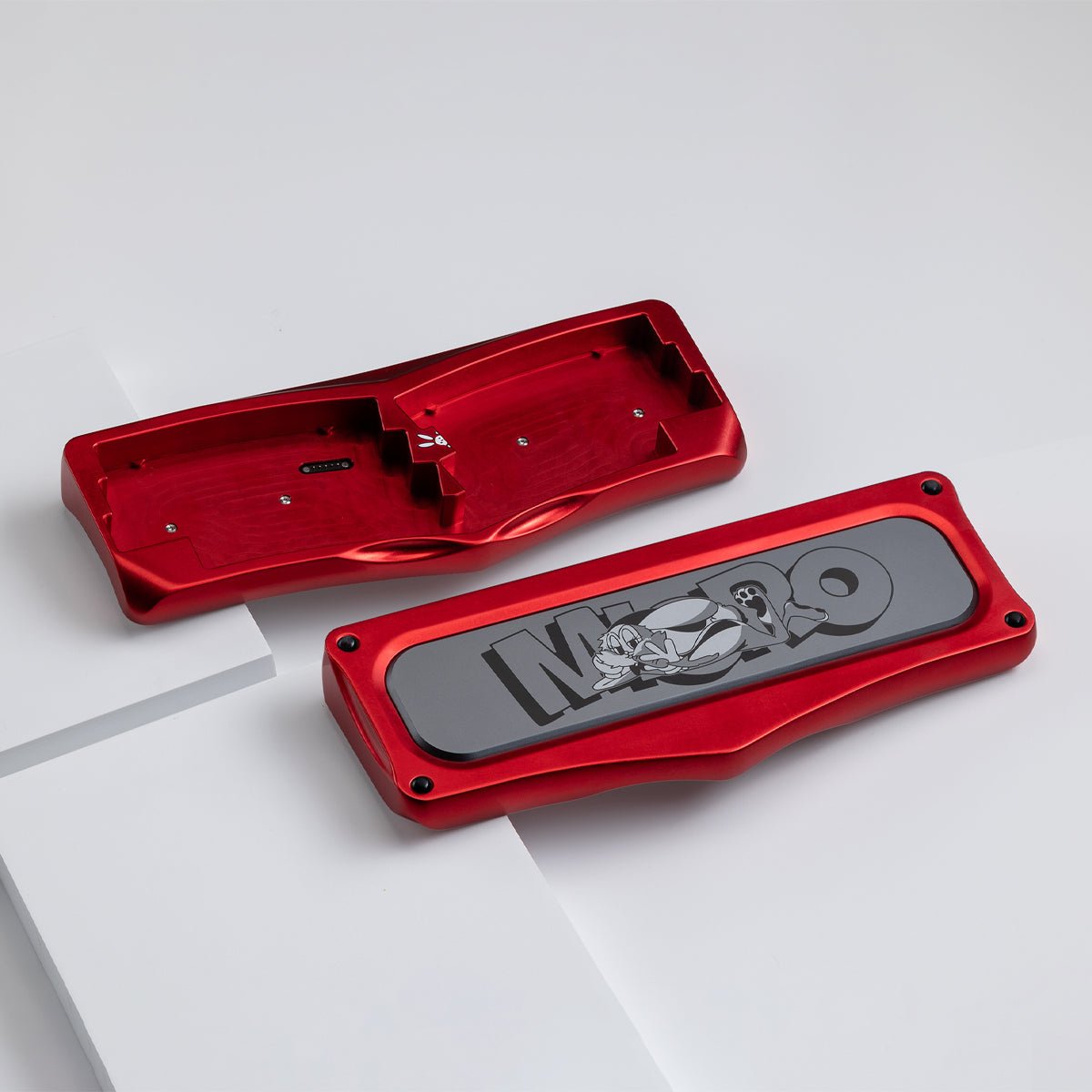

- Tri-Color Aluminum: Blends three vibrant oxidized colors with an intricate engraving
- PVD Stainless Steel: PVD mirror finish, reflective and smooth
PCB:
- Split PCB
- Options: Wired Solder, Wired Hotswap, Dual-mode Hotswap (battery must be added separately)
- Software: Wired supports VIA, Dual-mode supports ZMK
- Thickness: 1.6mm
- Magnetic Pin Header
- LED Indicators, No RGB Underglow
Plate options: PC, FR4, Aluminum, Carbon Fiber
Typing Angle: 7°
Dimensions: 270.17 x 111.25 x 30.61 x 17.85mm
PC Case Weight: 280g
Aluminum Case Weight: 675g
Aluminum Weight Bar Weight: 97g
Stainless Steel Weight Bar Weight: 300g

Optional:

KBDfans Agar Micro PCB, Plates, Parts

Includes:

1 Keyboard Case

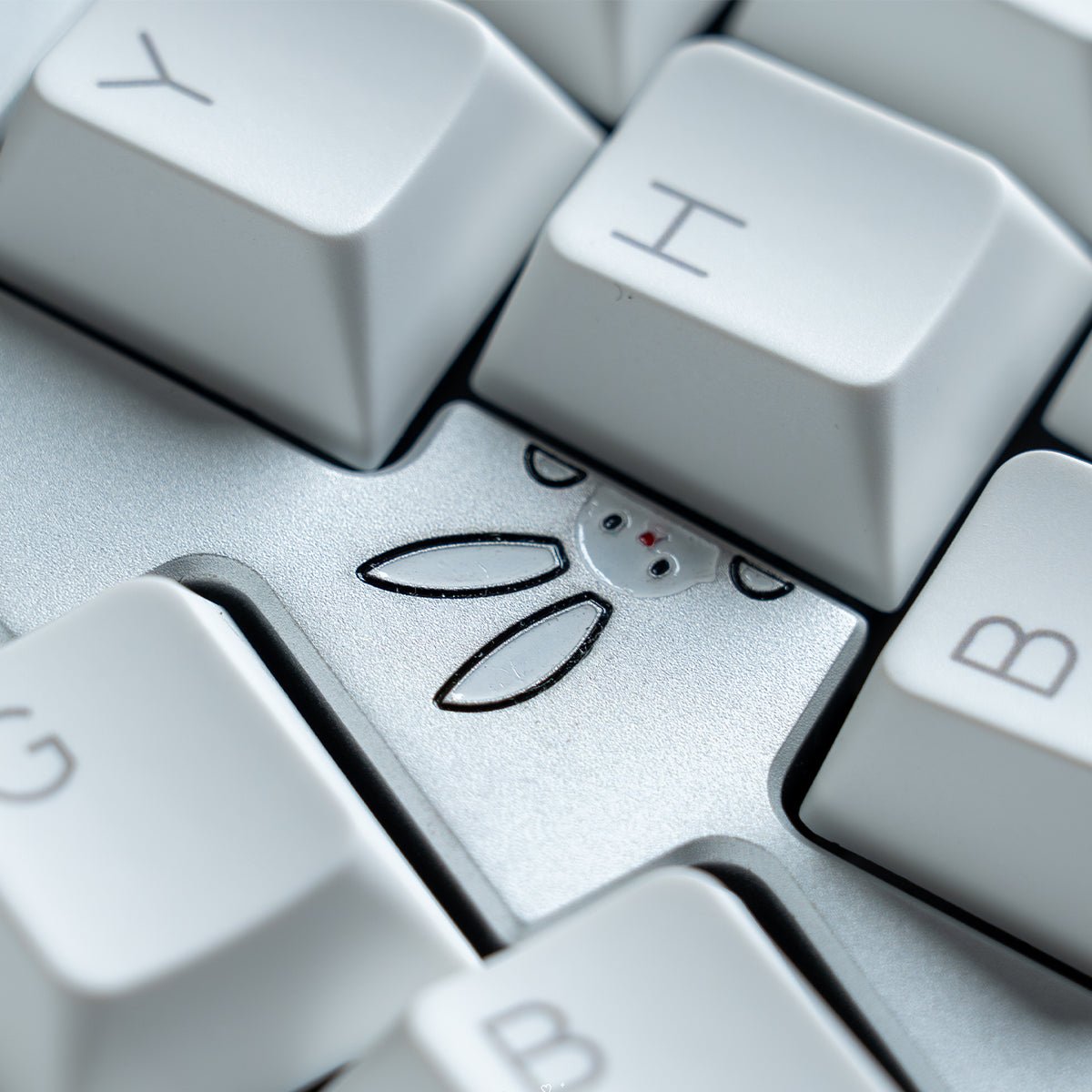

1 LED Indicator Blocker and Silicone
1 Weight Bar
1 PCB & Daughterboard
1 Optional Foam Kit
1 Optional Plate
1 Set Silicone Gaskets (50A)
1 Set Rubber Feet
1 Barebone Hook
1 Carrying Case

QC Standards:

Case Exterior: Acceptable if the 6 outer surfaces are free of machining marks, stains, dents, or pinholes. No black spots > 1 mm or scratches > 1 mm.
Weight: Acceptable if free of defects, pinholes, or black spots > 1 mm, and scratches > 2 mm. (Note: Copper weights are treated but will naturally oxidize over time).
Interior: Minor internal defects due to manufacturing limits (e.g., screw hole flaws, uneven coating, anodization lines, or light scratches) are considered acceptable if they do not affect the external appearance.
PC Case Note: PC is plastic and less rigid than aluminum. Do not overtighten the screws. Damage or cracking caused by overtightening is not covered under warranty.

Disclaimer: Free shipping does not apply to Groupbuy items. Please read our Shipping and Handling page for details prior to ordering.

Agar Micro

Agar Micro condenses the concept of "growth" into its purest form.

Rather than emphasizing the piecing together of structures, it allows the form to flow naturally, as if slowly growing out from a single, solid block of material.

In a size this compact, every single curve is more than just a design choice—it is a restrained expression of "organic" form.

PCB Options

KBDfans Agar Micro PCB

All versions: 1.6mm PCB, magnetic pin header, daughterboard included, LED indicator only (no RGB underglow).

Dual-mode Hotswap — supports ZMK

MX Hotswap — supports VIA

Firmware: ydkb_kbdfans_agar_micro_vial.uf2 · JSON: ydkb_kbdfans_agar_micro_via.json

MX Solder — supports VIA

Firmware: ydkb_kbdfans_agar_micro_vial.uf2 · JSON: ydkb_kbdfans_agar_micro_via.json

PCB Gasket Mounting

Building on the Agar Mini, the Agar Micro refines the PCB Gasket structure with precise alignment slots for the silicone gaskets. Once embedded, the PCB locks securely into place, ensuring consistent and controlled typing feedback.

Learning from extensive community feedback on the Agar series, KBDfans resculpted the PCB outline around this new gasket system. This ensures firmer positioning within the chassis and makes assembly far more intuitive.

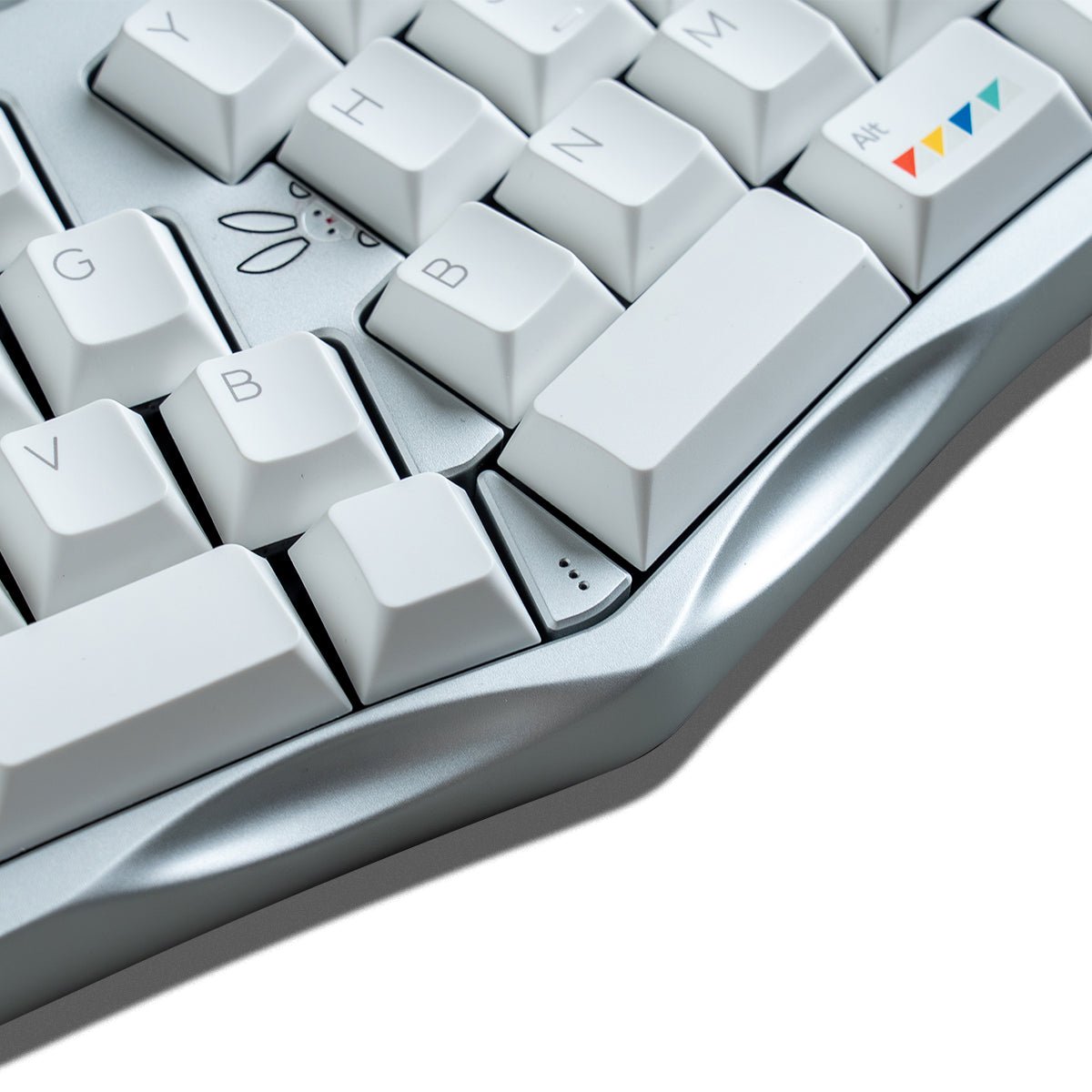

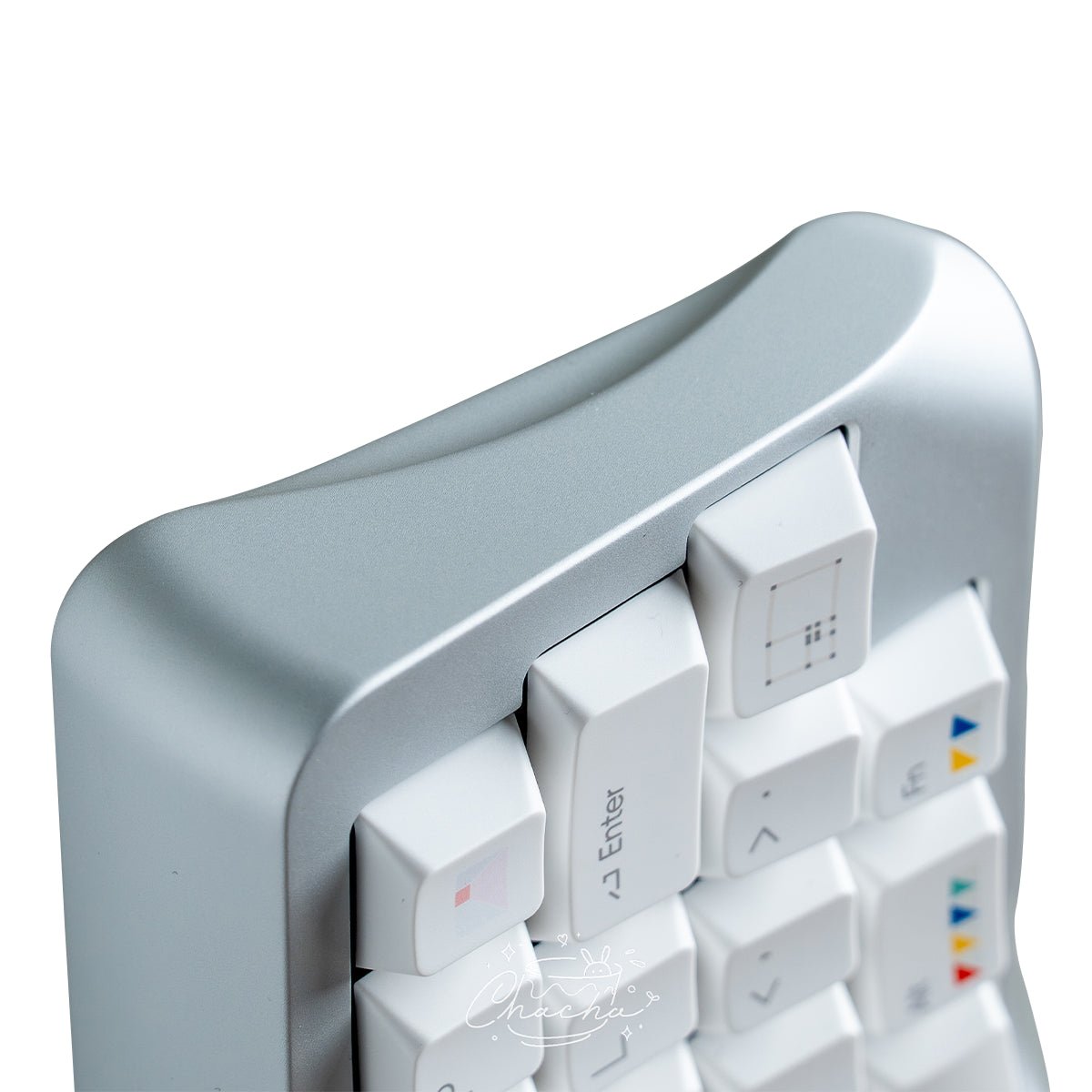

Ergonomic Refinement

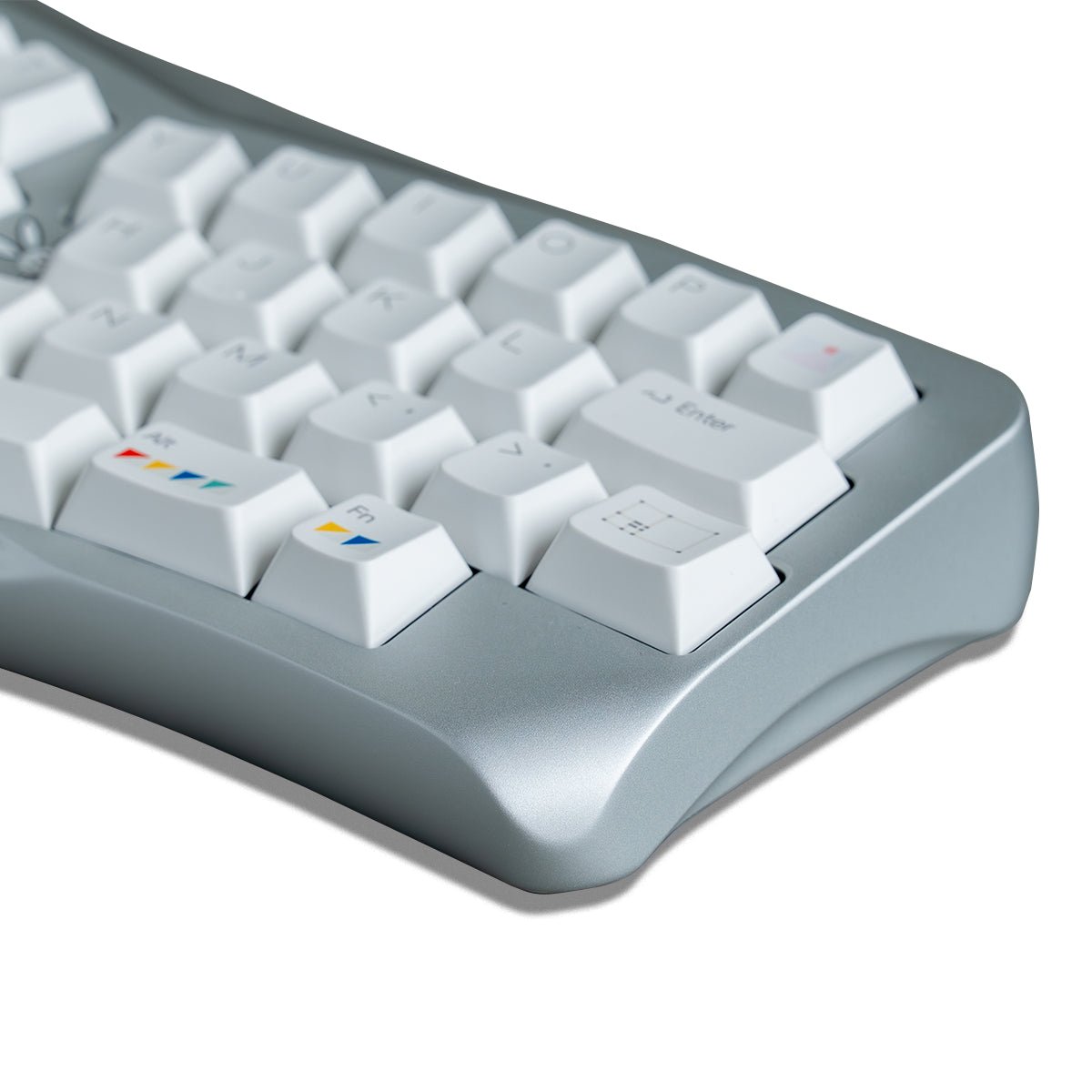

During testing, KBDfans noticed that typing thumbs could occasionally bump against the case's front edge.
To solve this, they completely re-sculpted the front boundary with two subtle, curved bevels. This replaces the sharp edge with a smooth contour, providing a natural resting position for your thumbs. Remarkably, these functional curves also quietly echo the shape of a rabbit’s ears, seamlessly blending ergonomics with our core design language.

Weight Bar Options

Enhance the stability and aesthetic of your Agar Micro with two distinct weight bar choices:

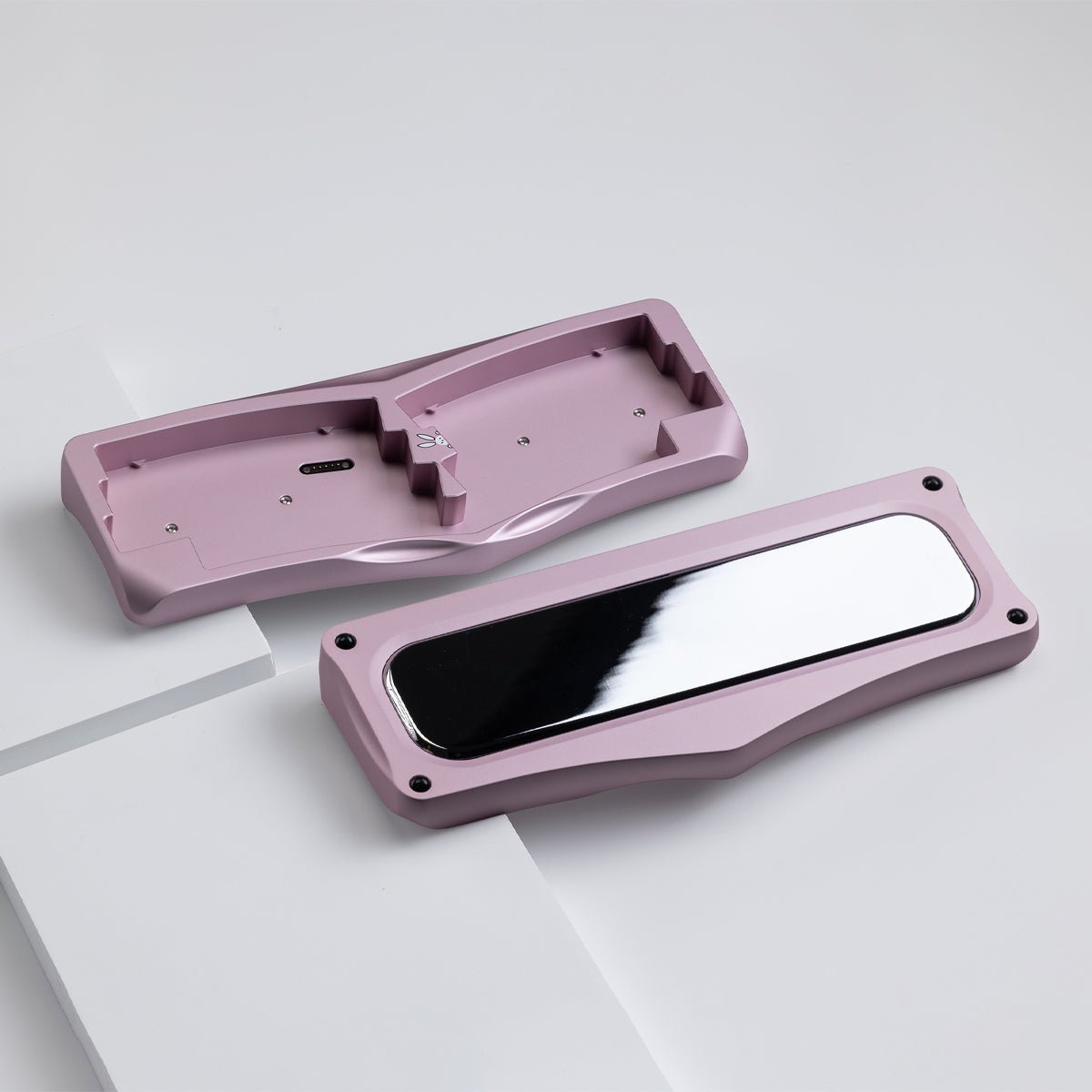

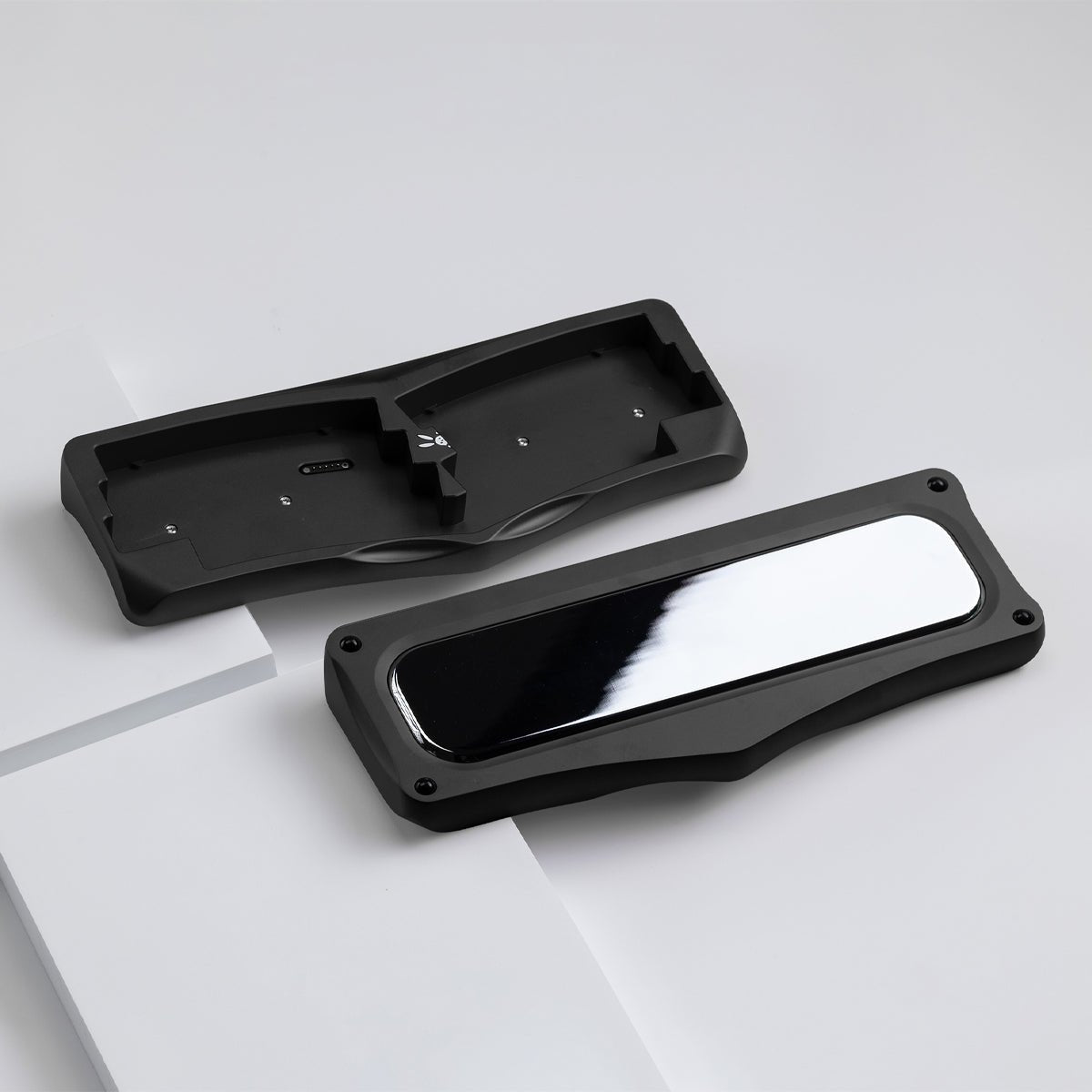

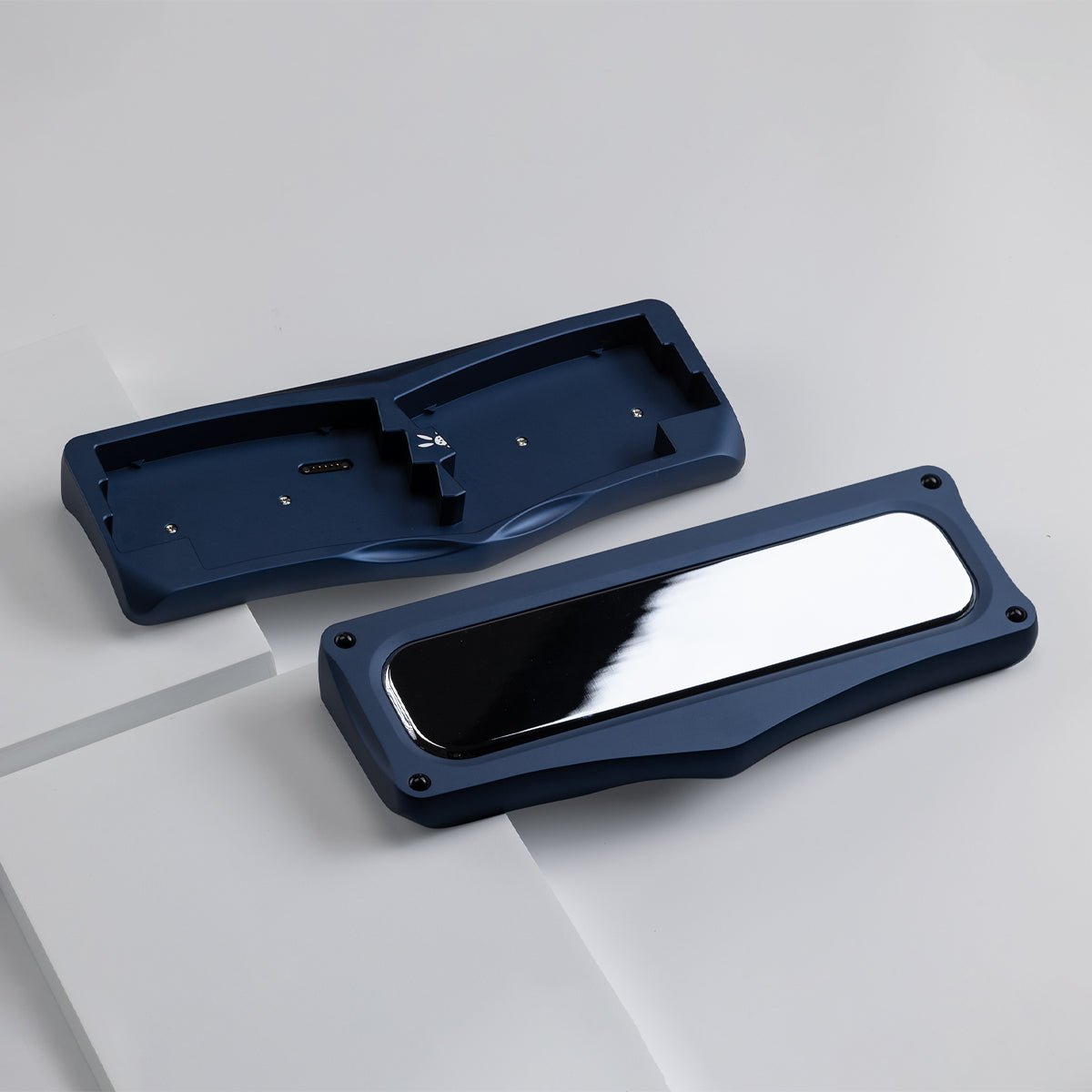

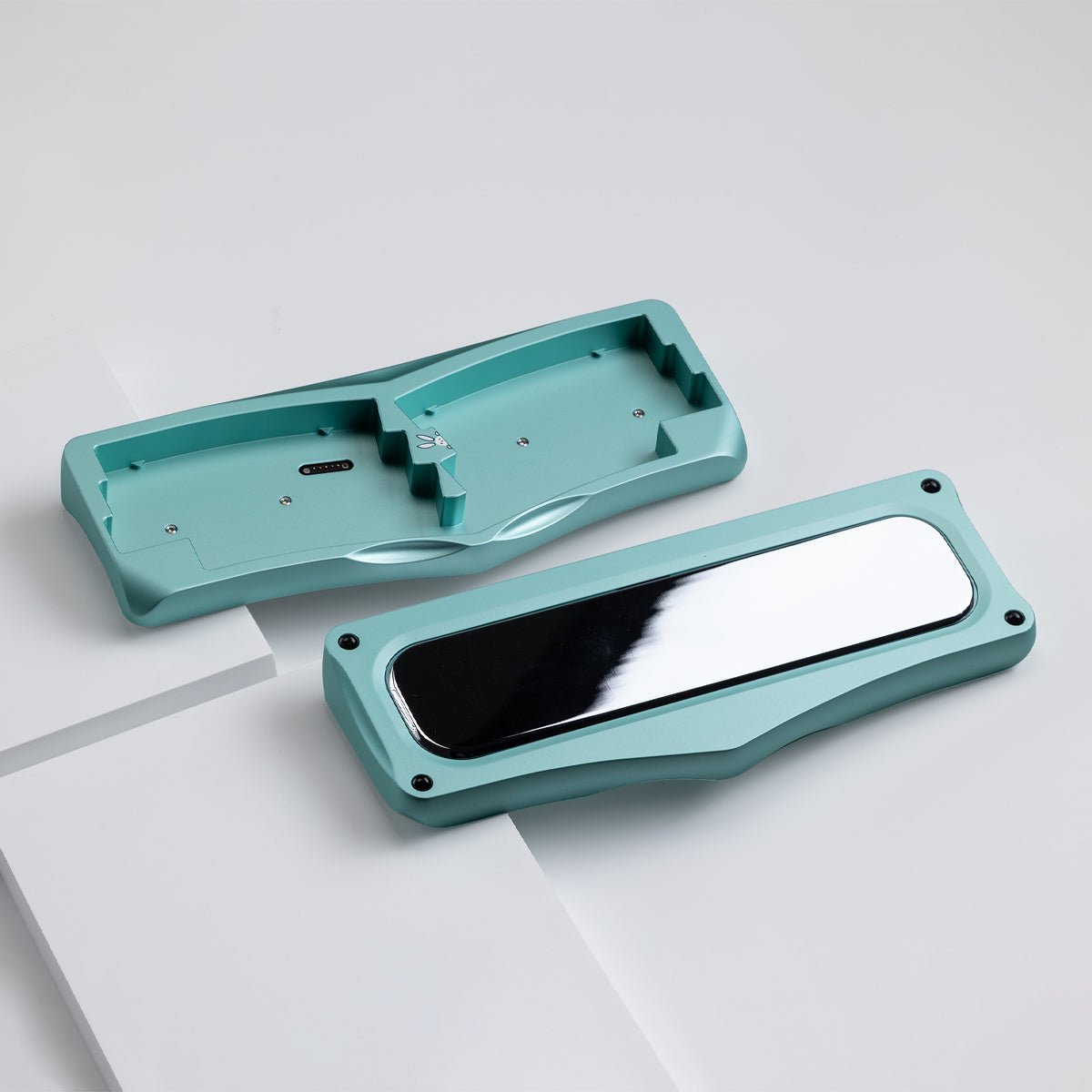

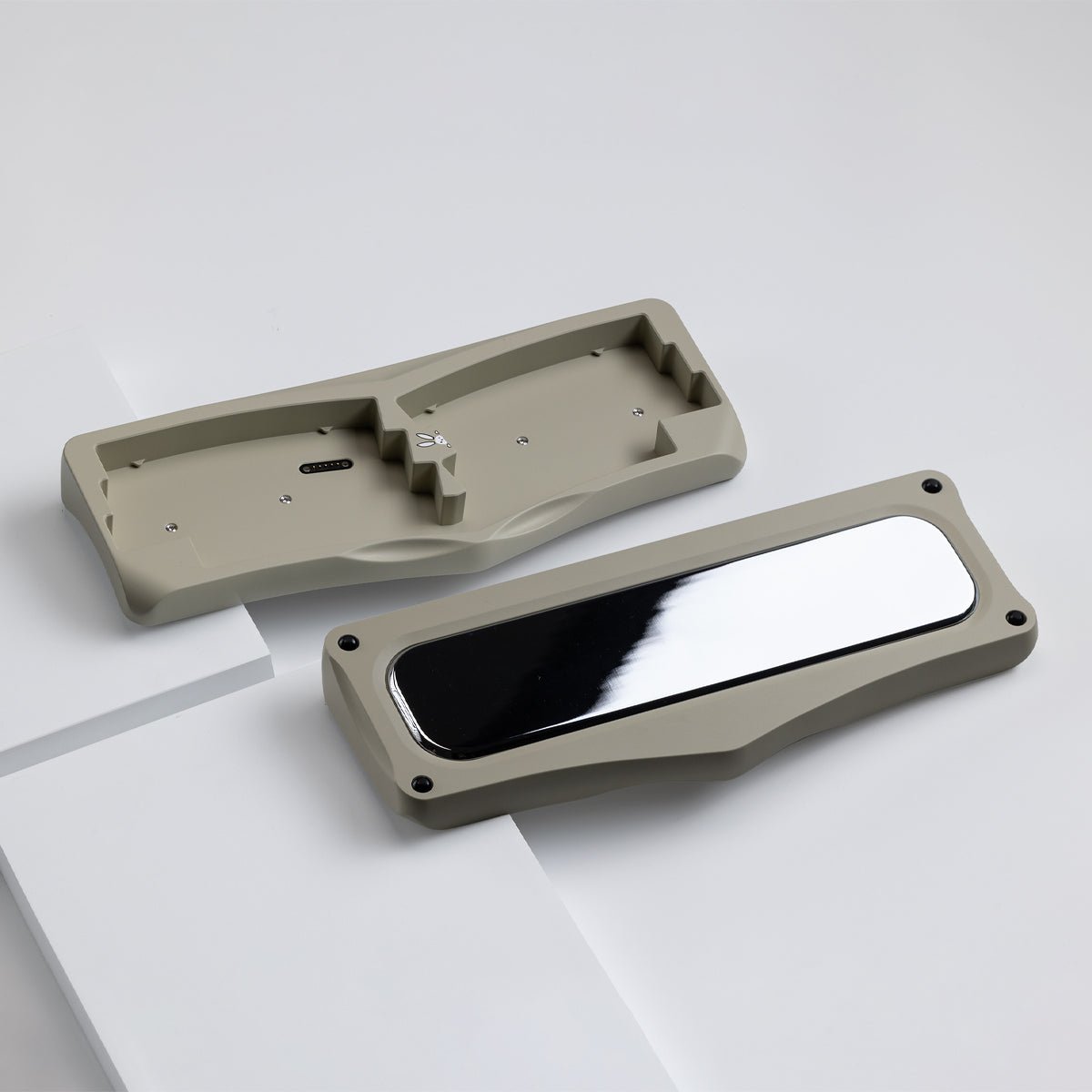

PVD Stainless Steel:
Crafted from high-quality stainless steel with a flawless PVD mirror finish. It offers a deep, reflective, and ultra-smooth surface, embodying a minimalist and luxurious aesthetic.

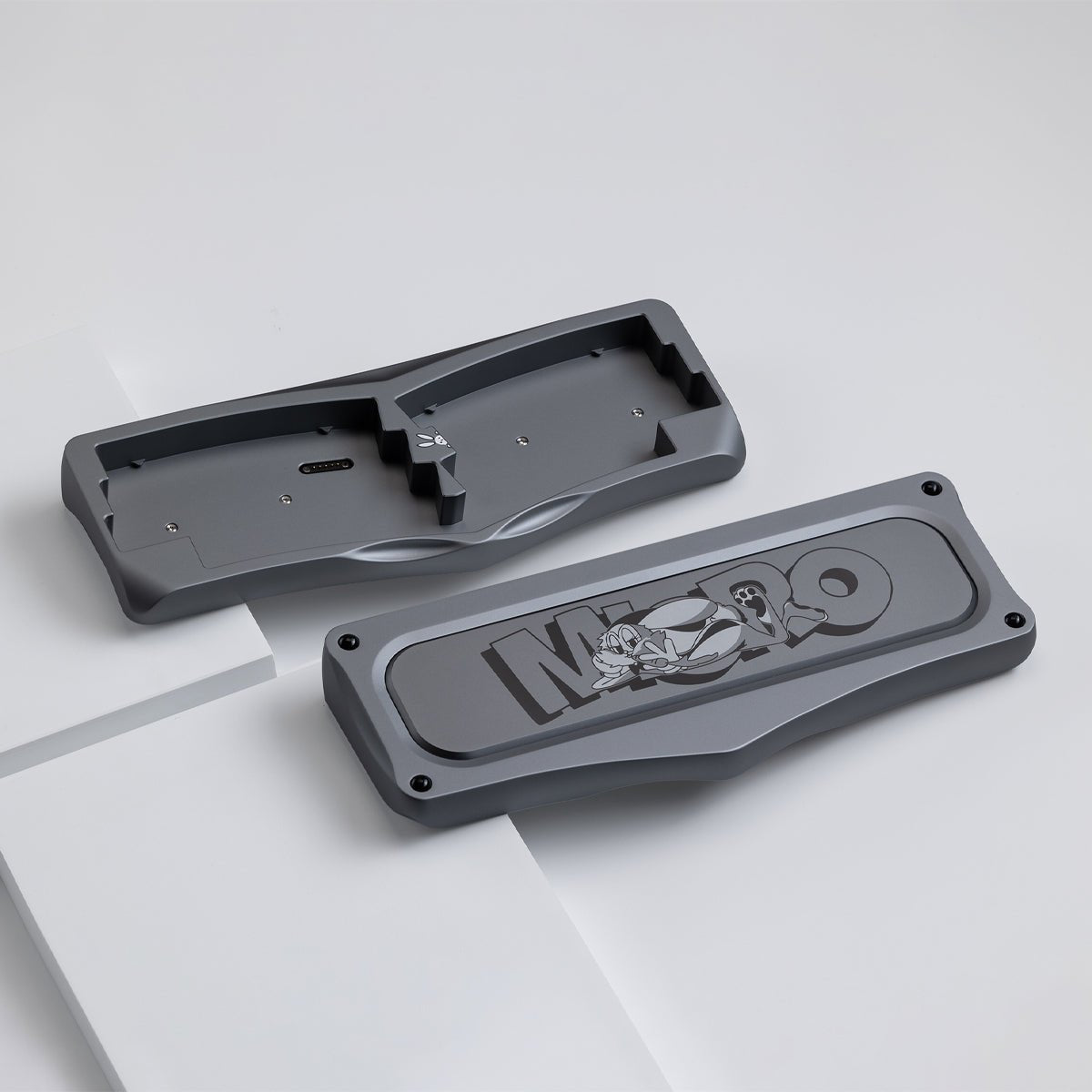

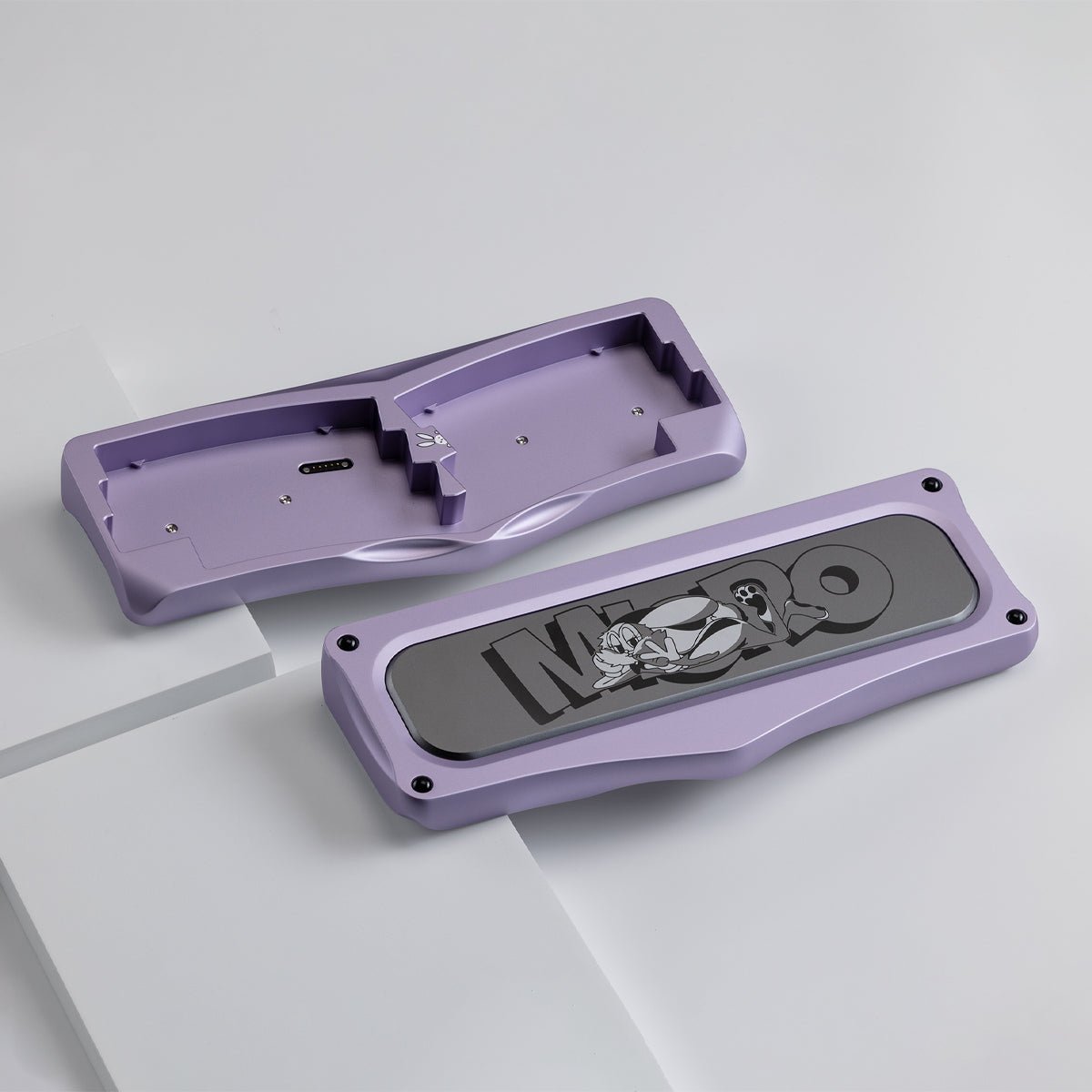

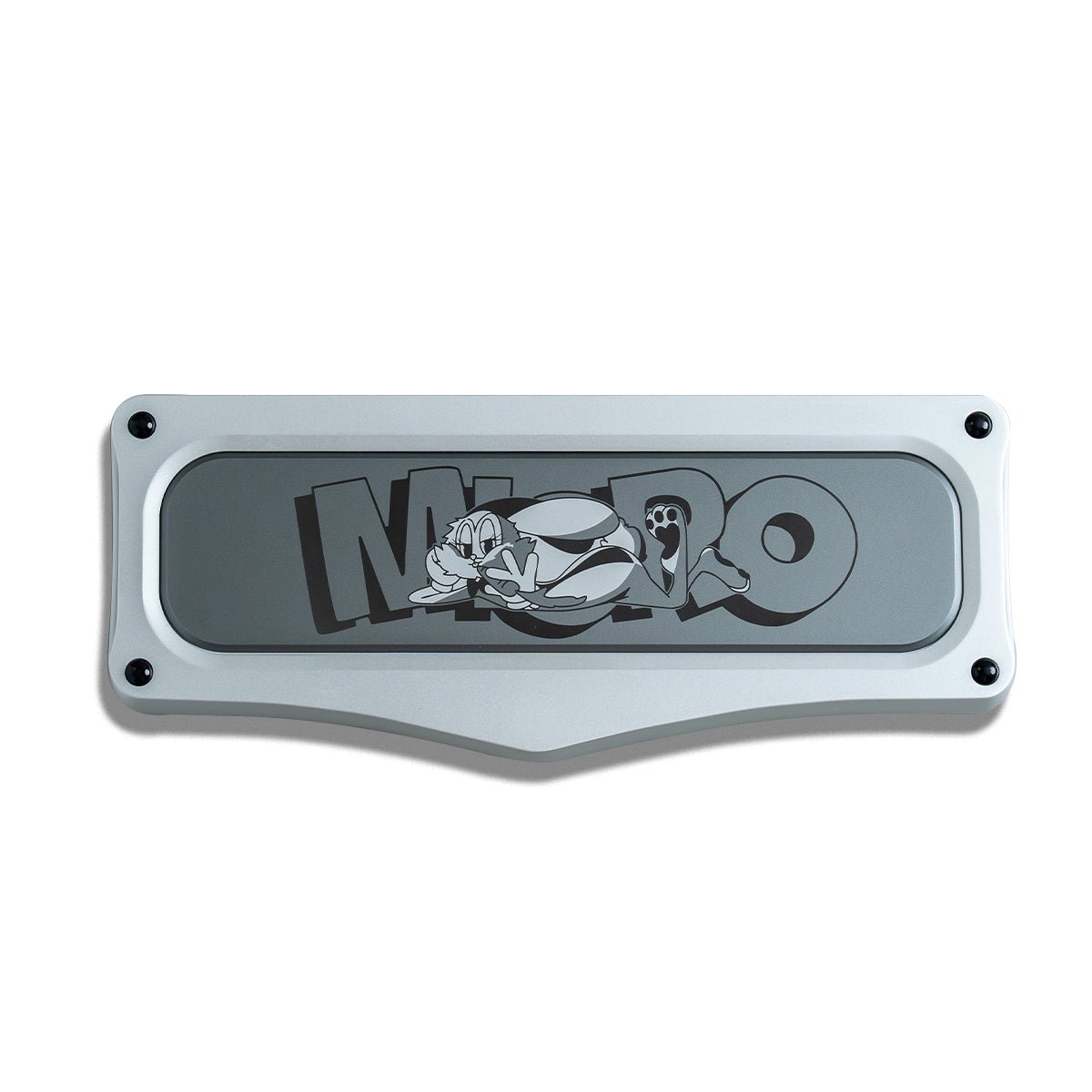

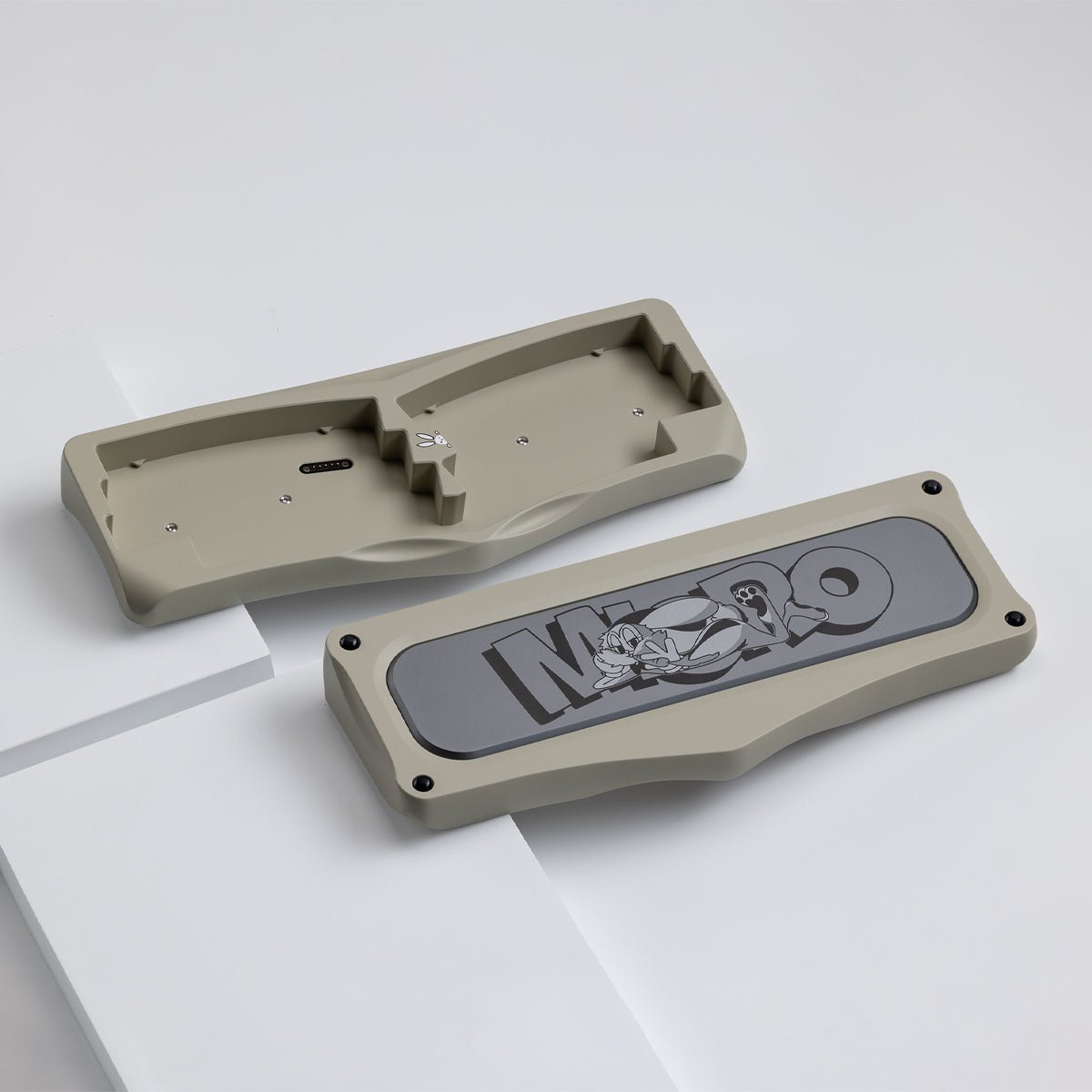

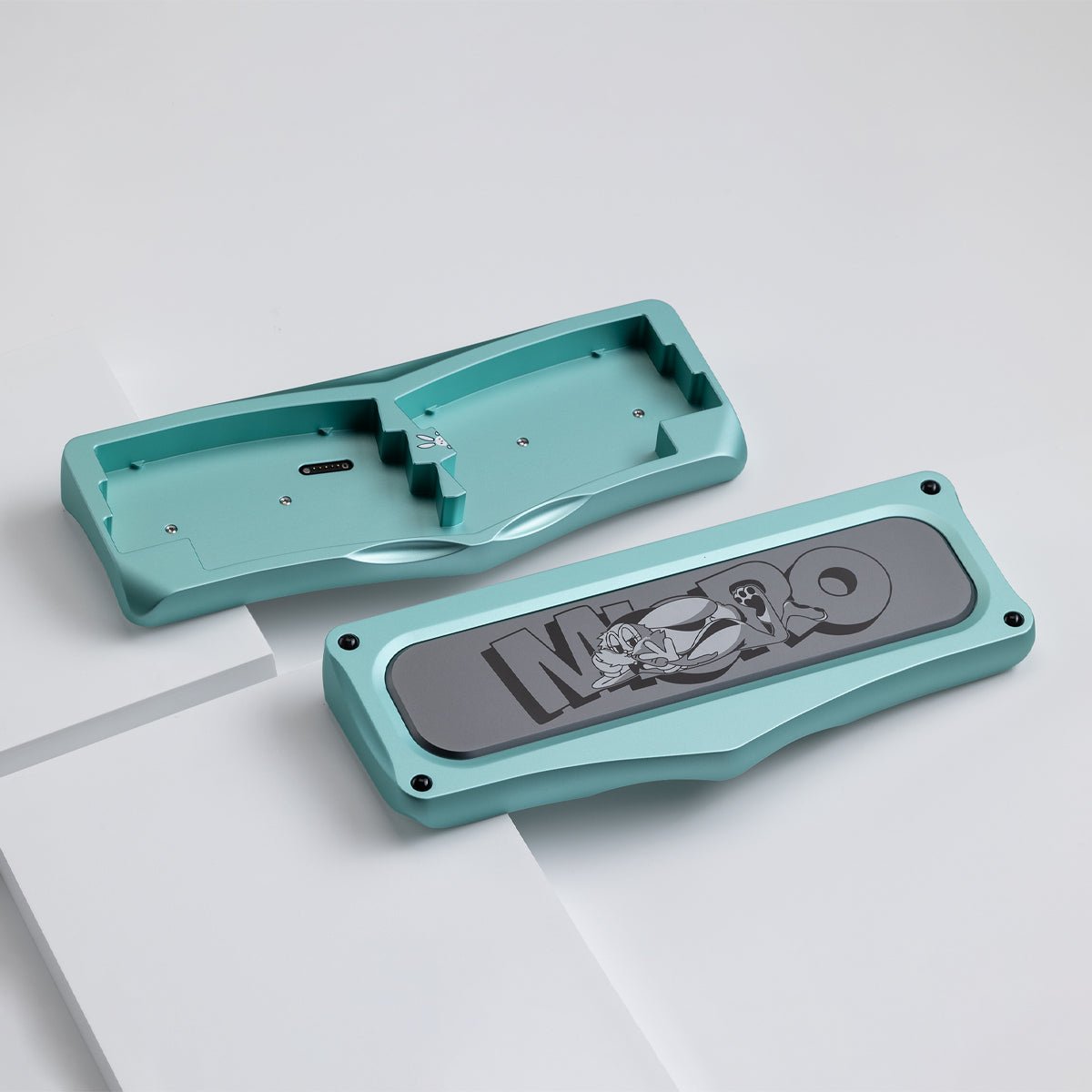

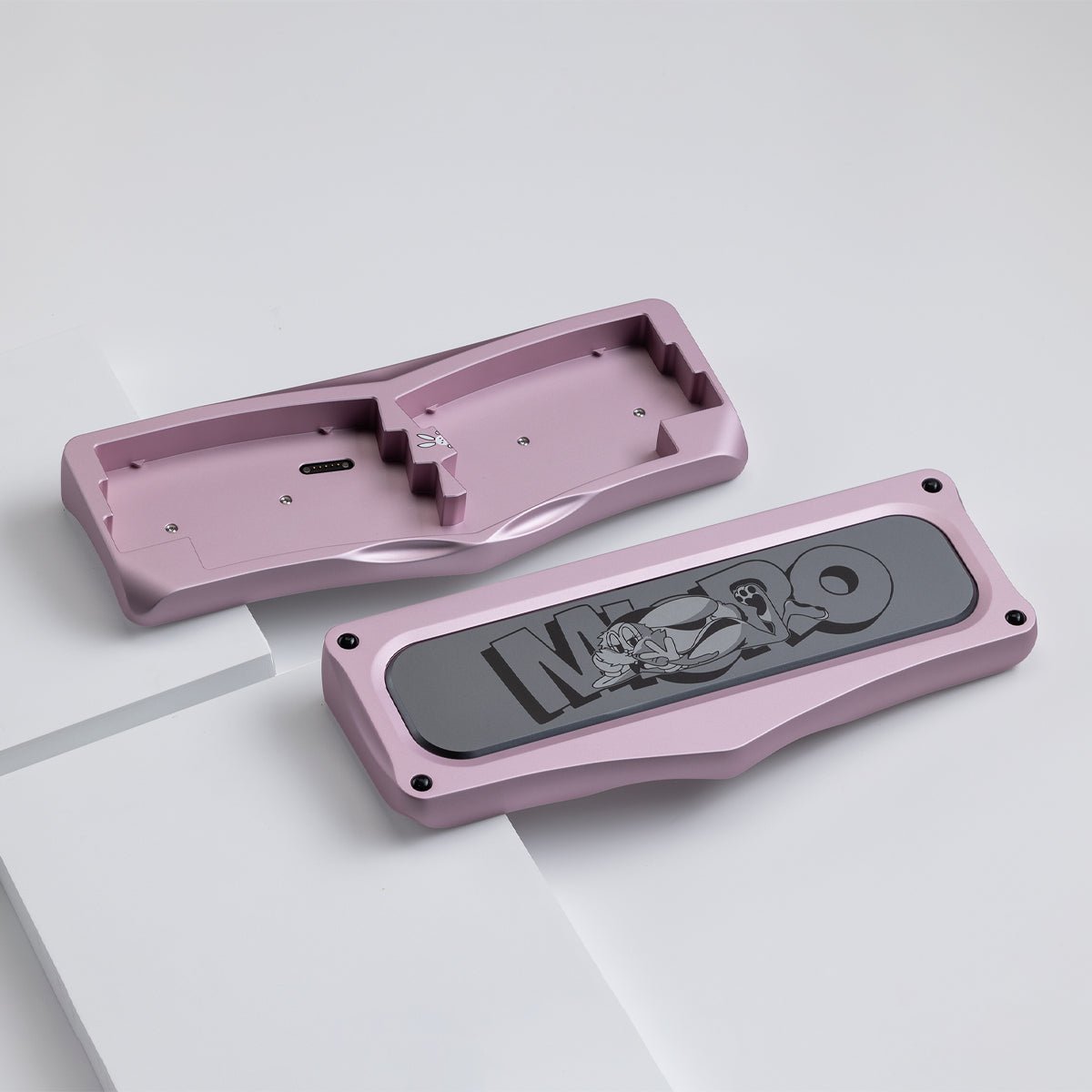

Tri-Color Aluminum:
Showcases an advanced anodization process that blends three vibrant oxidized colors onto a single piece. It features intricate engravings and the playful "MICRO" logo, integrating the signature "rabbit nose" motif for a touch of character.
