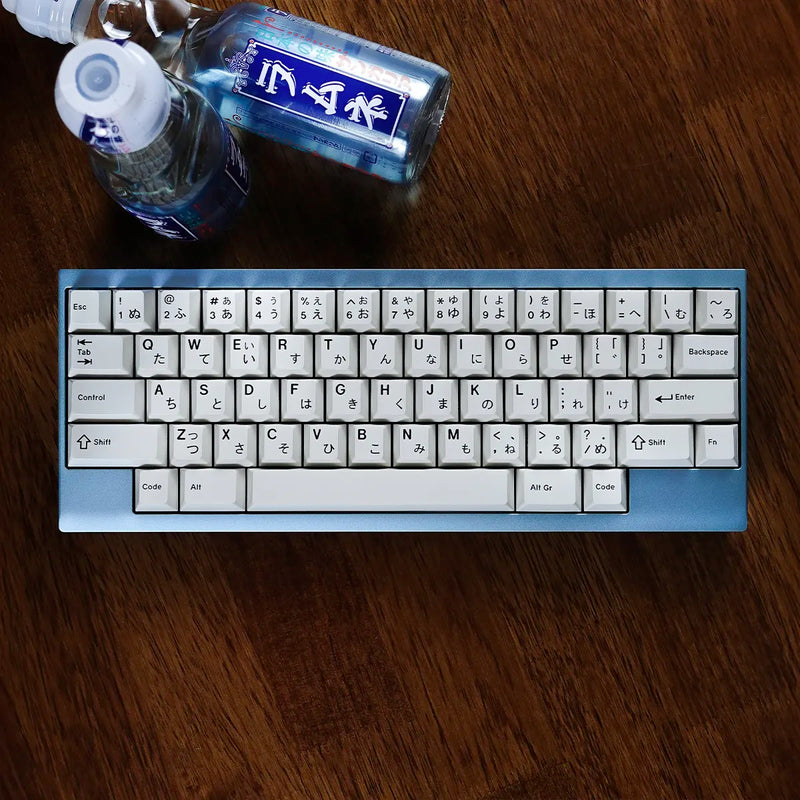

Hatoworks Ramune60 Keyboard
Hatoworks Ramune60 Keyboard is inspired by Ramune, the iconic Japanese soda known for its playful charm and distinctive glass bottle. The keyboard captures the refreshing this through both its aethetics and sound. The low-profile case enhances usability while perfectly matching the light and breezy concept.
Groupbuy Start: September 15, 2025 - October 5, 2025
Estimate Shipping Time: Q2 2026 (subject to change due to keyboard demand)
Hatoworks Ramune60 Keyboard Features:
- 60% Keyboard
- Layouts Support:
- HHKB: Solder, Hotswap
- WK: Solder, Hotswap, Venom60 HE 6.25U/7U, Venom60 MX 6.25U
- WKL: Solder, Hotswap, Venom60HE 7U
- Mount: Gasket PORON LE-20
- Top Case Material: Anodized Aluminum 6063
- Bottom Case: PC Dyed, Acrylic, PEI
- Weight: Stainless Steel 304, Bead Blasted
- Supported PCB's (sold separately):
- Stadard MX PCB:
- QMK/VIA Support
- Underglow RGB
- Polling Rate: 1KHz

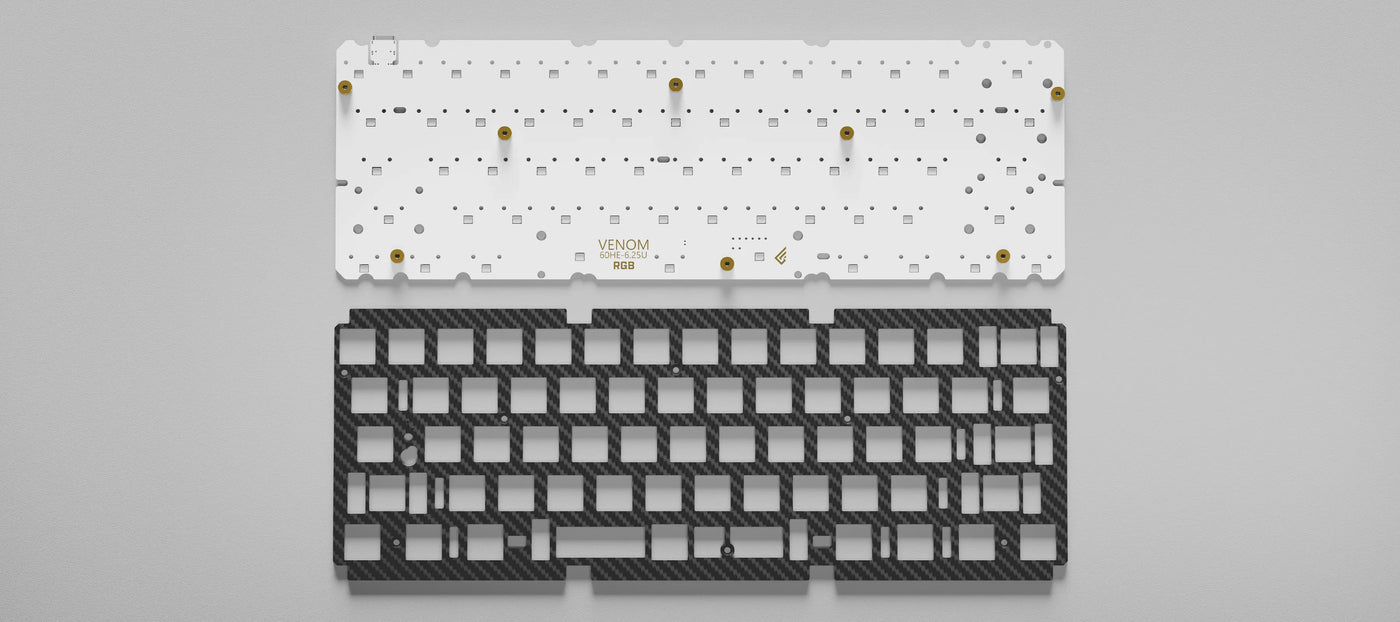

- Hall Effect PCB: Venom60 (6.25U or 7U)
- Venom HE Powered
- Underglow RGB, Per-key RGB
- Polling Rate: 8KHz
- Separate plate must be purchased separately
- Venom MX PCB (Gaming): Venom60 MX 6.25U, 8KHz Polling, QMK/VIA Support
- Stadard MX PCB:
- Plate: PP (Base Option) // Aluminum, PC, PEI optional
- Typing Angle: 9°
- Front Height: 16.65mm
- Weight: 1.1kg built

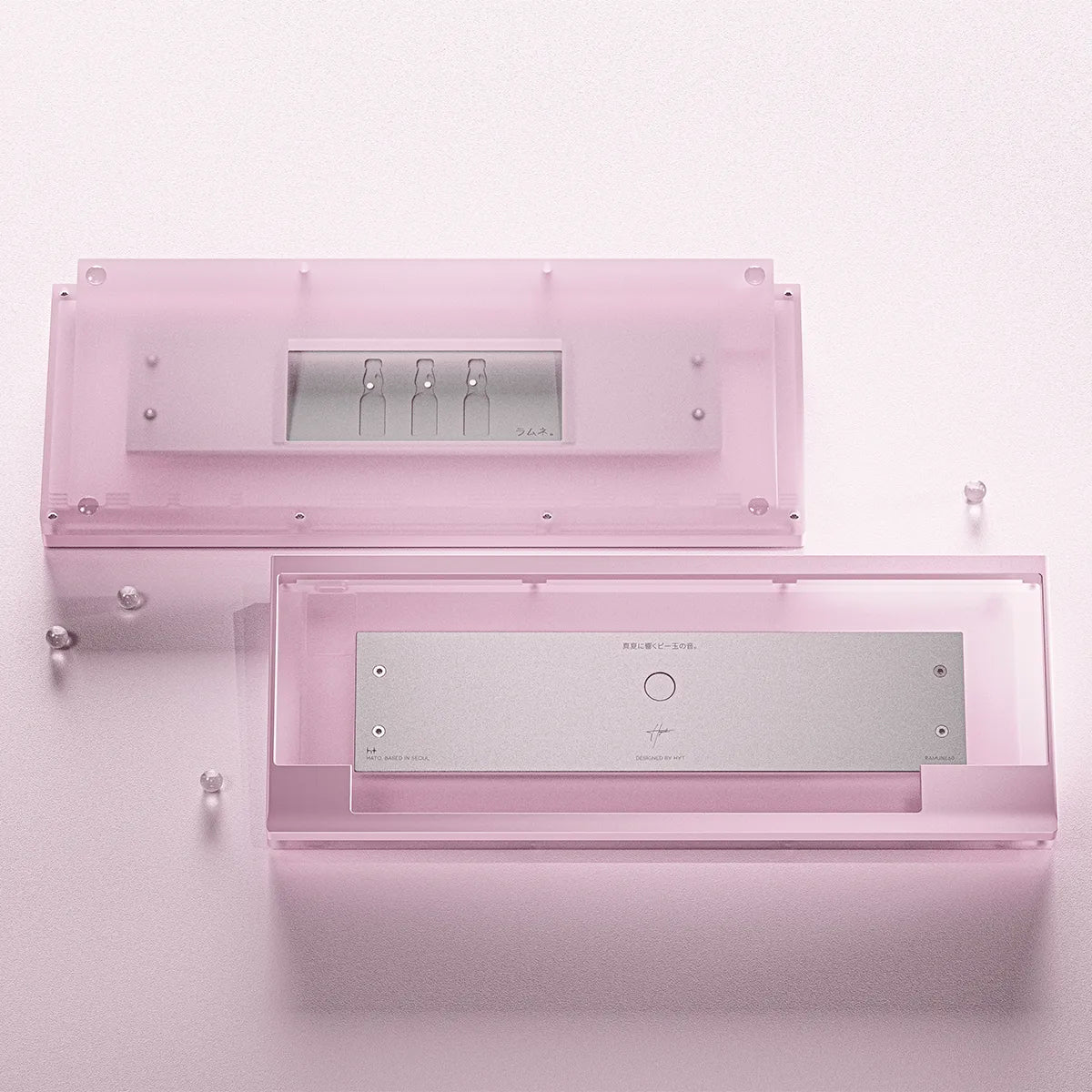

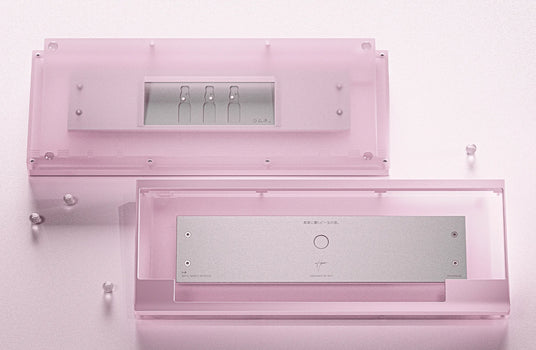

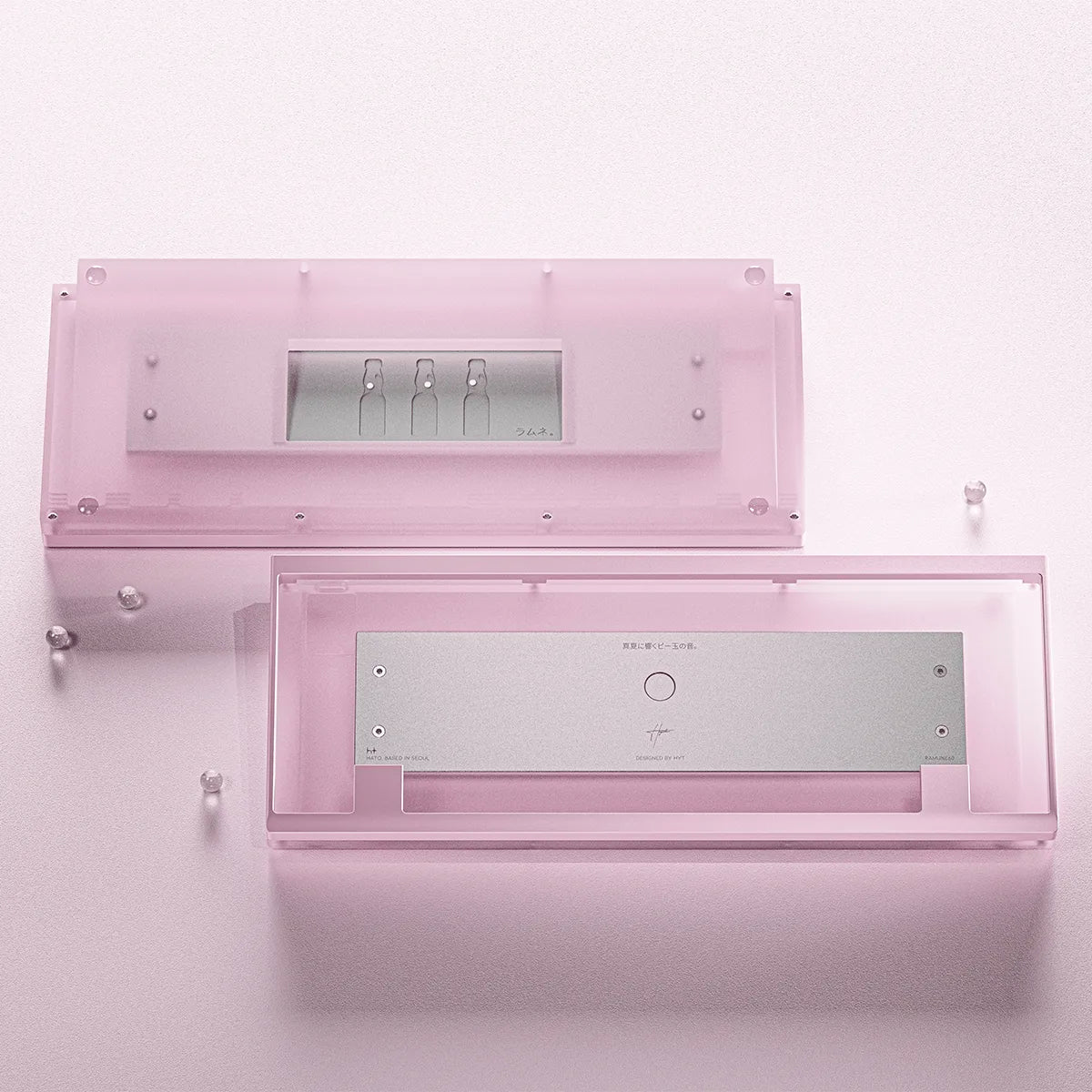

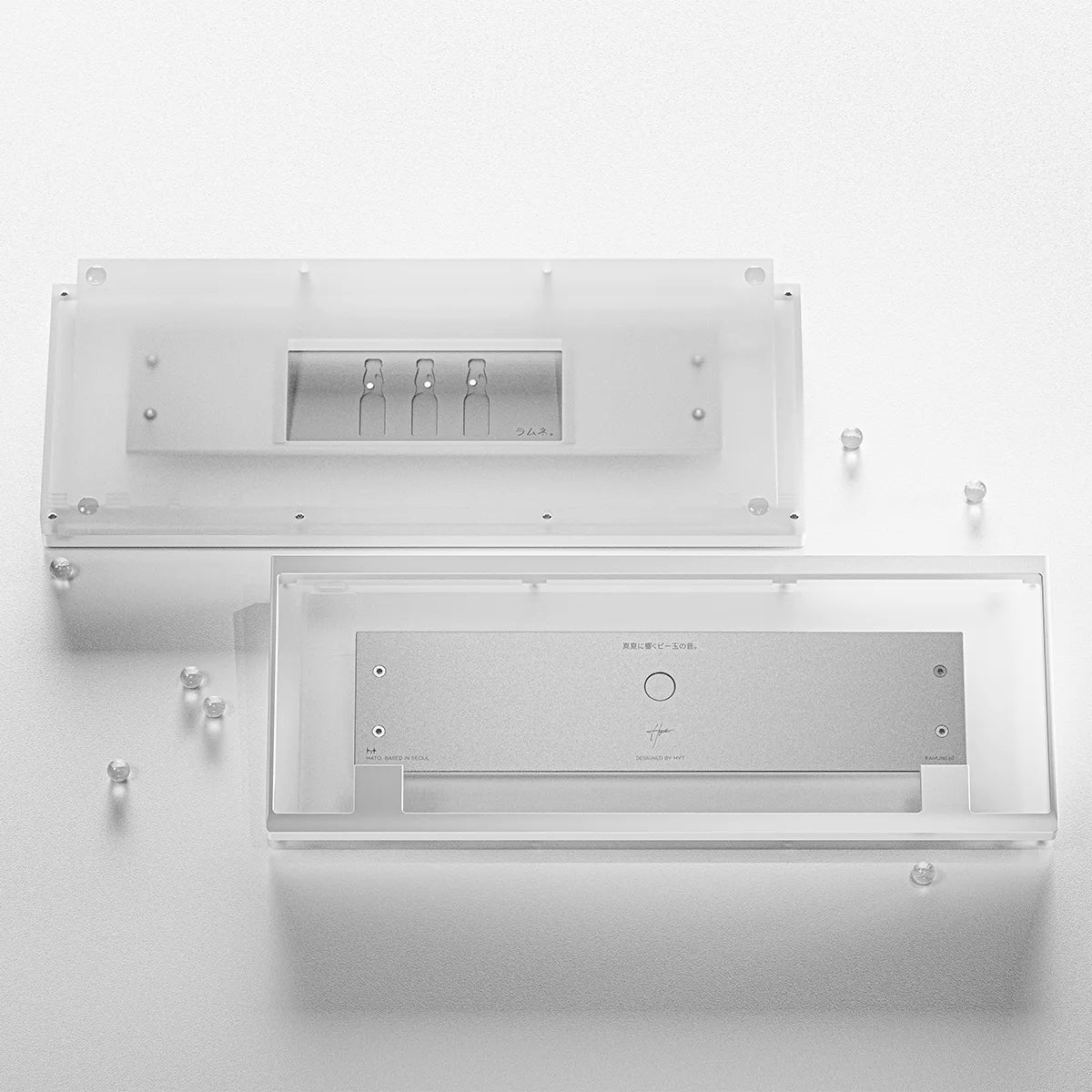

- Available in: Ramune Blue, Momo Pink, Ice Silver, Kuro Edition (Black)
Compatible with:
Includes:
- 1 Top Case
- 1 Bottom Case
- 1 Weight
- 1 Acrylic Panel
- 1 PP Plate
- 1 Set Bumpons & Gaskets
- 1 Set Screw & ID Card
- 1 Screwdriver
- 1 Carrying Case
Ramune60
Groupbuy starts:
Hato Ramune60 Keyboard

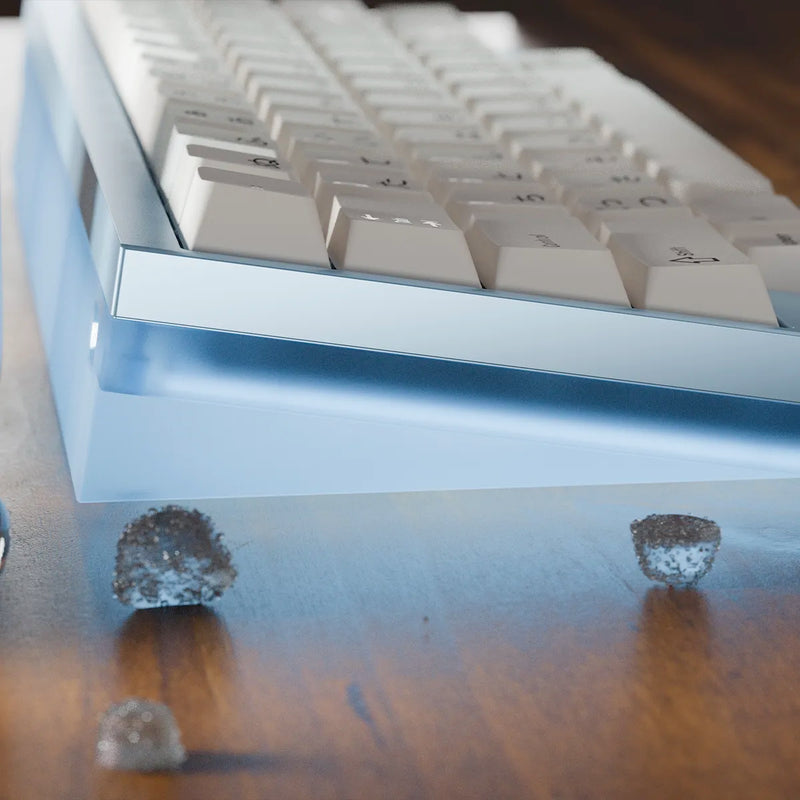

This keyboard captures the refreshing character of Ramune through both its aesthetics and sound. The low-profile case enhances usability while perfectly matching the light and breezy concept. Additionally, a carefully tested and tuned Poron gasket delivers a crisp and clear typing sound that complements the overall design.

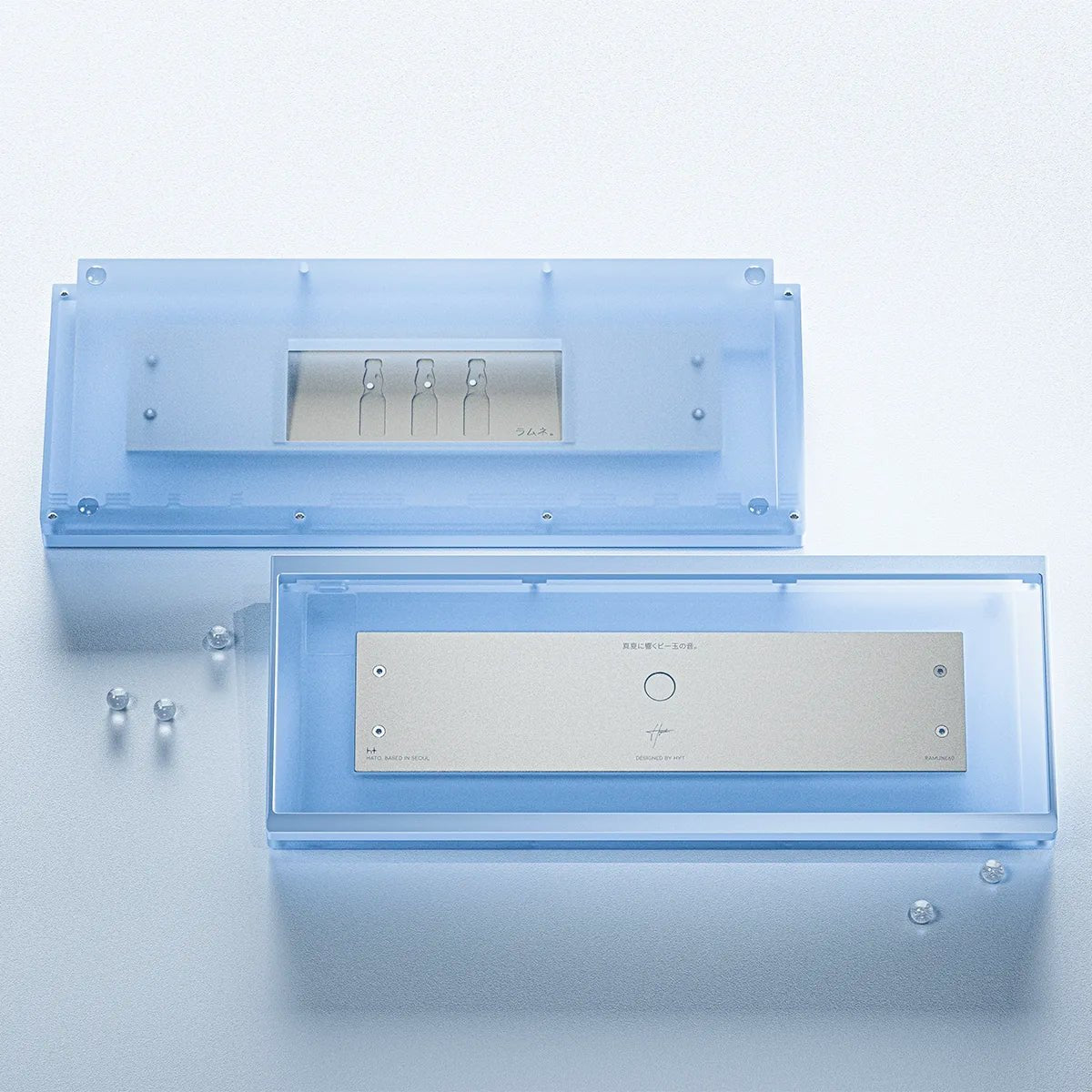

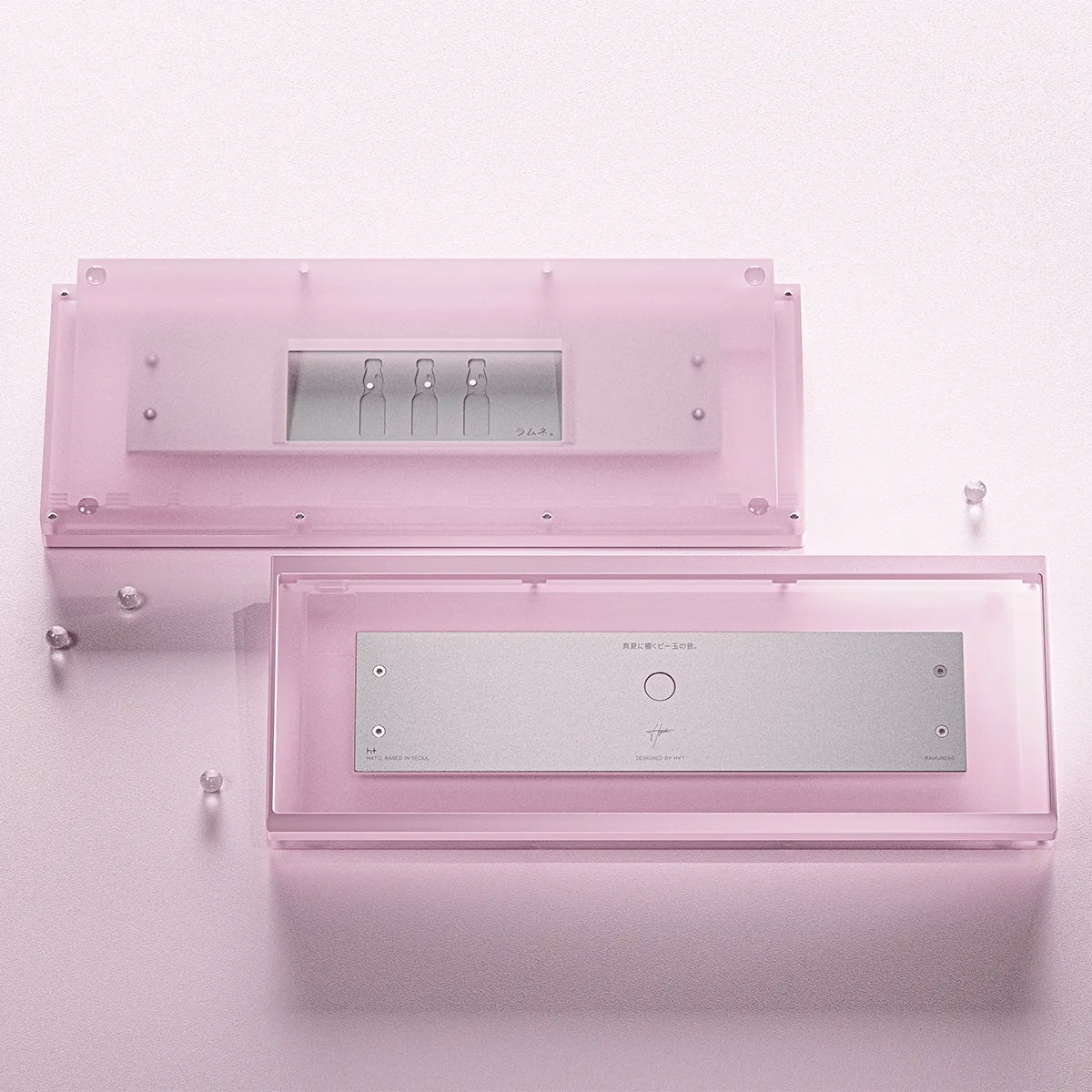

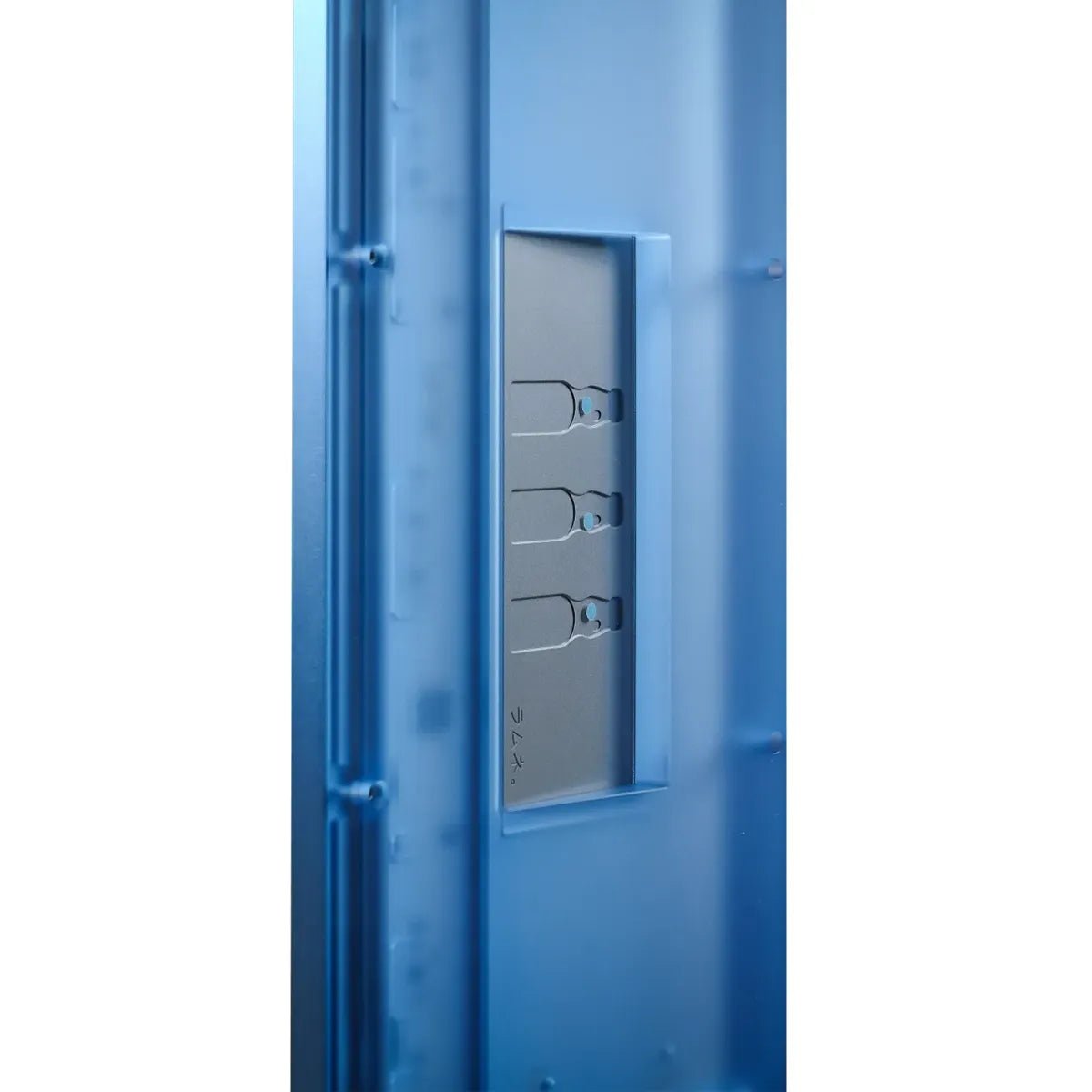

The Bottle, Its Cap, And The Marble

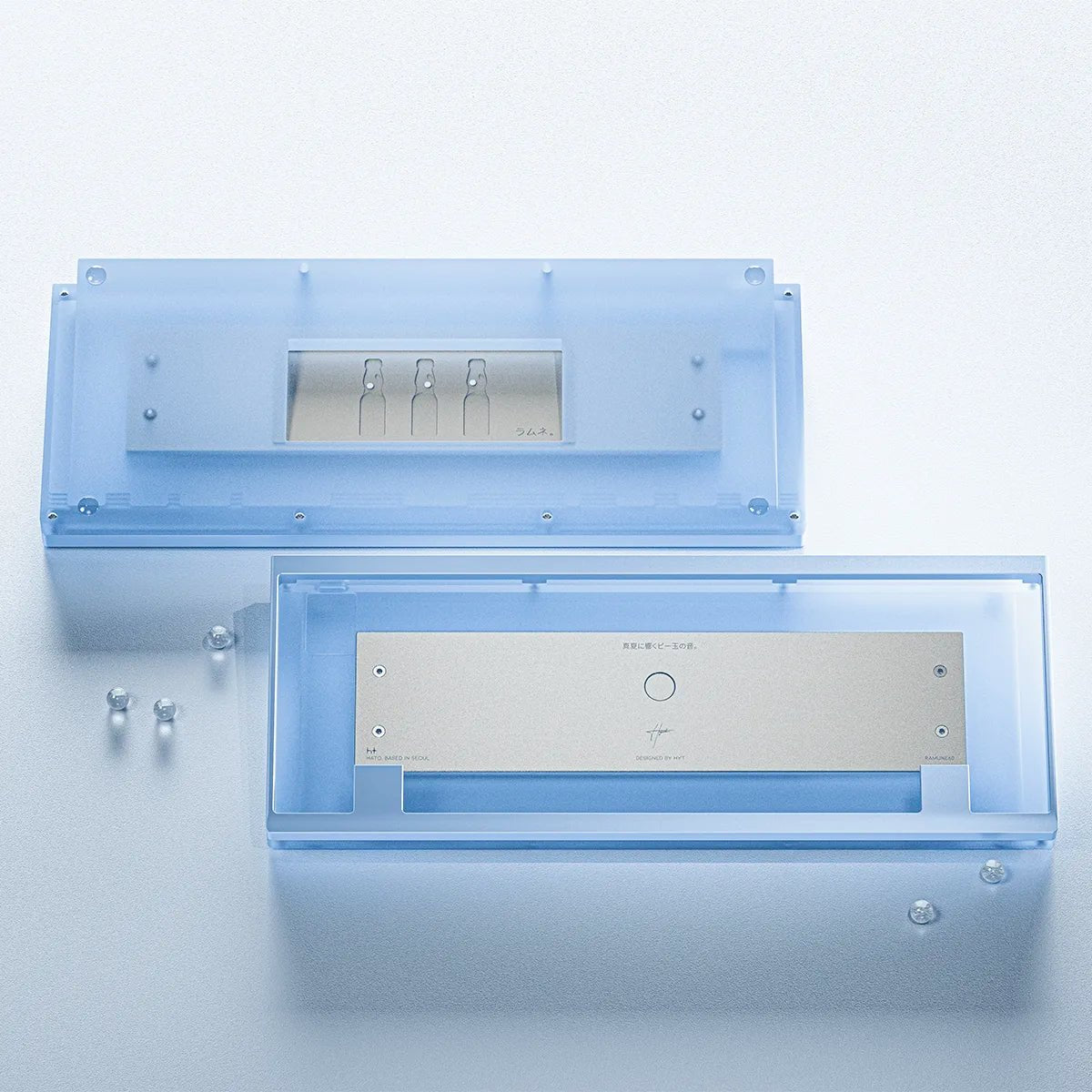

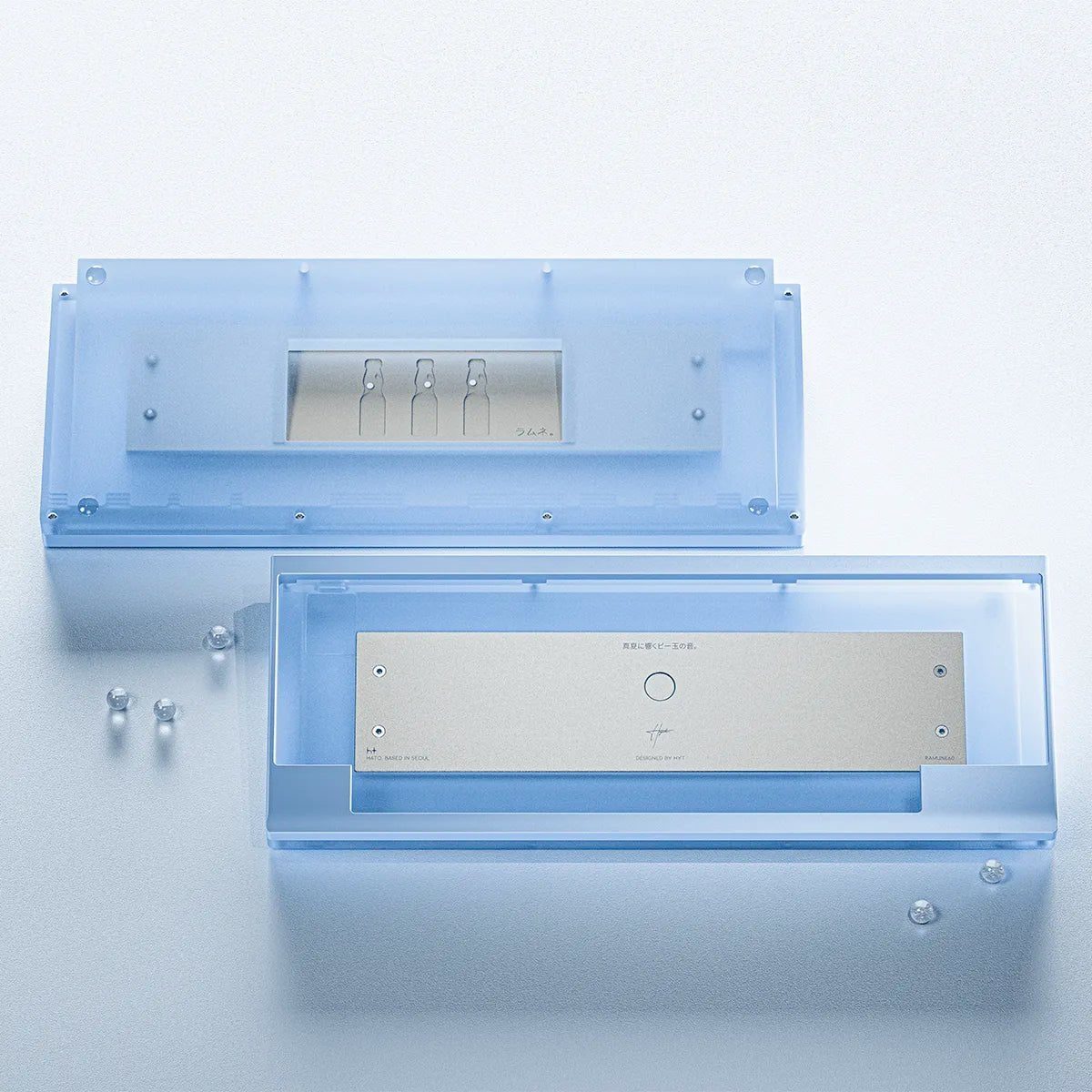

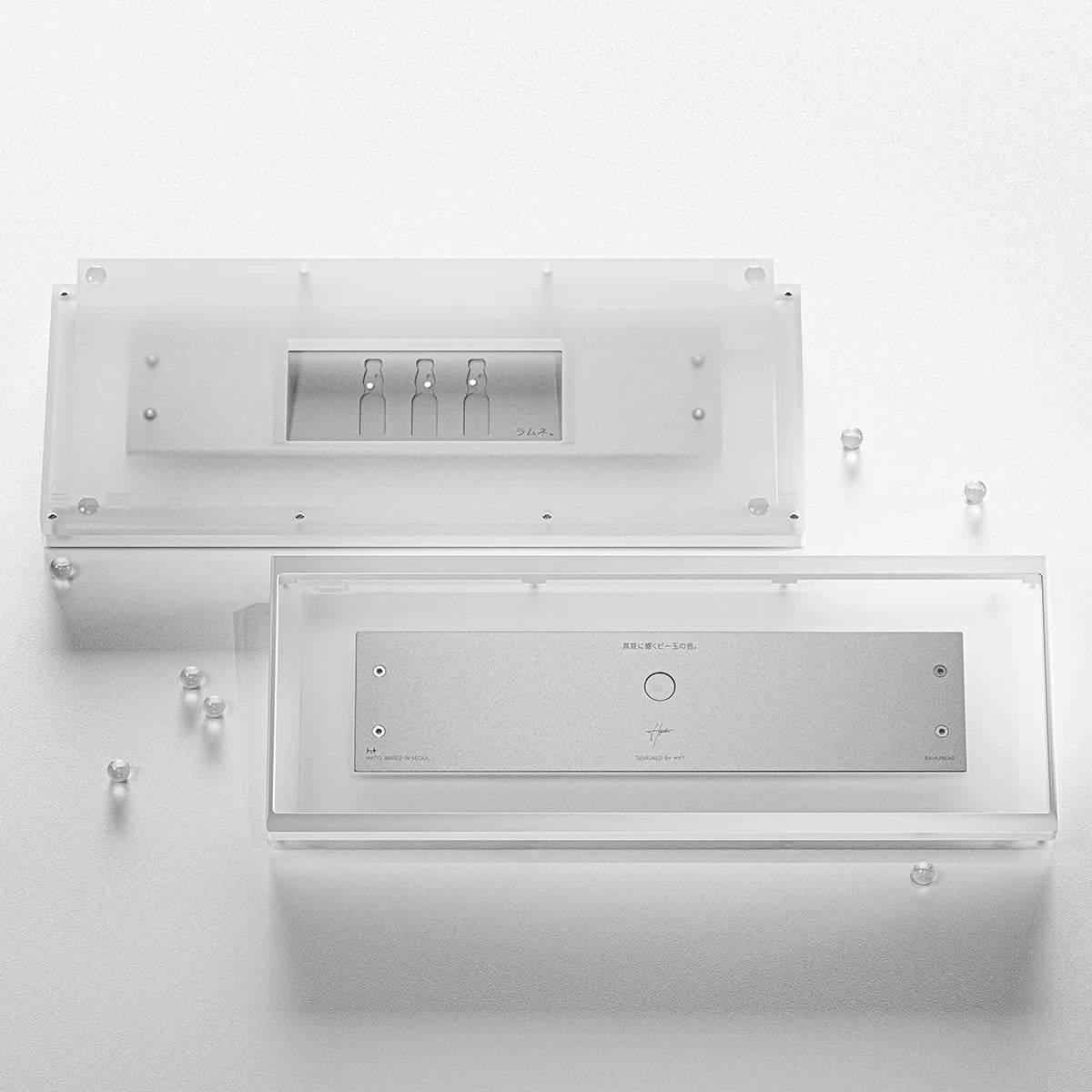

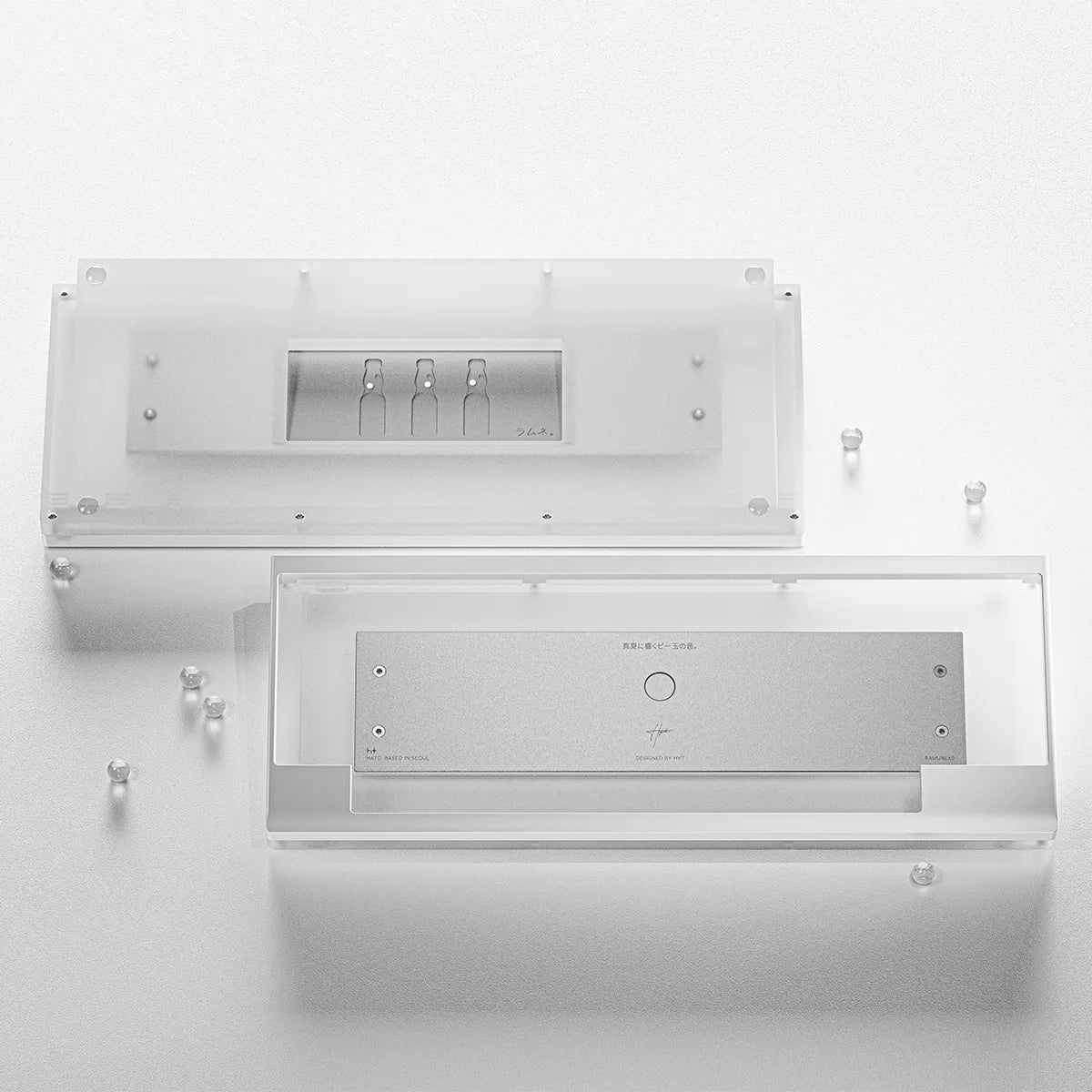

Anodized 6063 aluminum top, dyed and sandblasted polycarbonate bottom, stainless steel 304 weight, and a clear backplate cover engraved with a Ramune marble.

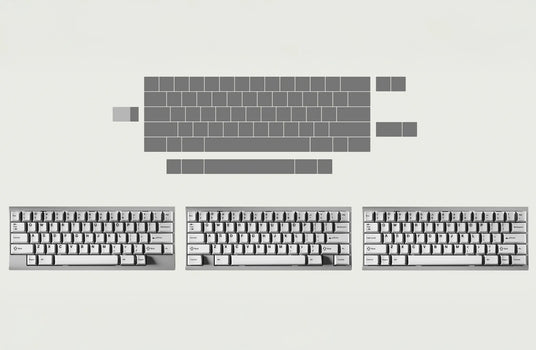

Layout and PCB
The Ramune60 offers three case layout options:
- True HHKB
- WKL
- WK
Both the solder and hotswap PCBs support underglow RGB lighting, and are compatible with Stepped Caps Lock, split Backspace, split Right Shift, and the 6U HHKB layout.

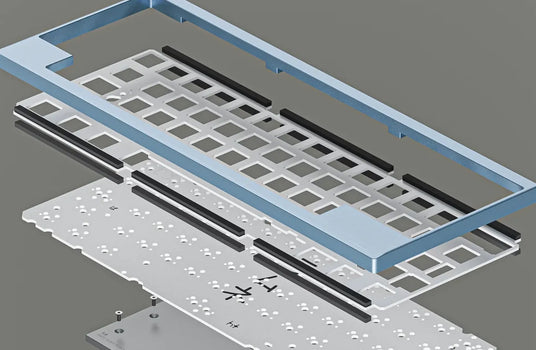

Poron LE-20 Gasket Mount
Ramune60 uses a Poron LE-20 gasket mount to deliver a crisp, classic typing feel. Poron LE-20 is prized for its distinctive sound signature and compression characteristics, and has been used as a benchmark in revered builds from Kohaku to Keycult.
By adopting this mounting approach, Ramune60 channels those proven design cues to offer a refined, responsive typing experience.

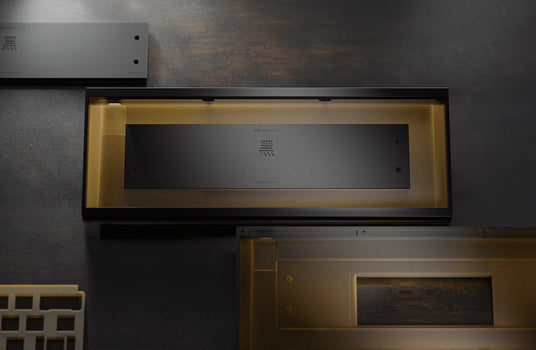

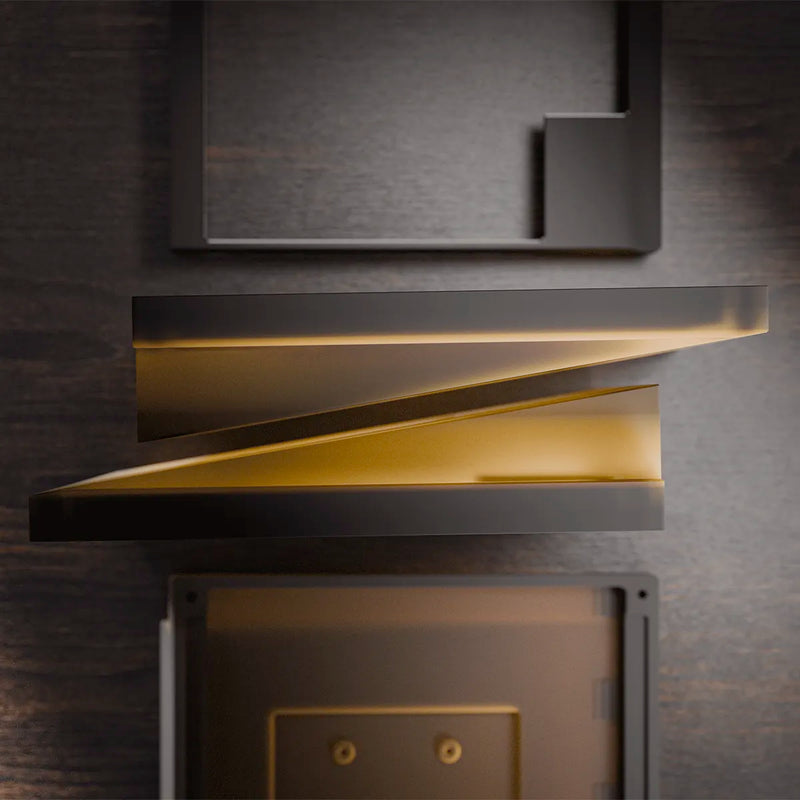

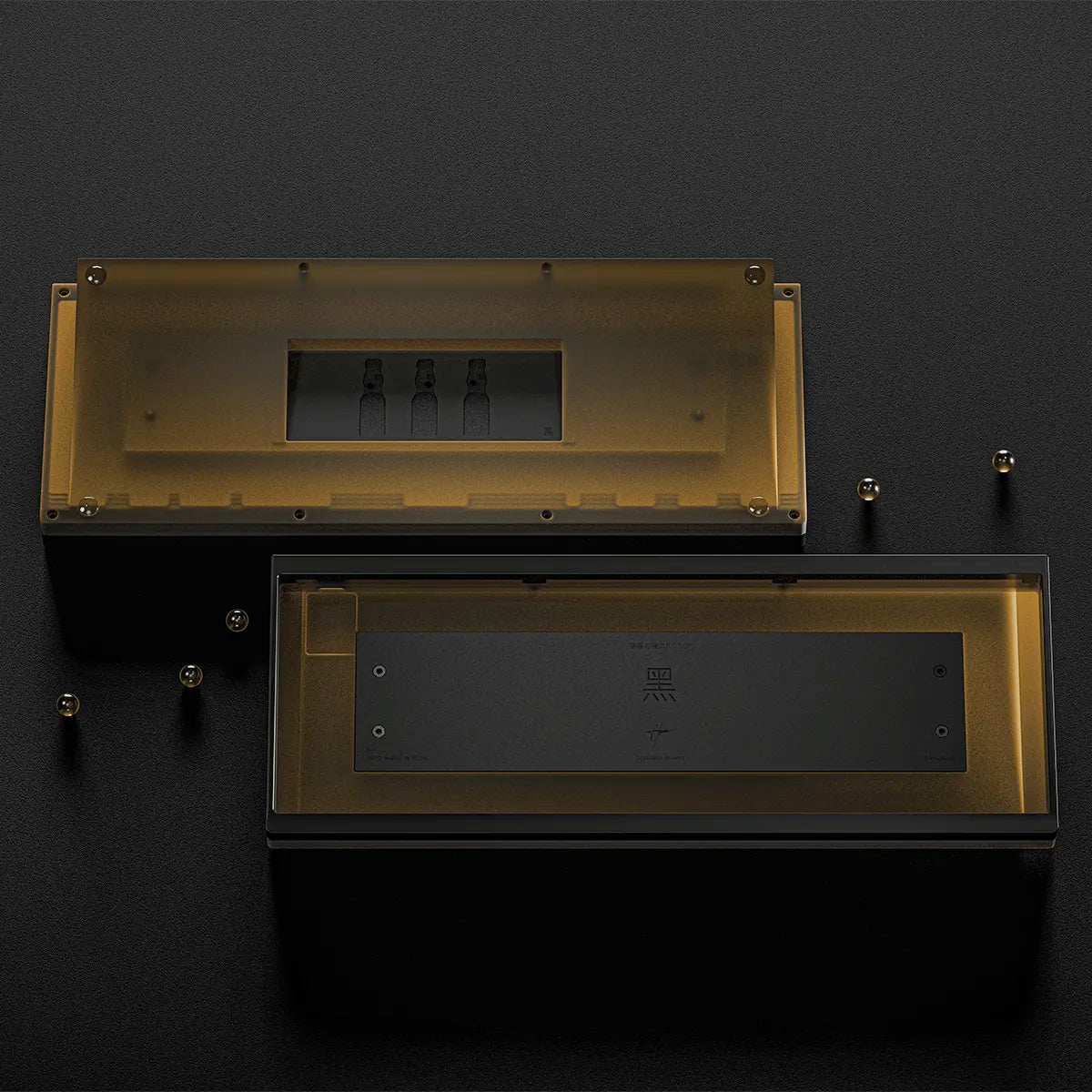

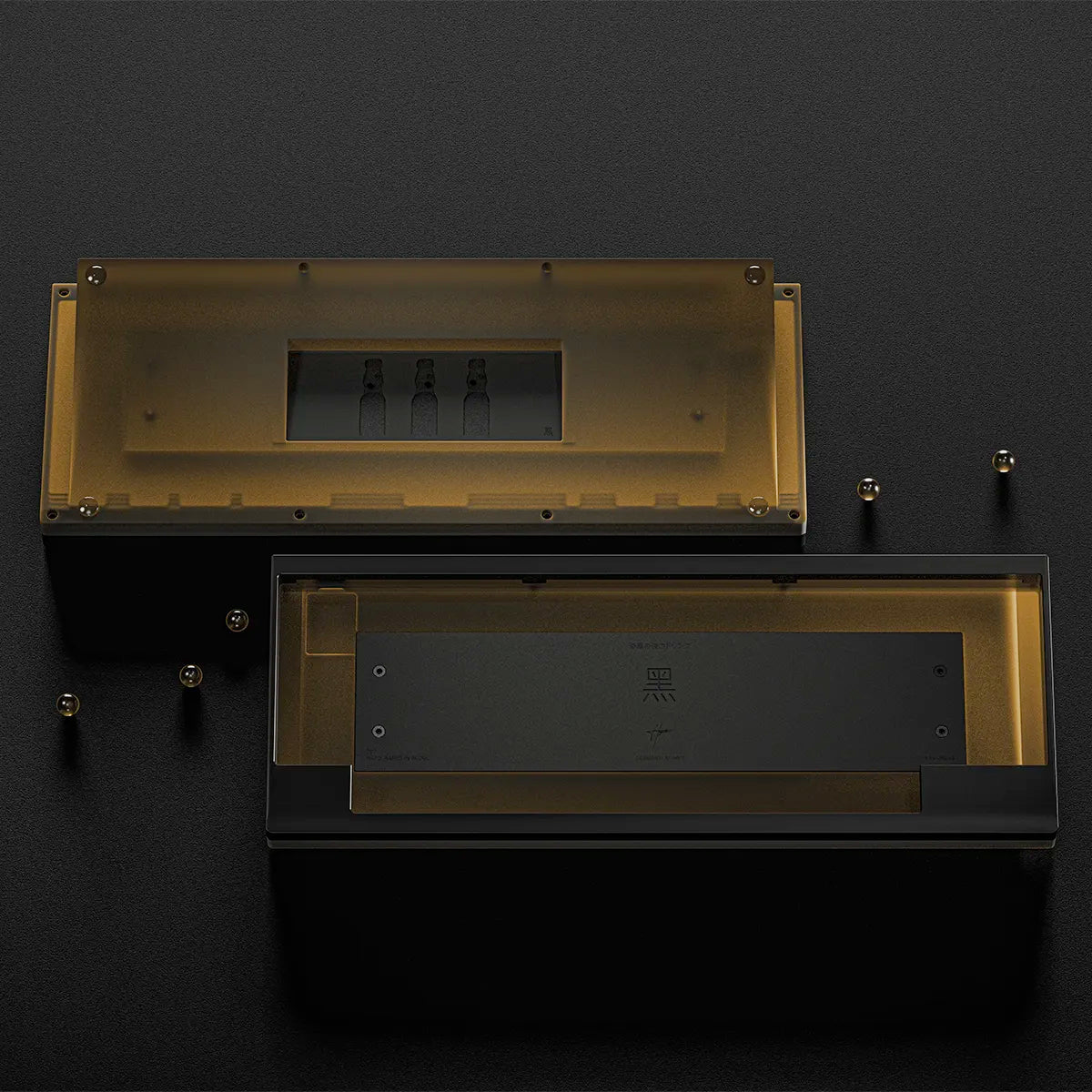

Special Edition: KURO
The Kuro Edition elevates Ramune by extending PEI beyond the plate to the entire bottom case for a sharper, more resonant tone than PC. All parts are unified in black, while the top case and weight are finished with a fine zirconia blast for a smooth, premium look.
