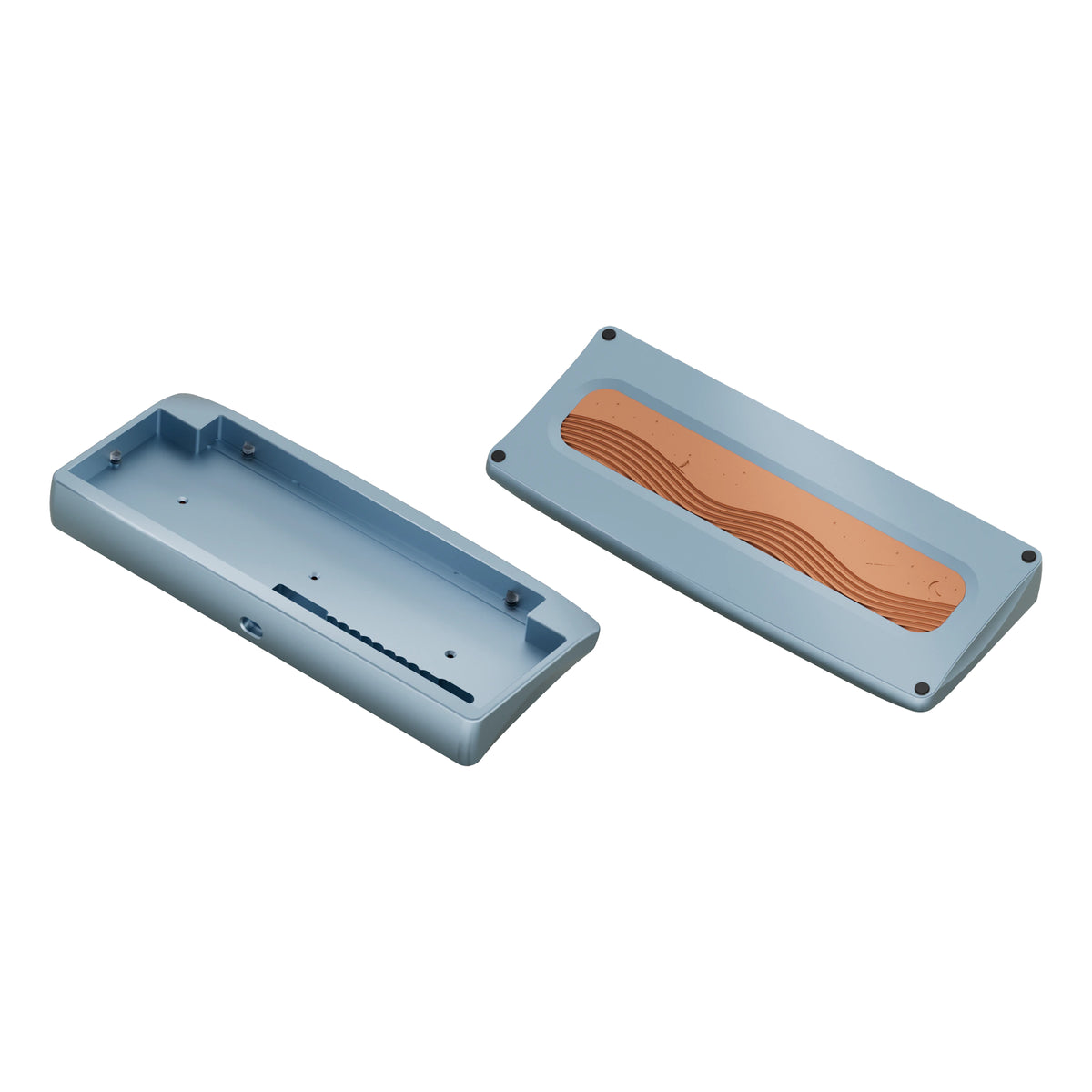

KBDfans Agar Keyboard

$145.00
Color
PCB
Plate

Shipping Information

All items are shipped from our facility in Southern California, US. No additional custom fees or tariffs will be charged once checked out.

Shipping & Handling Page

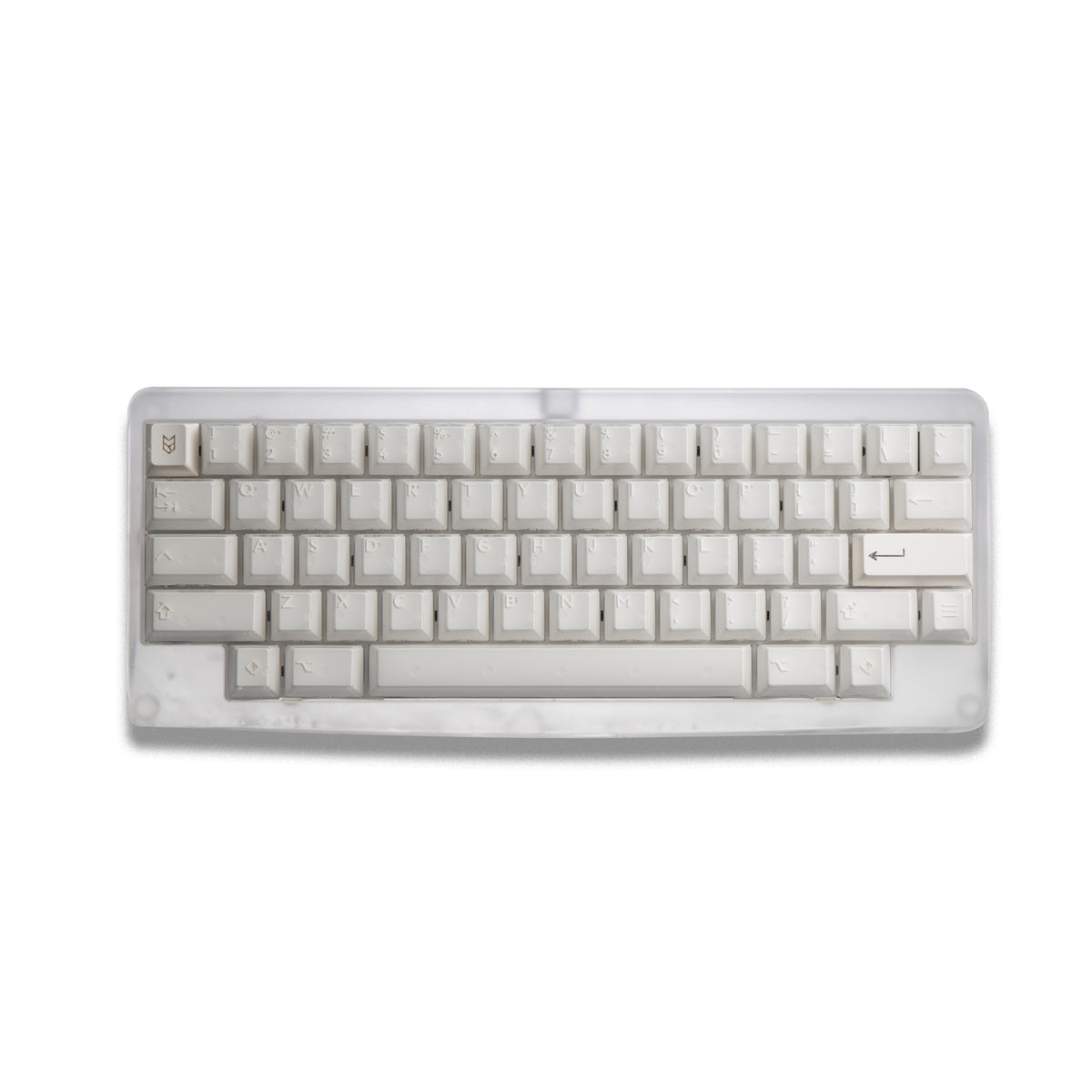

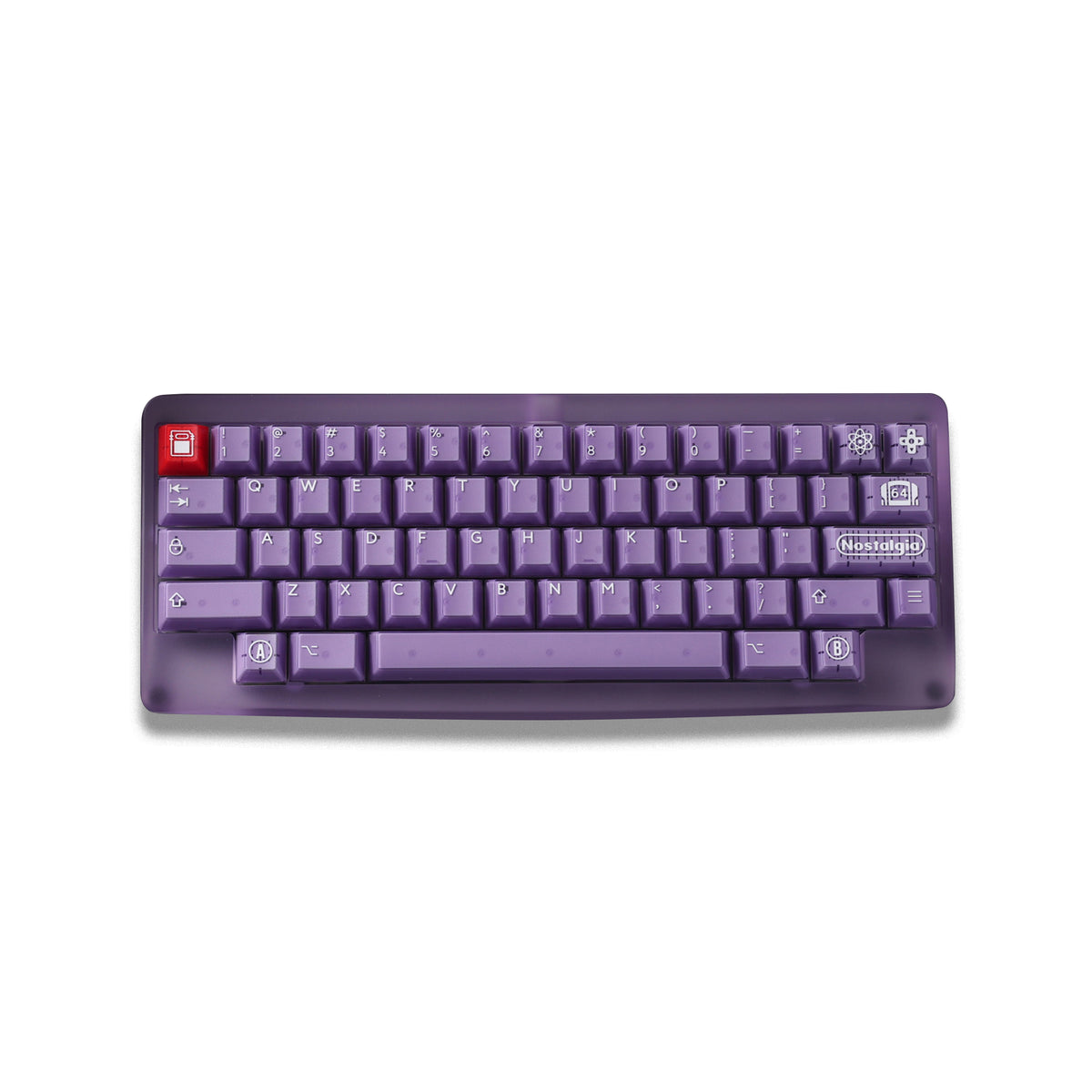

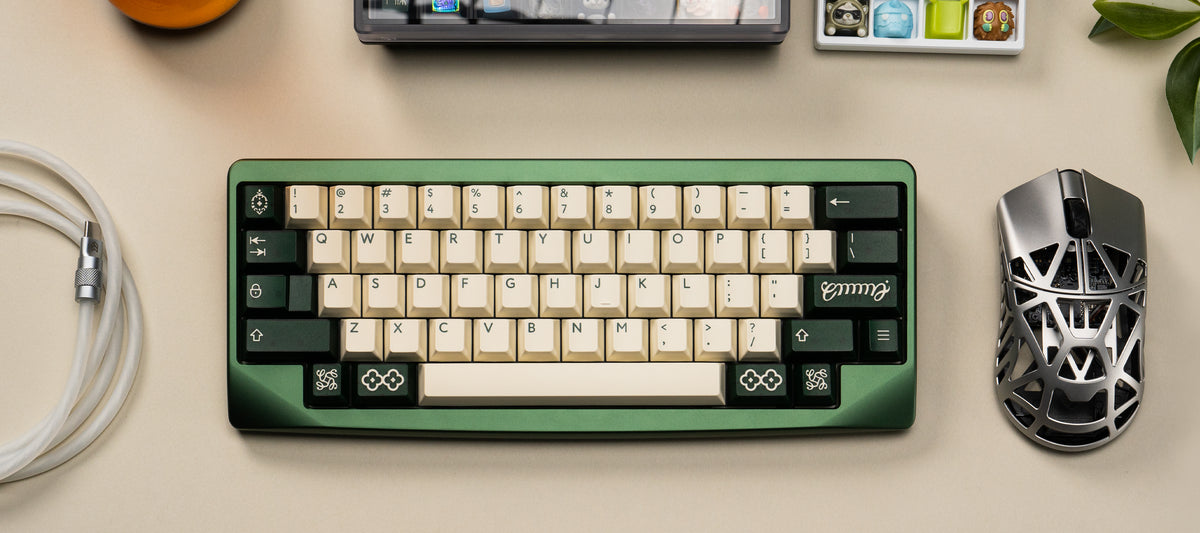

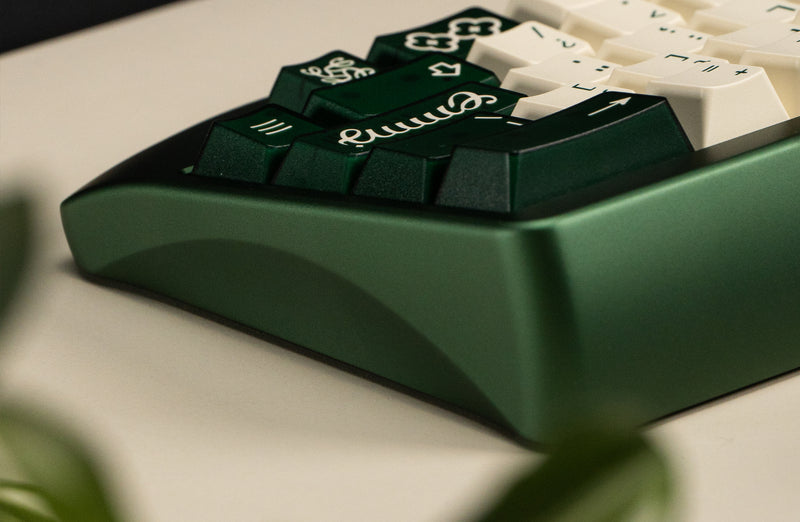

KBDfans Agar Keyboard is the start of the Agar series from different layouts to even screw trays. The Agar showcases a simple yet elegant design with curves around the HHKB blockers and side profile.

KBDfans Agar Keyboard Features:

  • HHKB Layout
  • Mounting Type: Silicone Block Mount System
    • Custom-molded silicone blockers on the bottom case that the plate rests on.

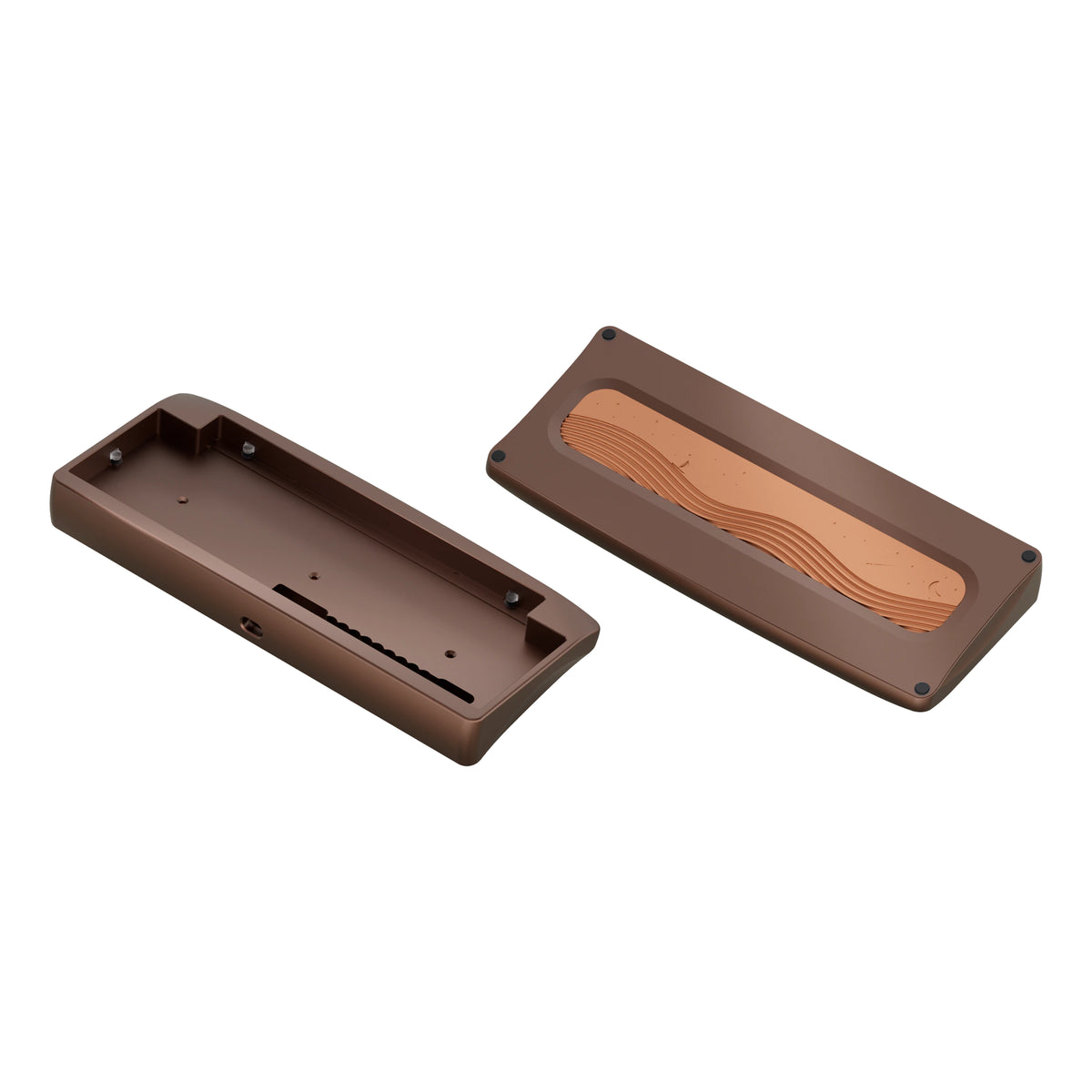

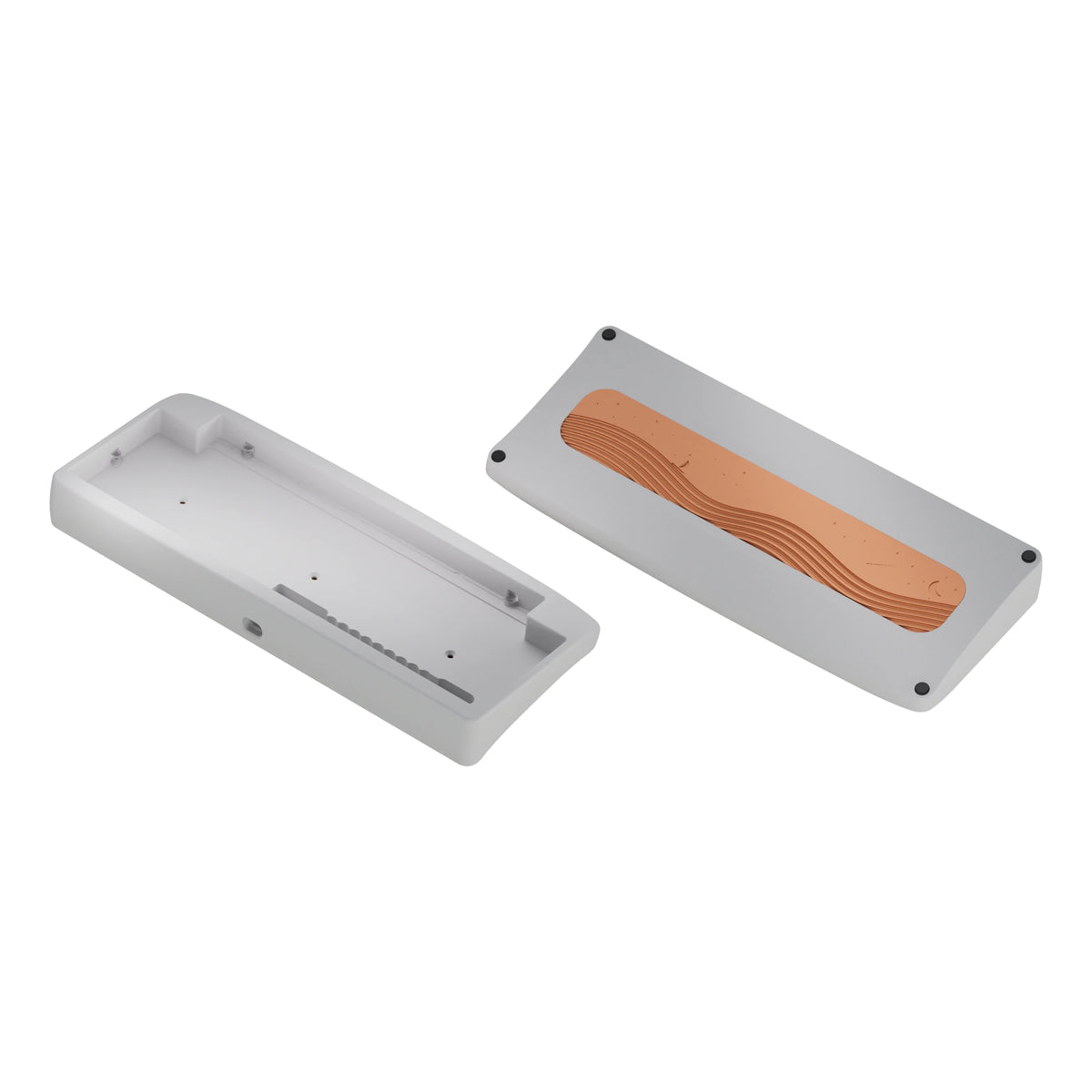

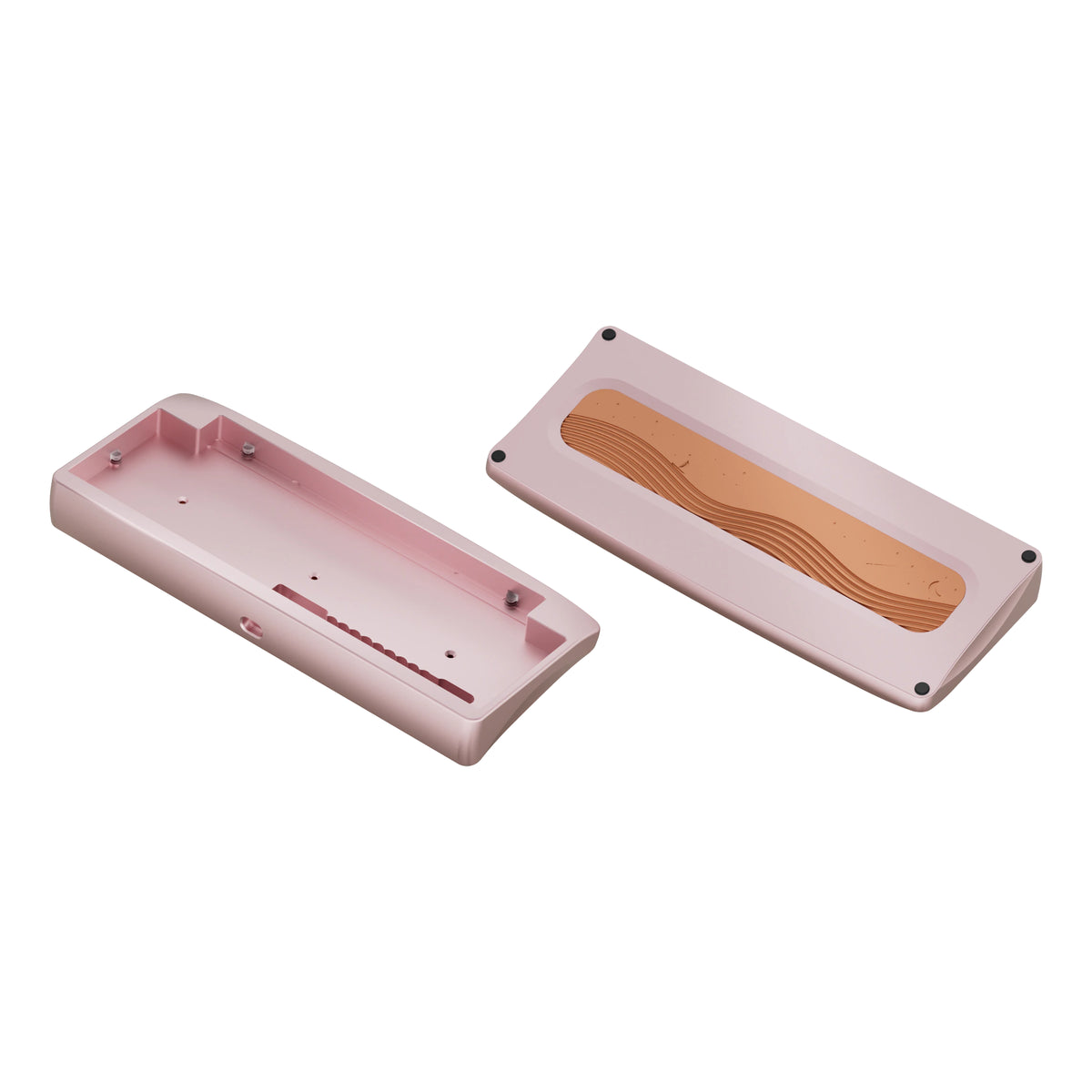

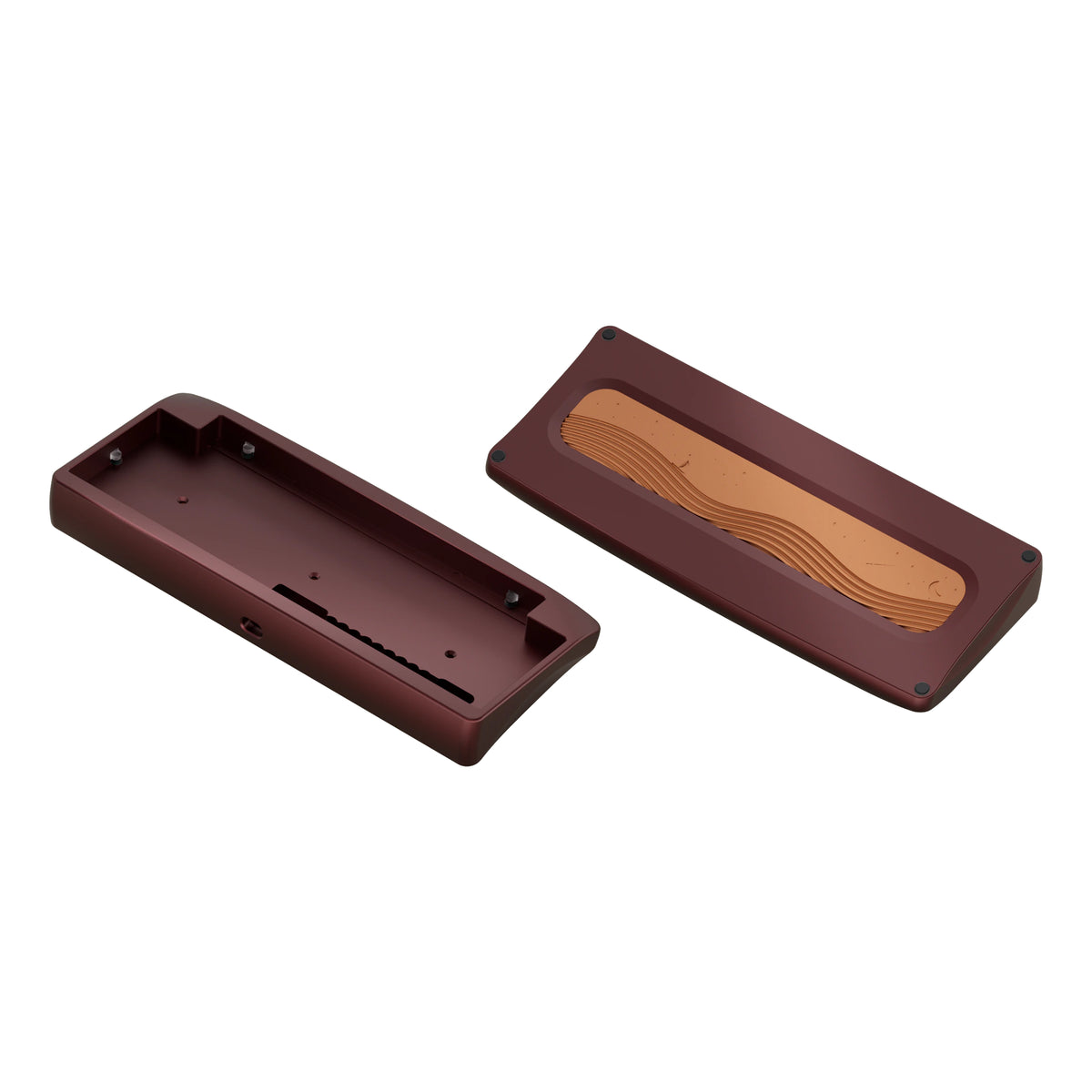

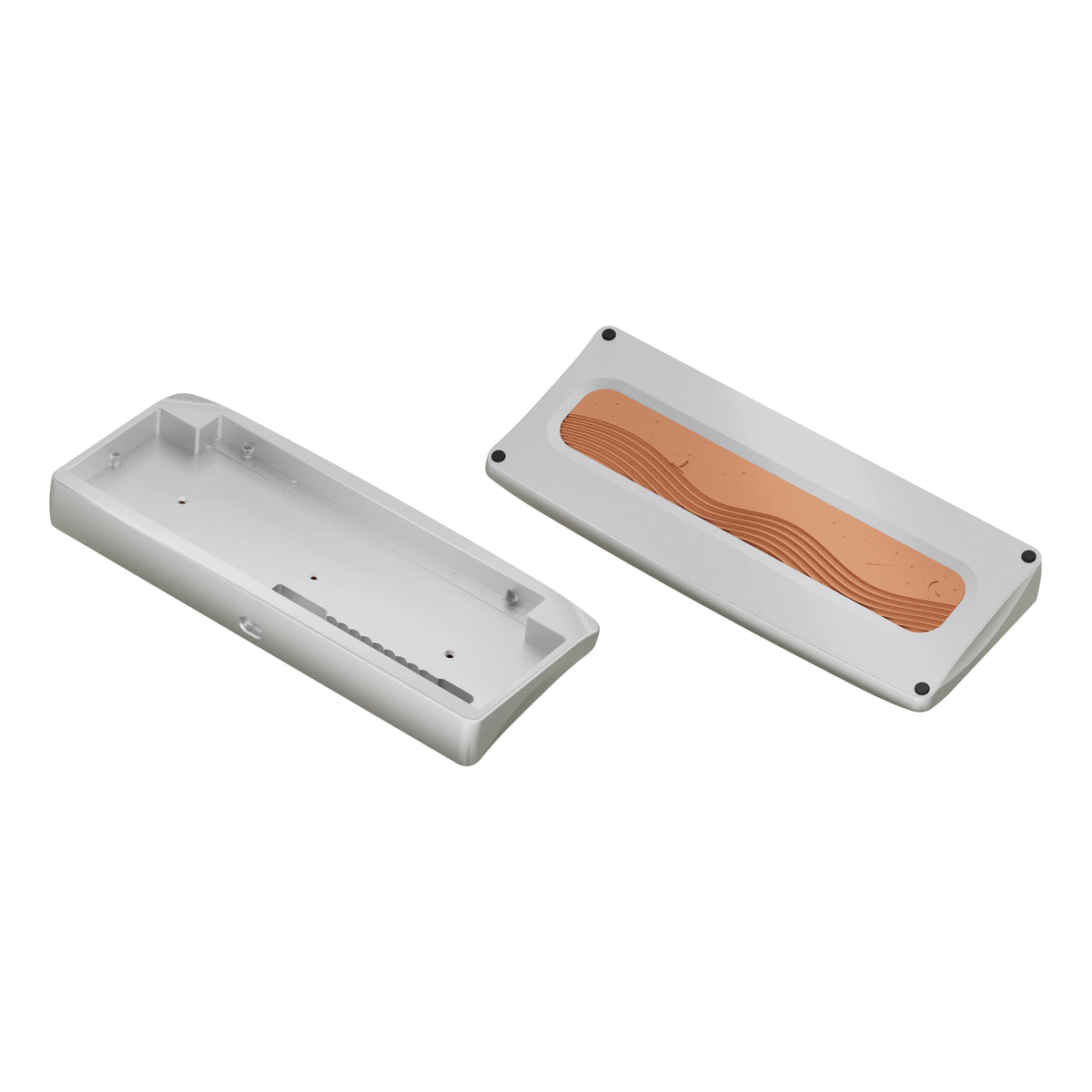

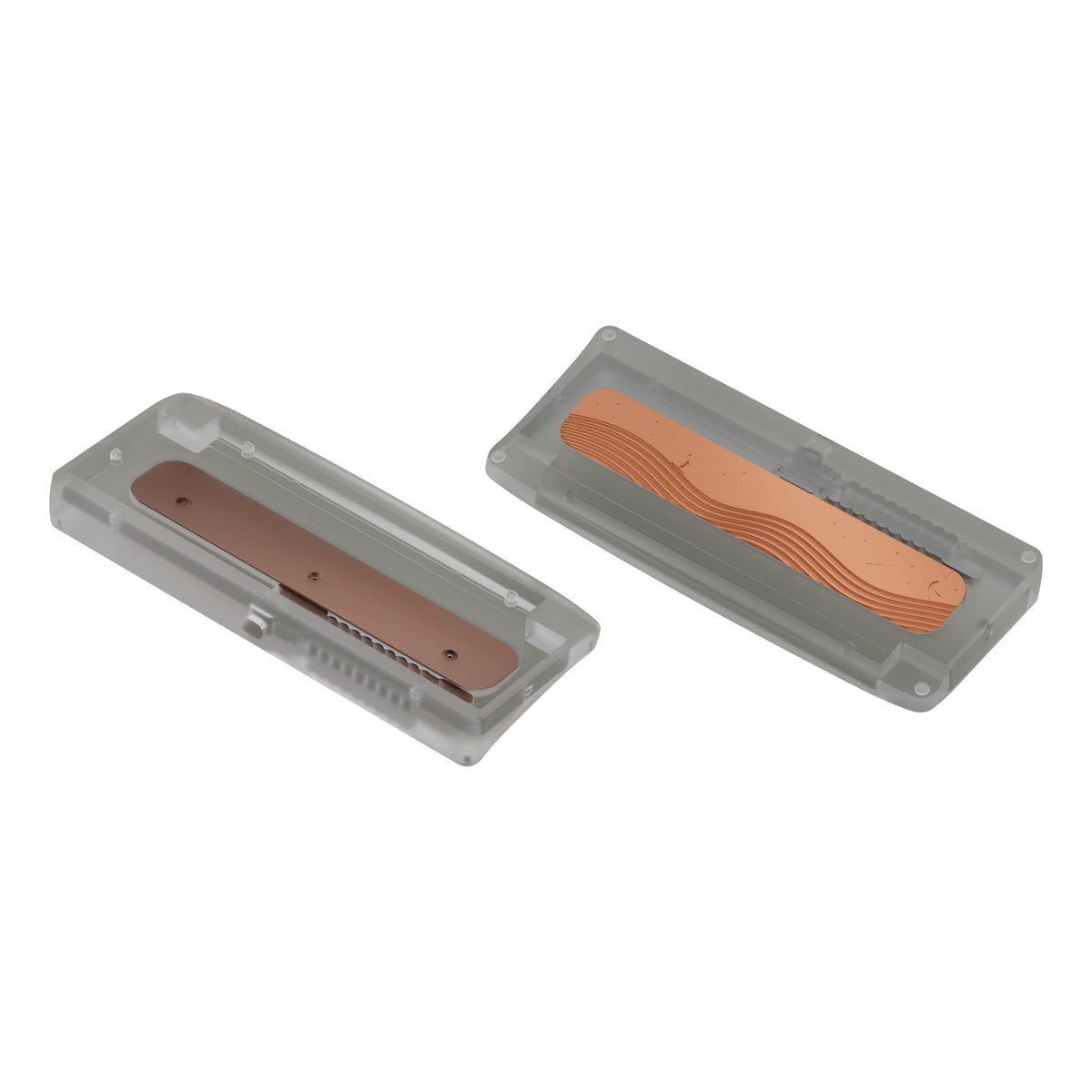

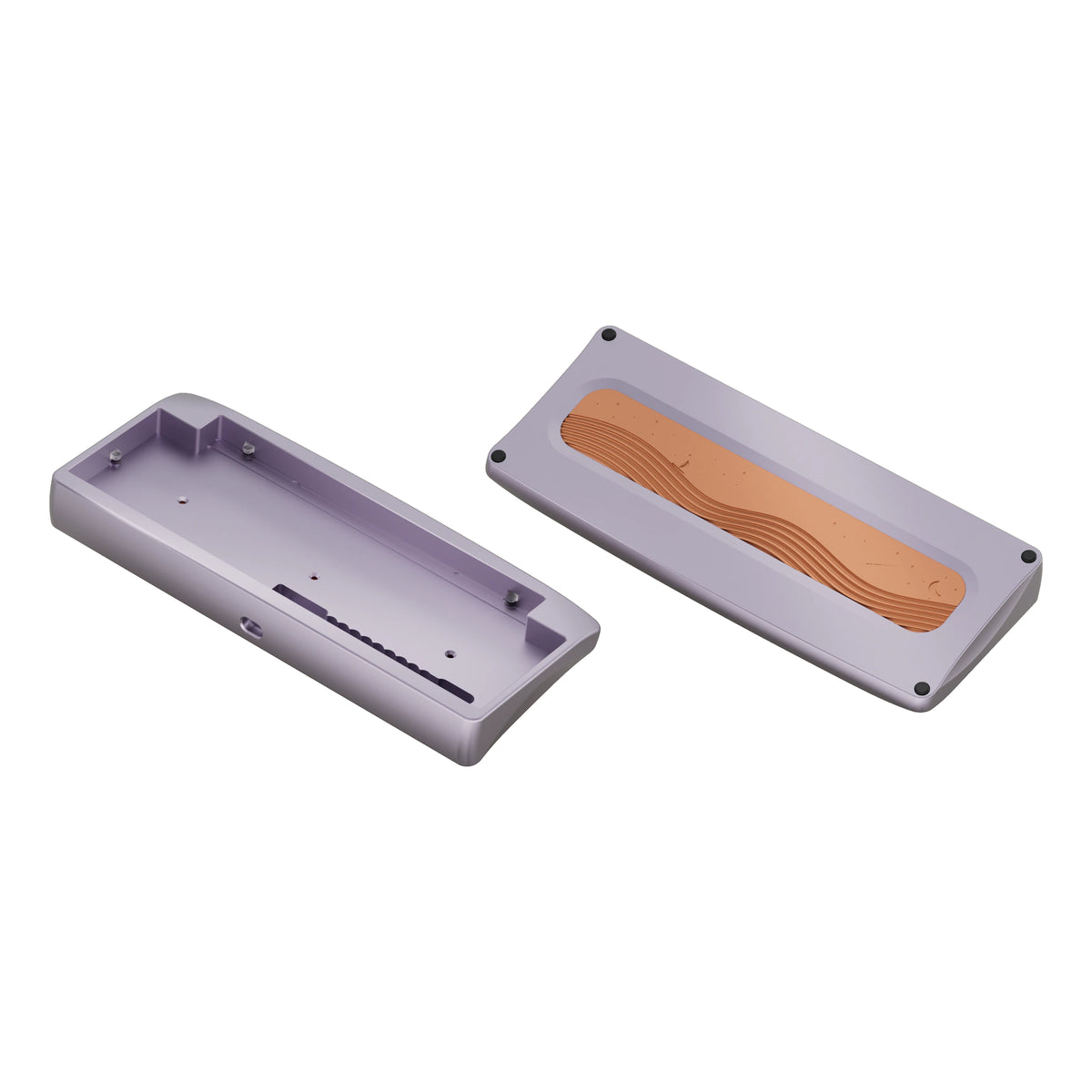

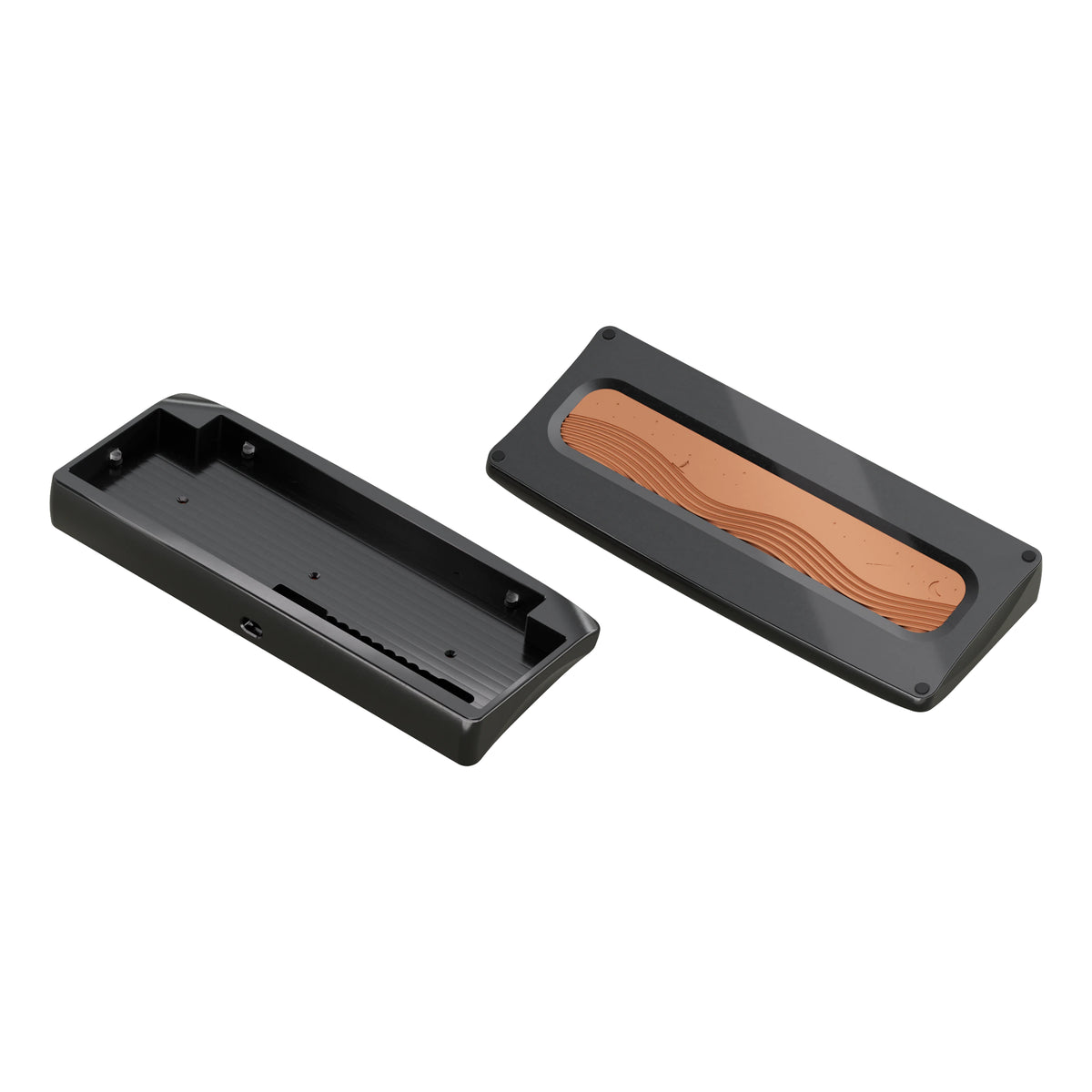

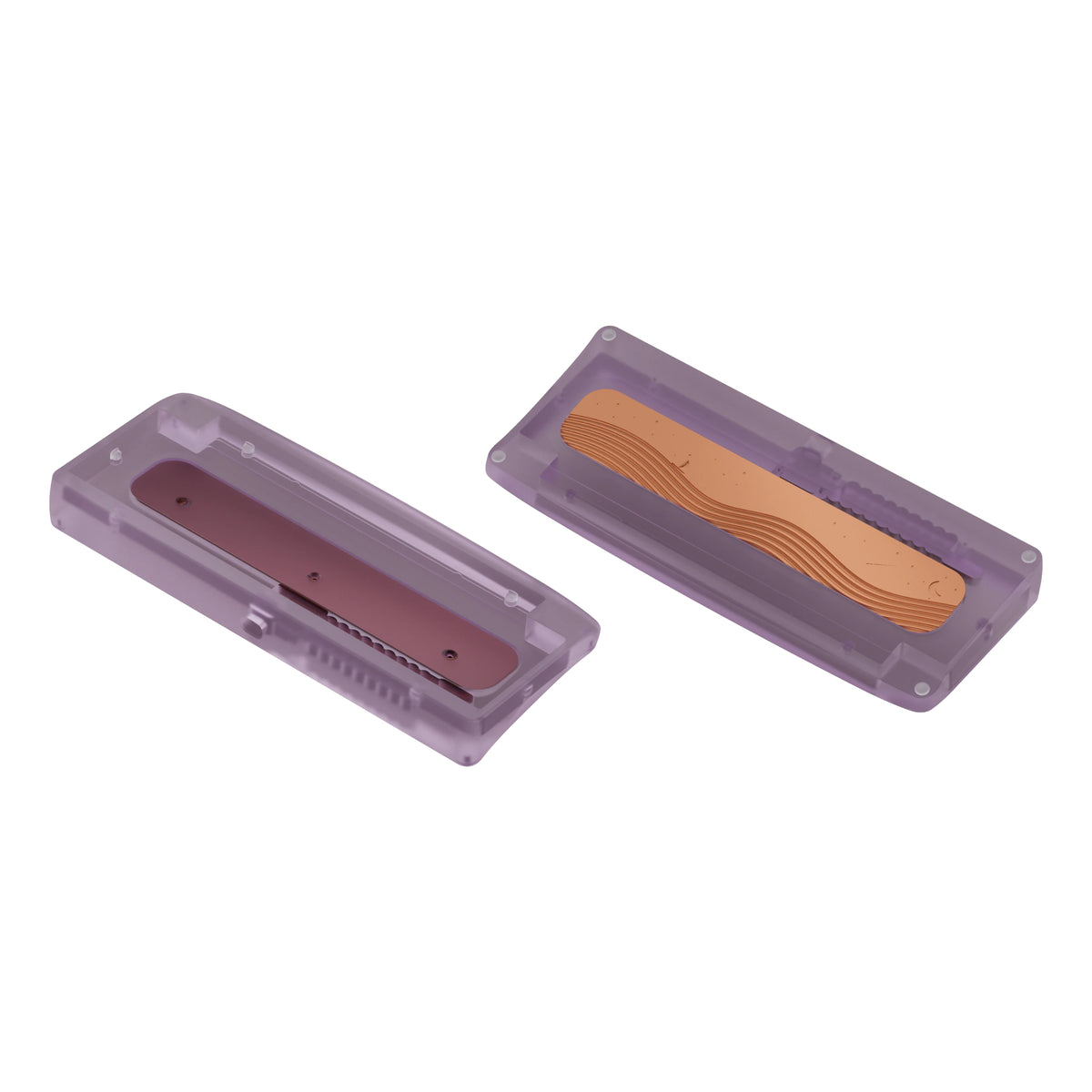

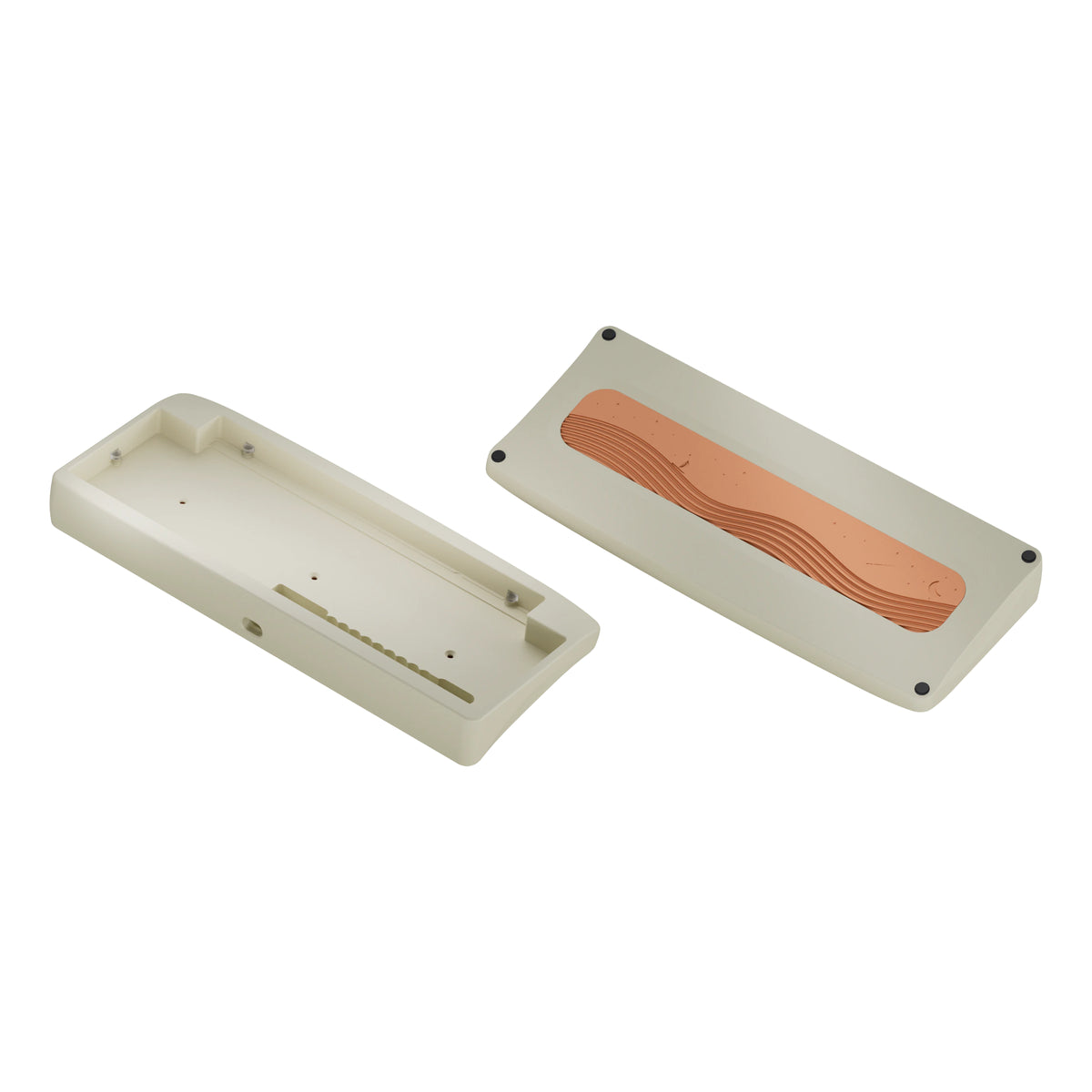

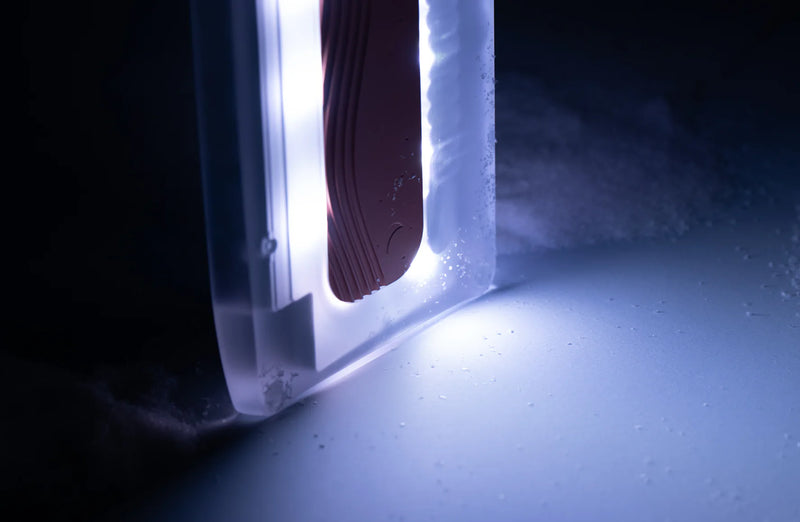

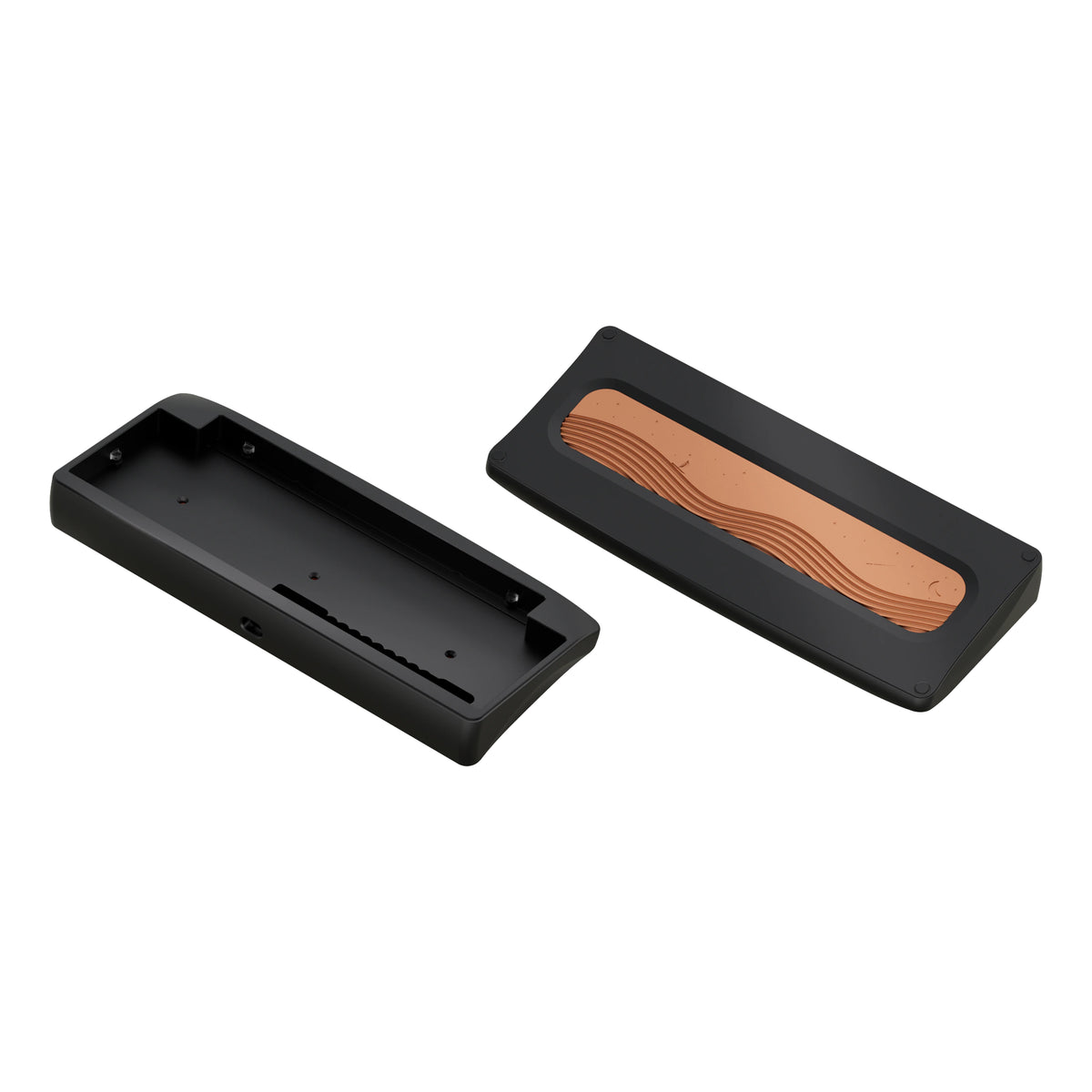

  • Case Materials: Aluminum or Polycarbonate

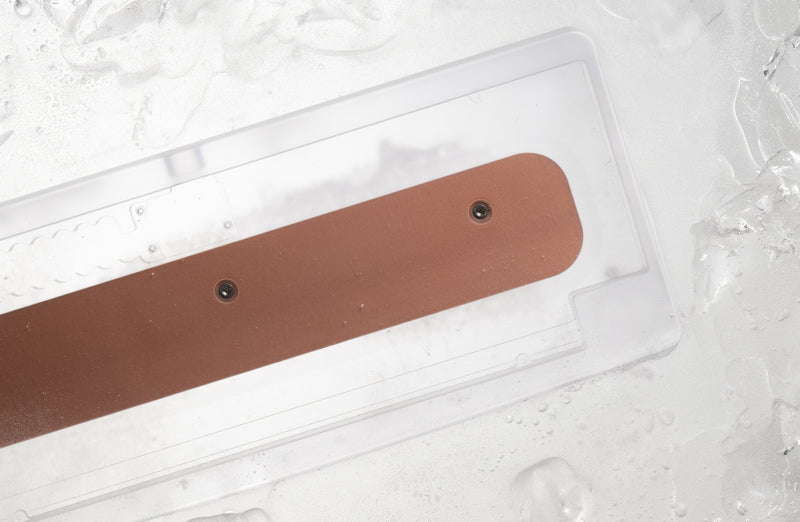

  • Weight Material: Copper
  •  PCB: Wired Hotswap
    • Thickness: 1.6mm
    • VIA Supported
    • Magnetic Pin Connection
    • RGB Underglow, Capslock LED Supported
    • Fireware // JSON
  • Plates: MX PC
  • Typing Angle: 9°
  • Dimensions: 297mm x 123mm
  • Front Height: 15.2mm

Add-ons:

Includes:

  • 1 KBDfans Agar Case

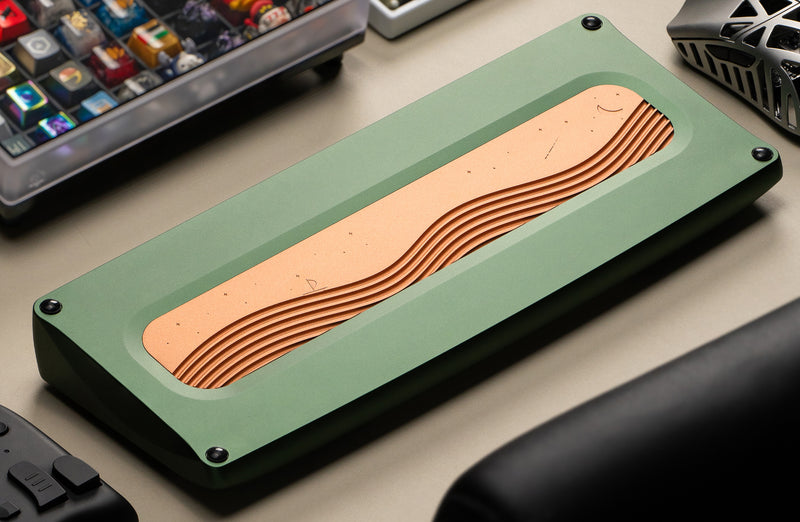

  • 1 Copper Weight Bar
  • 1 Hotswap PCB & Daughterboard
  • 1 PC Plate
  • 1 Set Silicone Gaskets
  • 1 Set Rubber Feet
  • 1 Foam Kit
  • 1 Barebone Hook

Friendly Reminders:

  • This keyboard can compatible the maximum USB head size, which is 9 mm in diameter and 8 mm in length.
  • We recommend using case foam; otherwise, there may be a risk of the PCB touching the bottom.
  • Be careful not to overtighten the counterweight to avoid cracking the case.

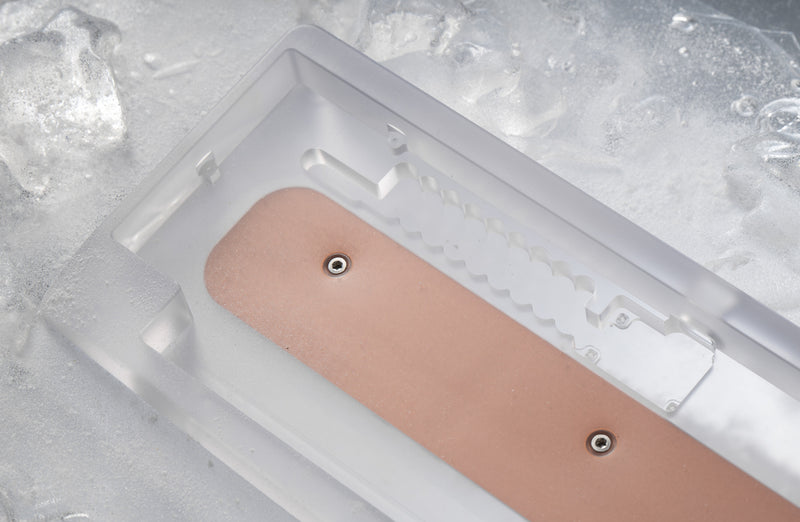

  • To ensure the safe transport of your Agar PC kit, the internal weight will not be pre-installed. Please install it yourself upon arrival. This prevents potential damage to the PC casing that can occur due to the weight during shipping. If you need to transport or ship your keyboard in the future, we recommend removing the weight beforehand to avoid similar damage.

Agar

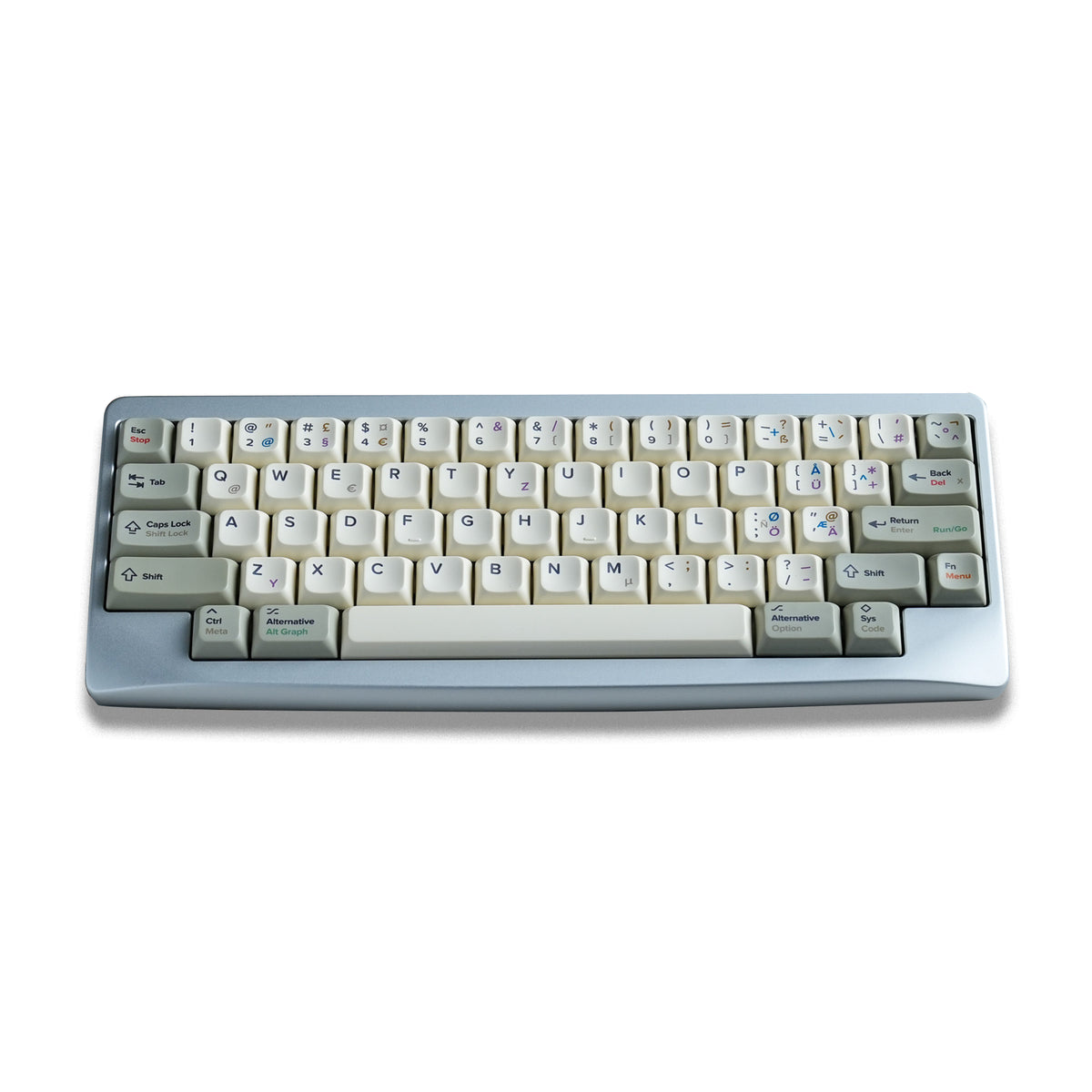

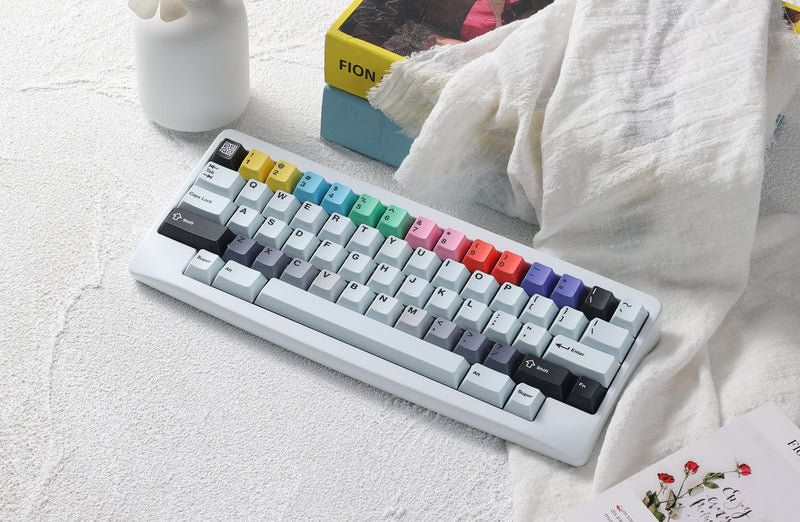

Following in the footsteps of the Tofu, Pebble, and D60, the Agar emerges as KBDfans' latest take on the HHKB-style layout. Available in both MX and EC switch variants, this keyboard combines an elegant aesthetic and a streamlined build with a highly addictive, crisp sound signature

Wired Layouts

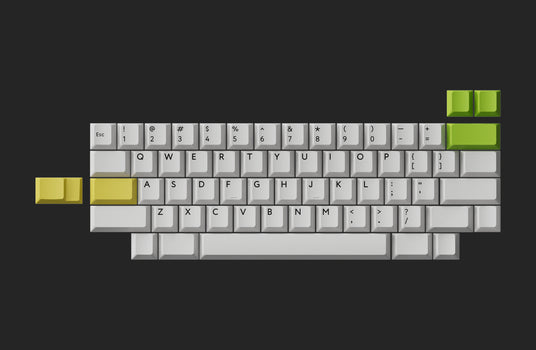

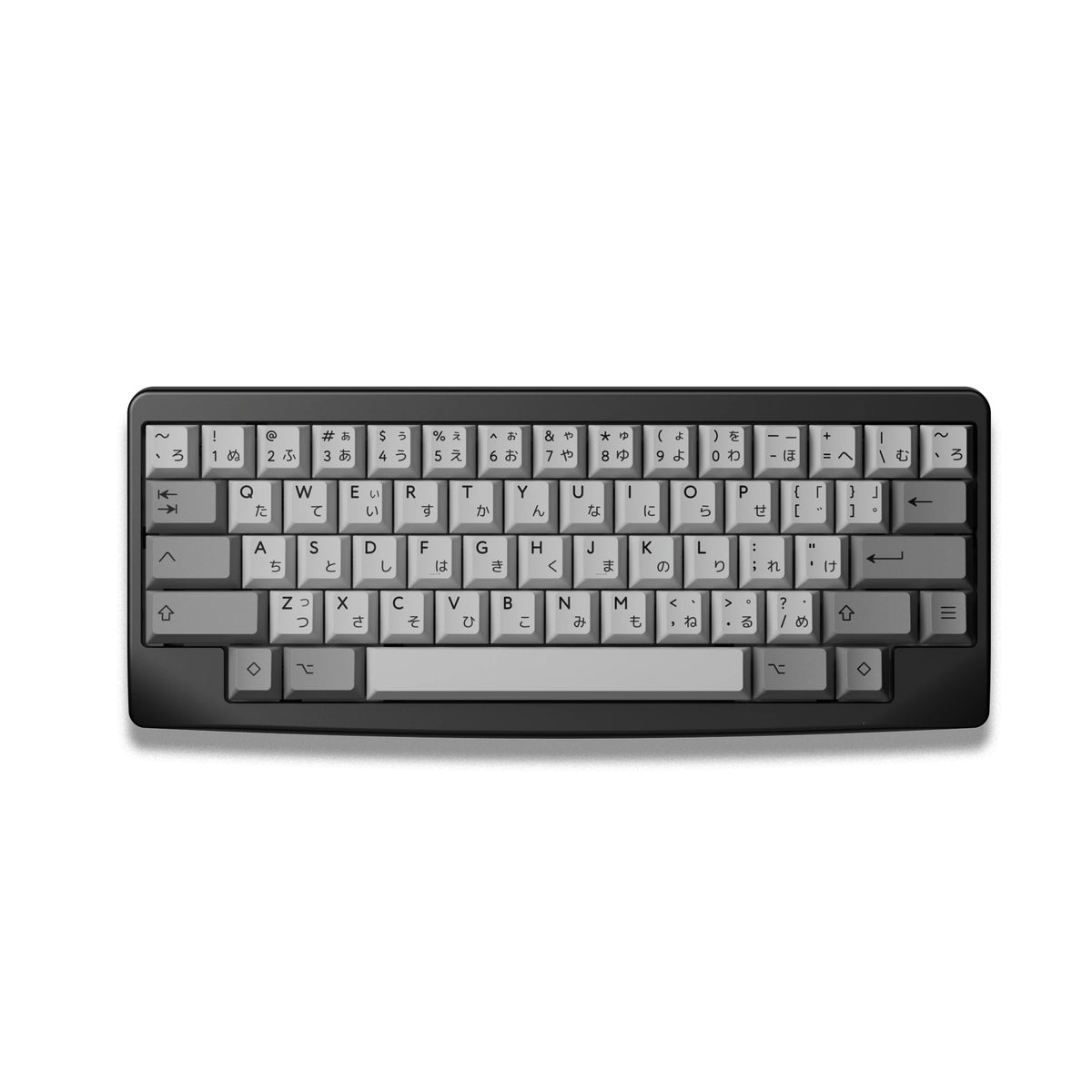

Coming in a 60% HHKB layout with support for both stepped capslock and split backspace.

Available in Hotswap (stock) or Solder (extra)

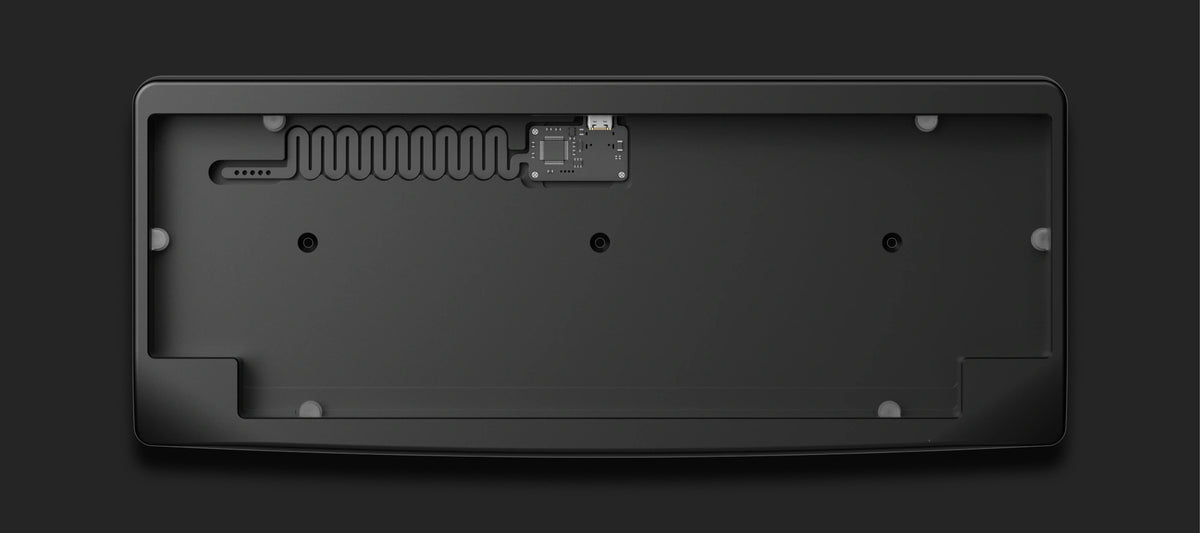

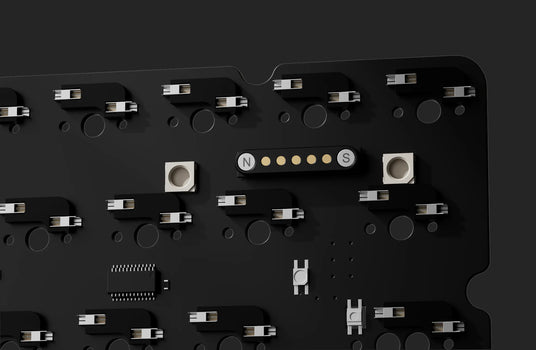

Magnetic Pin Header

Each magnetic pin header features durable gold-plated contacts with strong magnets, allowing you to avoid the hassle of constantly adjusting cables.

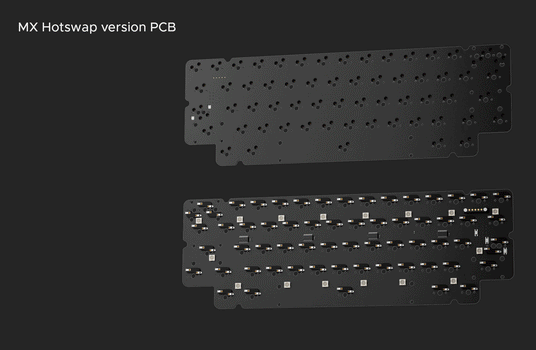

PCB Options

Dual-mode Hotswap version PCB Specs

  • 1.6mm PCB
  • support ZMK
  • Magnetic pin header
  • Daughterboard is included
  • No RGB underglow, support capslock LED
  • Firmware: agar_ble-klink-zmk.uf2

MX solder and Hotswap versions PCB Specs

Silicone block mount system

Agar utilizes a silicone block mount system that places blockers around the perimeter of the bottom case. The PCB has cutouts to avoid the blocks, allowing the plate to sit on top of these silicone blocks. The key benefits of this design include exceptionally easy barebones installation and removal, as well as a flexible typing feel.
