KBDfans Chamber TKL Keyboard

Groupbuy
$72.00
Layout
Top Case Color

This item is a groupbuy!

Groupbuy Period: October 27 - November 27, 2026
Estimated Ship Date: Q2 2027

Shipping Information

All items are shipped from our facility in Southern California, US. No additional custom fees or tariffs will be charged once checked out.

Shipping & Handling Page

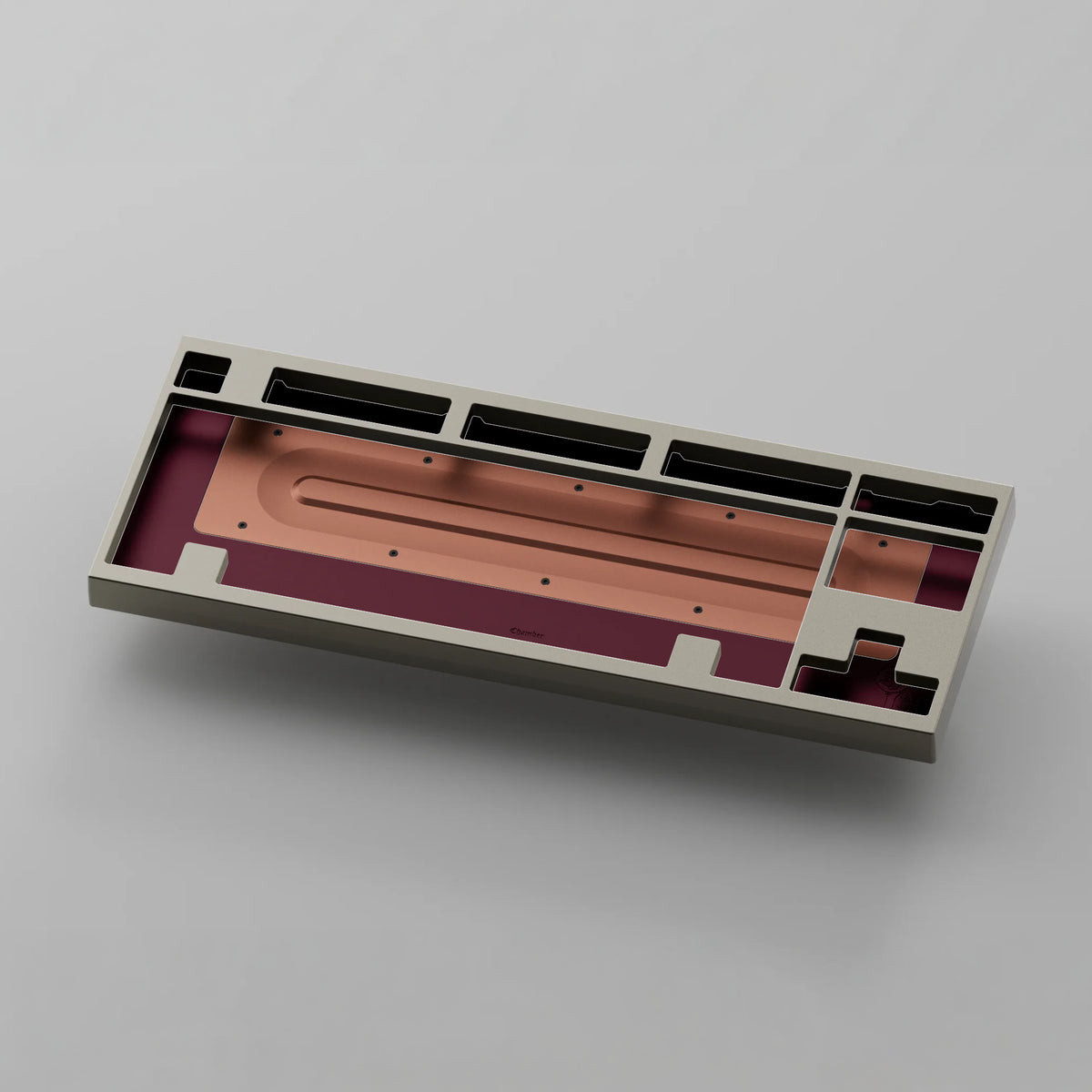

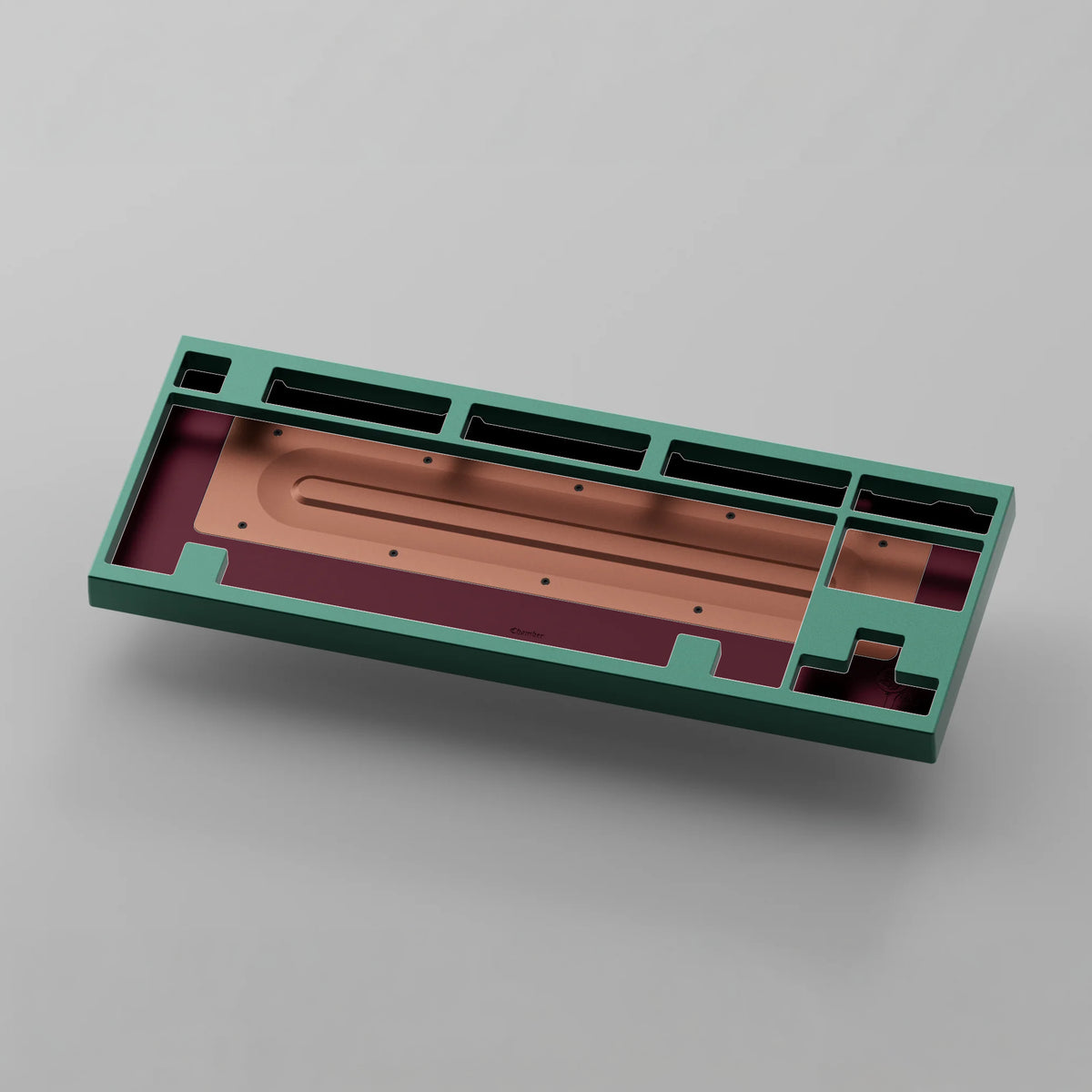

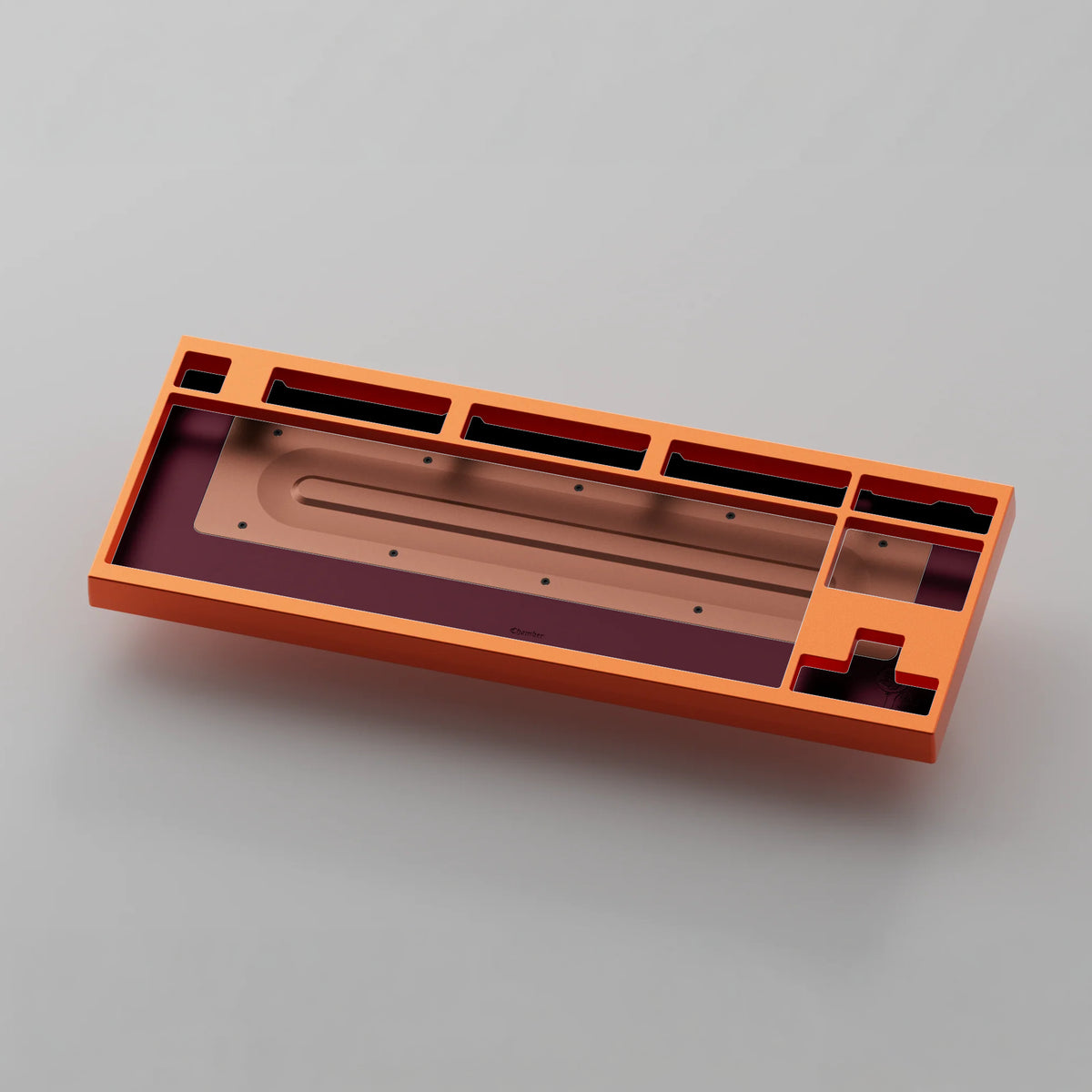

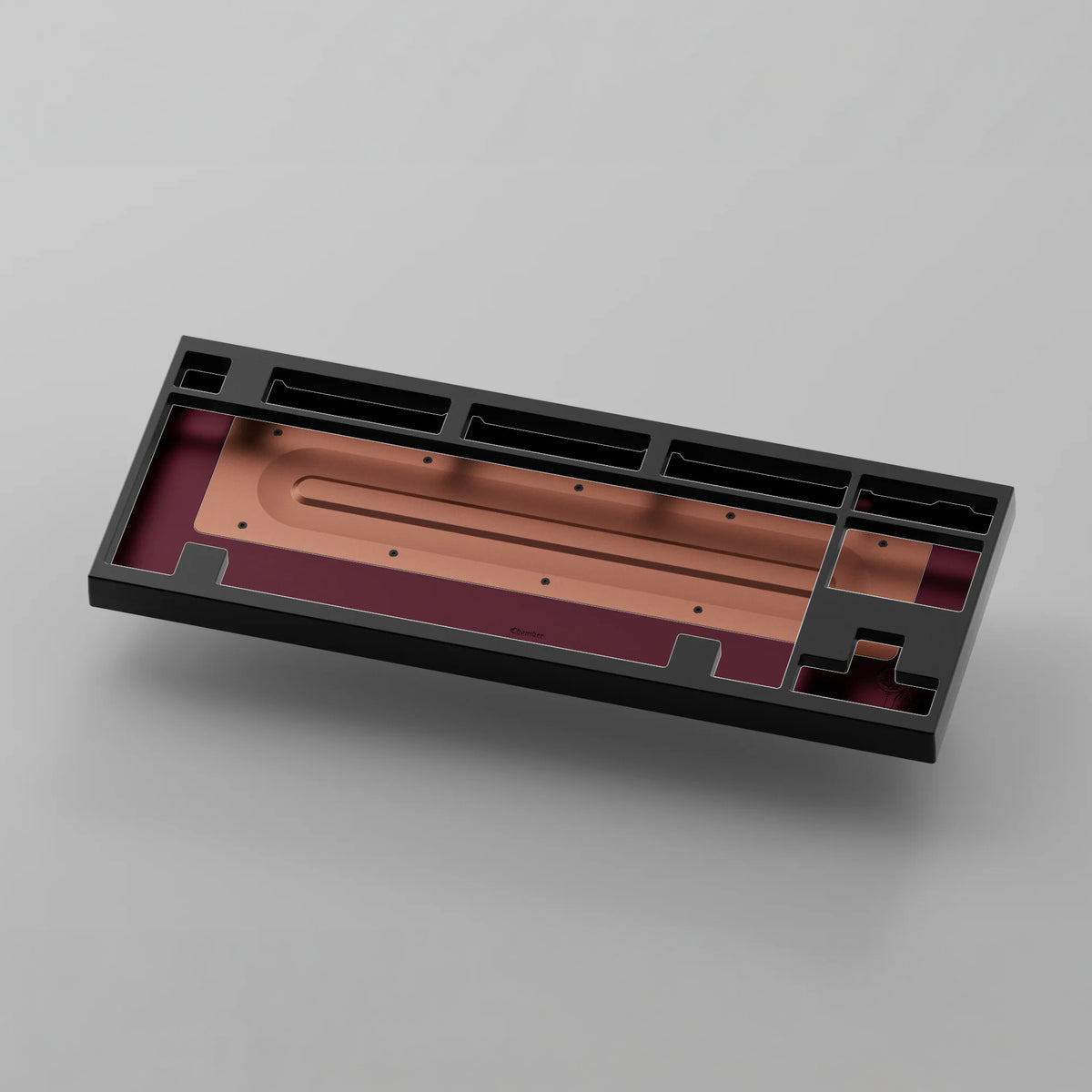

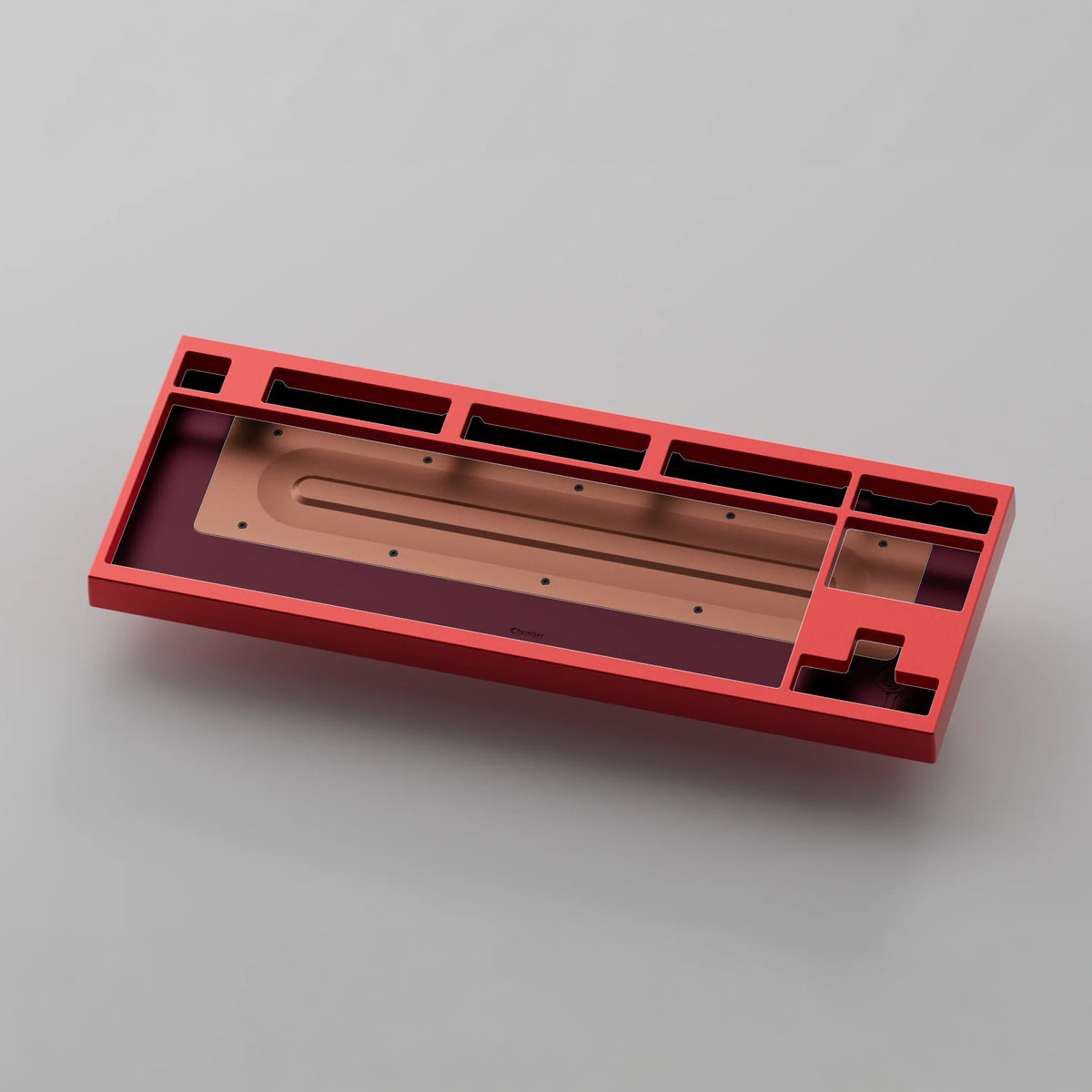

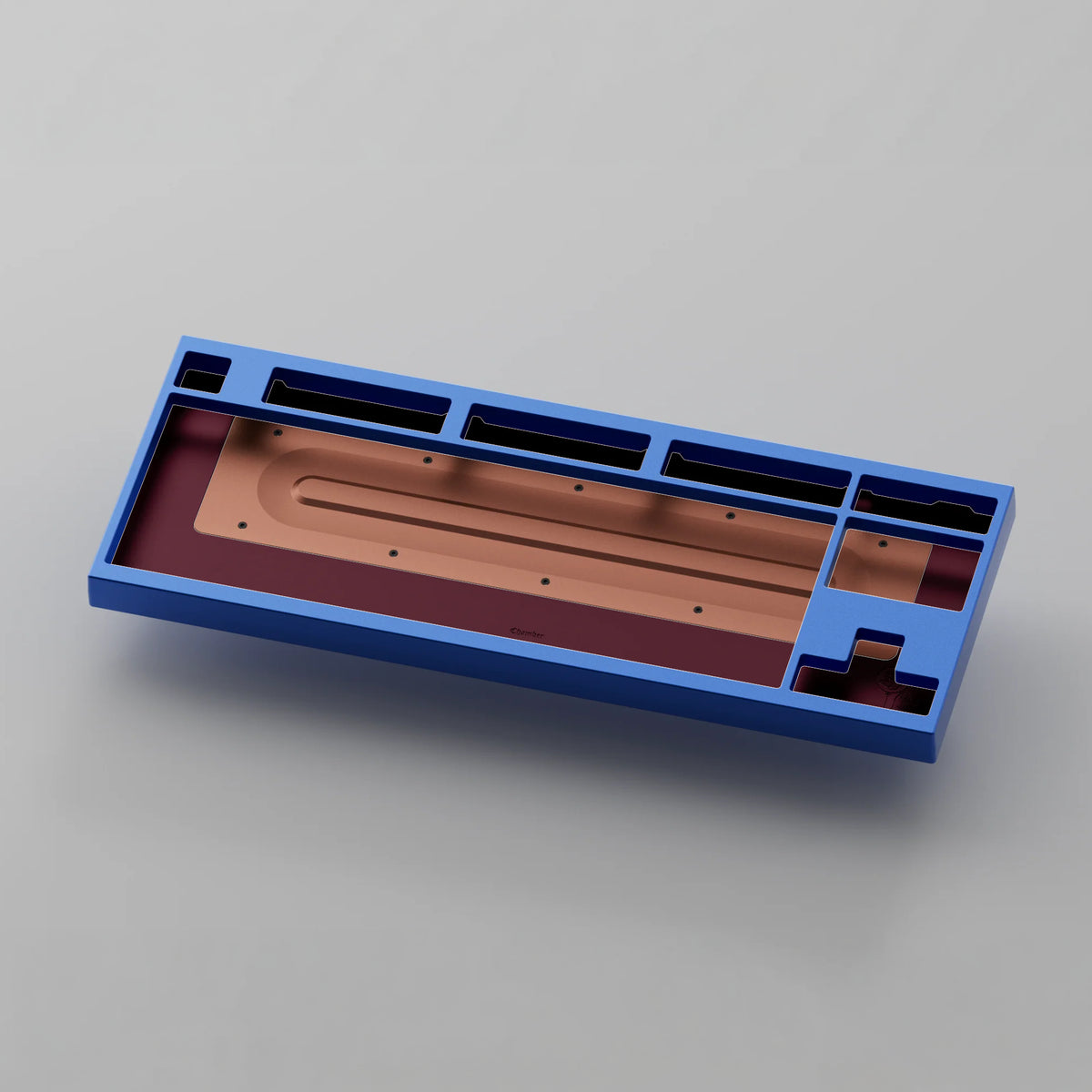

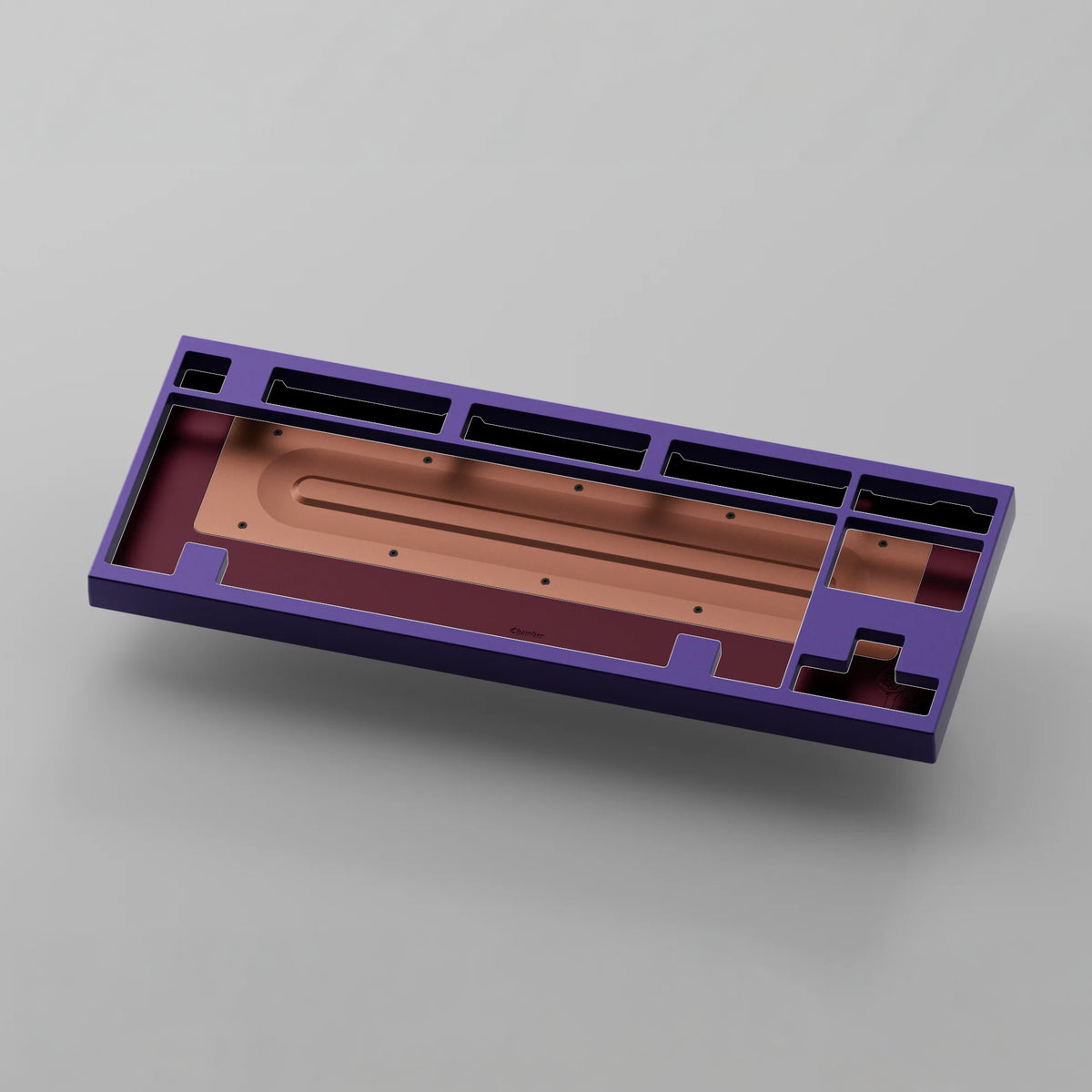

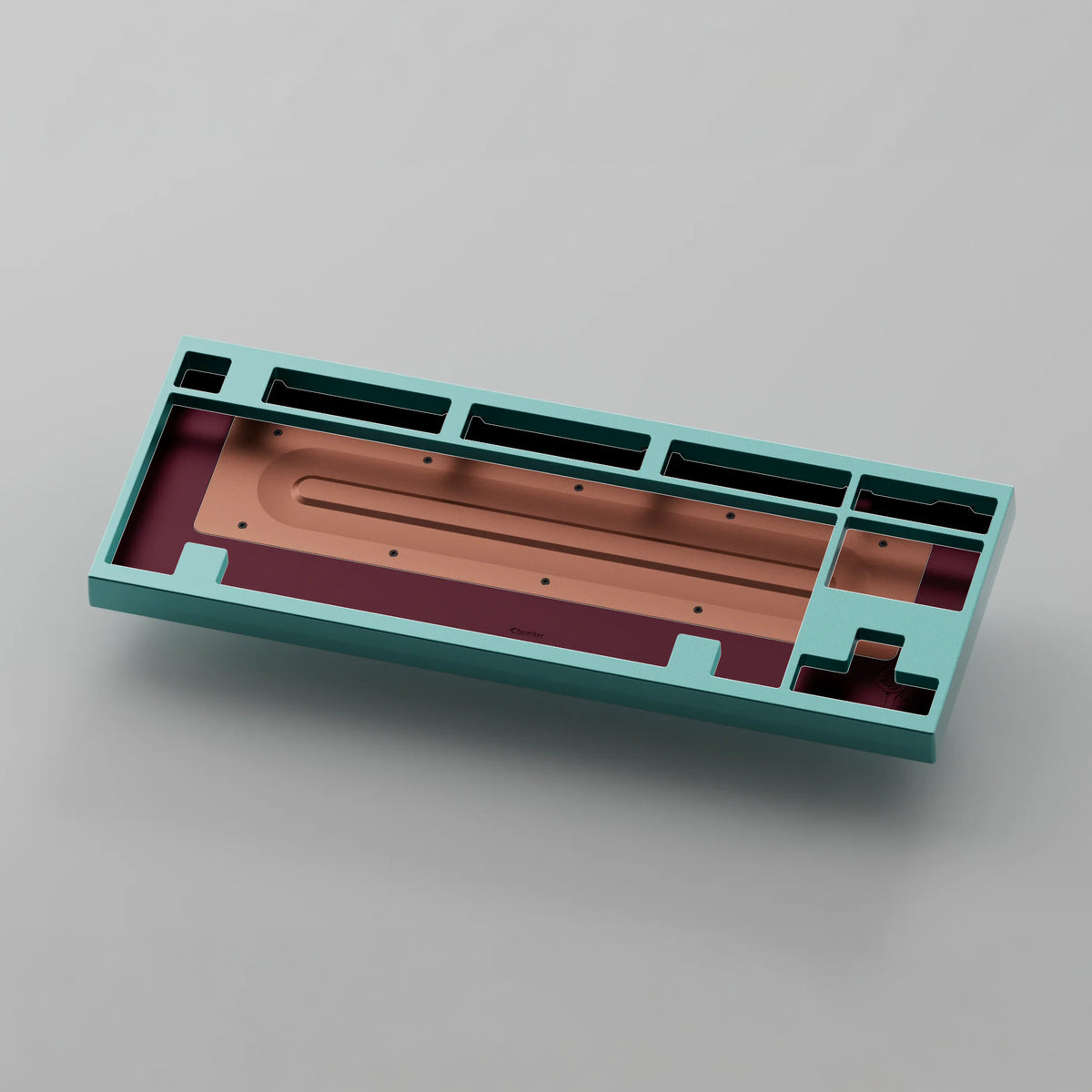

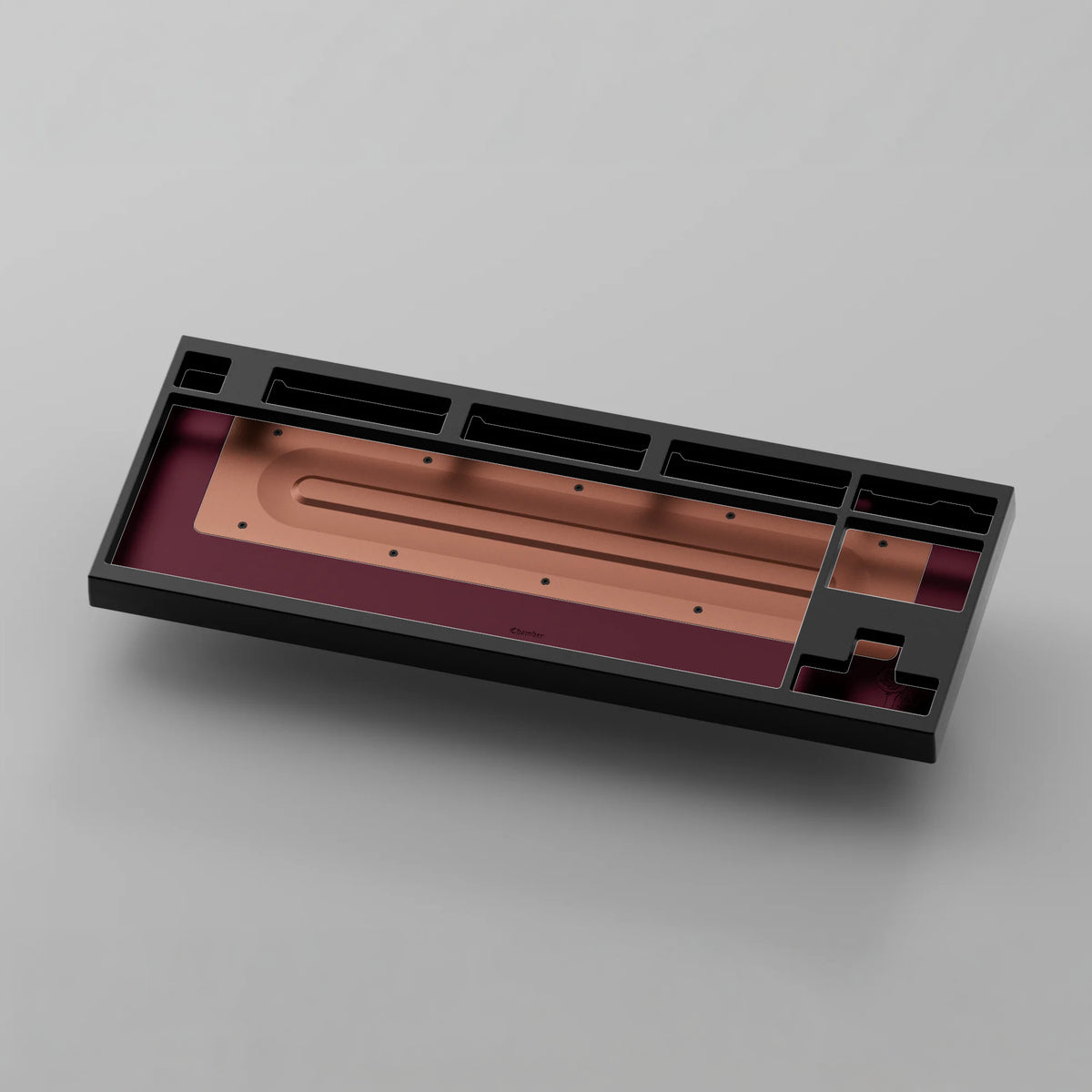

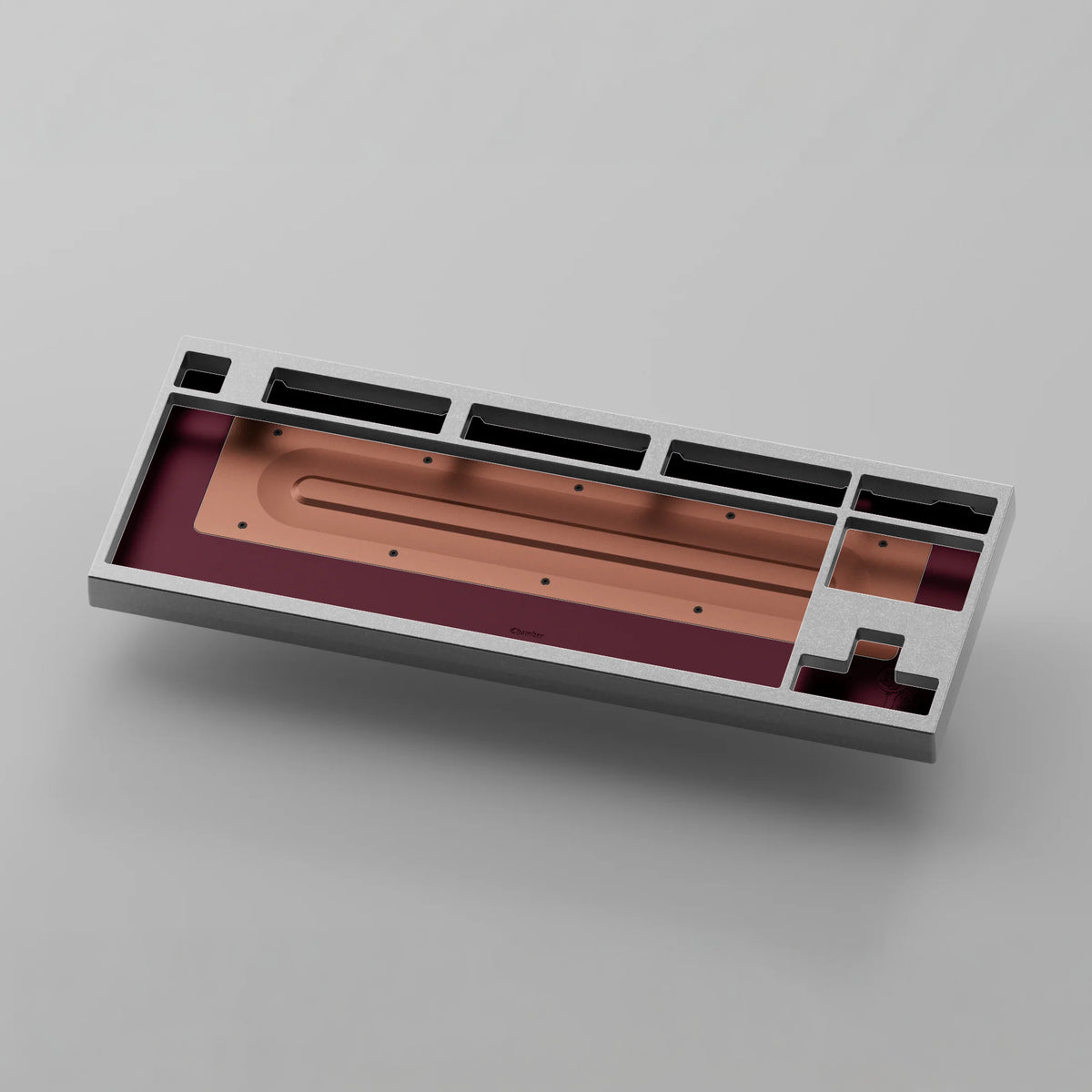

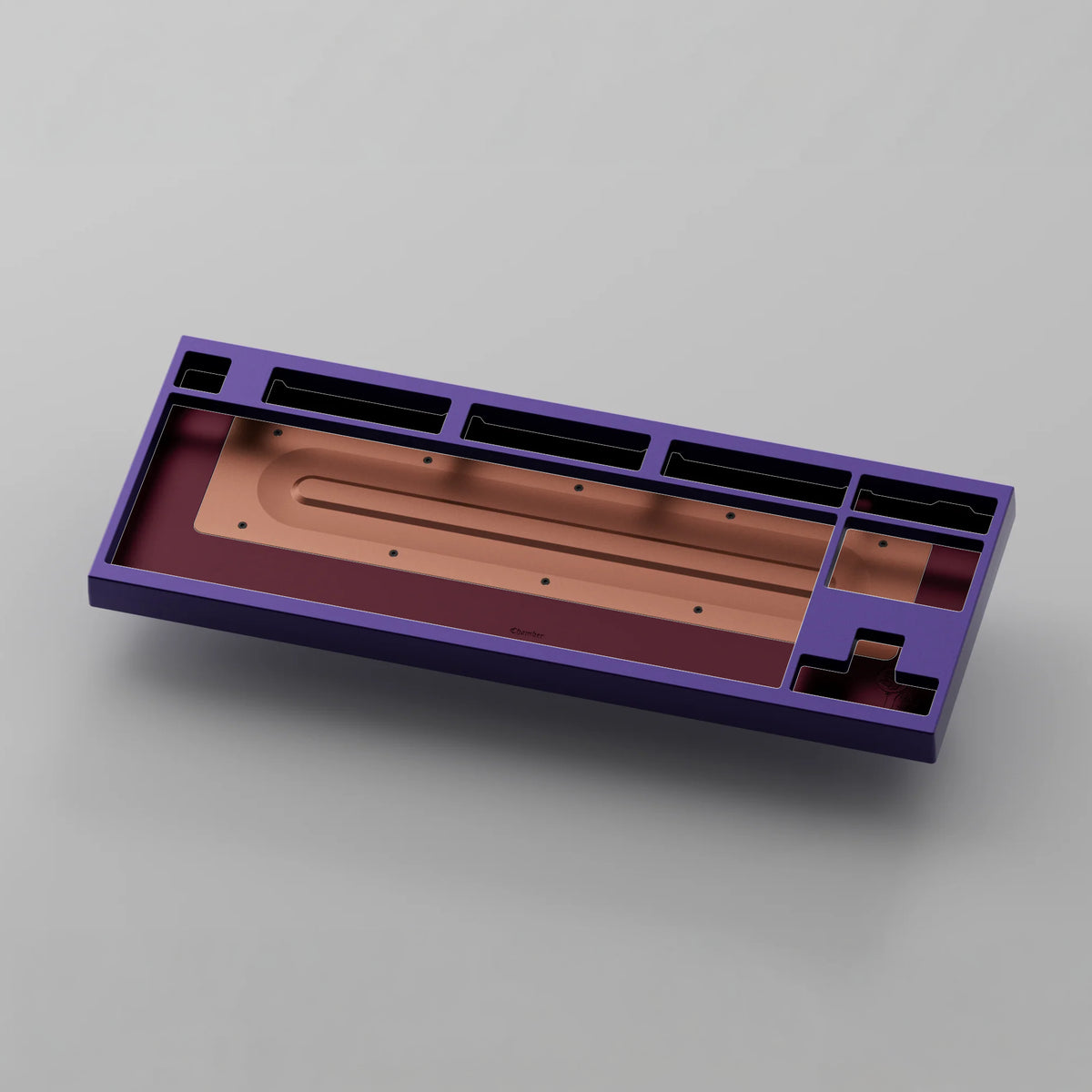

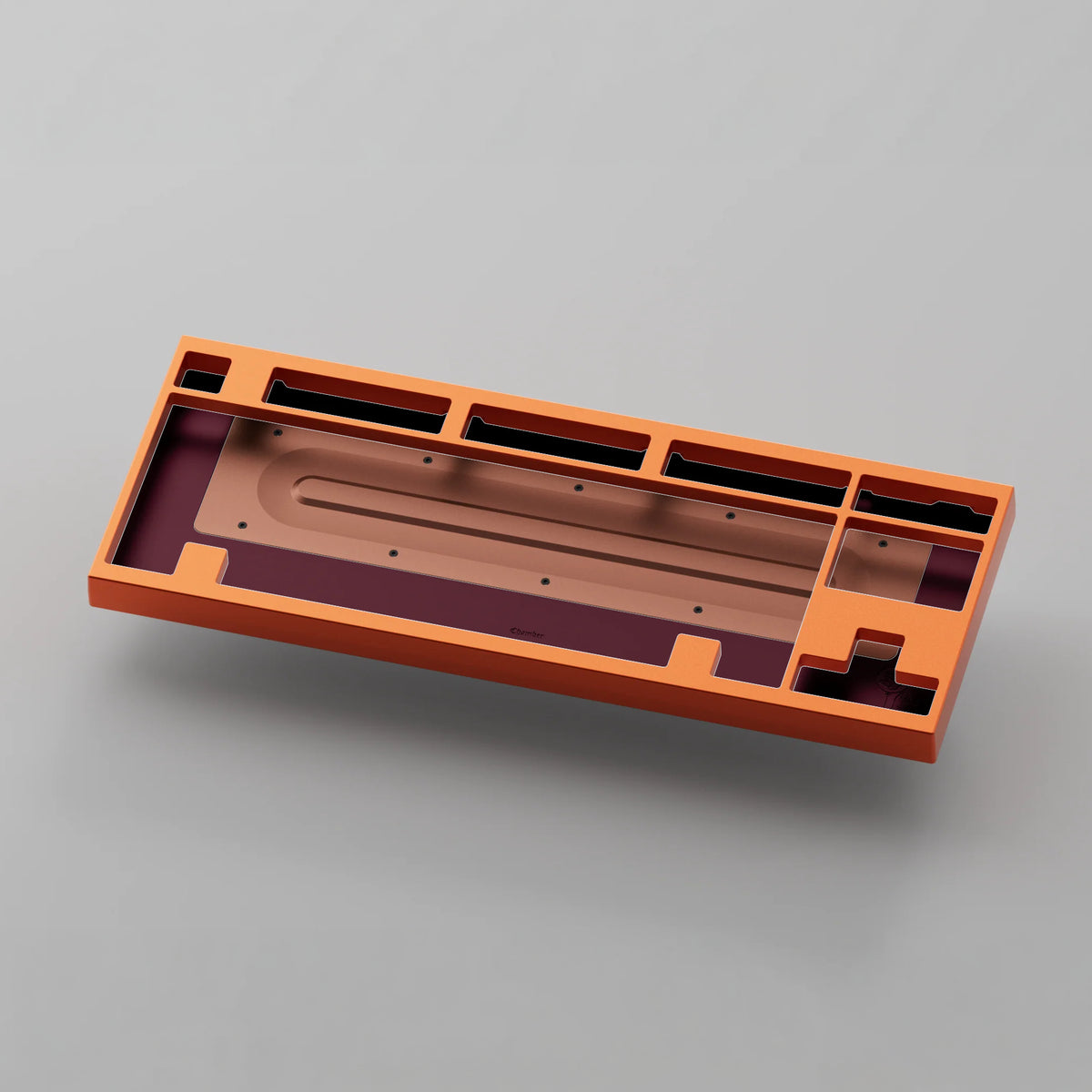

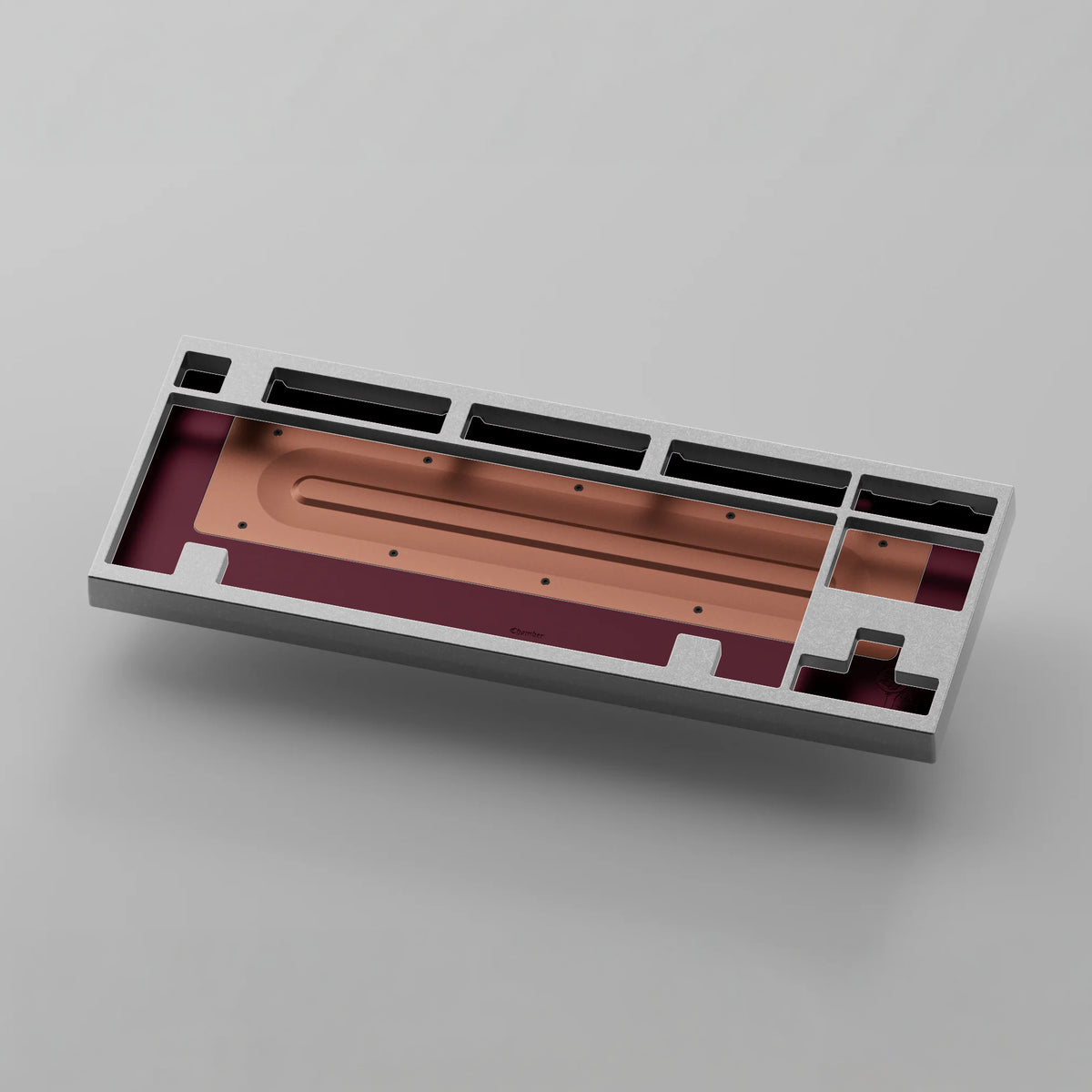

KBDfans Chamber TKL Keyboard is a nod towards a more classic TKL with an emphasis on case volume, geometry, materials, and internal structure. The centerpiece falls on the internal weight which uses a racetrack-shaped recess surrounding a narrow central ridge. This acoustics chamber alters the resonance to highlight the switches as well as the keyboard's natural sound profile.

Groupbuy Period: October 27 - November 27, 2026

Estimated Ship Date: Q2 2027

KBDfans Chamber TKL Keyboard Features:

  • TKL Layout
  • Mounting Style: Top Mount

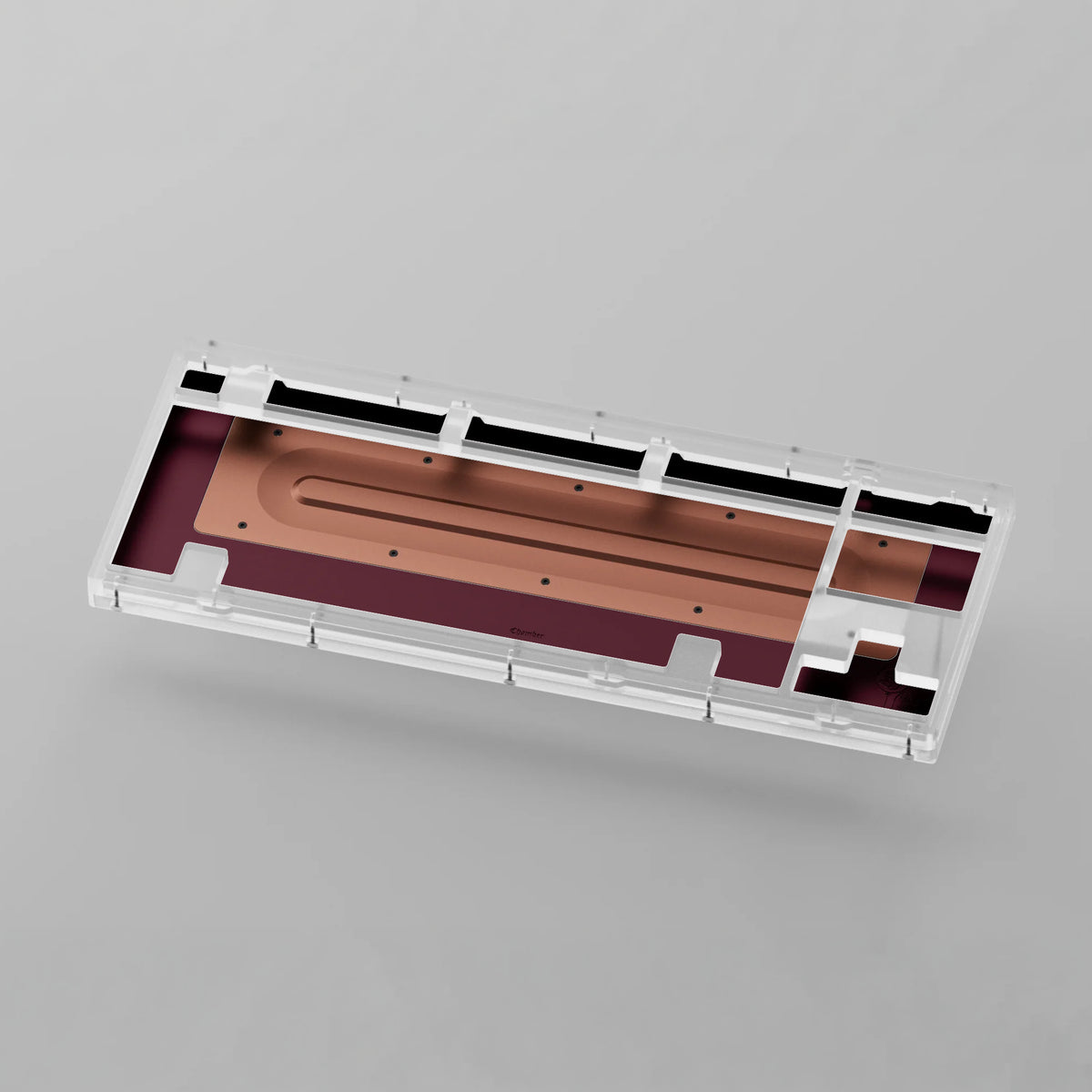

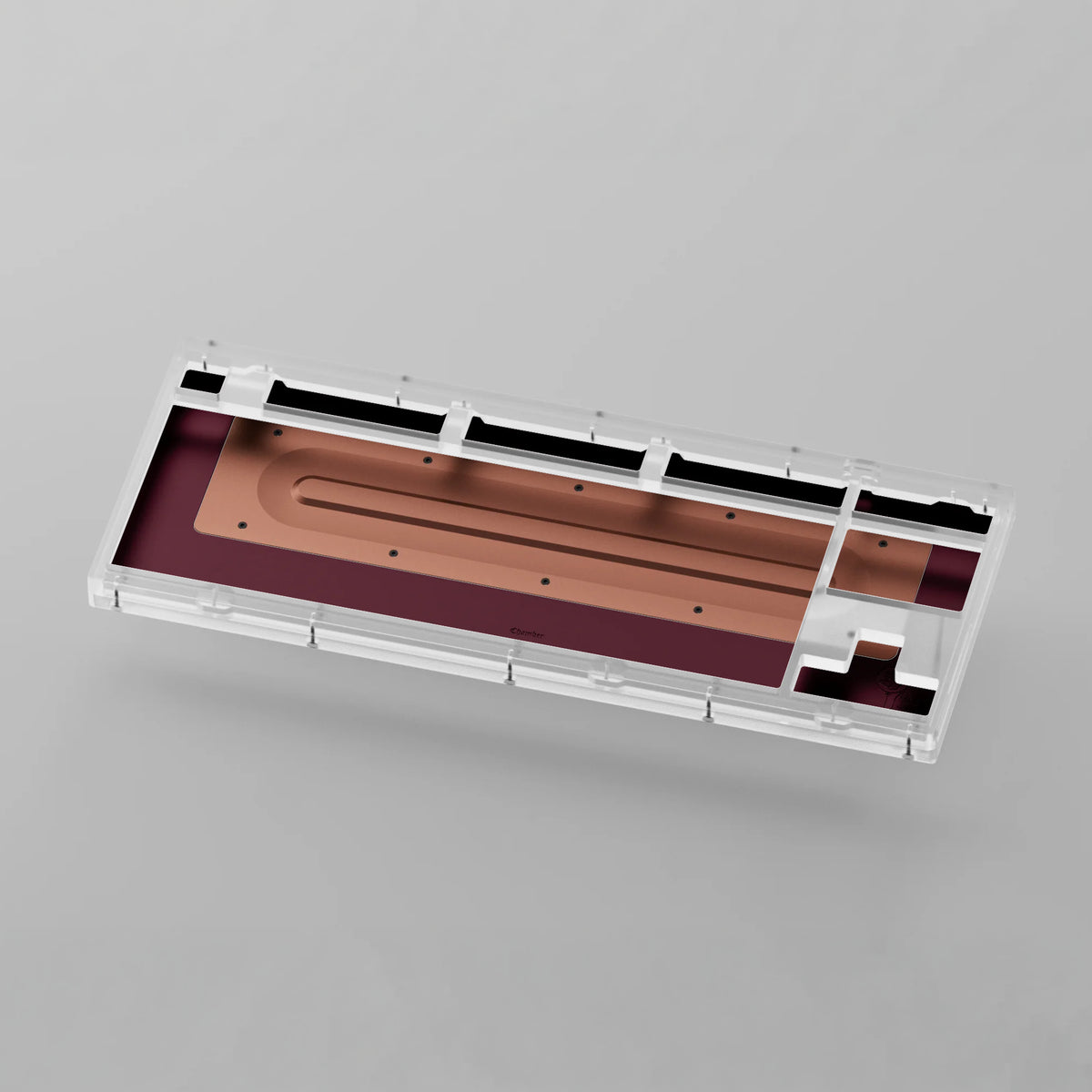

  • Top Case Material: Aluminum / Polycarbonate
  • Bottom Case Material: Aluminum
  • PCB Options: Wired Solder, Wired Hotswap
    • Compatible with H87 F12 PCBs
  • Plate Options: Aluminum, PC, FR4, Carbon Fiber
  • Internal Weight Options:
    • Aluminum: 415g
    • Copper: 1393g
    • Stainless Steel: 1246g
  • PTFE Force Break Pads (0.17mm)
  • Typing Angle: 7 Degrees
  • Front Height: 19.22mm
  • Dimensions: 358.95mm x 139.53mm

Also See:

Includes:

  • 1 Top Case
  • 1 Bottom Case (Required)
  • 1 Plate (Required)
  • 1 PCB (Required)
  • 1 Internal Weight (Required)
  • 1 Set PTFE Force Break Pads
  • 1 Set Silicone Feet
  • 1 Keyboard Wrap Cloth
  • 1 Carrying Case
  • 1 Foam Kit (Optional)

Disclaimer: Free shipping does not apply to Groupbuy items. Please read our Shipping and Handling page for details prior to ordering.


From controlling sound to letting it resonate.

As Chamber evolved, its guiding idea shifted: from trying to control sound to giving it room to resonate naturally.

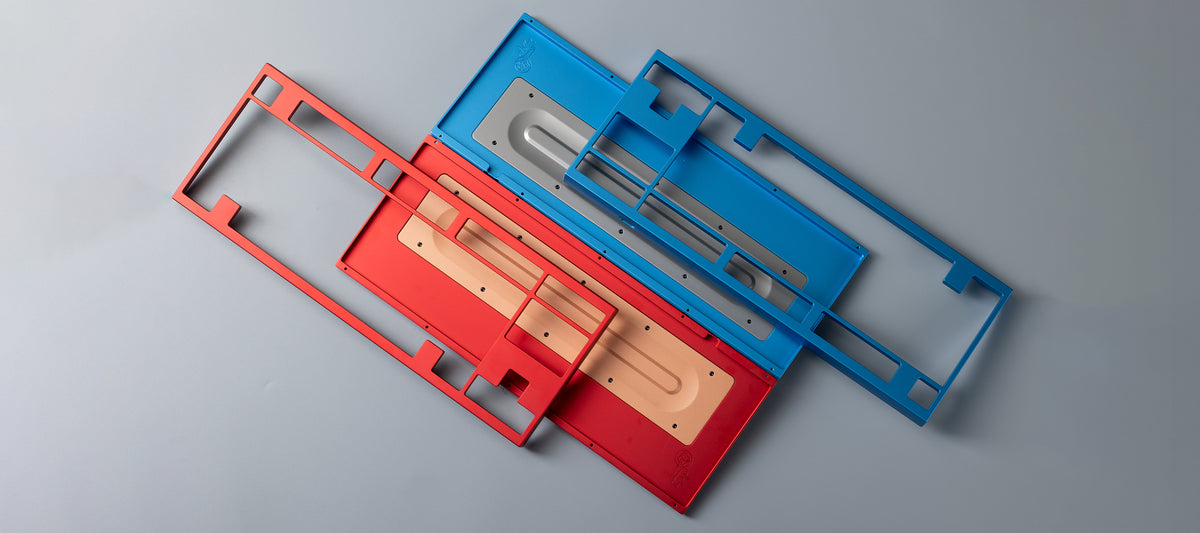

Rather than relying heavily on foam to suppress the character of a build, Chamber explores the relationship between case volume, geometry, materials, and internal structure. The aim is to preserve the individual character of the switches, plate, and case while bringing them together into a balanced whole.

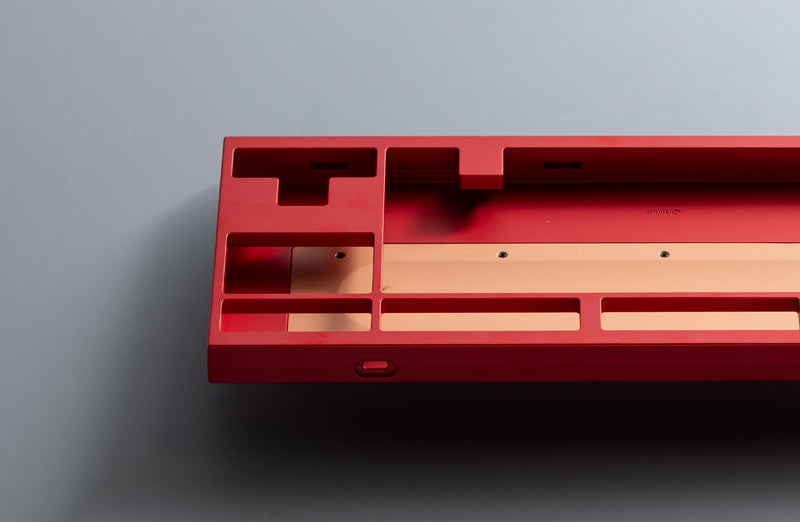

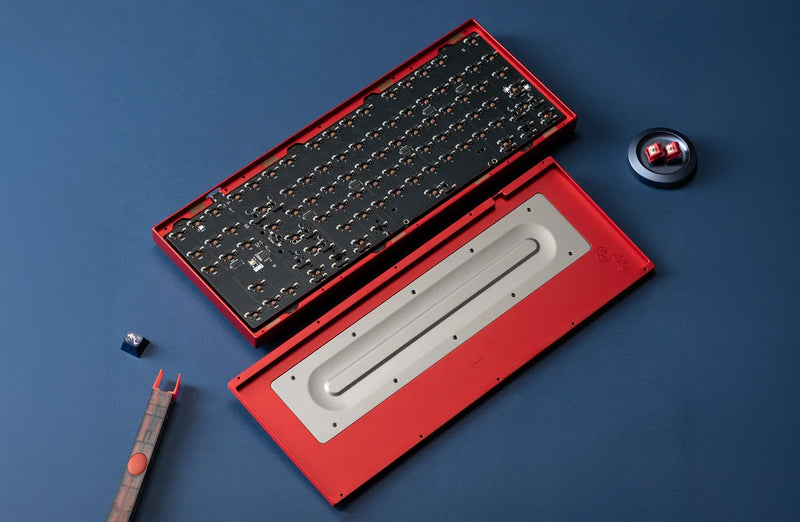

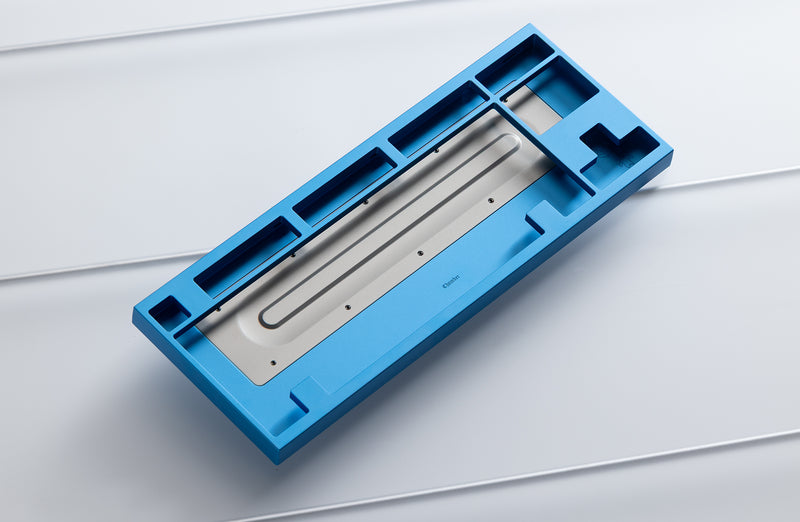

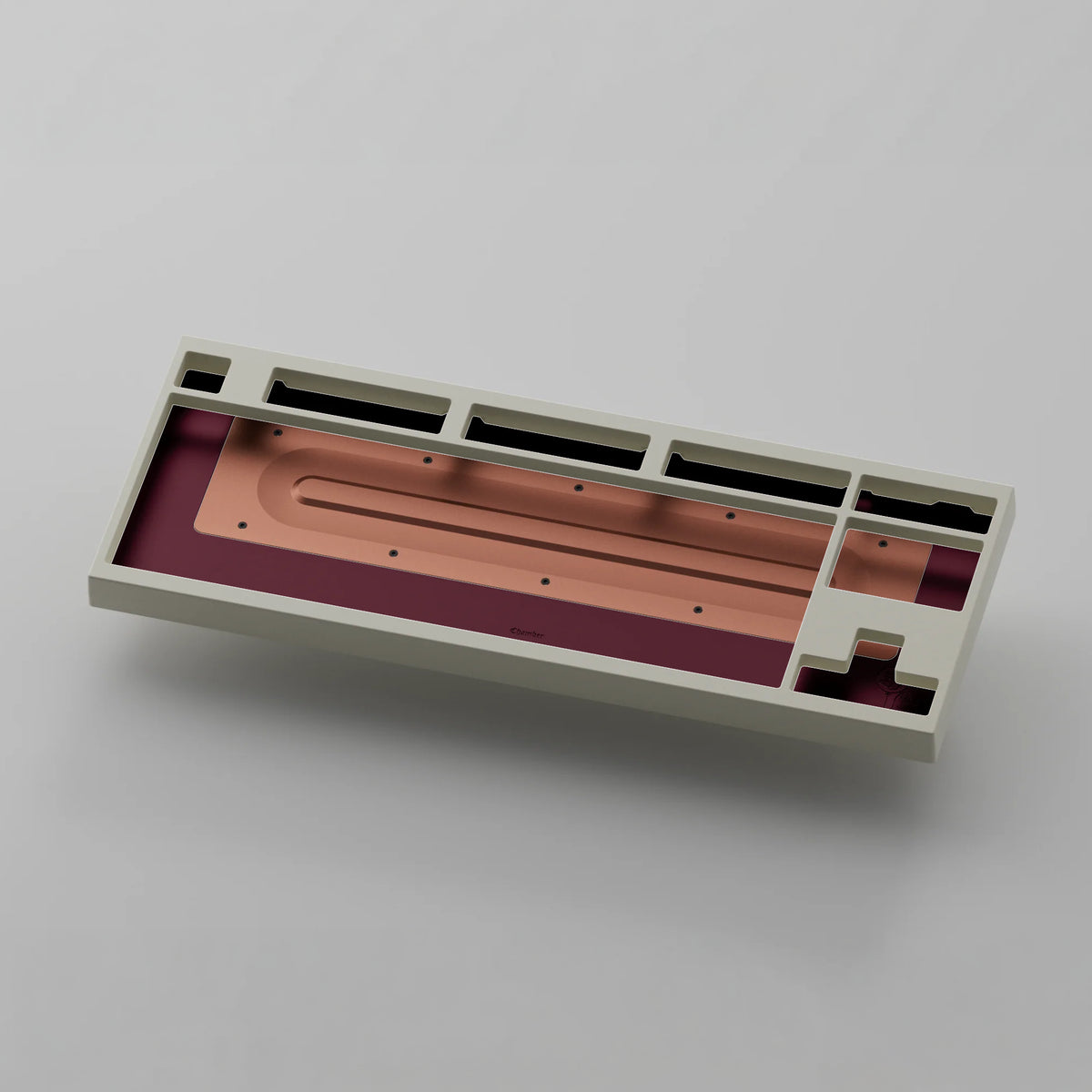

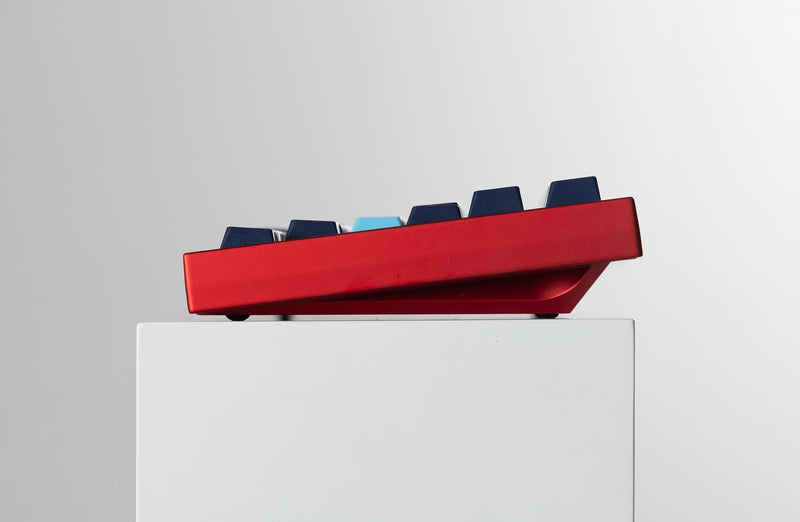

Chamber’s side profile is one continuous curve, machined inward from the underside with a dedicated tool because a standard chamfer can’t produce it. Inside, a through-case weight carries a racetrack recess that shapes both its mass distribution and the space beneath the PCB, tuning how the whole board resonates.

Layout

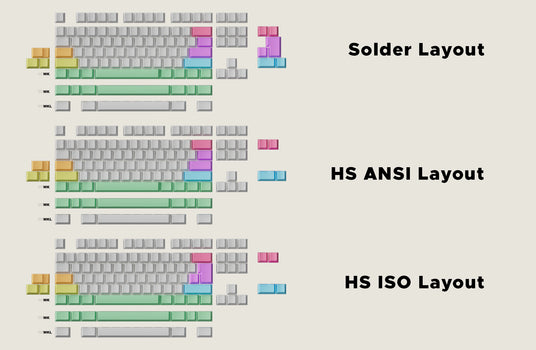

TKL in WK or WKL, with support for stepped Caps Lock, split left and right Shift, and split Backspace. The solder PCB covers both ANSI and ISO. For hotswap, ANSI and ISO are separate boards, so pick the one that matches your layout.

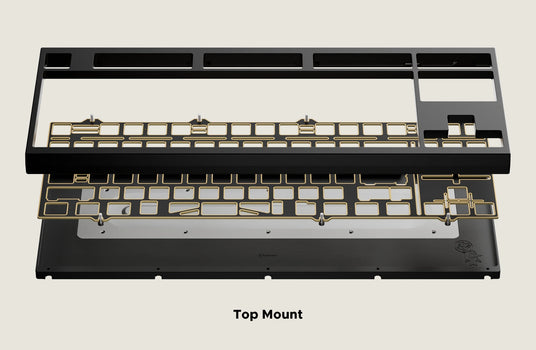

Mounting

Chamber’s dedicated Top-mount structure delivers direct, firm feedback. Optional foam kits for solder and hot-swap PCBs let you further tailor the build.

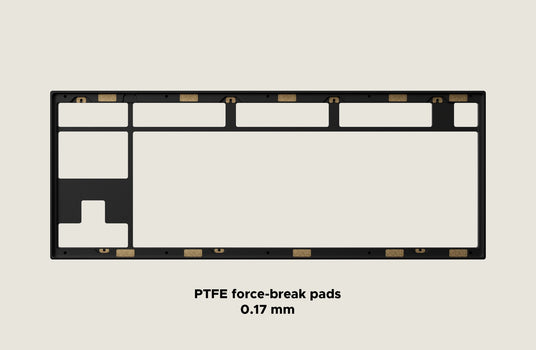

Force Break Pad

PTFE pads separate the case halves to reduce direct metal-to-metal contact and help limit vibration transfer and unwanted case resonance.
