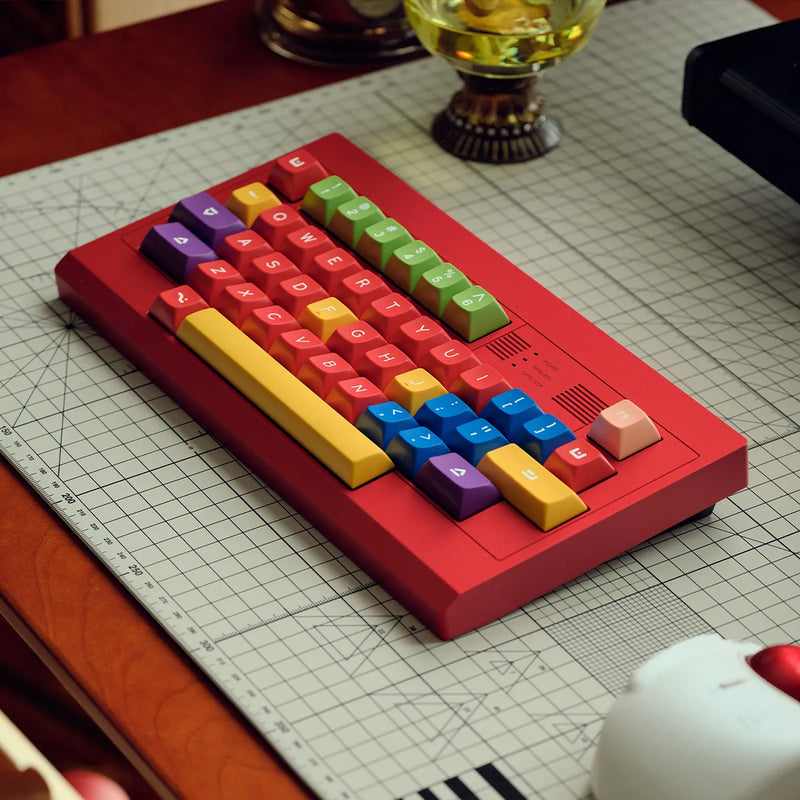

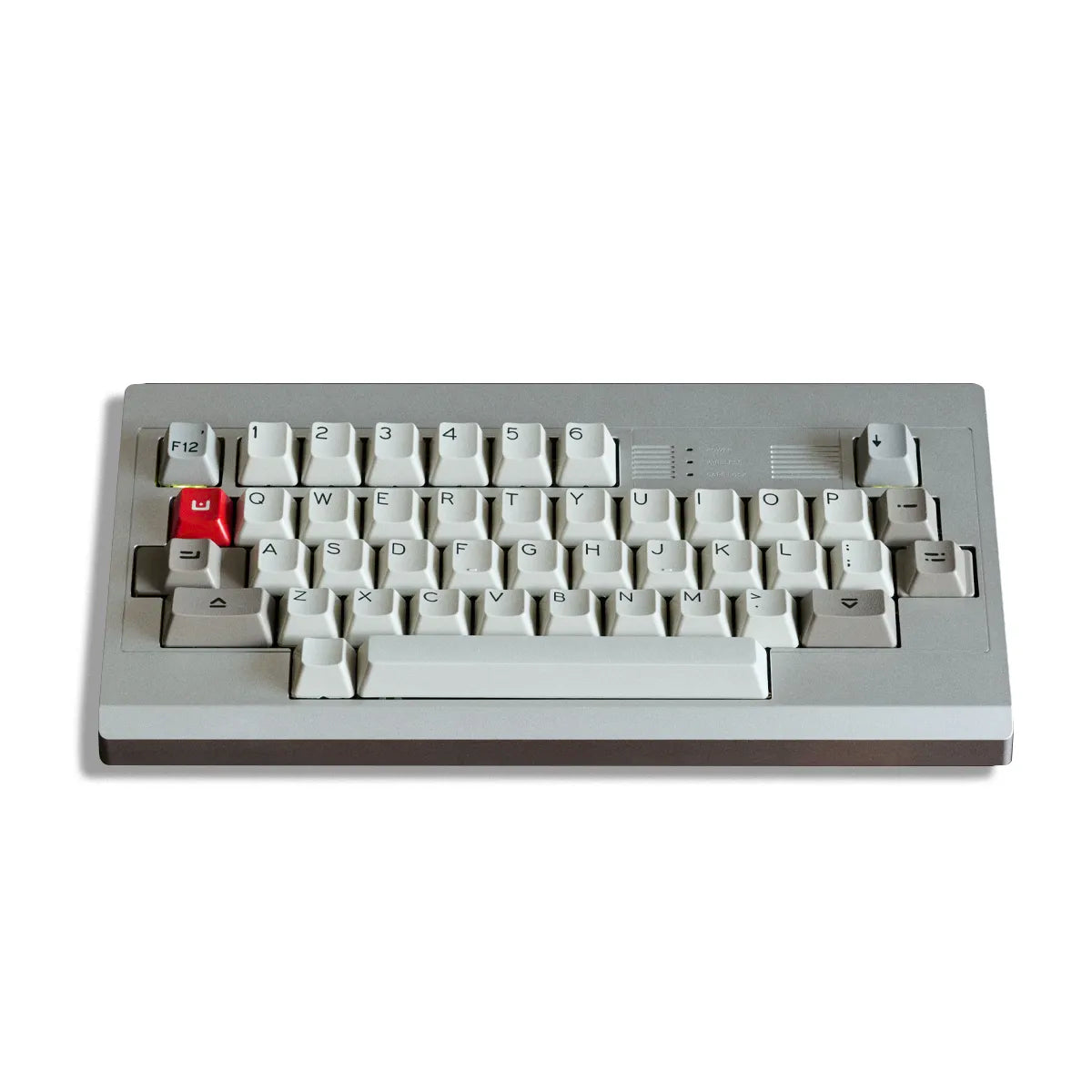

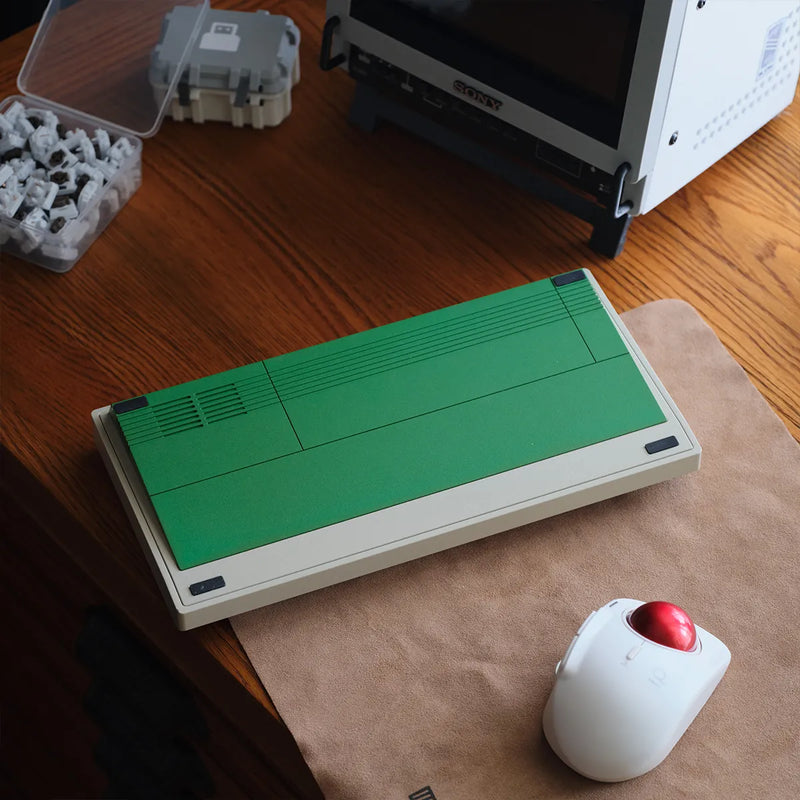

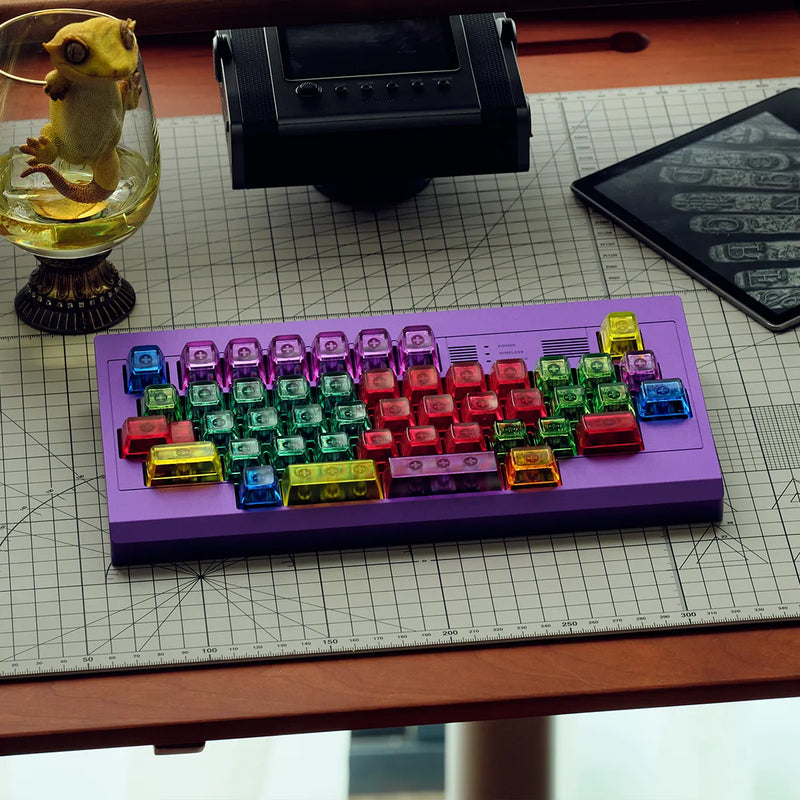

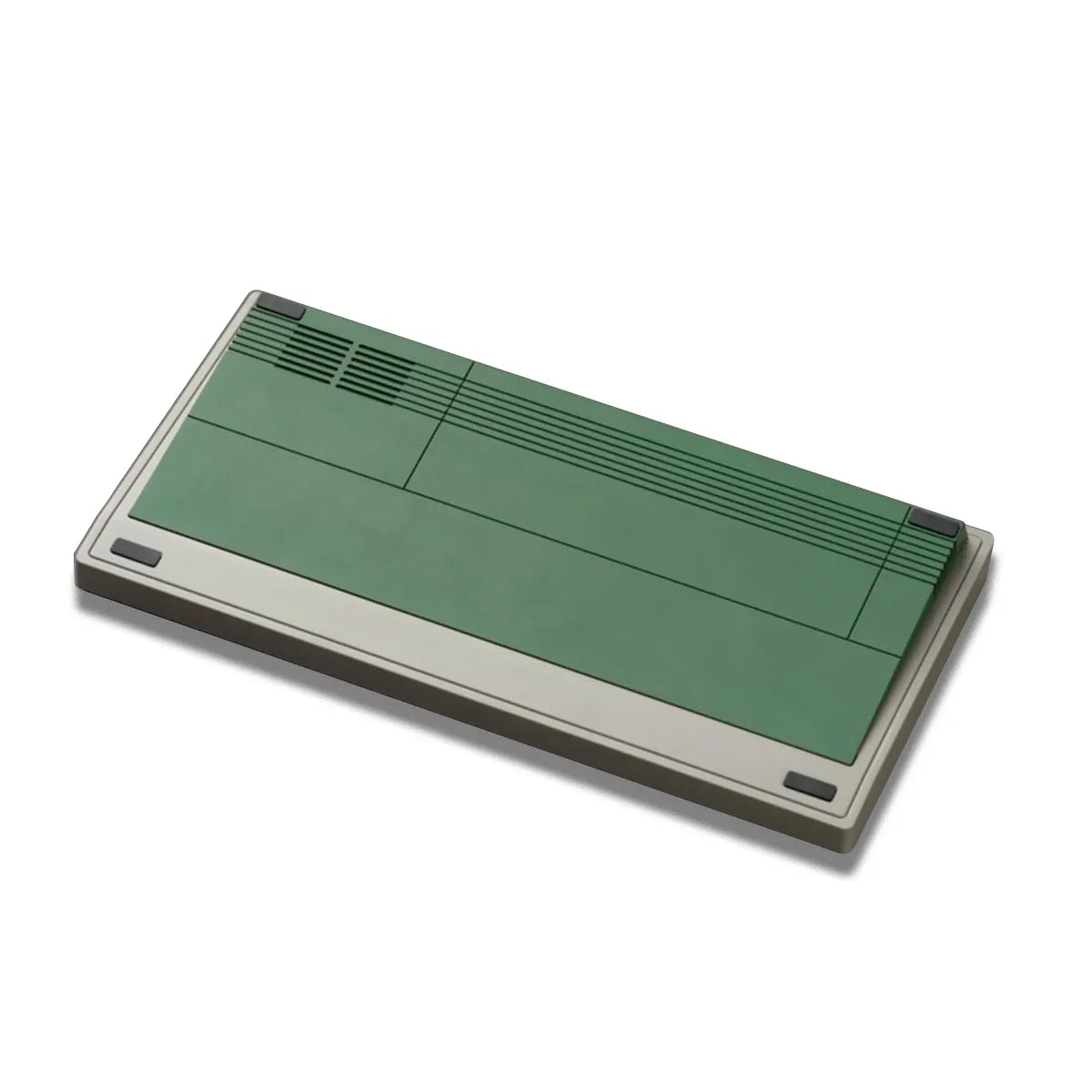

HX-40 is inspired by the famous portable computer "Epson HX-20" with its retro design and modern twist. Six additional num-keys were added for convenience with a range of layout options, PCB options from MX or EC, as well as connectivity for wired or wireless.
Groupbuy Ends: November 15th
Estimated Ship Date: March 2026
HX-40 Keyboard Features:

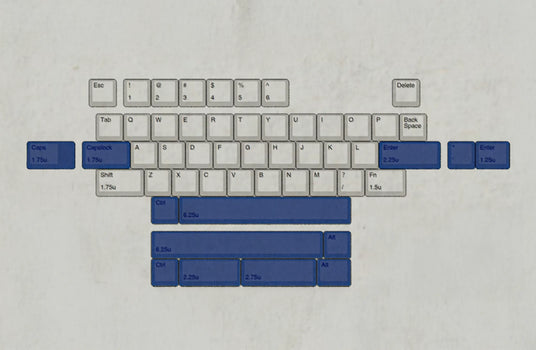

- 40% Layout + Half Num-row

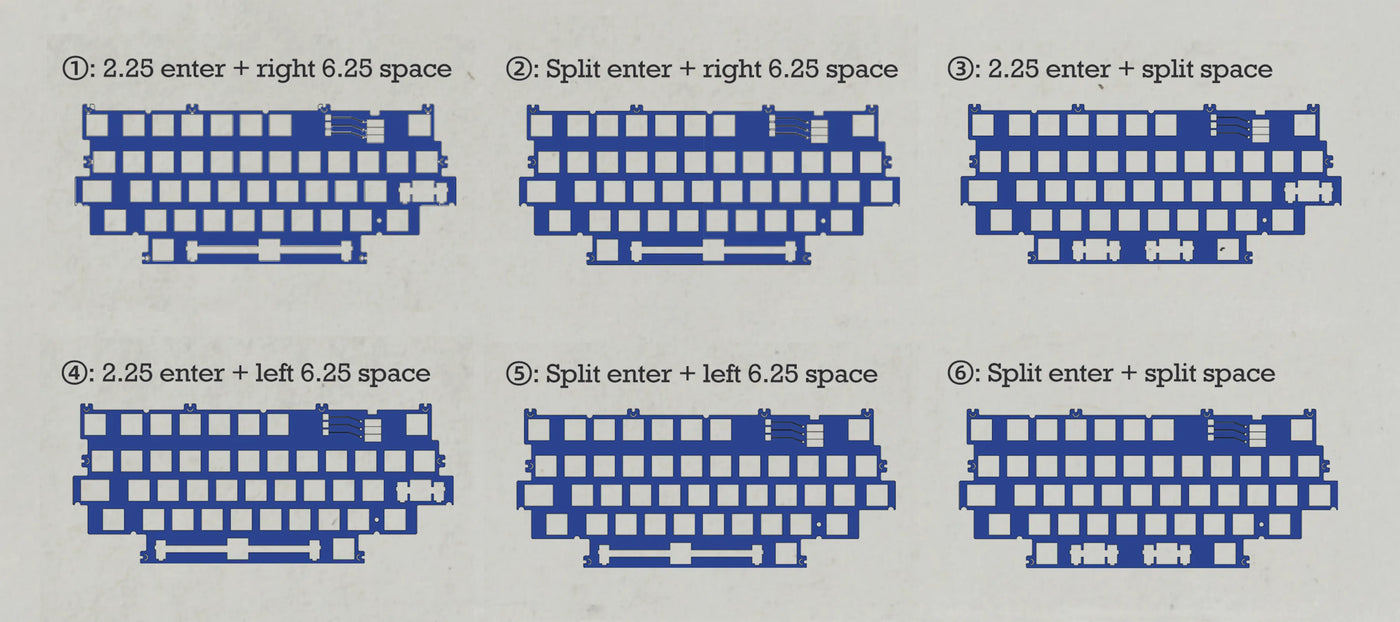

- Supports:
- 2.25U Enter or Split Enter
- Left or Right Spacebar Position, Split Spacebar
- Supports:

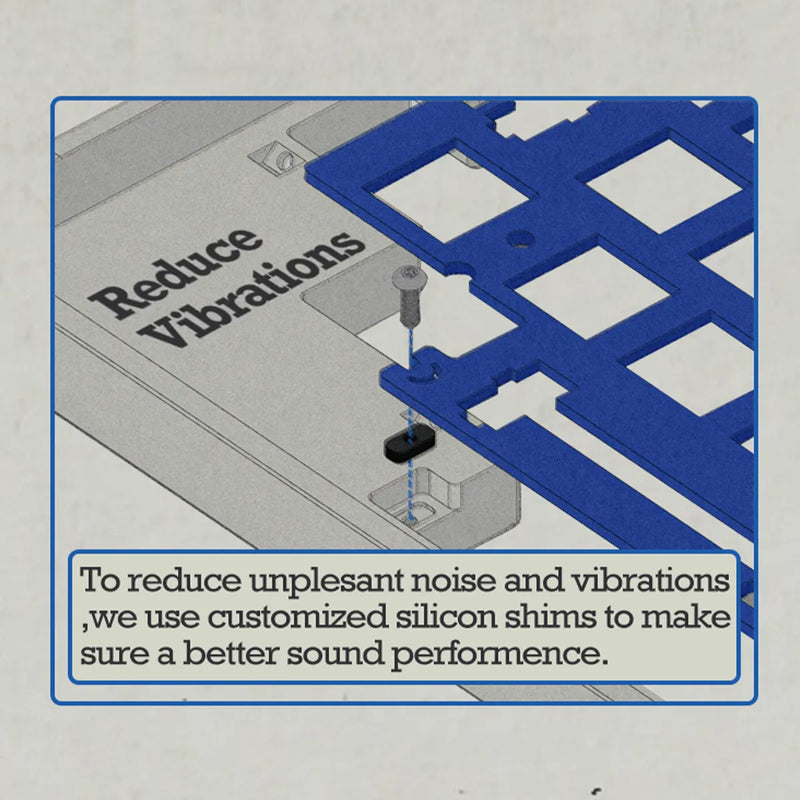

- Mounting Style: Top Mount with Silicone Shims
- Case Material: Aluminum 6063
- PCB:
- Designed by Zoroada
- Supports VIAL, QMK, VIA
- Supports MX (1.6mm Thick), or EC (1.2mm Thick)
- Connectivity: Wired, Dual-mode, or Tri-mode
- Dual-mode and Tri-mode will include two 1400mAh Battery
- Plate: Standard FR4 (MX) or SS (EC)
- Optional (sold separately): Aluminum, PC, Brass
- Typing Angle: 7°
- Dimensions: 262 x 133 x 33mm
- Front Height: 18mm
- Assembled Weight: 1.4kg
- Available Colors:

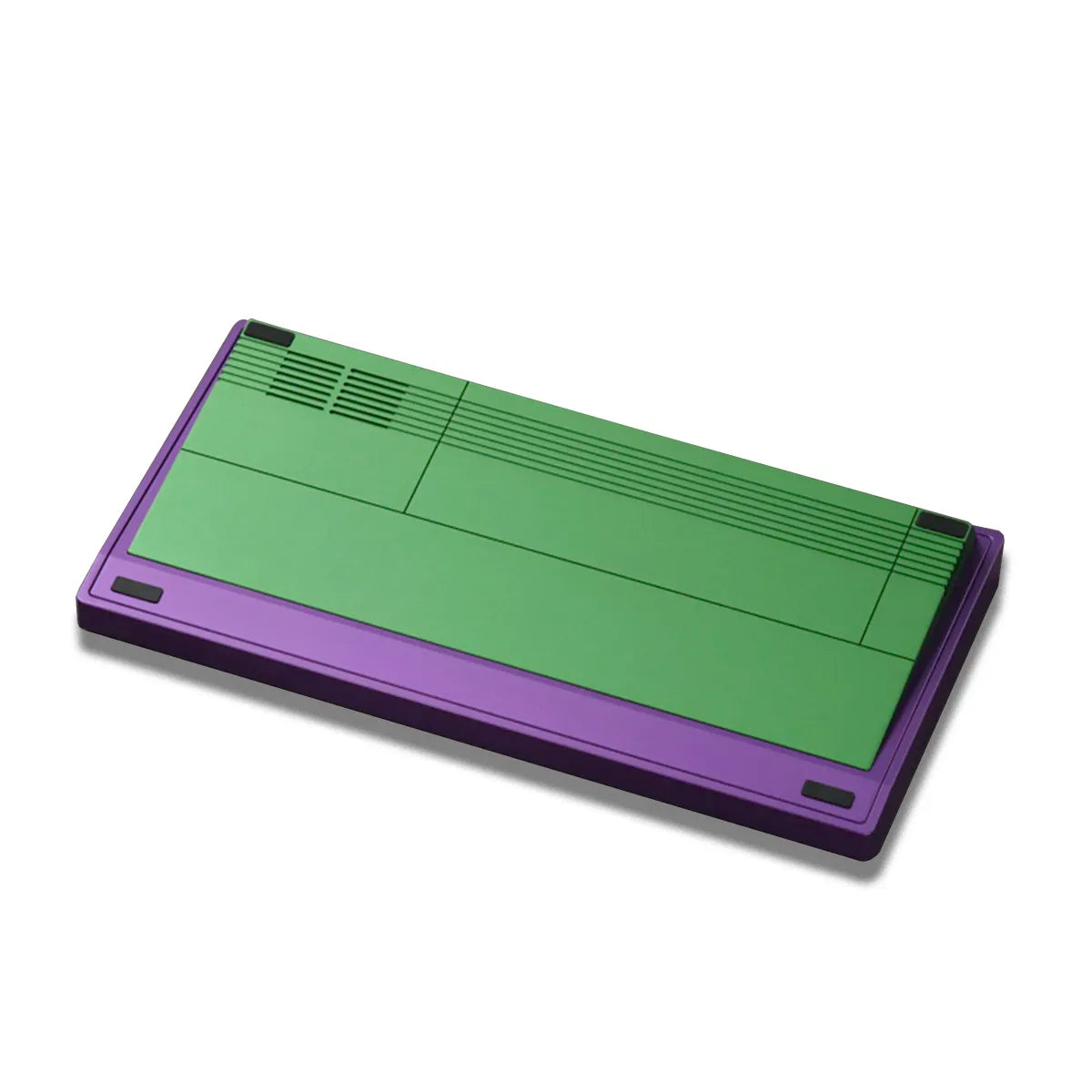

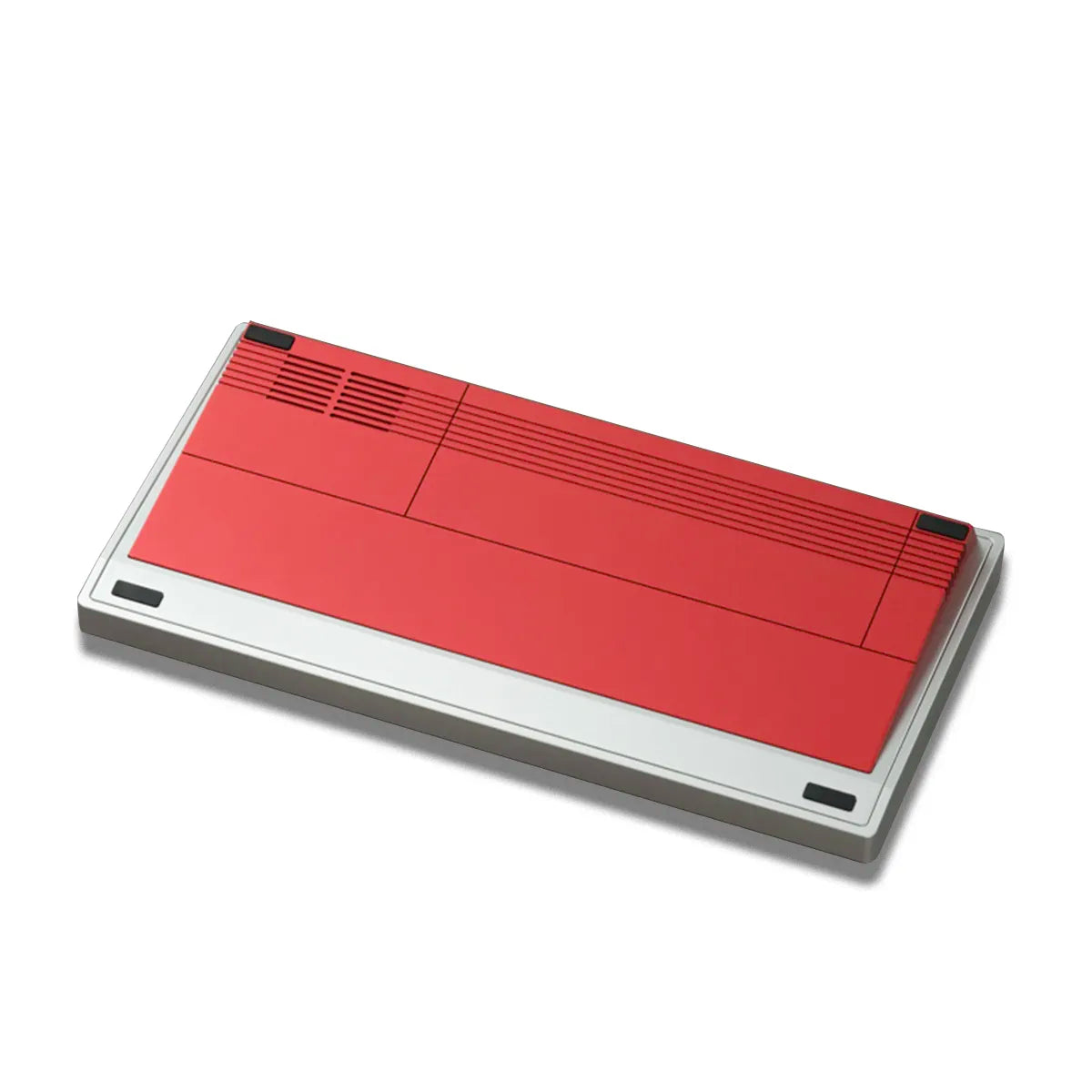

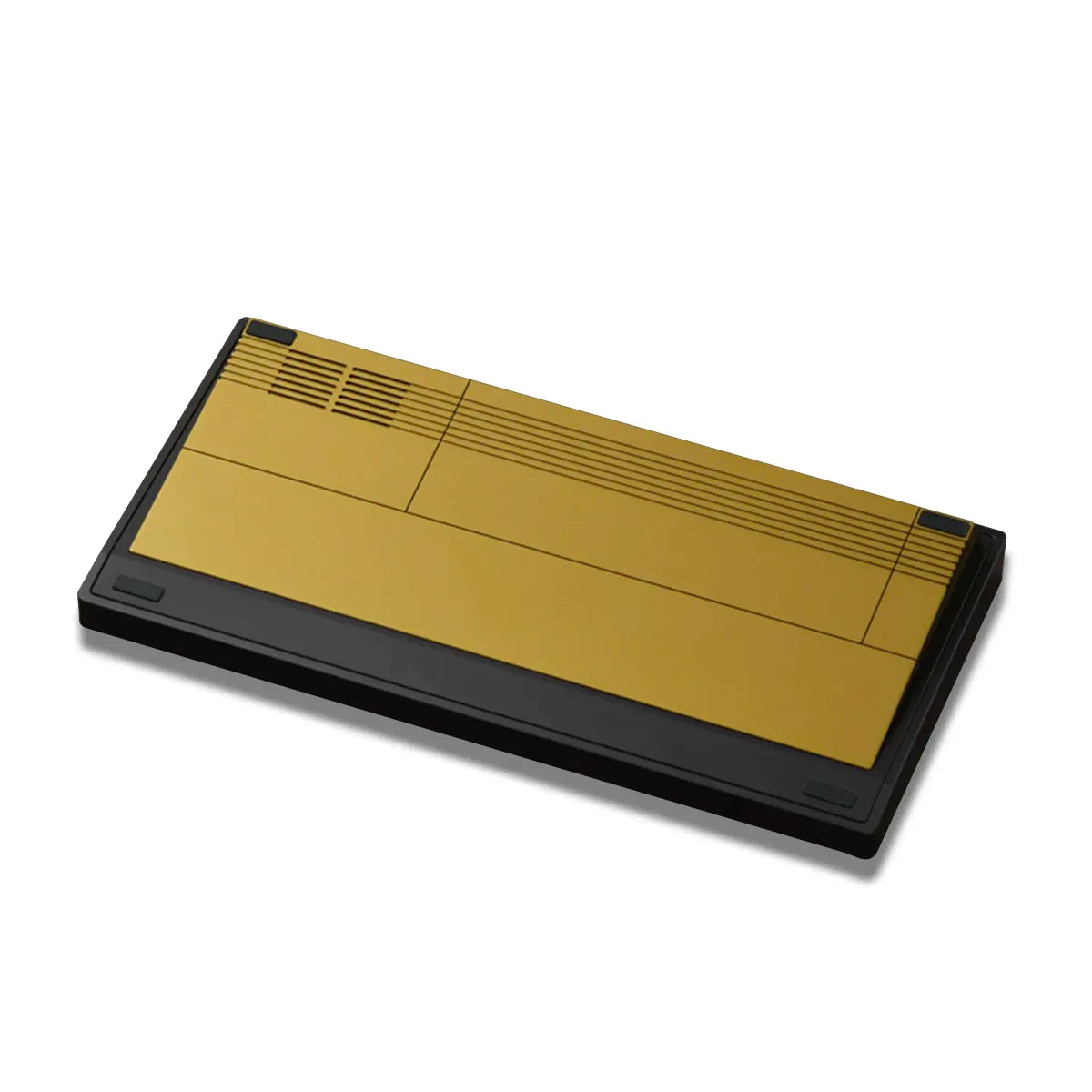

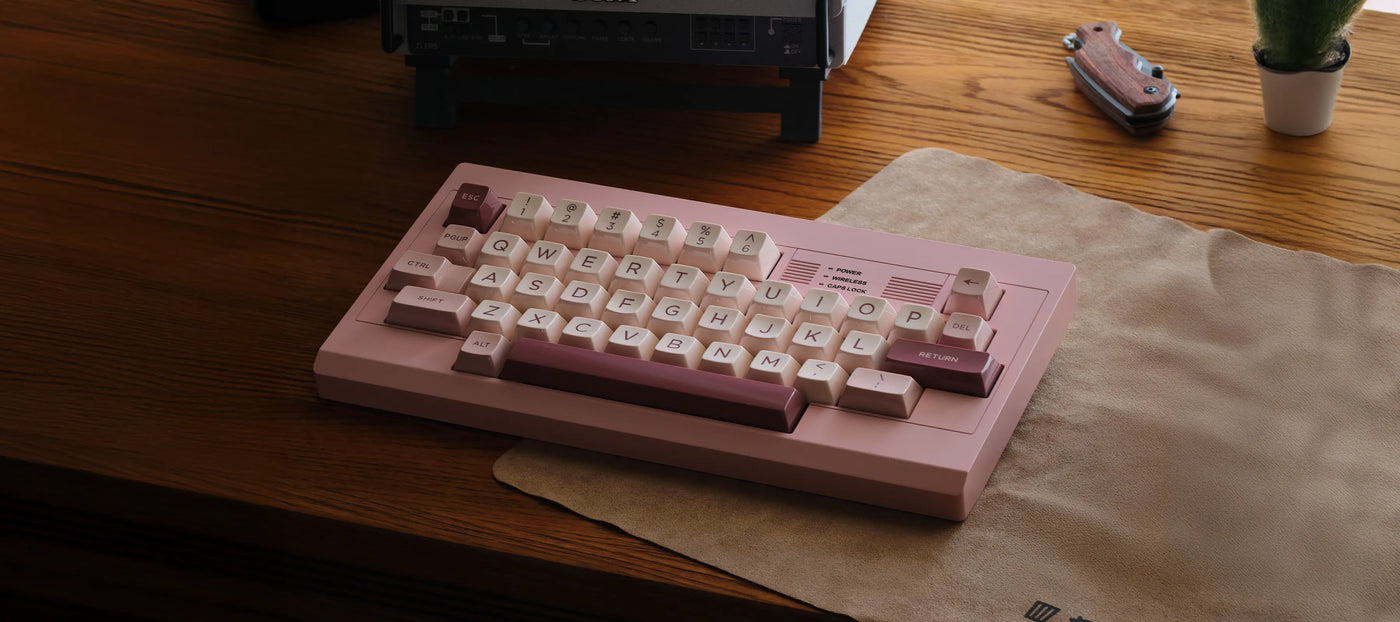

- Silver-Red, Red-Black, Gray-Black, Purple-Green, Black-Golden, Classic Beige, Why not pink
Optional:
Includes:

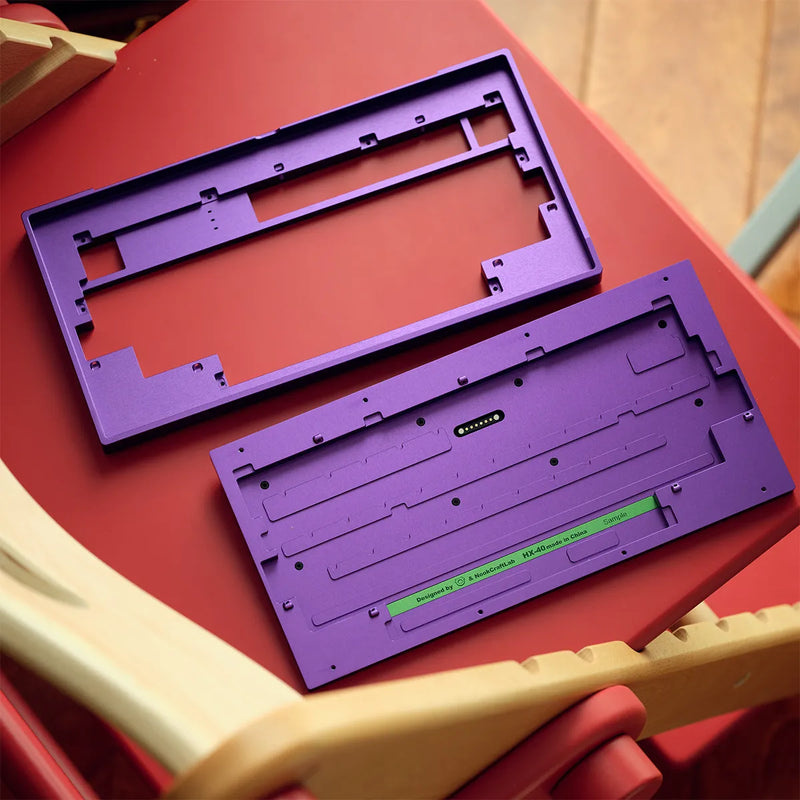

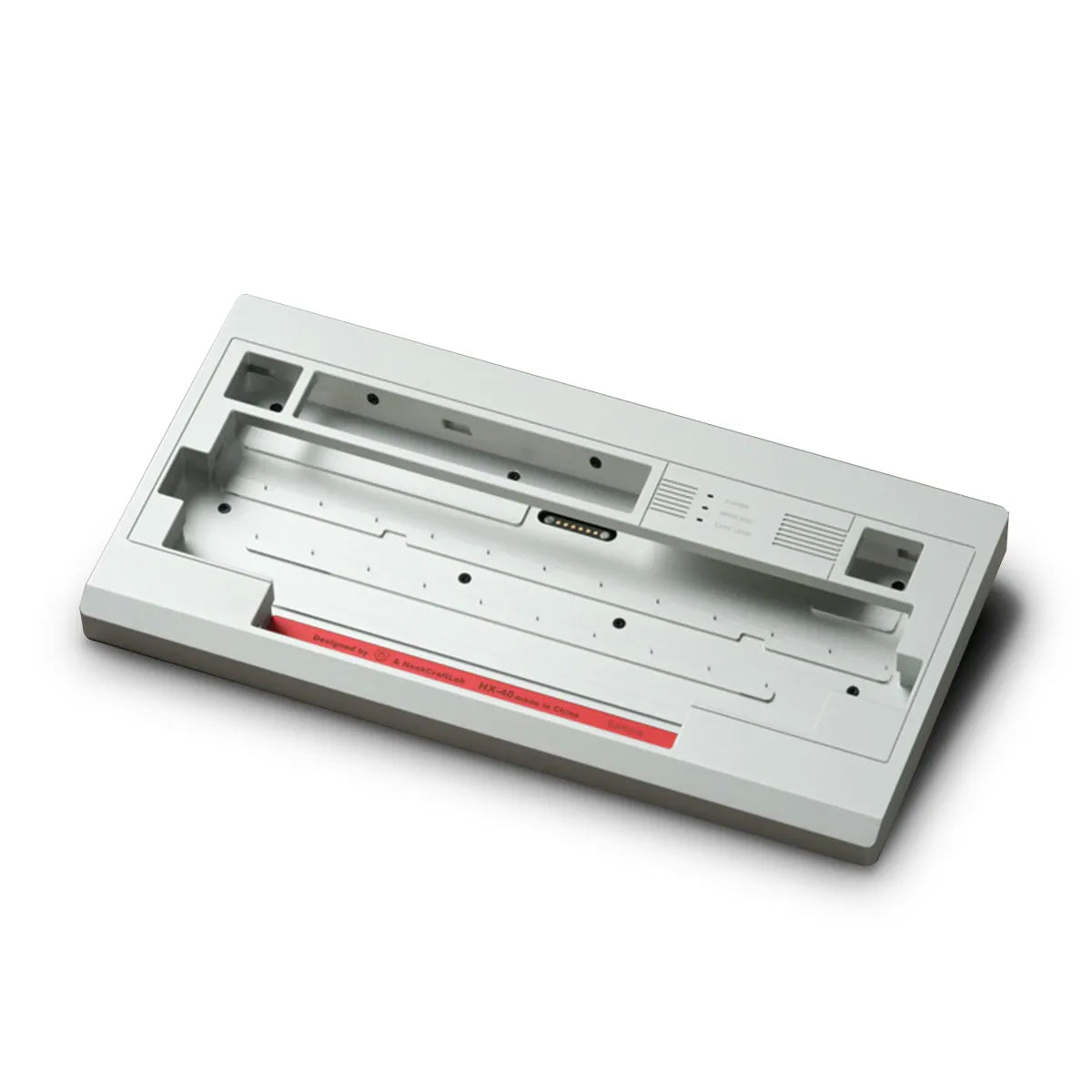

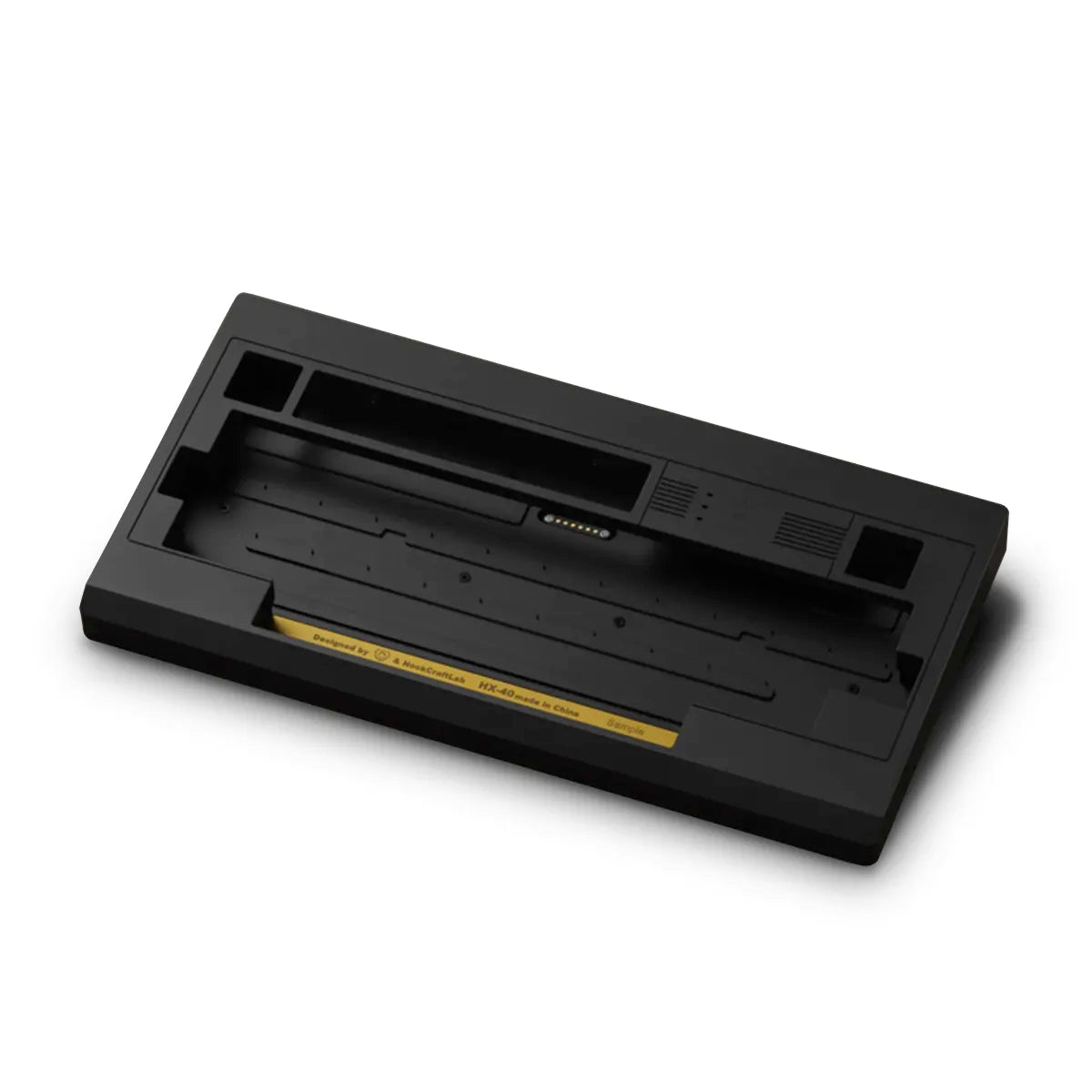

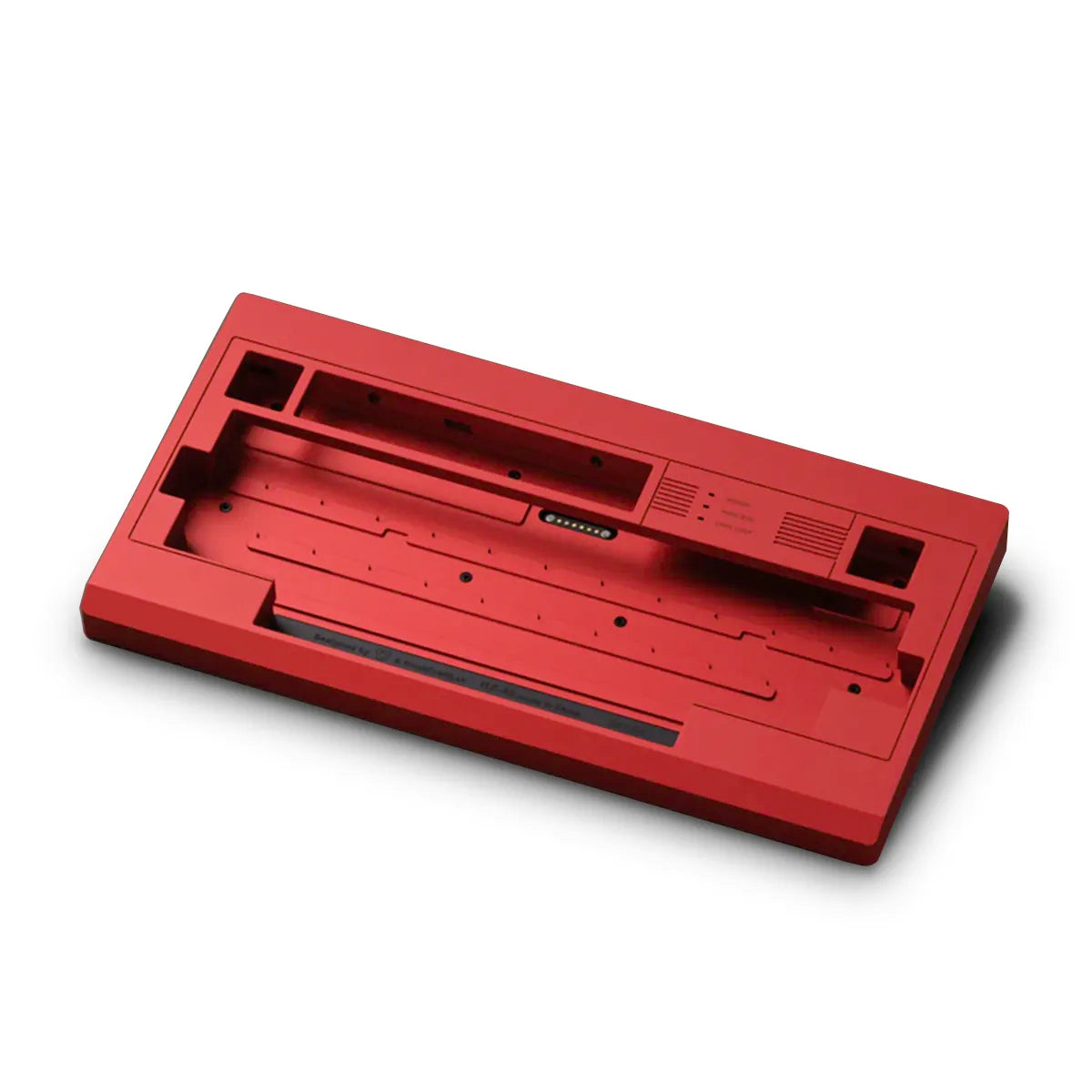

- 1 Top Case

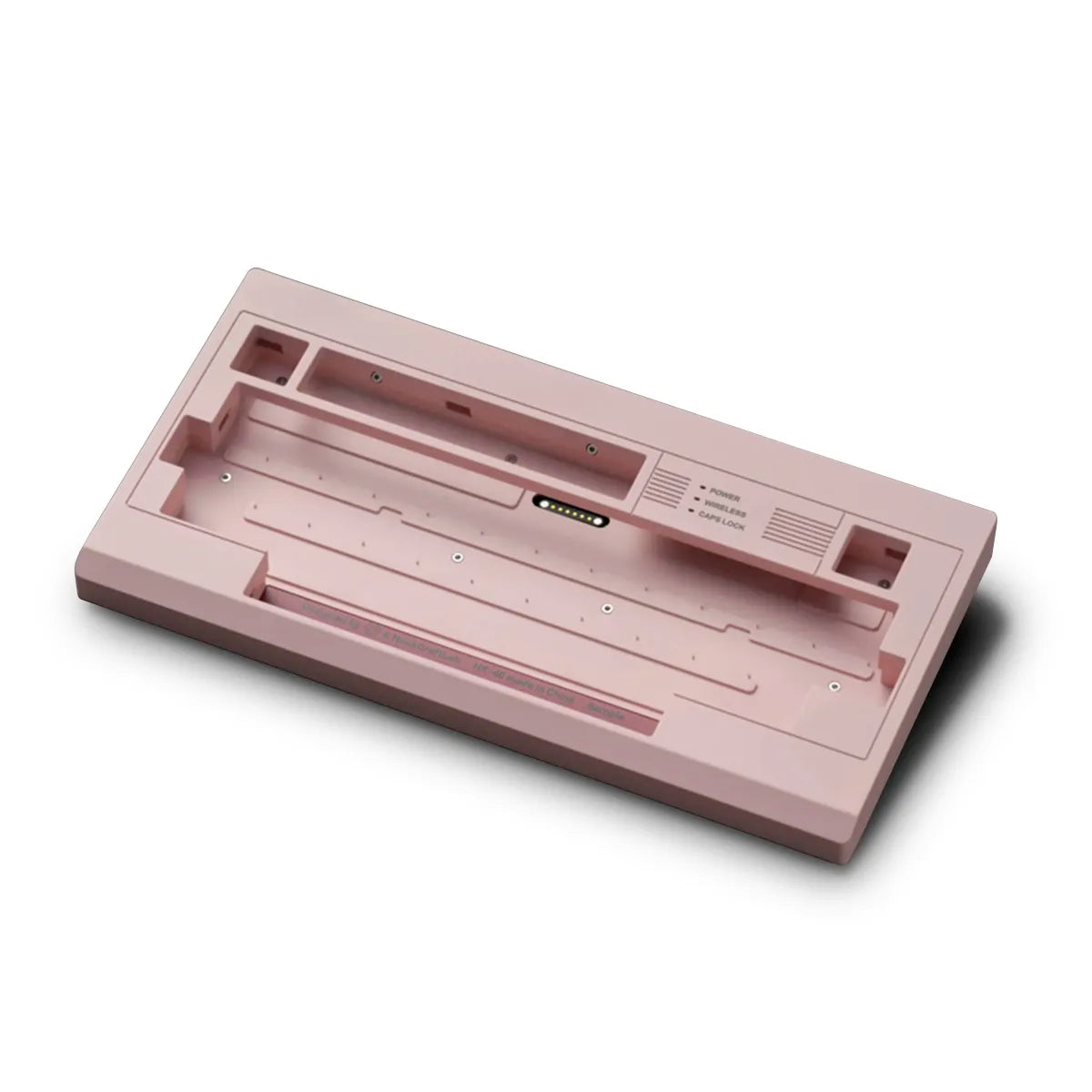

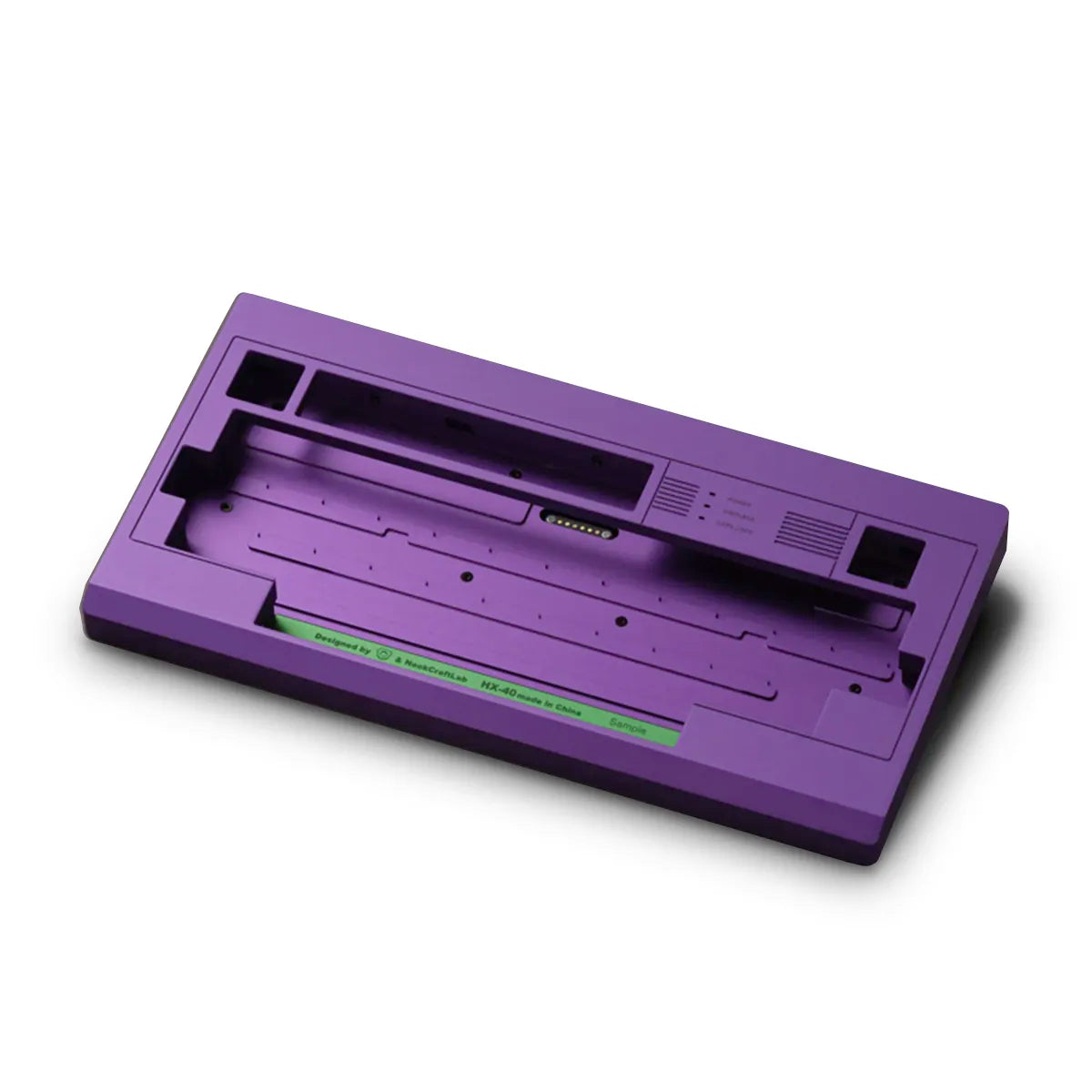

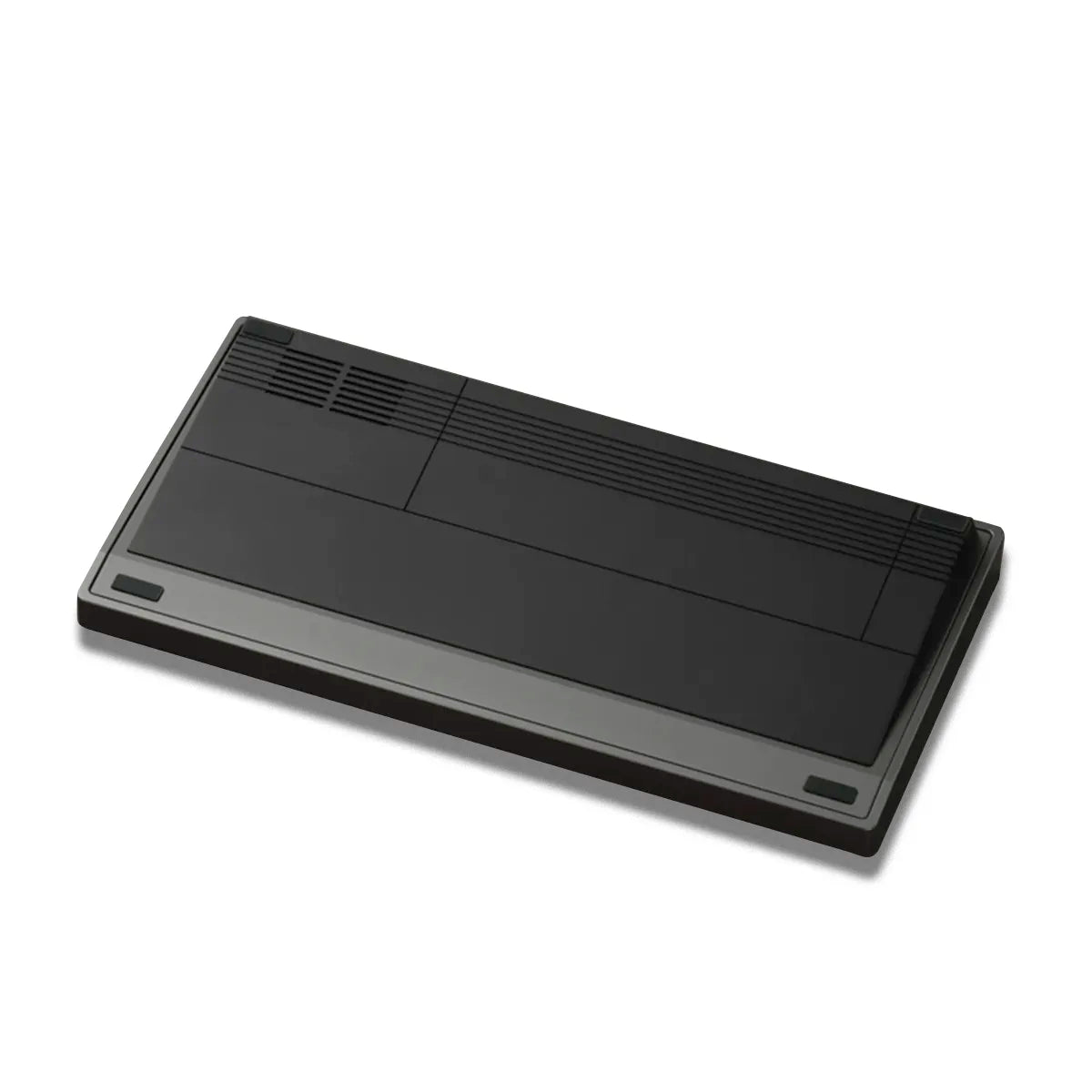

- 1 Bottom Case
- 1 FR4 Plate
- 1 Weight Bar
- 1 PCB
- 1 Gasket

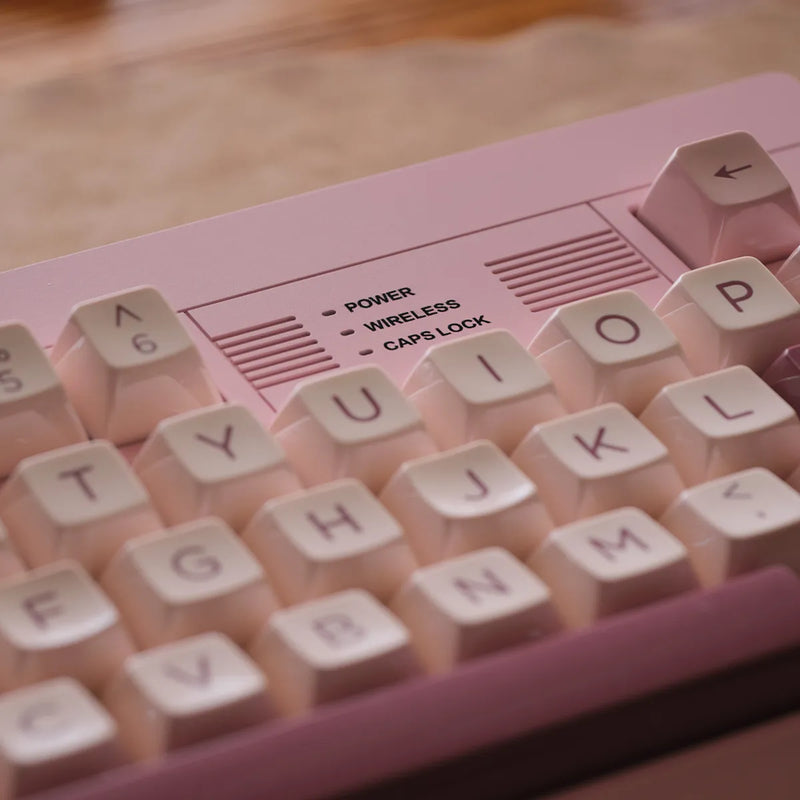

- 1 Indicator Diffuser
- 1 Carrying Case
- 1 Set of Screws

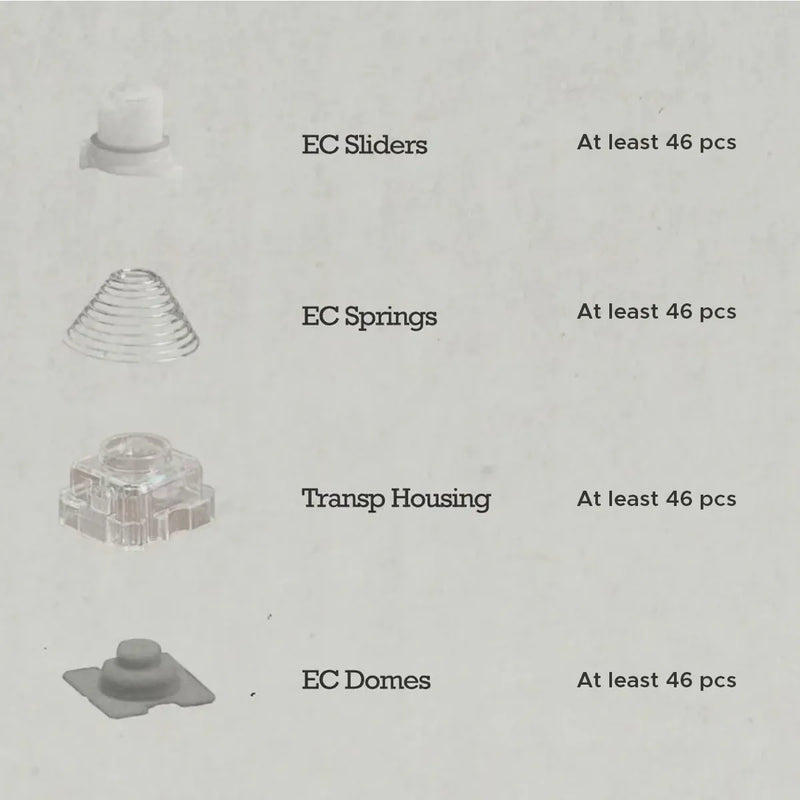

- EC option will include an EC Accessories Kit
- 46pcs EC Sliders, EC Springs, EC Housings, and EC Domes
Please read QC Standards & After Sales Terms prior to ordering.
Disclaimer: Groupbuy items may not be combined with In-Stock items. Free shipping does not apply to Groupbuy items.
QC Standards & After-sales Terms:
QC Standards & After-sales Terms:
- The exterior surfaces of the kit shall have no defects such as scratches, dents, or pinholes larger than 1*1mm (exterior surfaces refer to all six visible sides—front, back, left, right, top, and bottom—after keycaps are installed). Internal defects will be minimized as much as possible; however, imperfections caused by anodizing and electrophoretic coating fixtures, as well as minor tool marks, are unavoidable. Their quantity and area will be controlled but cannot be held to the same standard as exterior surfaces. Occasional acid marks around screw holes may occur, and small areas will not be eligible for after-sales support.
- Product Function: The keyboard must function properly with no operational issues.
- Product Structure: The keyboard must be structurally sound when assembled, with no issues such as dimensional interference that would prevent proper installation.
- Within seven days of receipt, please record a complete unboxing video and inspect the keyboard’s exterior and PCB functionality. If any issues are found, contact customer service with the unboxing video to initiate an after-sales request. During the after-sales period, return the product via SF Express (to be paid by the recipient; other express delivery methods will be rejected). The studio will cover round-trip shipping costs. Defects reported beyond seven days after receipt will require the customer to bear all costs associated with shipping, repairs, or replacements.
