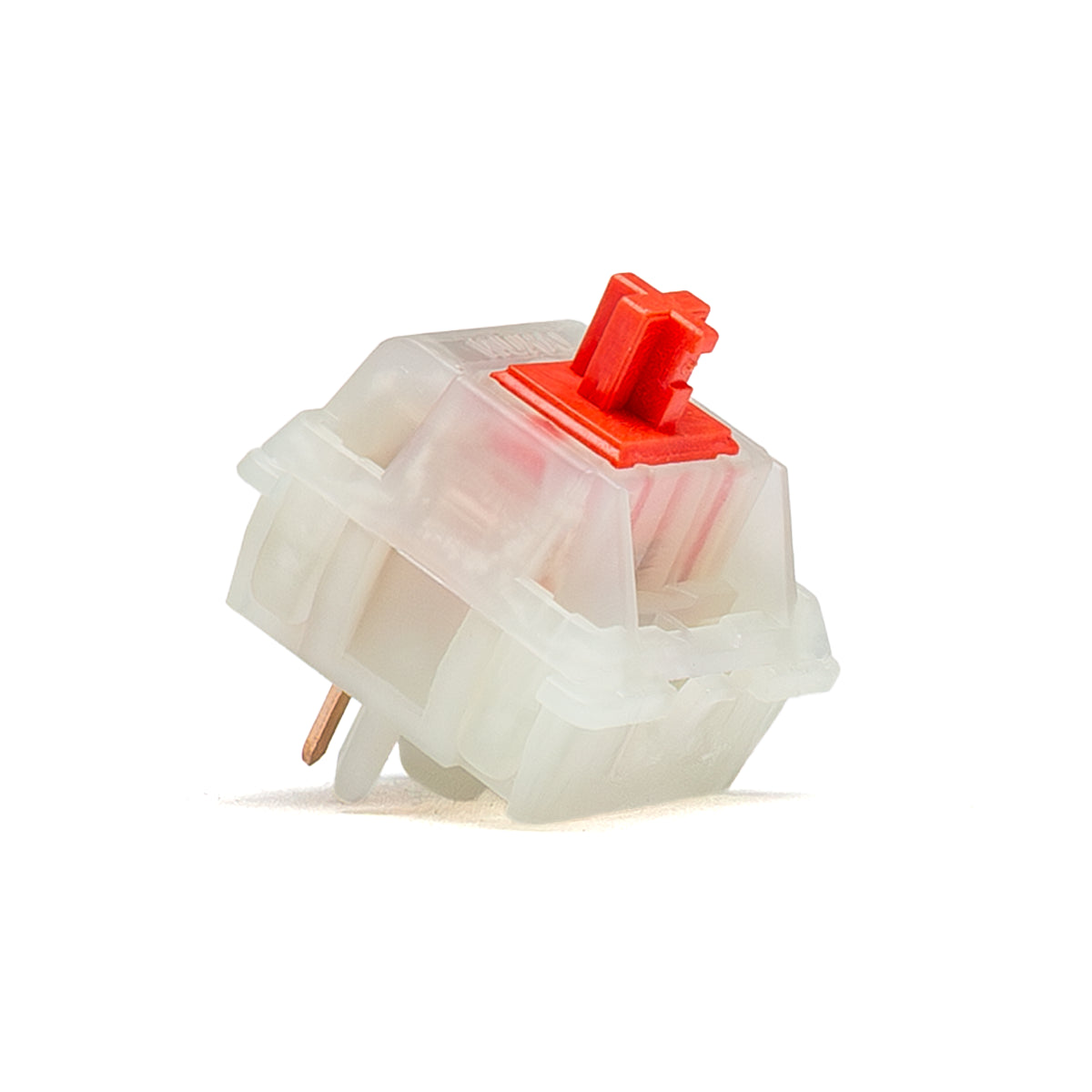

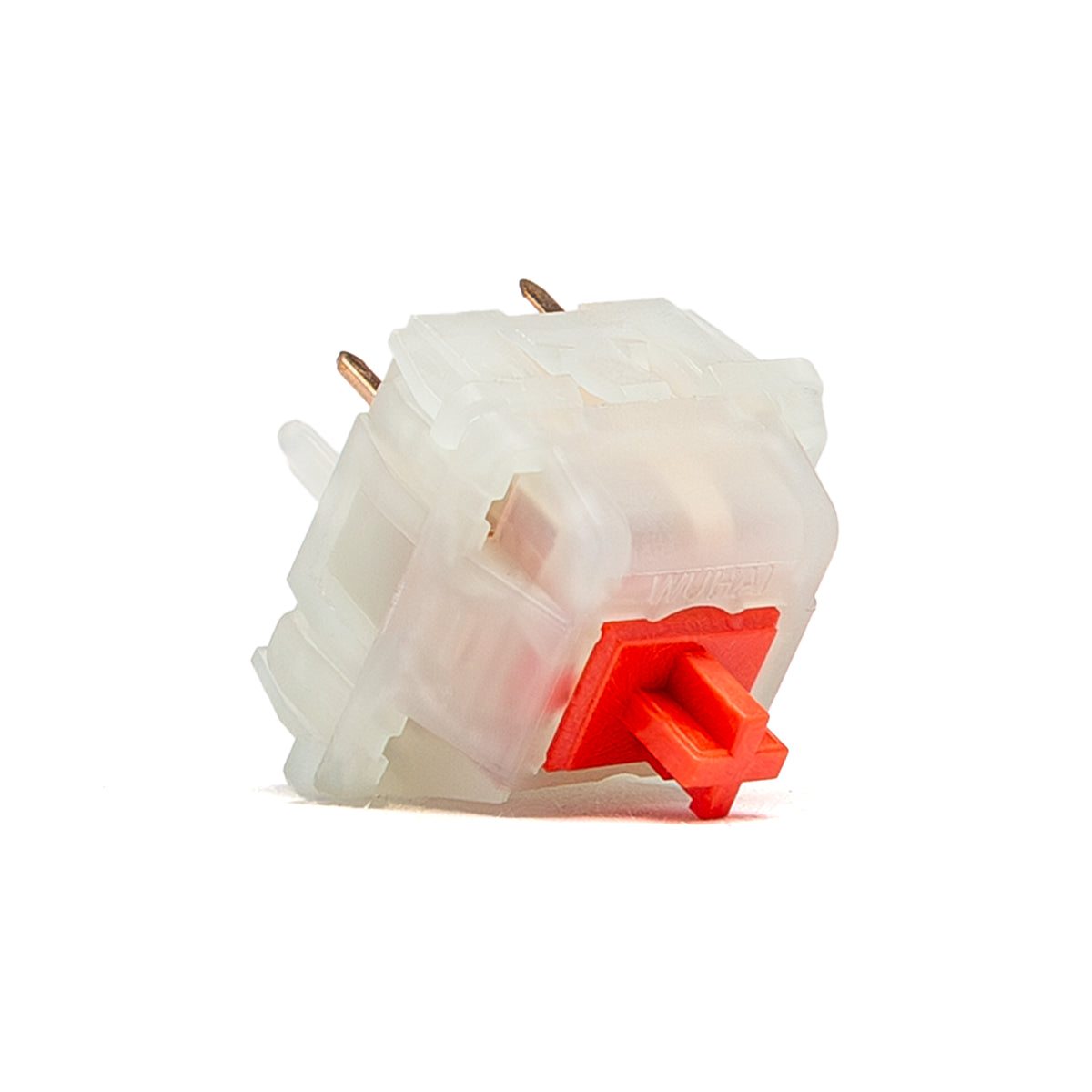

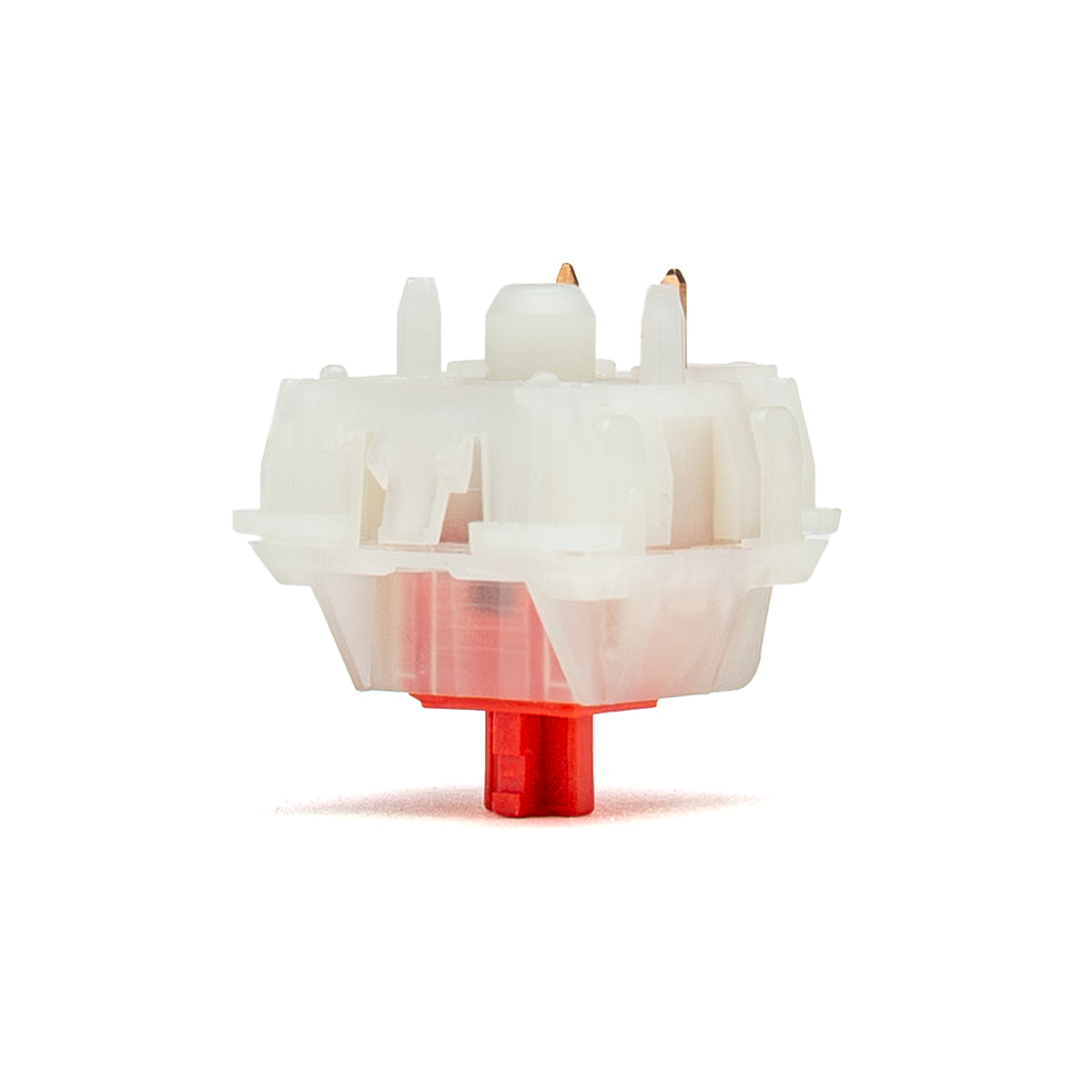

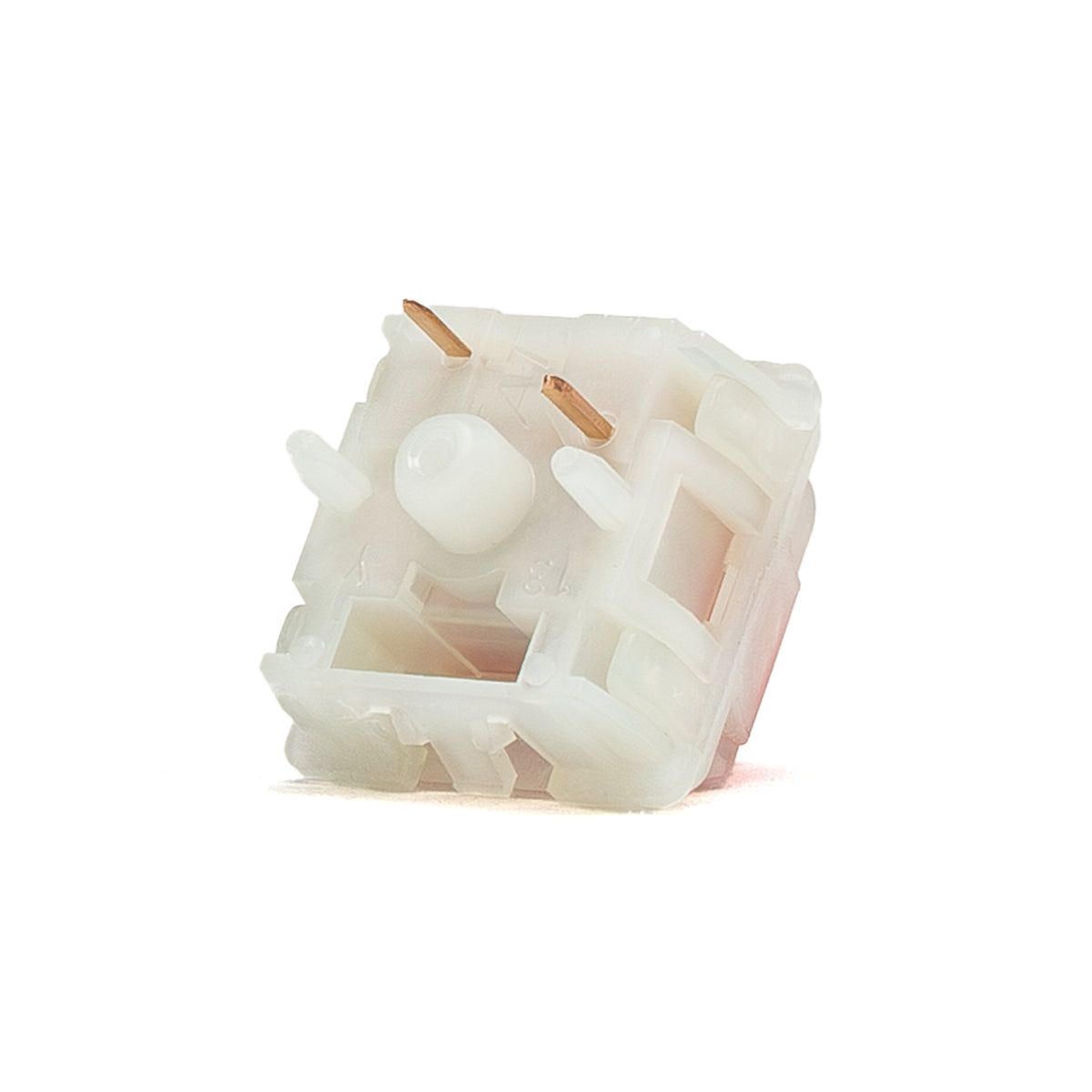

Wingtree Camellia Linear Switches

Wingtree Camellia Switches are linear switches that aims to modernize the classic switch feeling. Coming in a more traditional 4.0mm total travel, added scratchiness, as well as a full Nylon housing and POM stem, Camellia delivers on creating a more refined and clean type feel and sound. If you prefer more scratchiness, we recommend trying the unlubed version.

Sound Profile: Scratchy, Mild, Neutral

Wingtree Camellia Switches Feature:

• 18 included in each pack
• Linear
• Manufactured by Wingtree
• Designed by Wuhai Studio

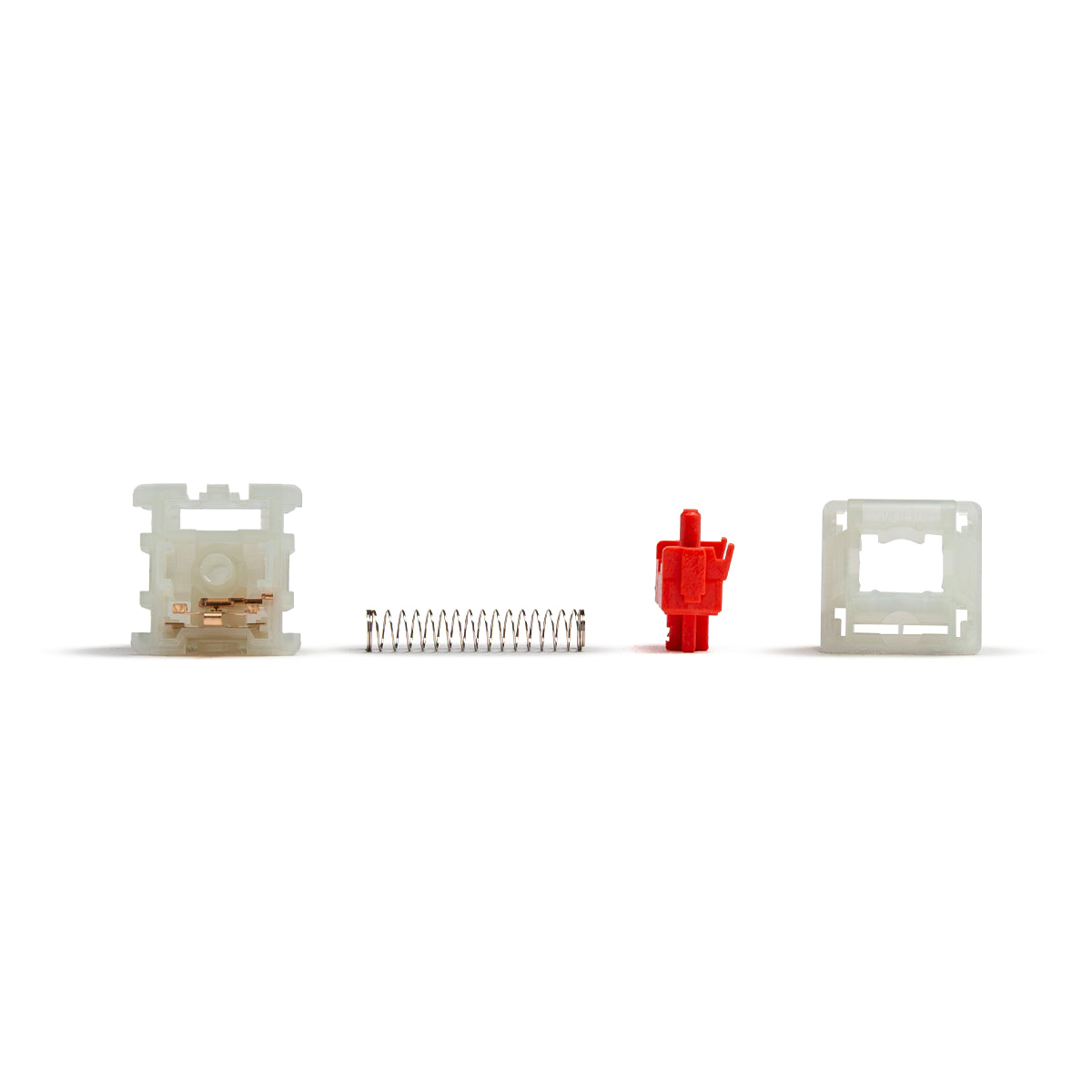

• Top Housing: PA66
• Bottom Housing: PA66
• Stem: Modified POM, Flat Stem Tip
• Spring: 20mm, Single-stage
• Pre-travel: 2.0mm
• Total Travel: 4.0±0.2mm
• Actuation: 42±2g
• Bottom-out: 52±2g
• 5-Pin, PCB Mount
• MX Structure
• Available in:

  • Lubed: Stem Legs & Sliders has a thin coat of 205G0. Spring & leaf are lubricated with a dry film. Bottom housing and stem pole are unlubed to prevent pooling.
  • Unlubed: Mostly unlubed except for the spring and contact leaf
• Price: $0.32 per switch

Includes:

• 18 Wingtree Camellia Switches
