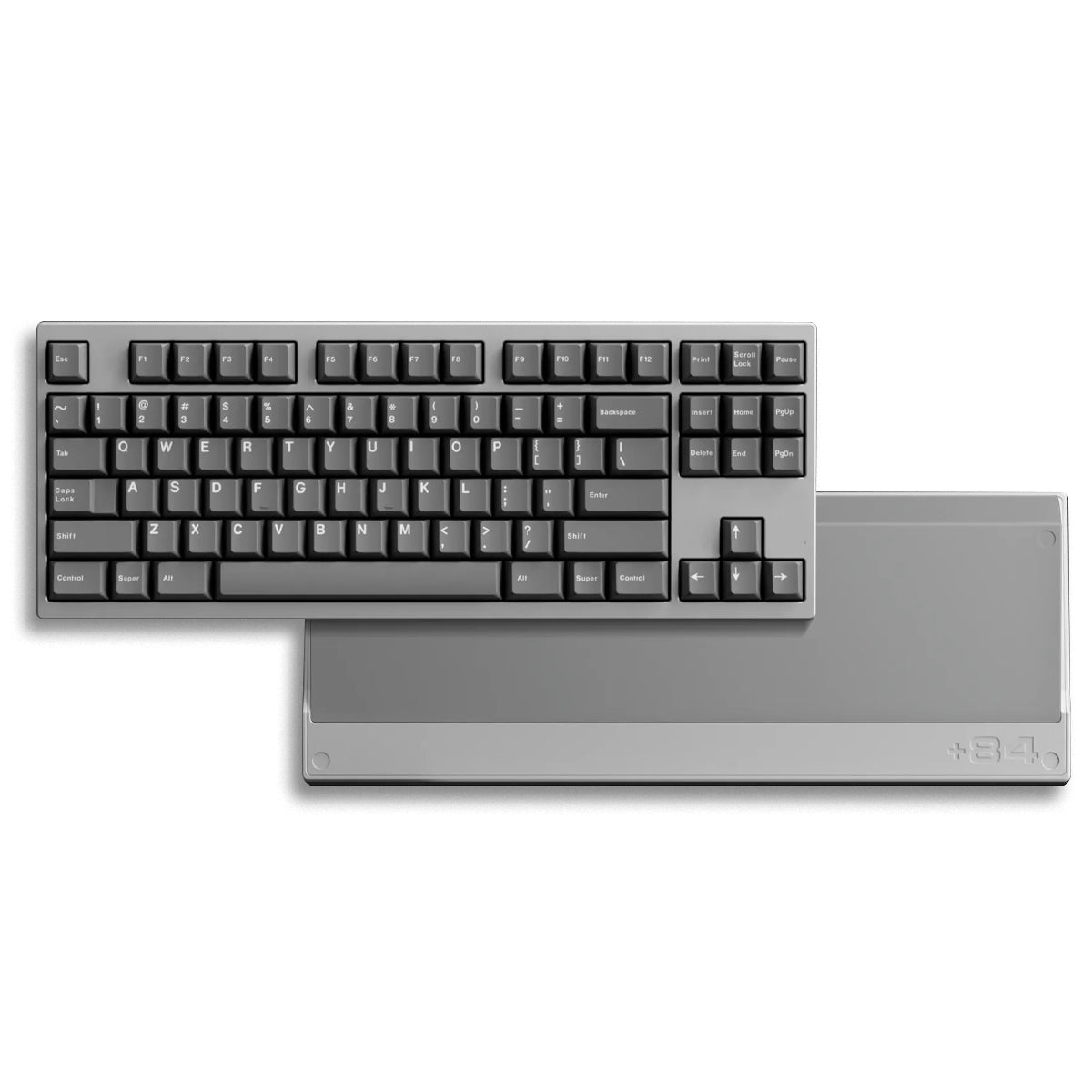

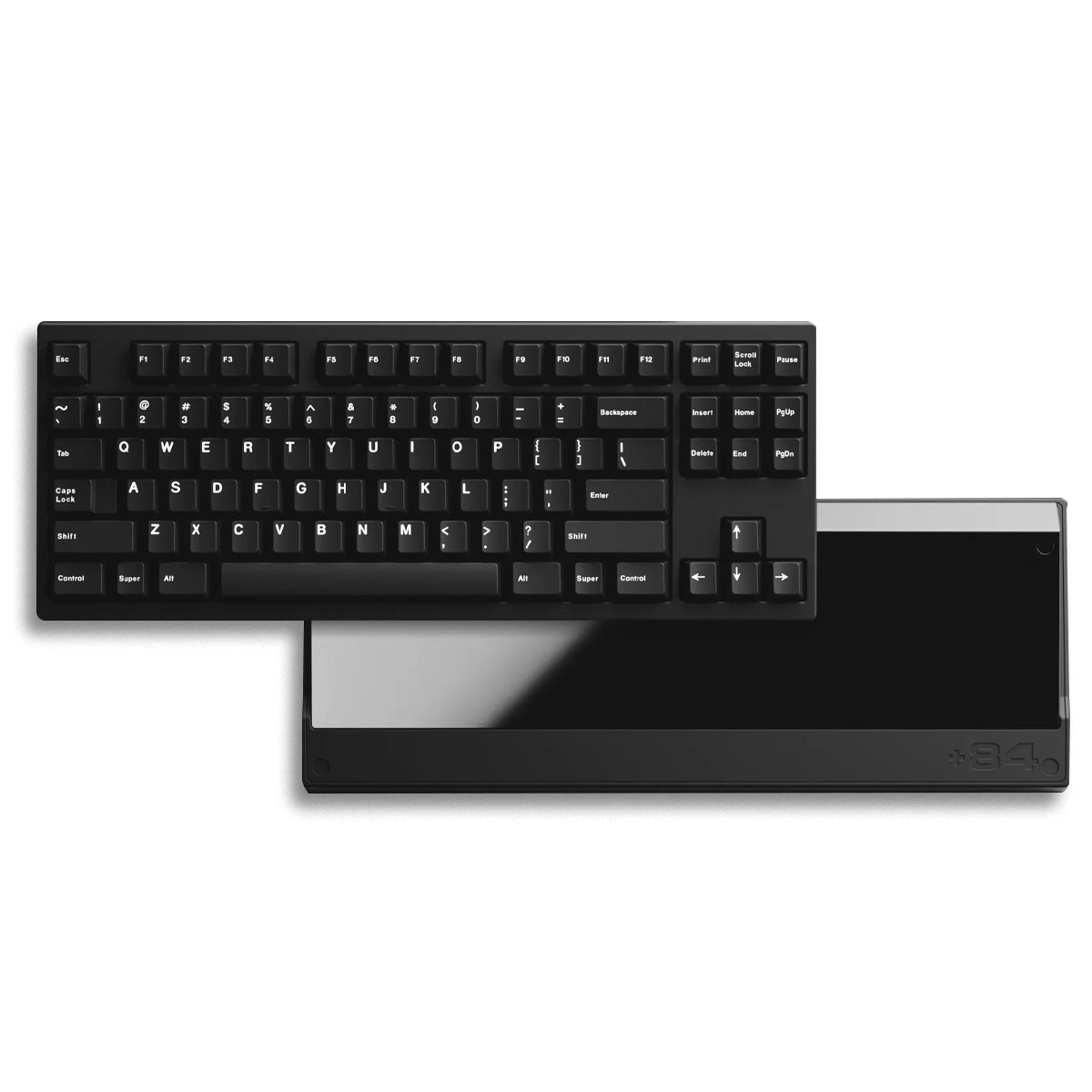

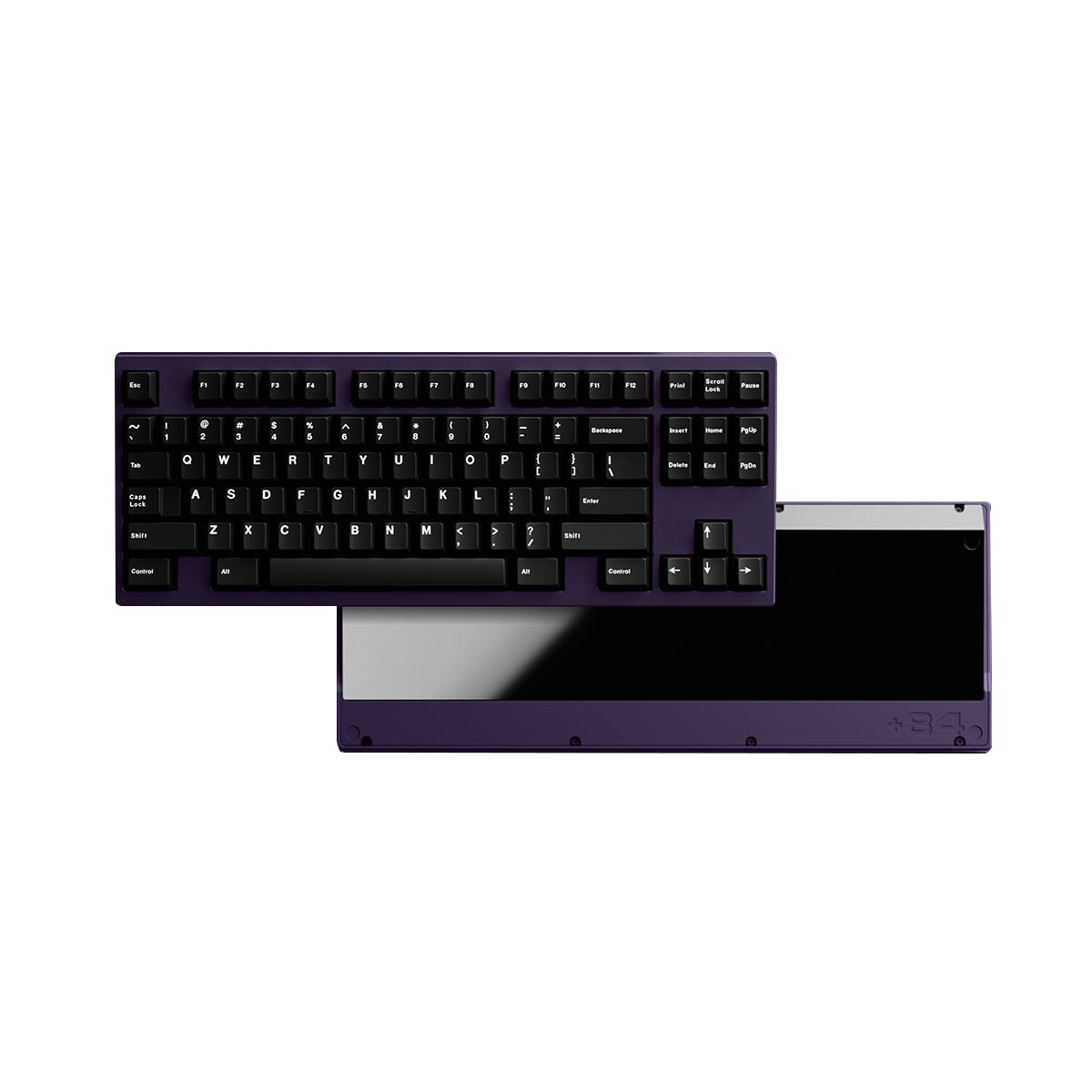

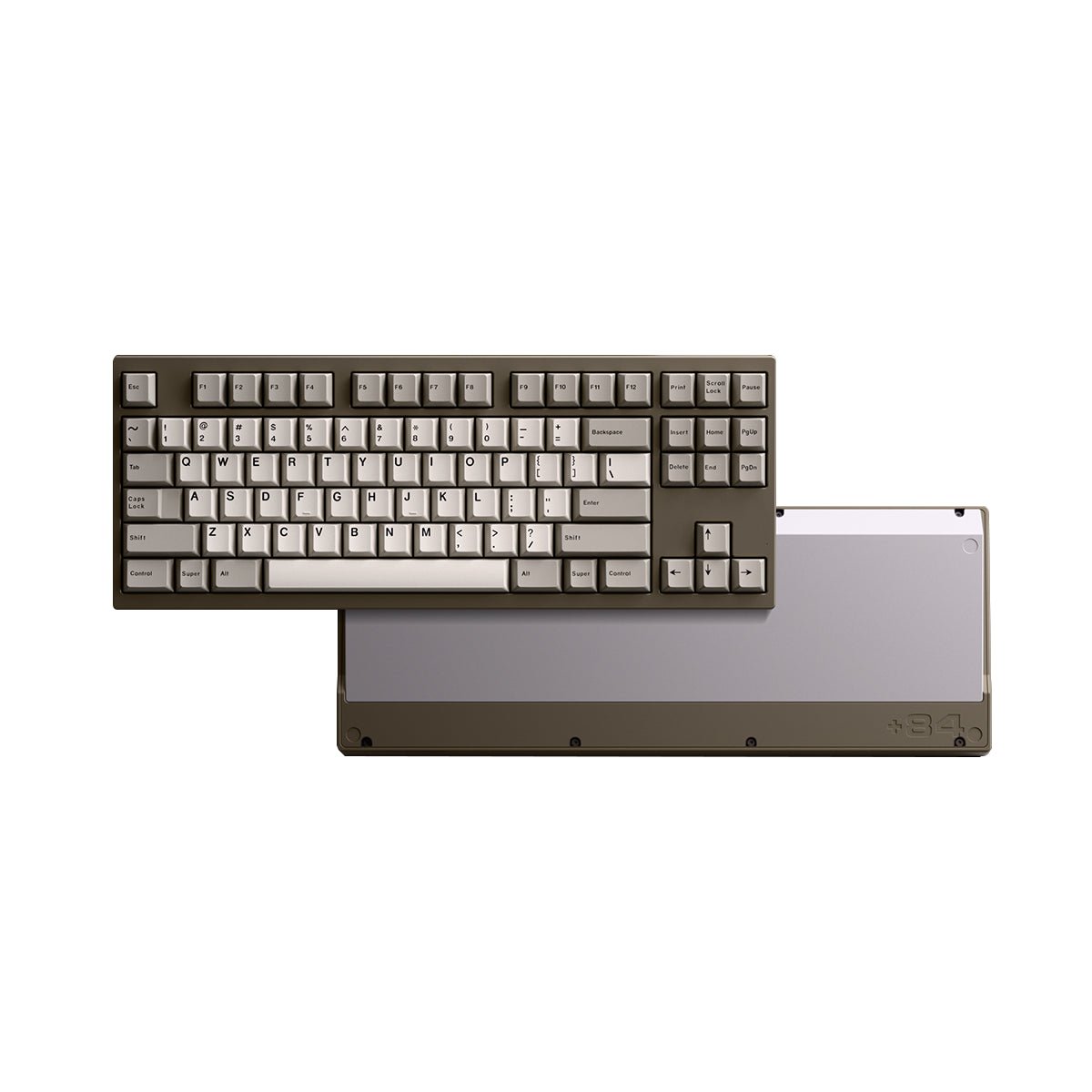

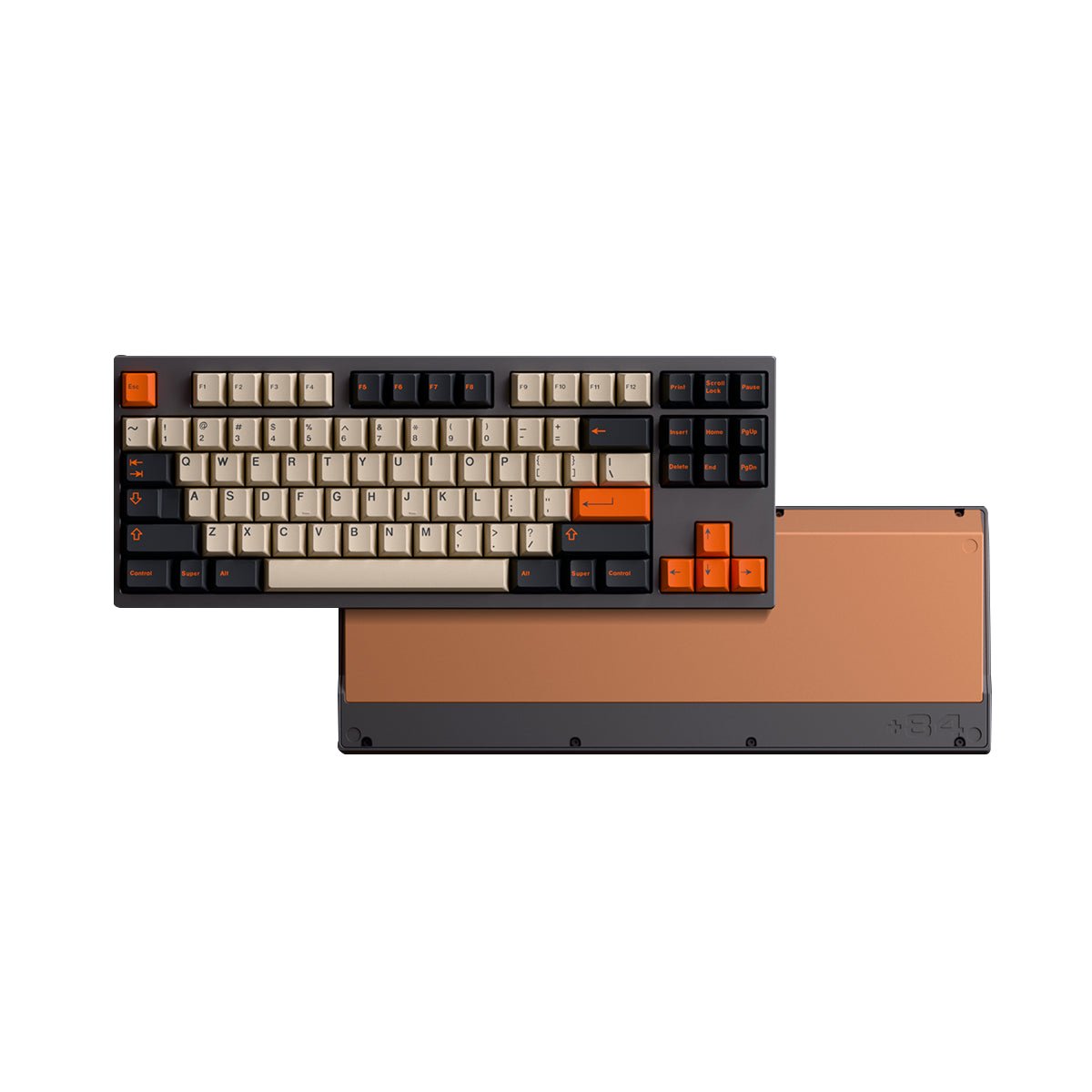

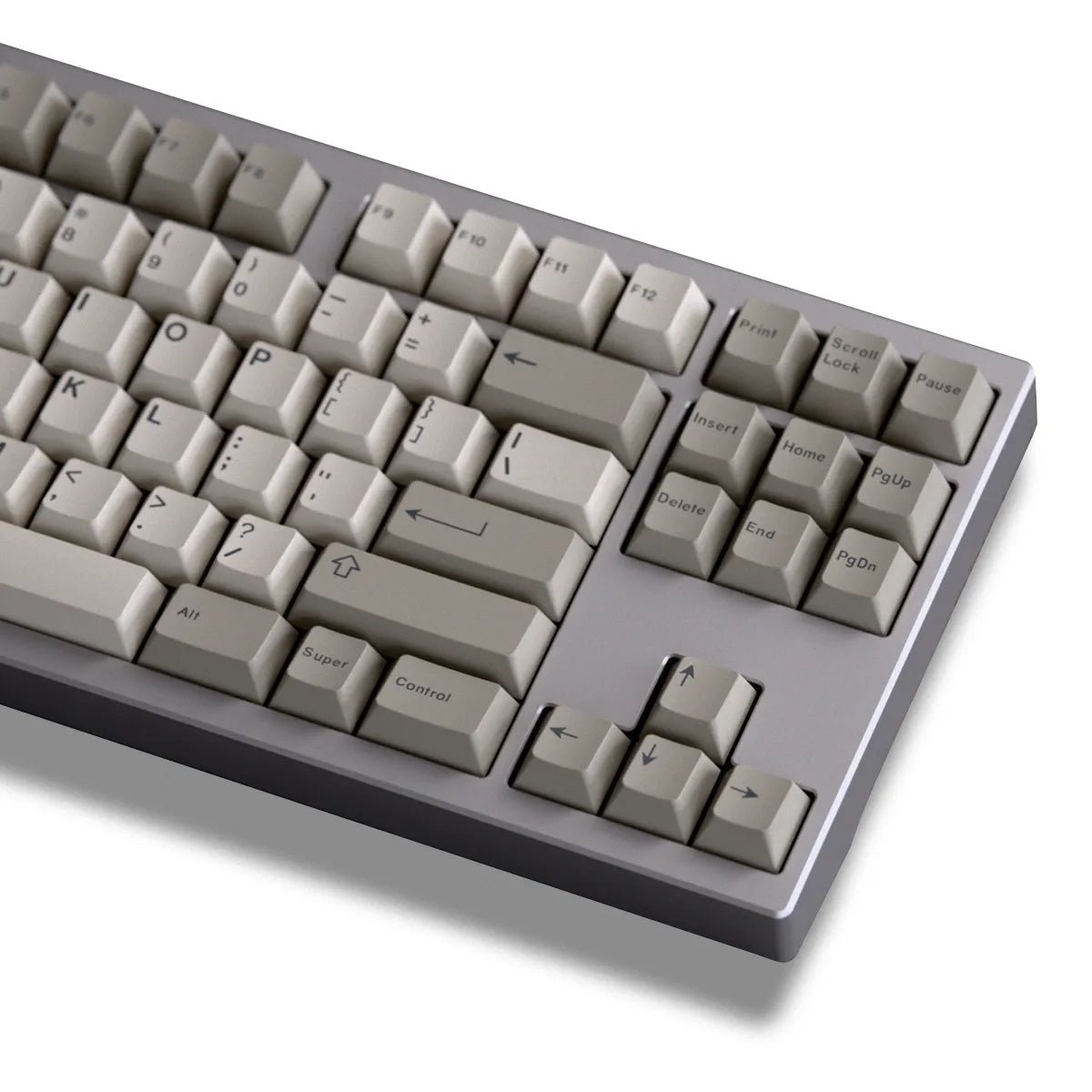

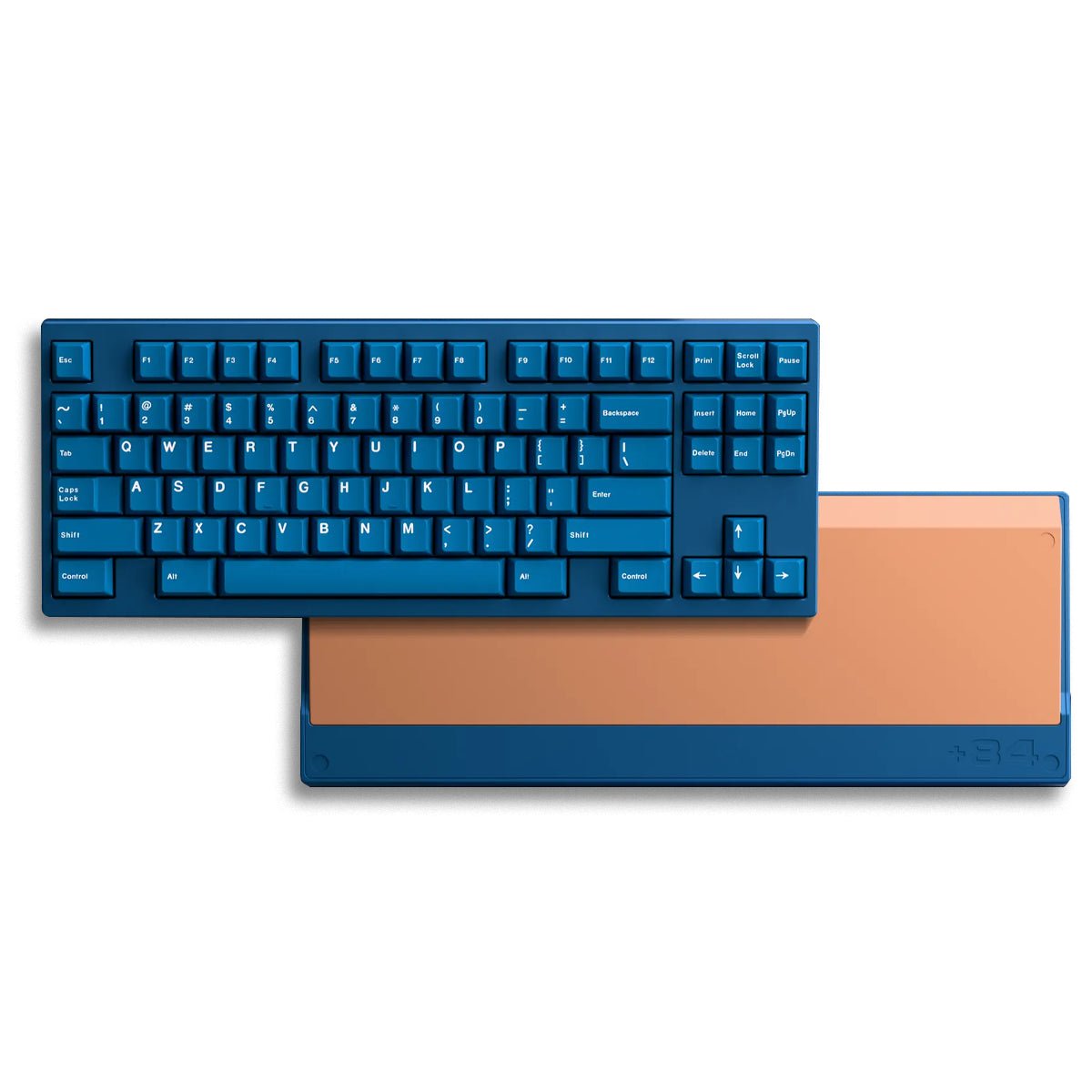

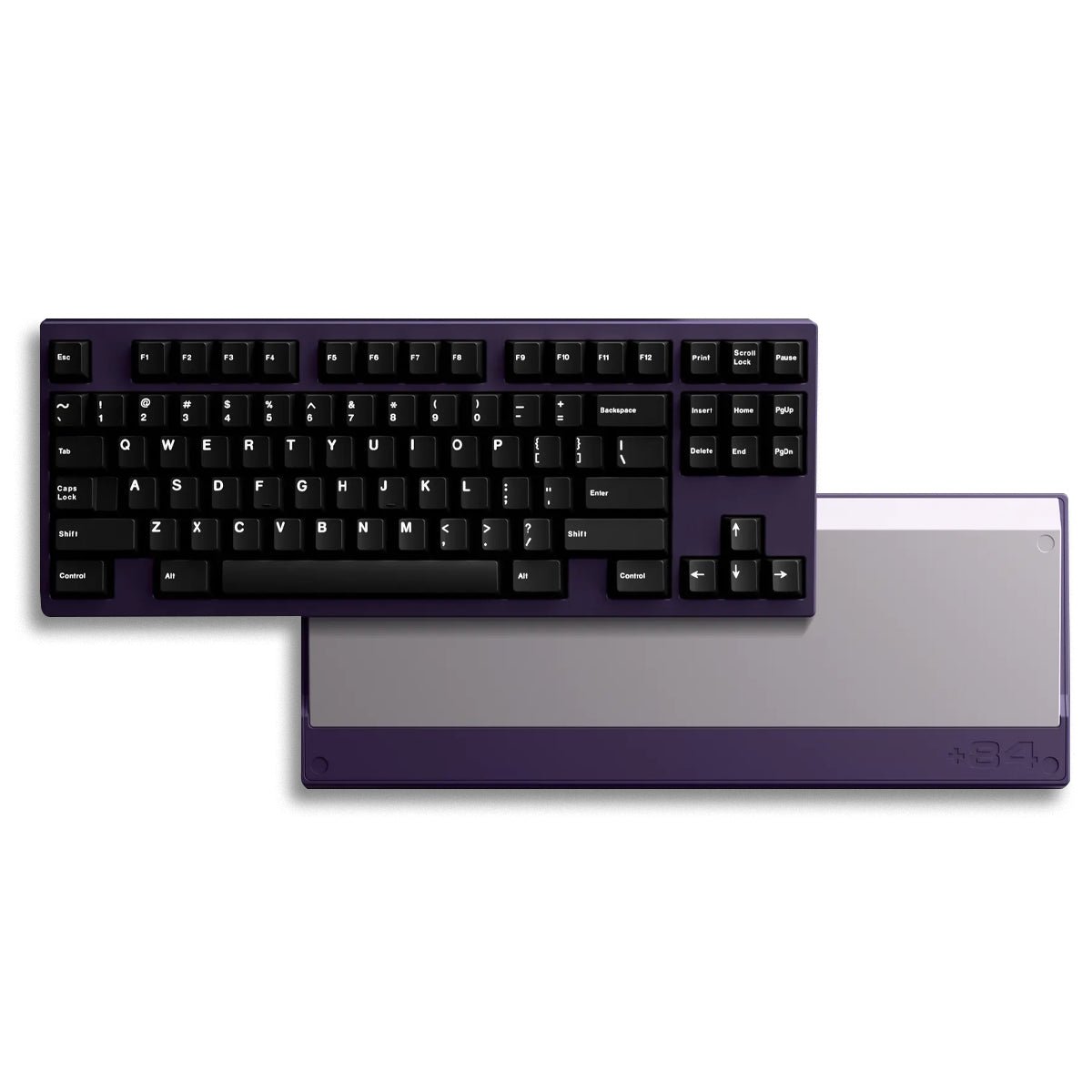

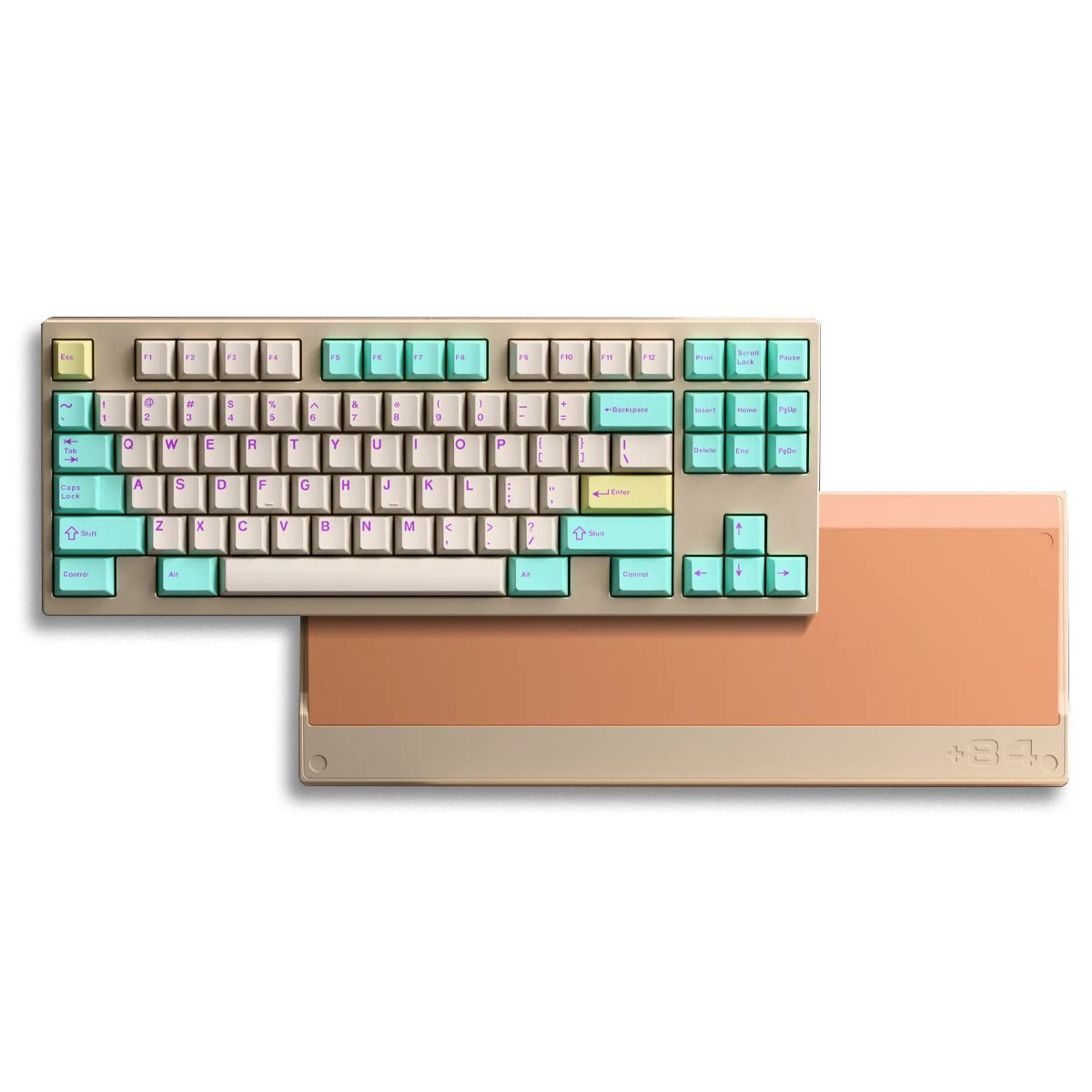

Nuxroskb +84 Keyboard

Nuxroskb +84 Keyboard is the next project in the Krush series.

The goal of the +84 TKL is to embody a classic, clean, and refined aesthetic without any unnecessary details and excessive accessories. It delivers a rich, pleasant acoustic profile designed for an enjoyable everyday experience.

Nuxroskb +84 Keyboard Features:

• TKL Layout, WK or WKL

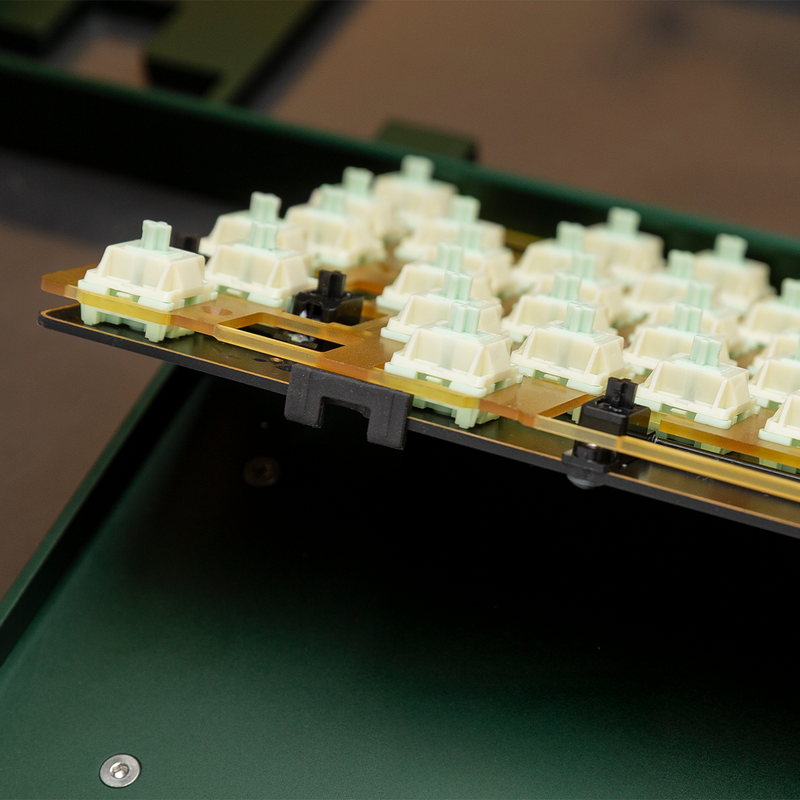

• Mounting Style: Top Mount, PCBsnap

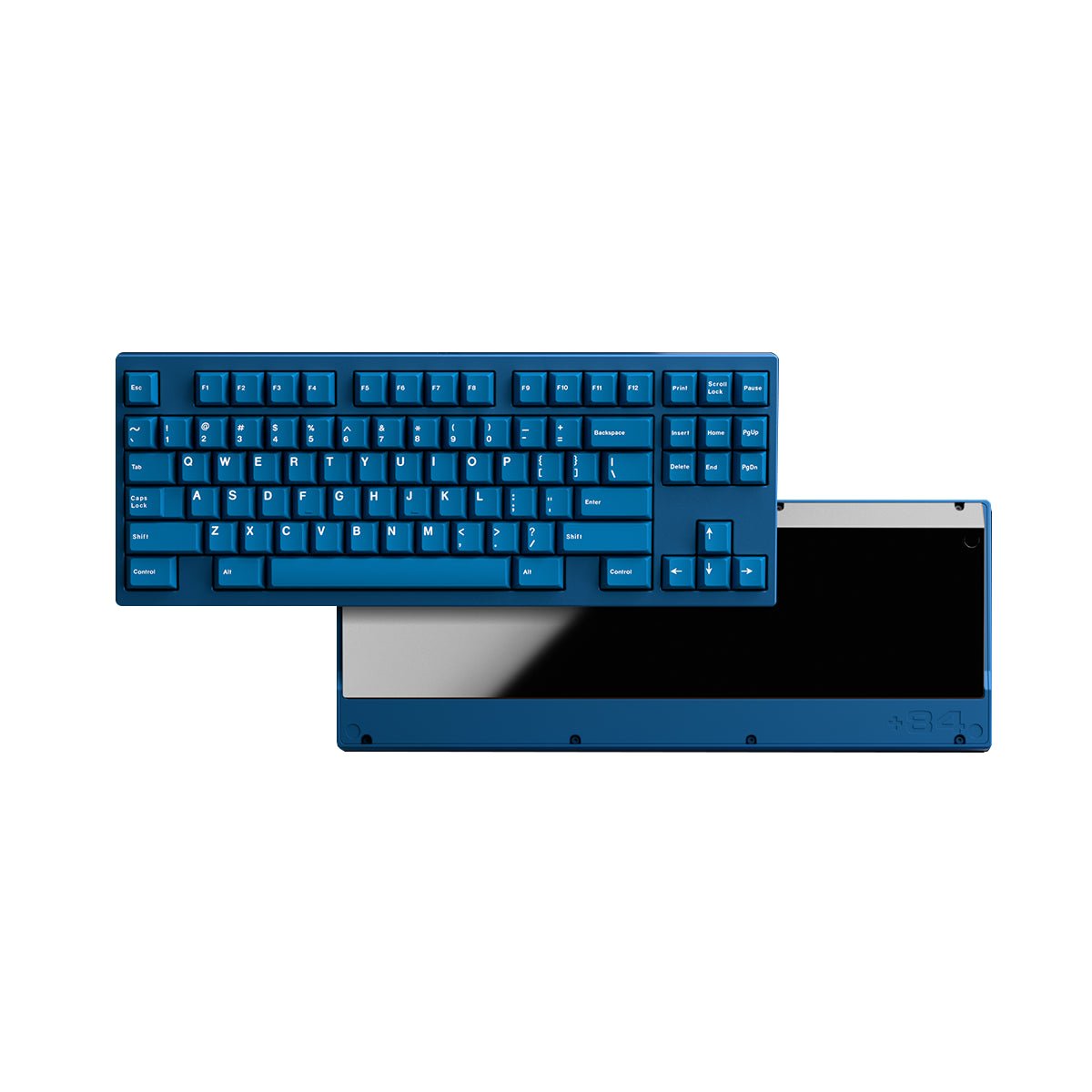

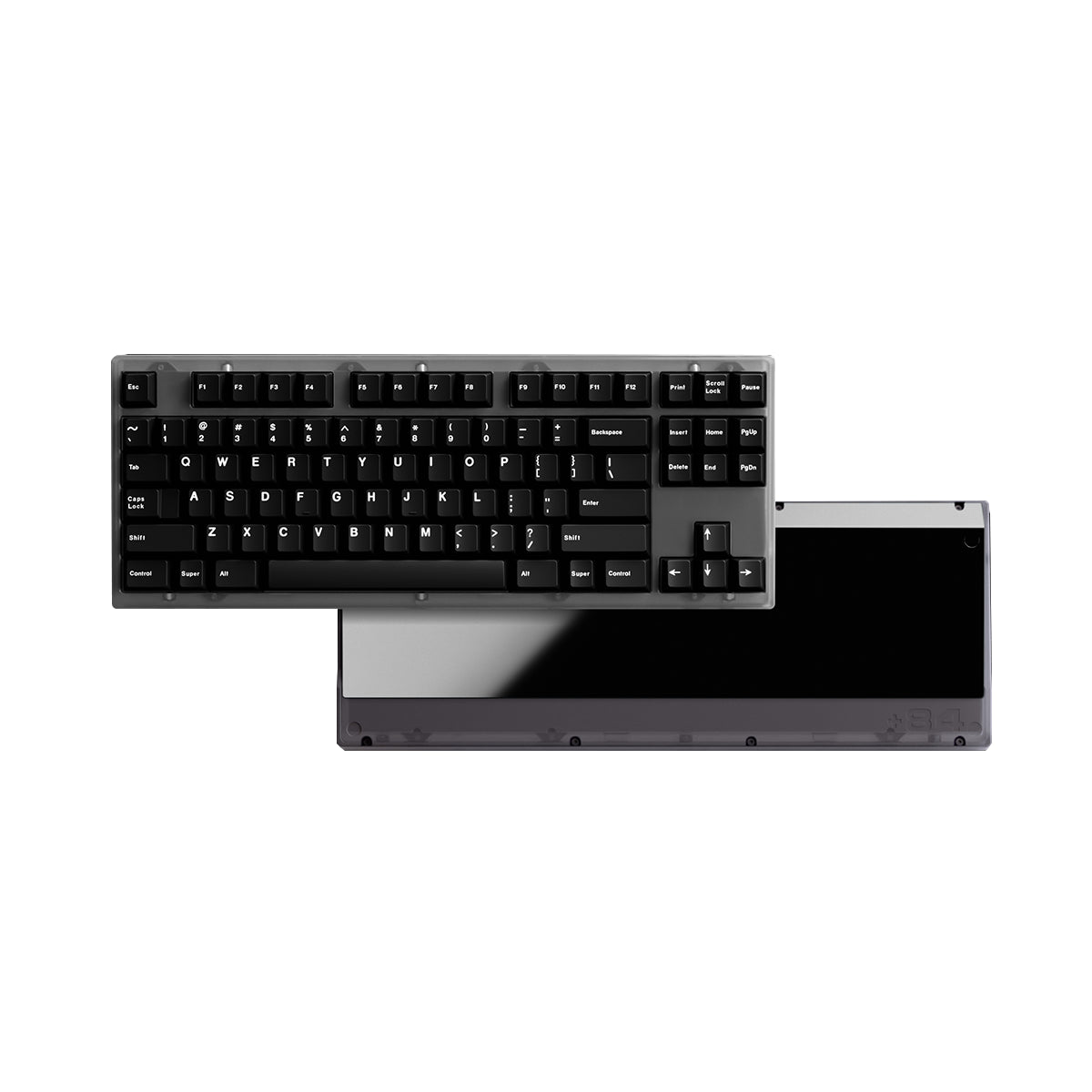

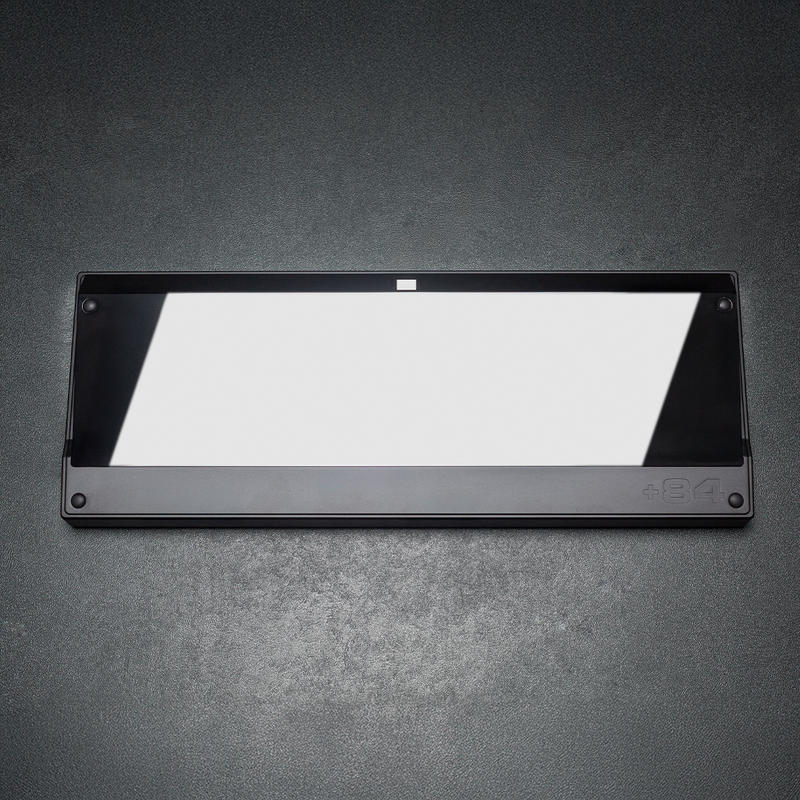

• Case Material: Aluminum or Clear PC

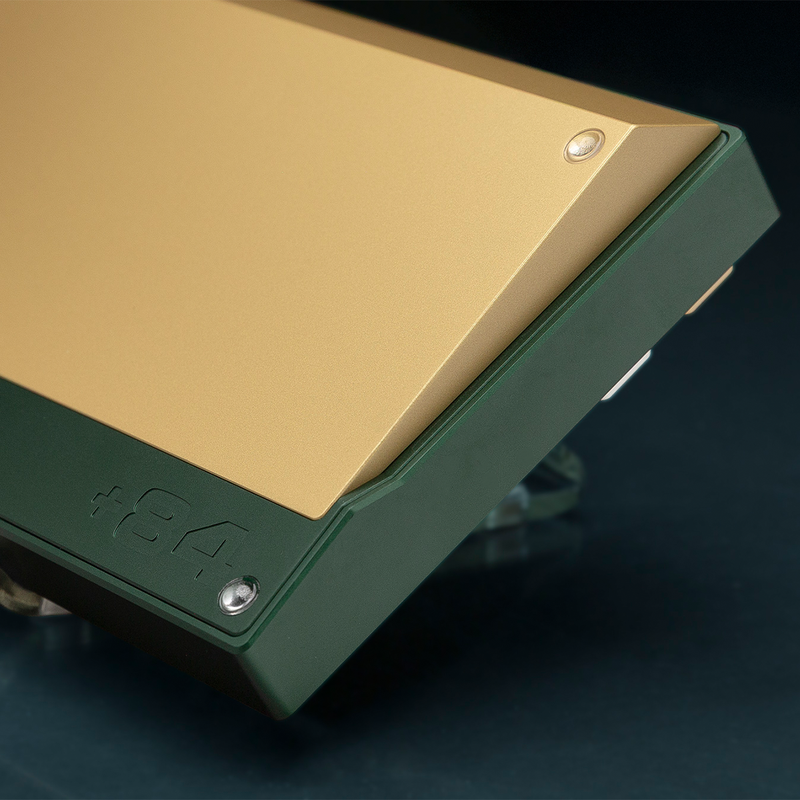

  • Note: Case mounting has been changed to external screws due to a unwanted pings from the angled screws. See image below for the update

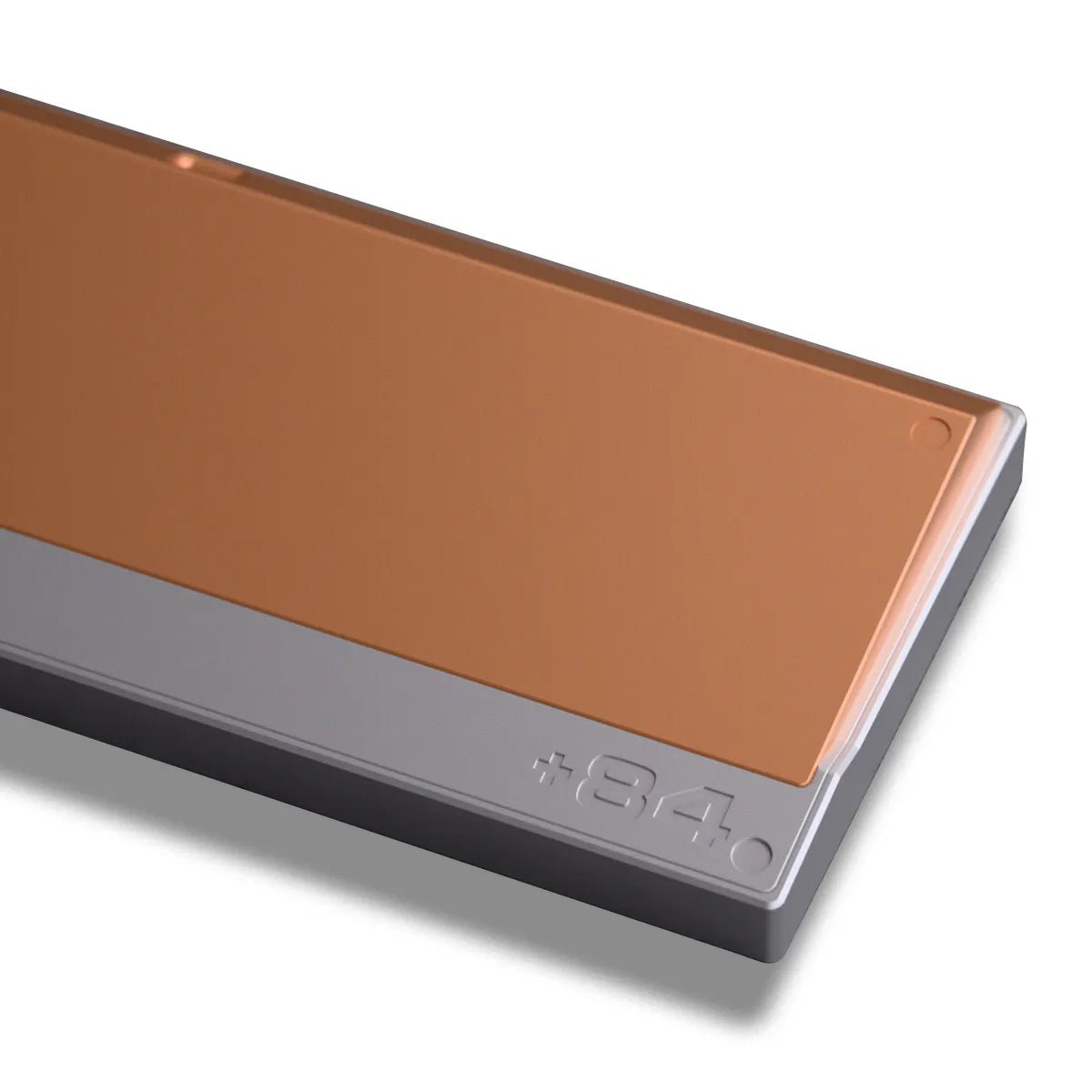

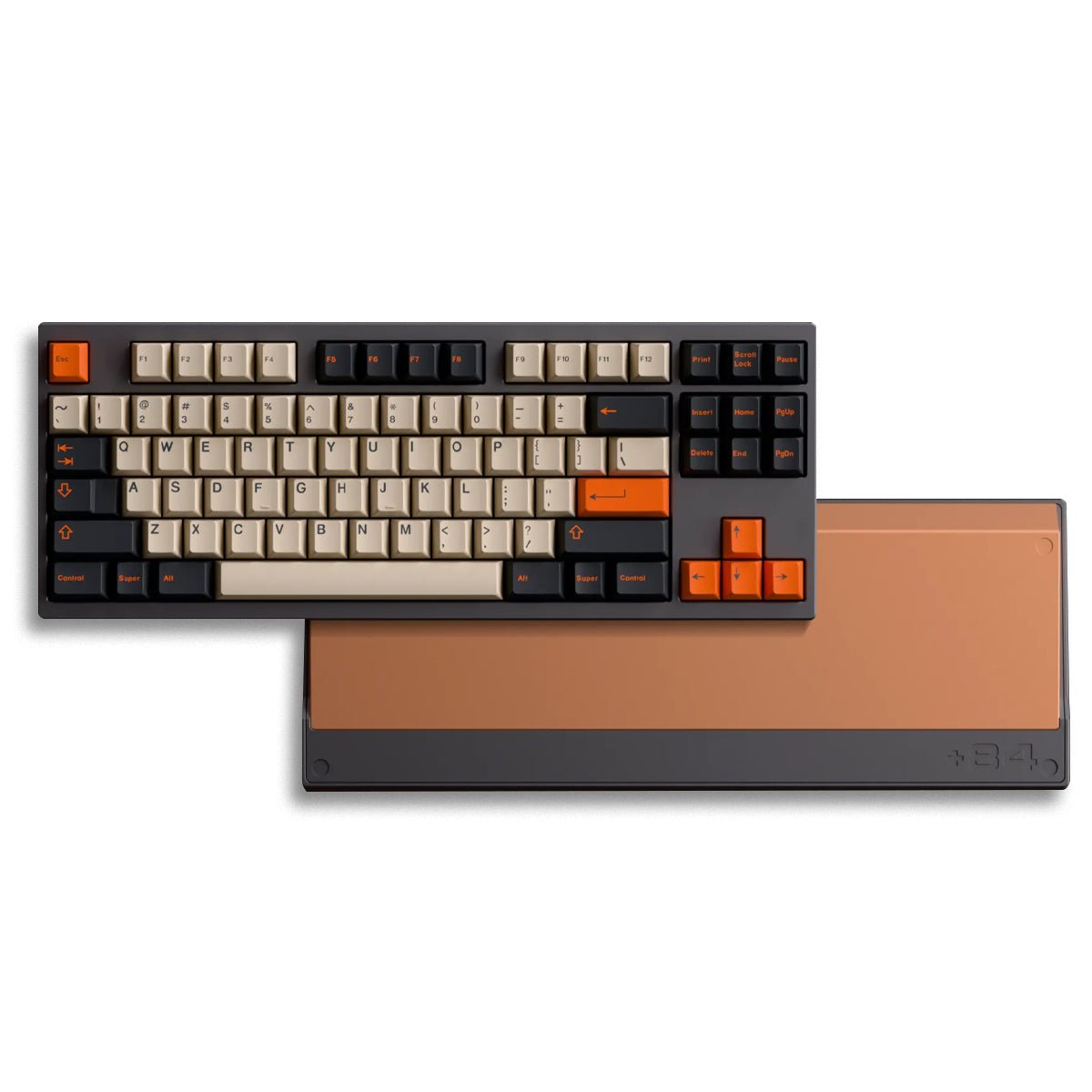

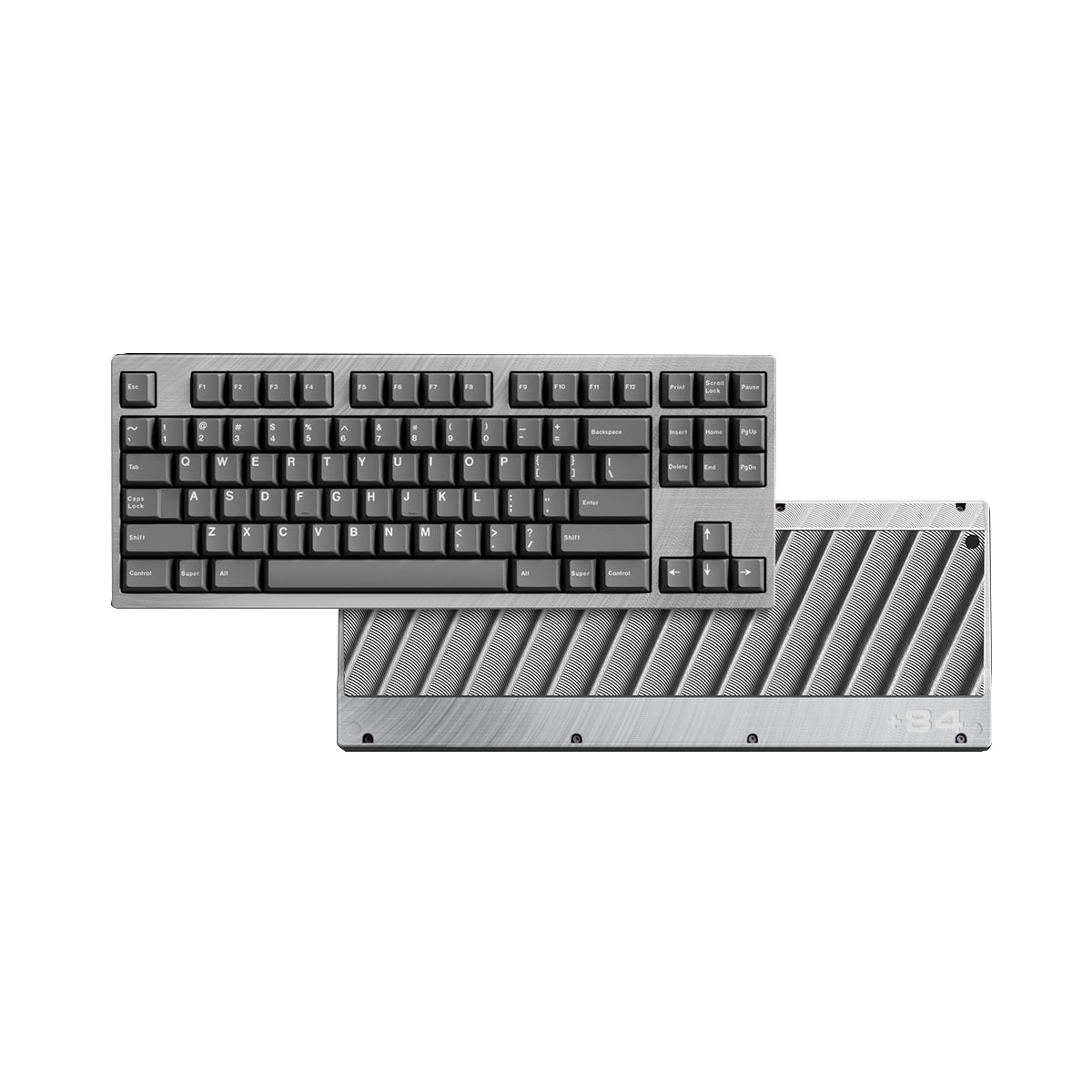

• Weight Material: Stainless Steel, Copper, or Brass

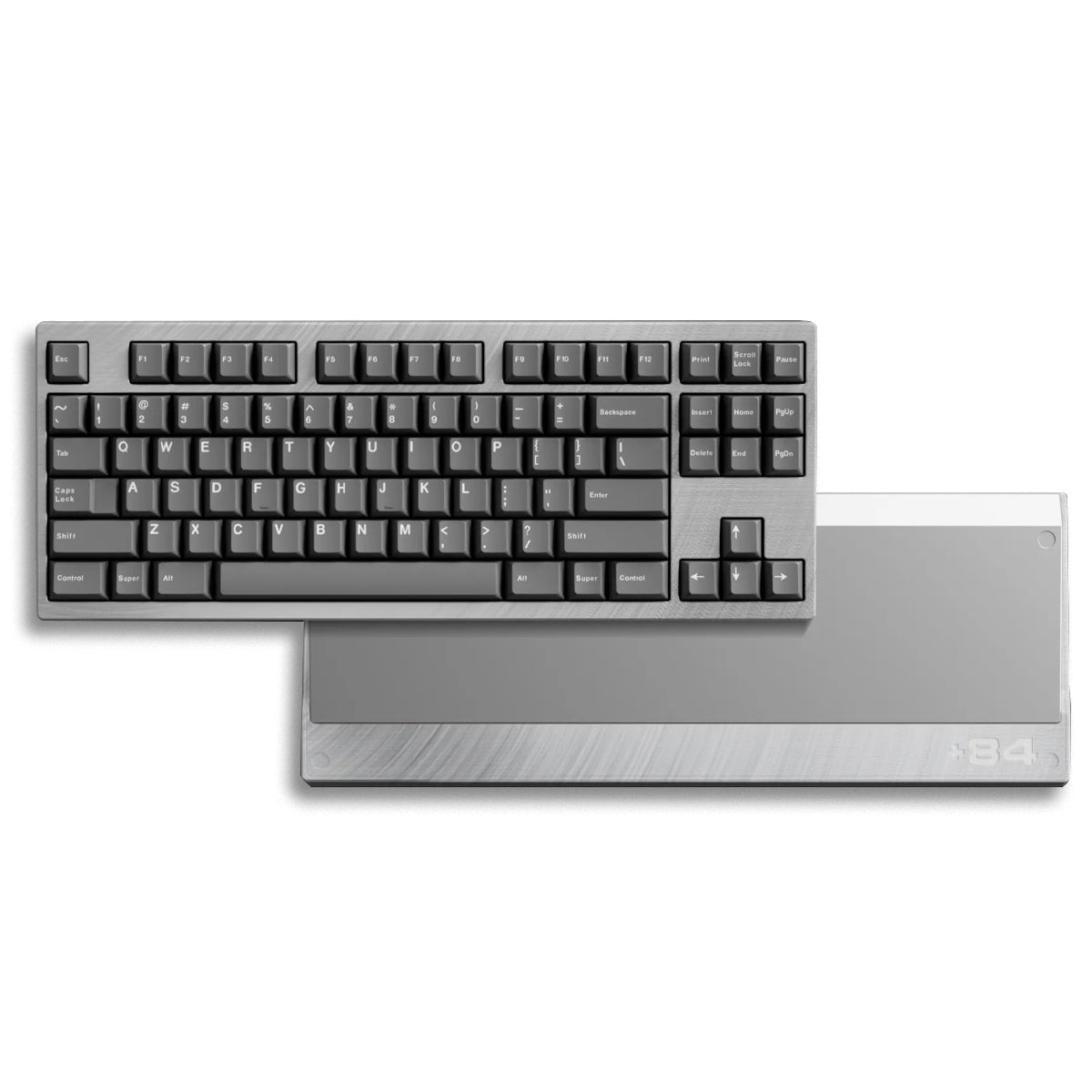

  • Stainless Steel: Sandblasted, Machine Mark, or Black PVD
  • Brass: Sandblasted

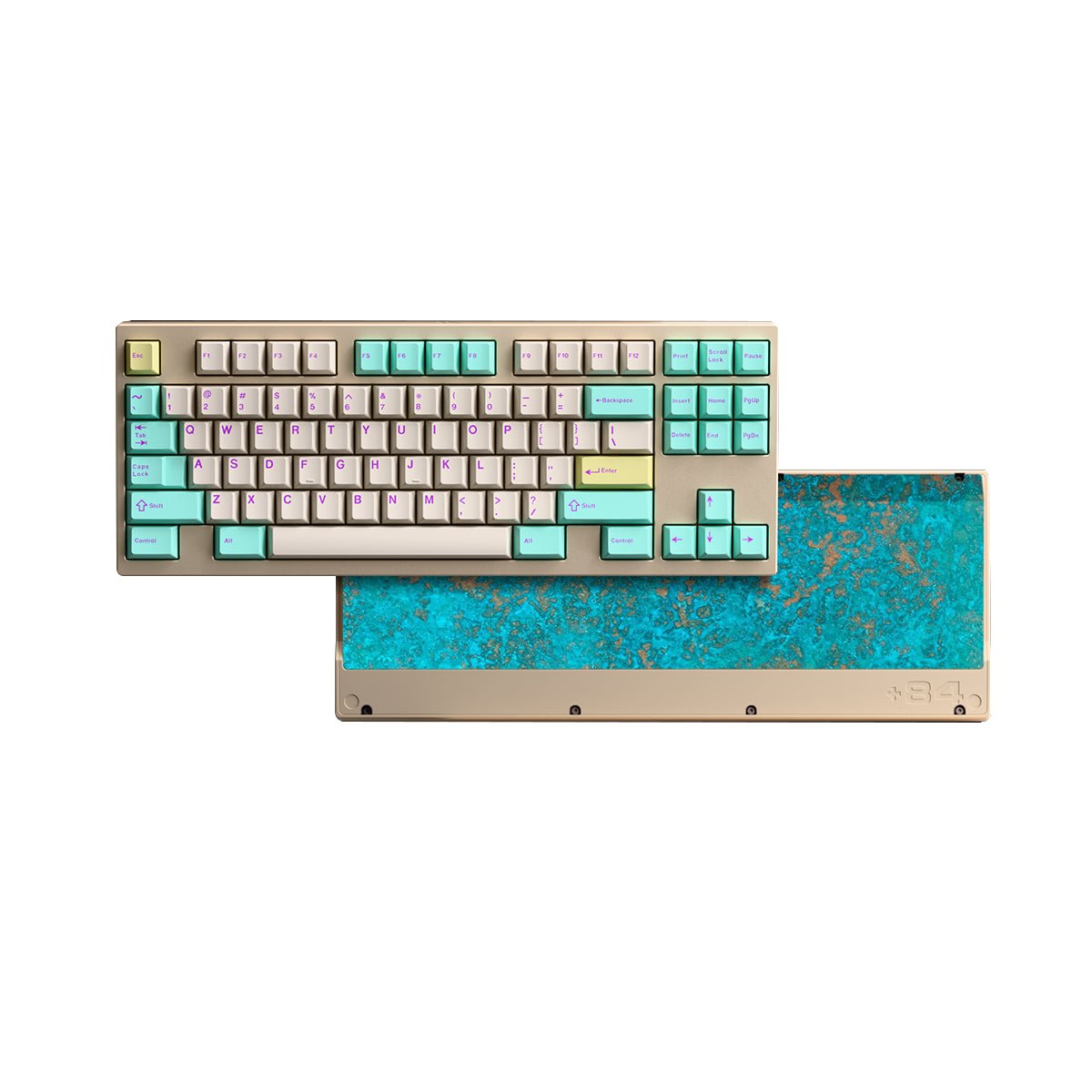

  • Copper: Sandblasted or Patina (limited quantities)
• PCB:

  • Hotswap or Solder
  • Material: Blackcore, 1.6mm, Non-flex cut
  • QMK/VIA Supported
  • RGB Underglow

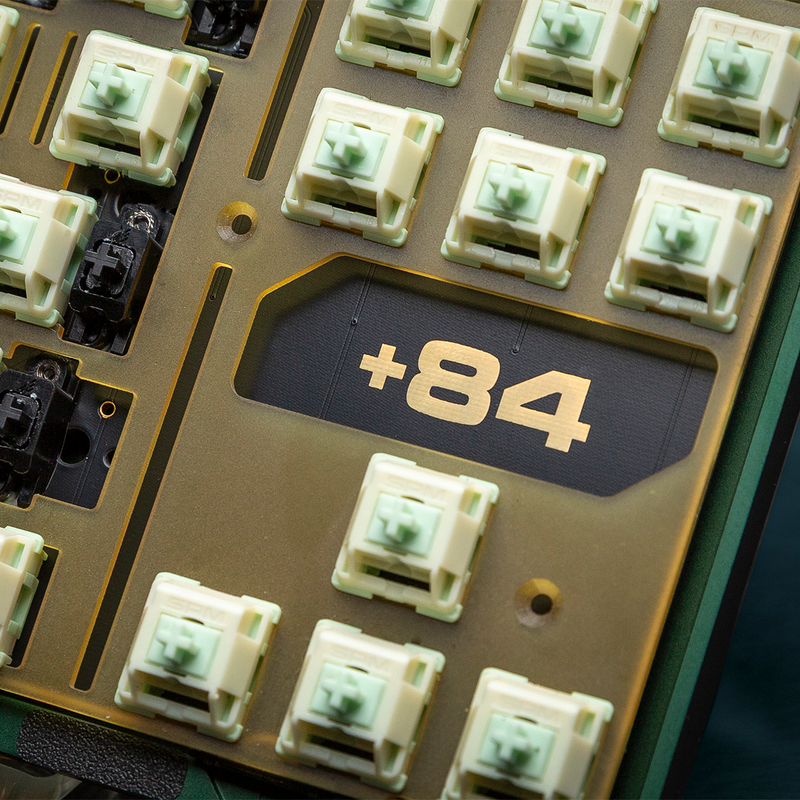

• Plate:

  • Included with Keyboard: Aluminum, Top Mount
  • Optional Materials: Aluminum, CF, FR-4, POM, ABS, PEI, PC
  • Optional Types: Top Mount or PCBsnap

    • Note: Top mount plate can be used with the PCBsnap but it was not optimized for it because it may cause some slight contact between the top mount tabs and the case
• Typing Angle: 9°
• Front Height: 18.9mm
• Dimensions: 358.2 x 137mm
• Weight:

  • Unbuilt: Stainless Steel 3.8kg, Copper 4kg
  • Fully Built: +300g
• Color Availability:

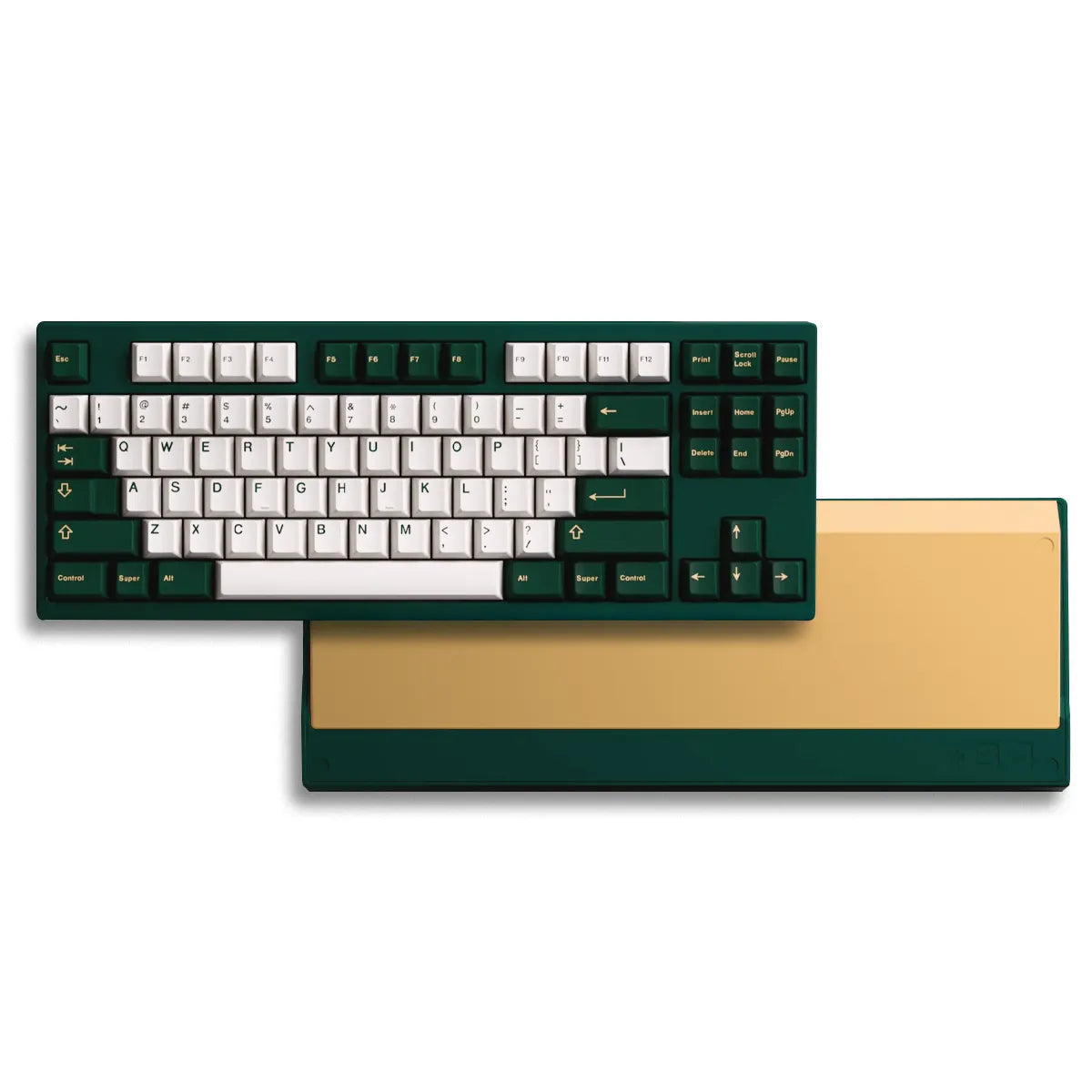

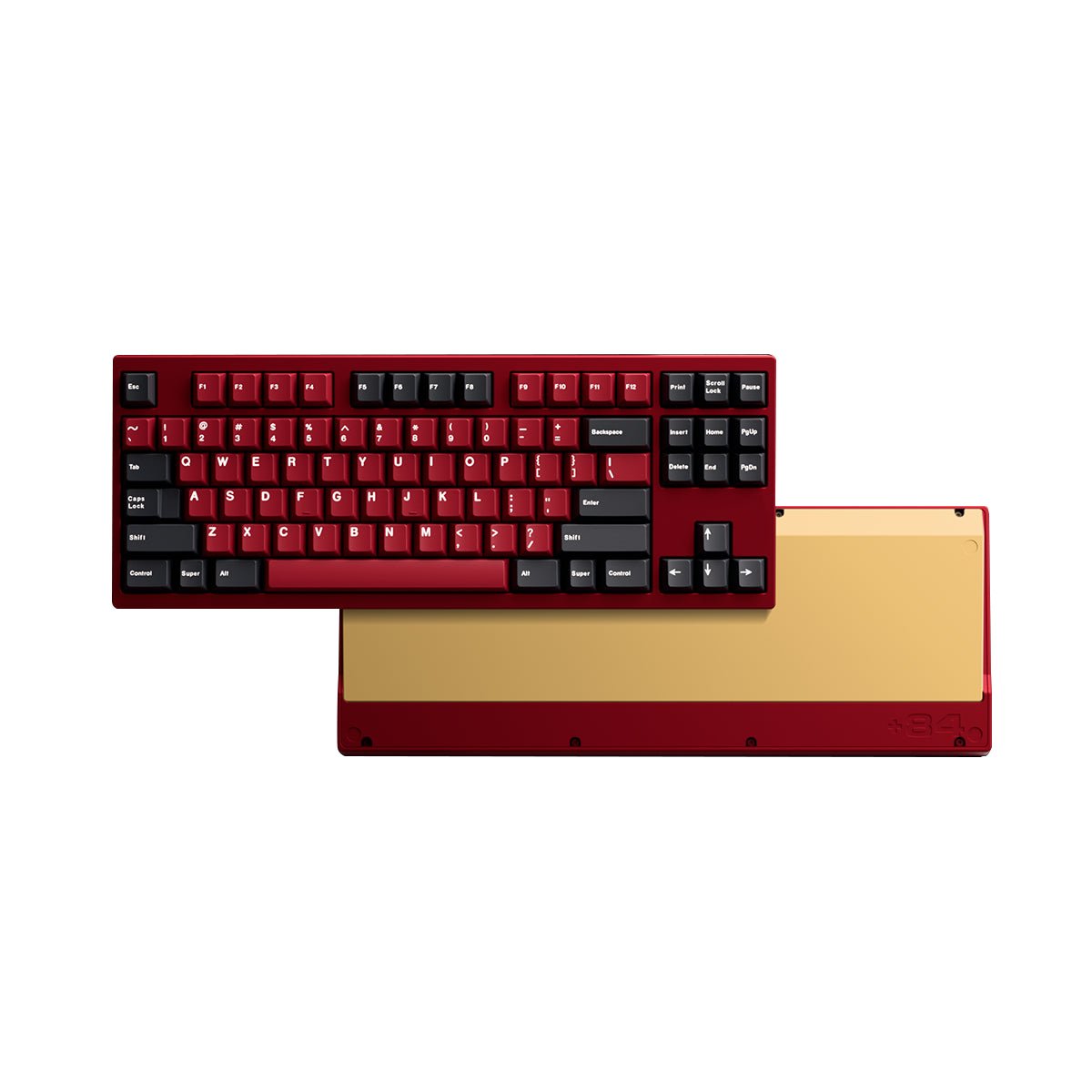

  • Silver, Champagne, Vintage, Grey, Burgundy, Red, Black, Ocean, Night, Racing Green, Cream, Raw, PC
• QC Standards: Link

Also See:

• NuxrosKB +84 Weight
• NuxrosKB +84 PCB, Plates, Daughterboard, etc.

Includes:

• 1 Keyboard Case
• 1 Plate
• 1 Weight
• 1 PCB
• 8 PCBsnap FKM
• 12 Poron Isolated
• 1 Carrying Case
• 1 Protective Cloth Bag
• 1 Set of Feet & Screws
