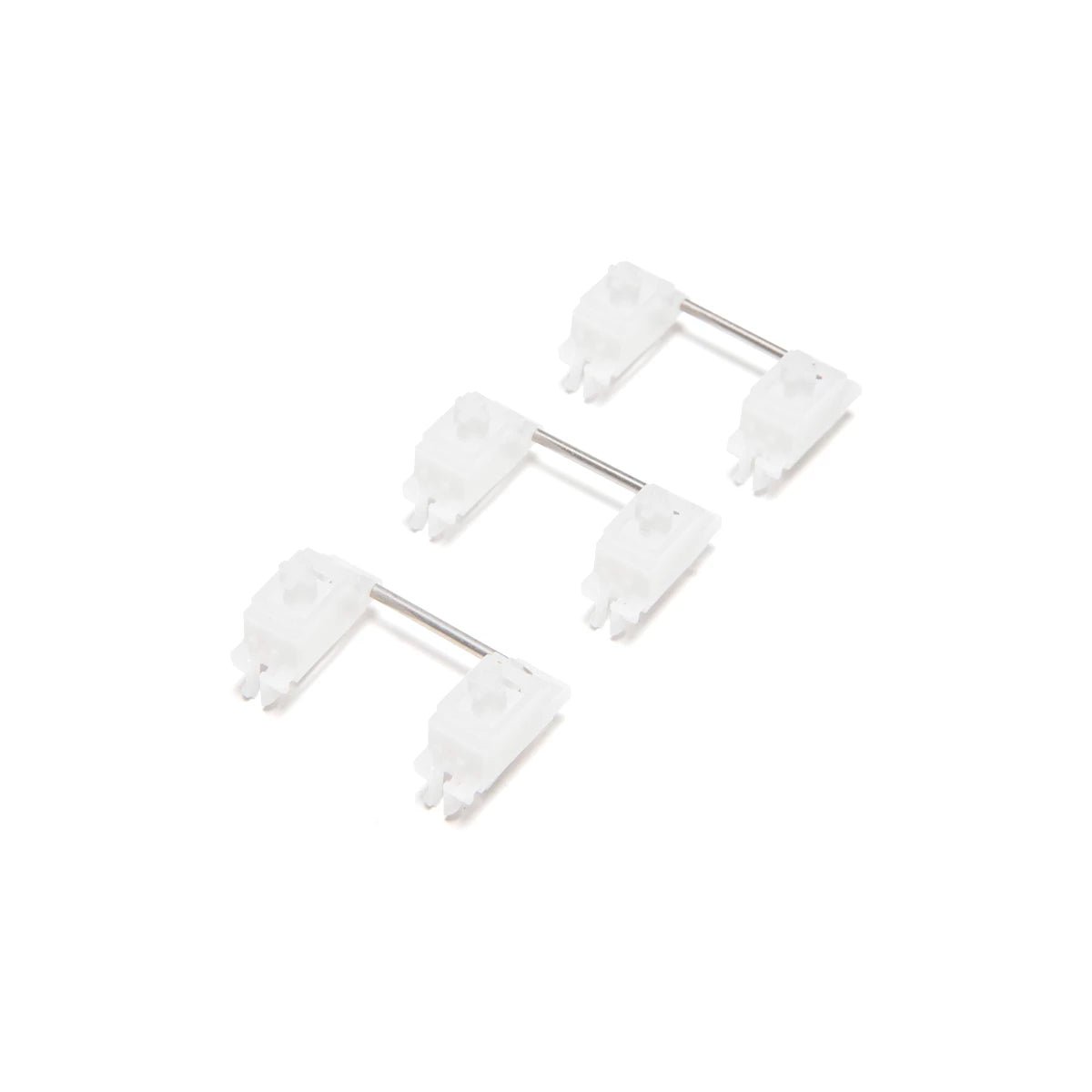

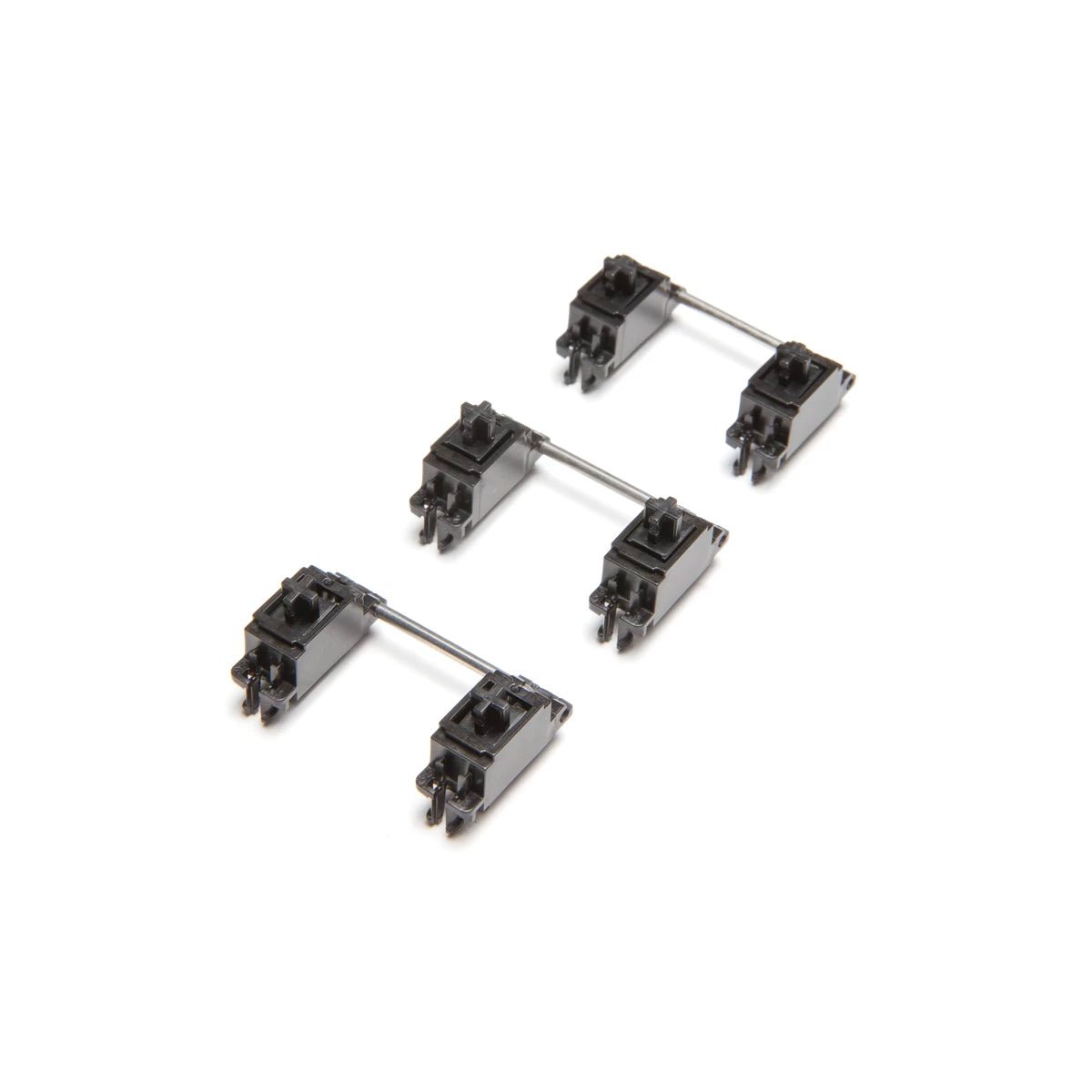

TX AP Long Pole Stabilizers Top Clip-in

TX Top Clip-in, Long Pole Stabilizers are designed to compliment long pole switches with a reduced travel by limiting the travel distance of the stabilizers. It is mounted onto the PCB in a new design by wedging the clip-in points from the top of the stabilizer. This allows for a more secure hold onto the PCB so that the stabilizer doesn't become loose and mount/remove of the stabilizer without flipping the PCB.

Please check compatibility plates below.

TX AP Stabilizers Top Clip-in Features:

• Designed by kin25
• Top Clip-in Stabilizers

  • Secured onto the PCB via top clip-in
• Long Pole, 1mm Stem
• 3.5mm Stroke Travel
• Doubleshot Stem

  • POM Outside
  • TPU & POM Inside
• Supports both 6.25U and 7U
• Available in:

  • Type: Base, 2U
  • Color: Black, White
  • Size: 1.6T, 1.2T

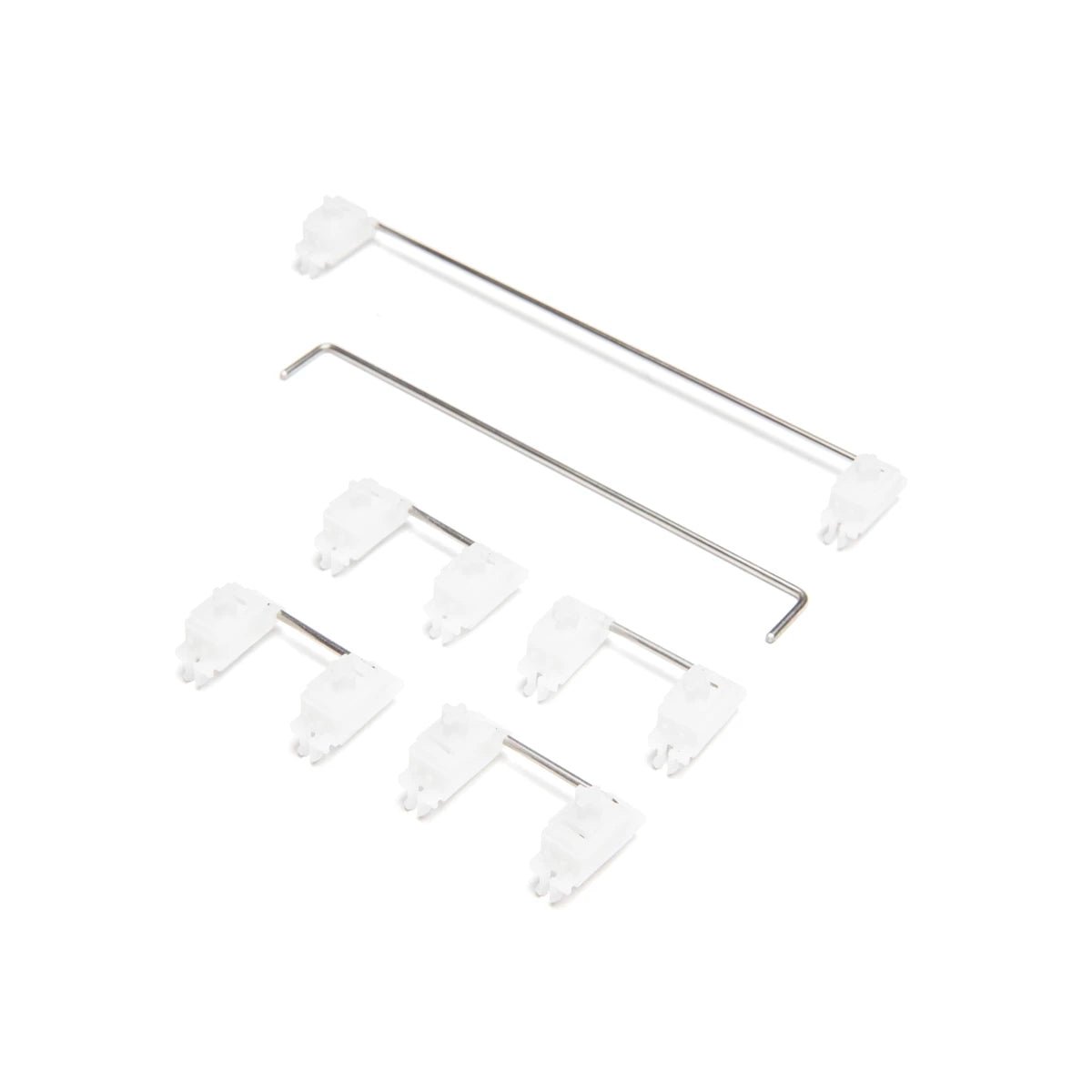

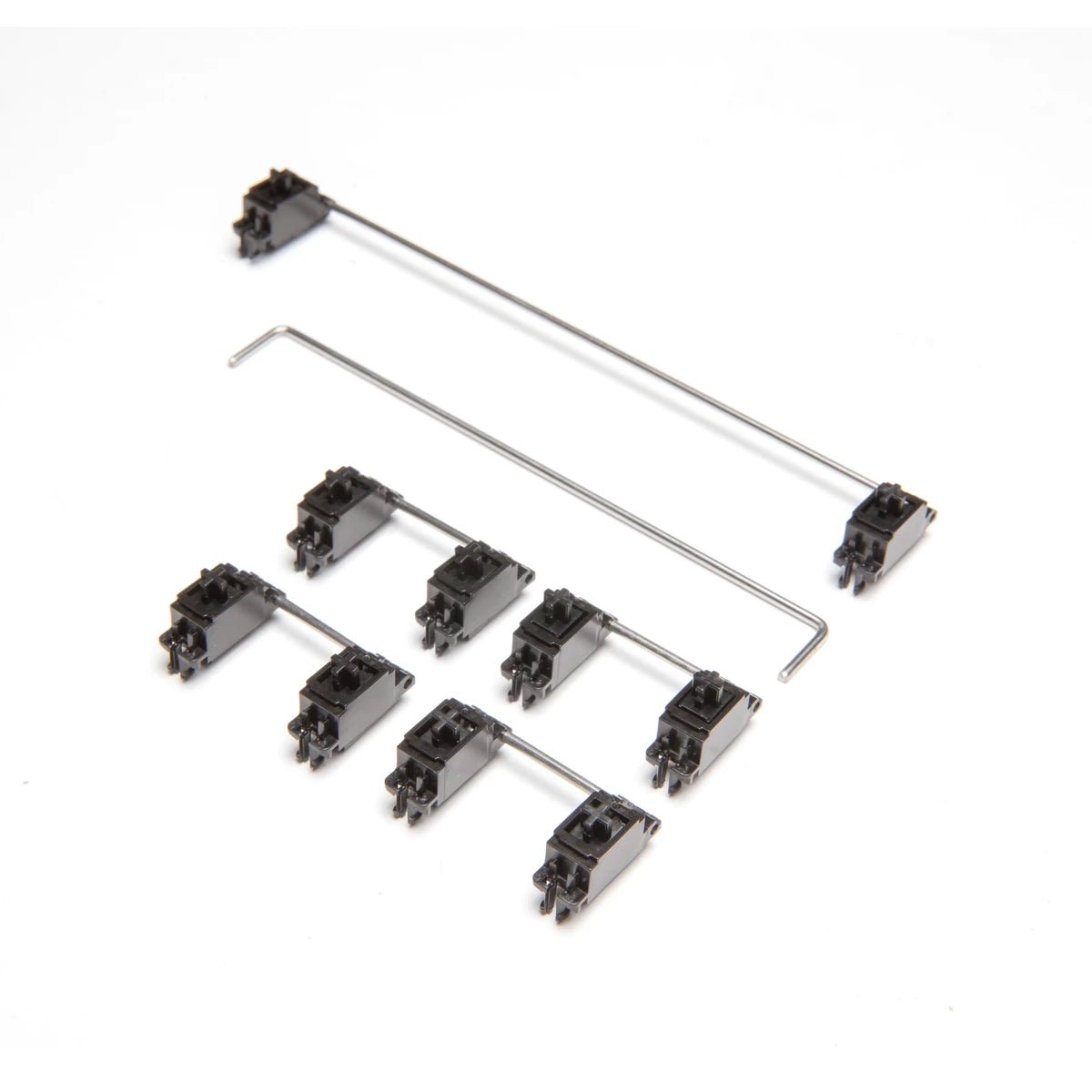

Includes:

• Base Set

  • 10 Housings and Stems
  • 4 2U Wires
  • 1 6.25U Wire
  • 1 7U Wire
  • 1 Set Clip-in Wedge
• 2U Set

  • 6 Housings and Stems
  • 3 2U Wires
  • 1 Set Clip-in Wedge

Compatibility (Please read before purchasing):

• Type A Plate: This plate style is widely used and the stabilizer can be used without any interference
• Type B Plate: This configuration may show up in the spacebar portion of the plate. If may have an interference on the latch part of the wedge (highlighted blue). This part should be cut. Two extra wedges are included.
• Type C Plate: Top clip-in stabilizers can only be used if the highlighted blue portion of the wedge is cut.
• Other: In the case where the stabilizer tab of the plate is cut at the same length of the switch cutout, method C can be used to fit the stabilizer.

Returns/Refunds as a result of plate compatibility will not be accepted.
