MM Studio Class 100 Keyboard

Name: MM Studio Class 100 Keyboard
Brand: MM Studio
SKU: DK006283
Price: 350.0 USD
Availability: InStock

$350.00

Type

WK WKL

Color

Retro White Retro Green Retro Red Ano Silver Ano Industrial Grey Ano Black

Product variants

This item is a groupbuy!

GB Period: December 17 - January 7, 2026
Estimate Production Time: 6 months

Shipping Information

All items are shipped from our facility in Southern California, US. No
additional custom fees or tariffs will be charged once checked out.

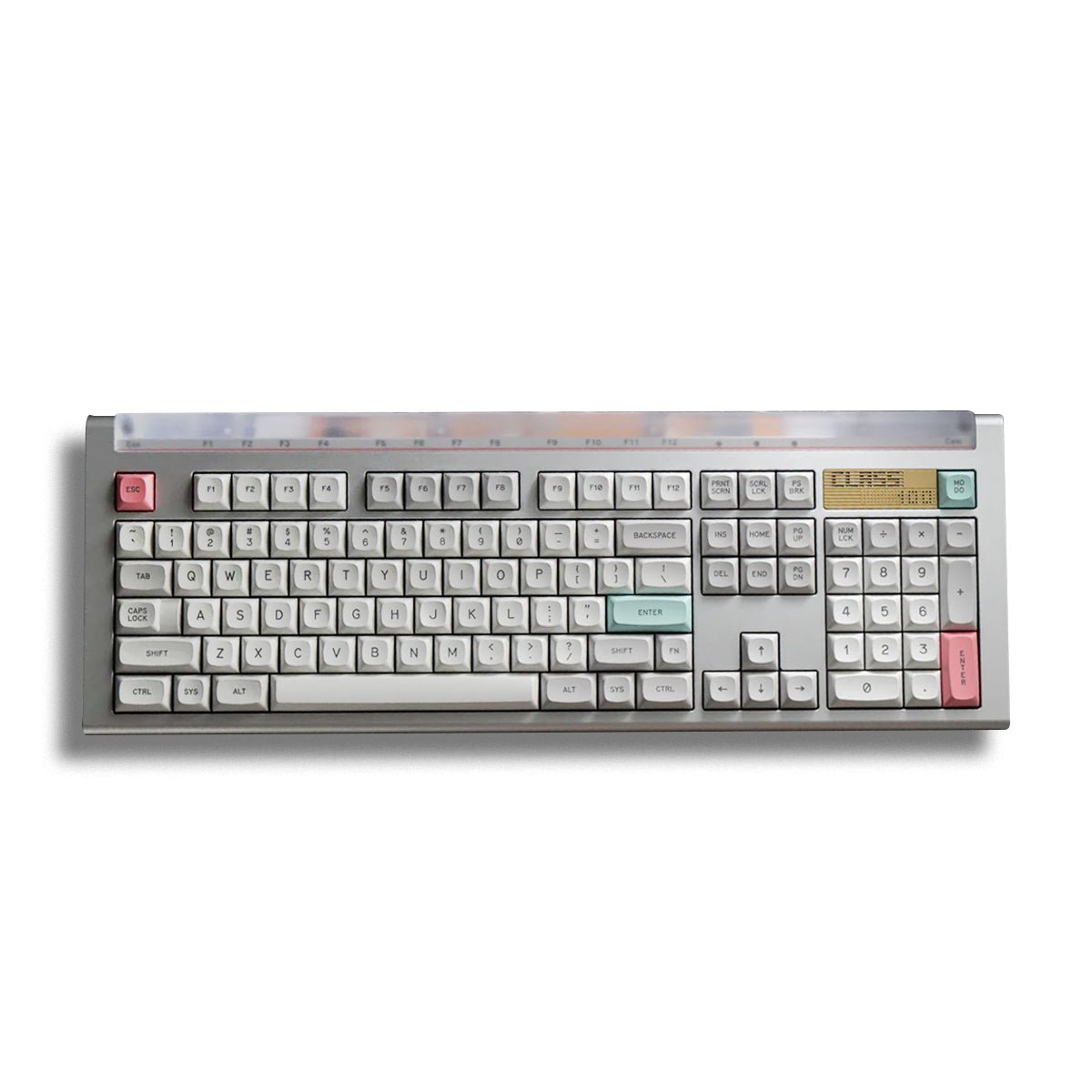

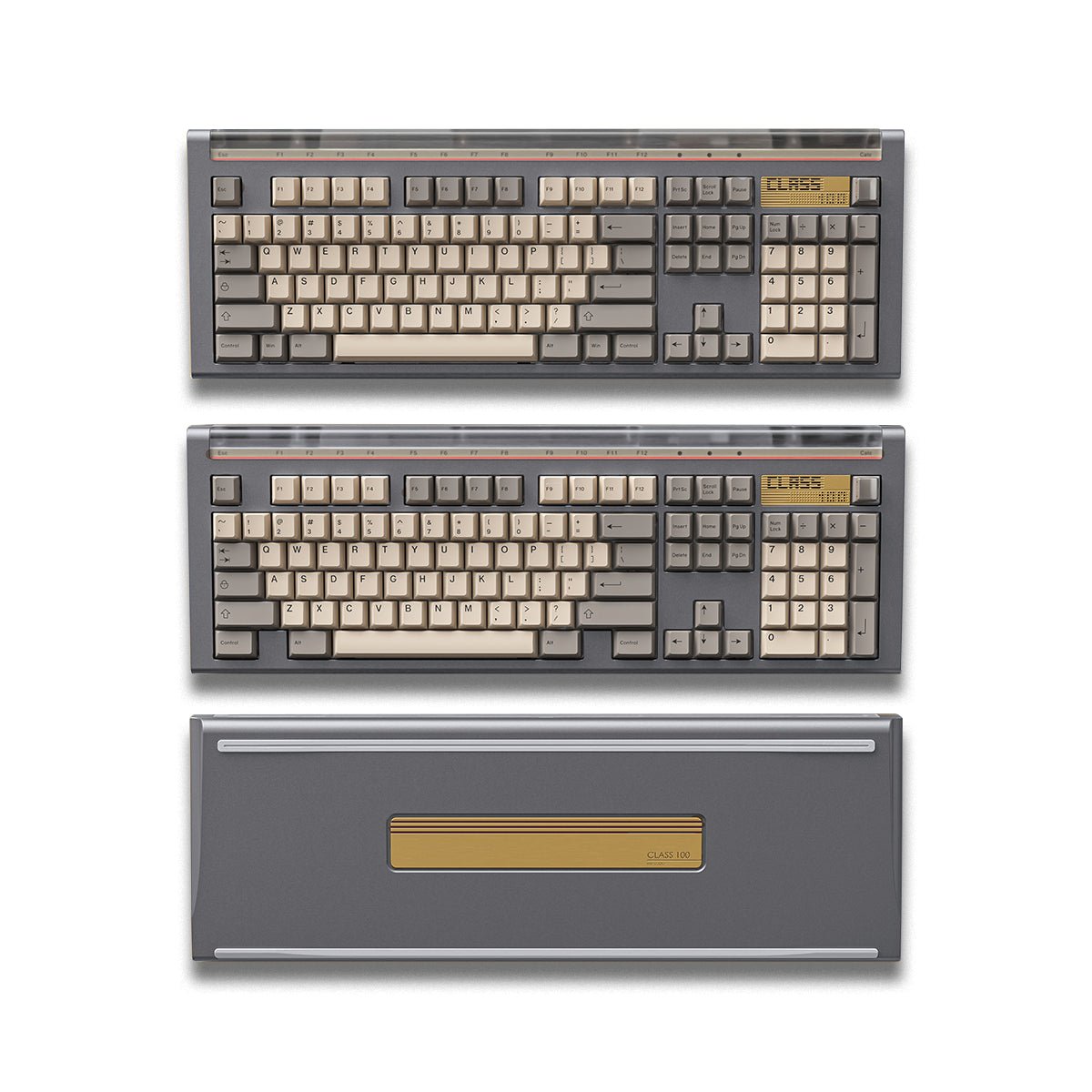

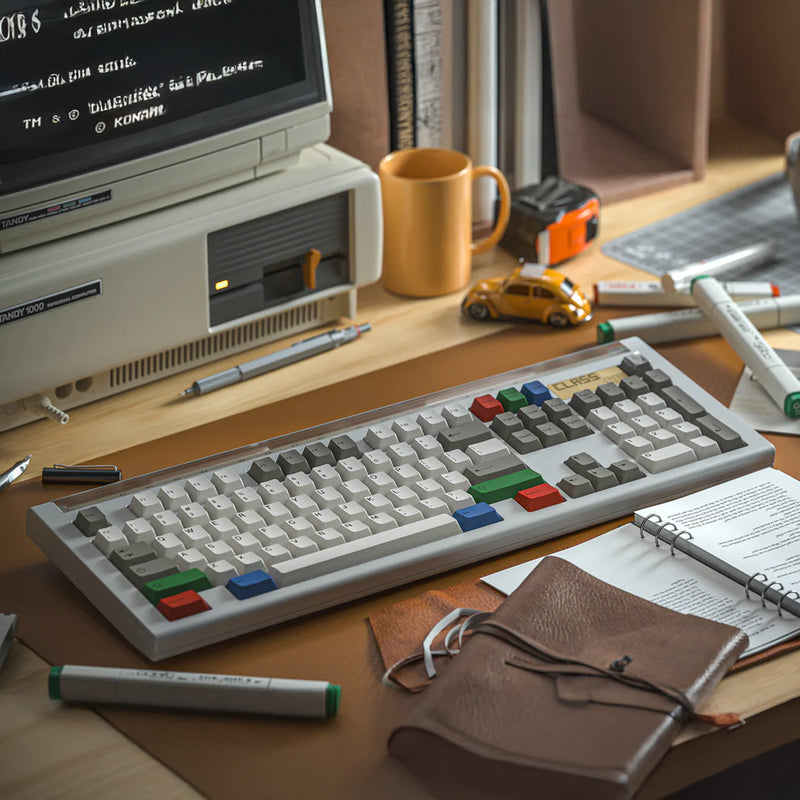

MM Studio Class 100 is inspired by one of the pioneers of the full sized layout, the DEC LK201. Taking the keyboard's original retro look and modernizing it for the current hobby. It incorporates the PC blocker and metal legend strips at the keyboard's forehead for a very distinct yet unique look.

GB Period: December 17 - January 7, 2026

Estimated Production Time: 6 months

MM Studio Class 100 Keyboard Features:

Full Sized Layout, WK or WKL

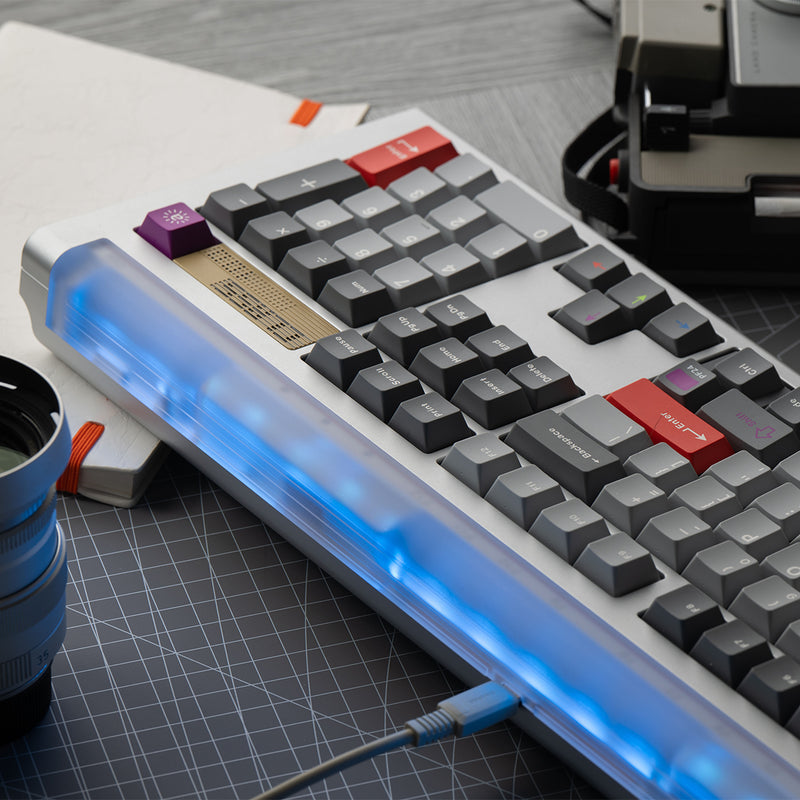

PC Blocker: A polycarbonate blocker the keyboard forehead with a removable metal legend strip that is backlight compatible.

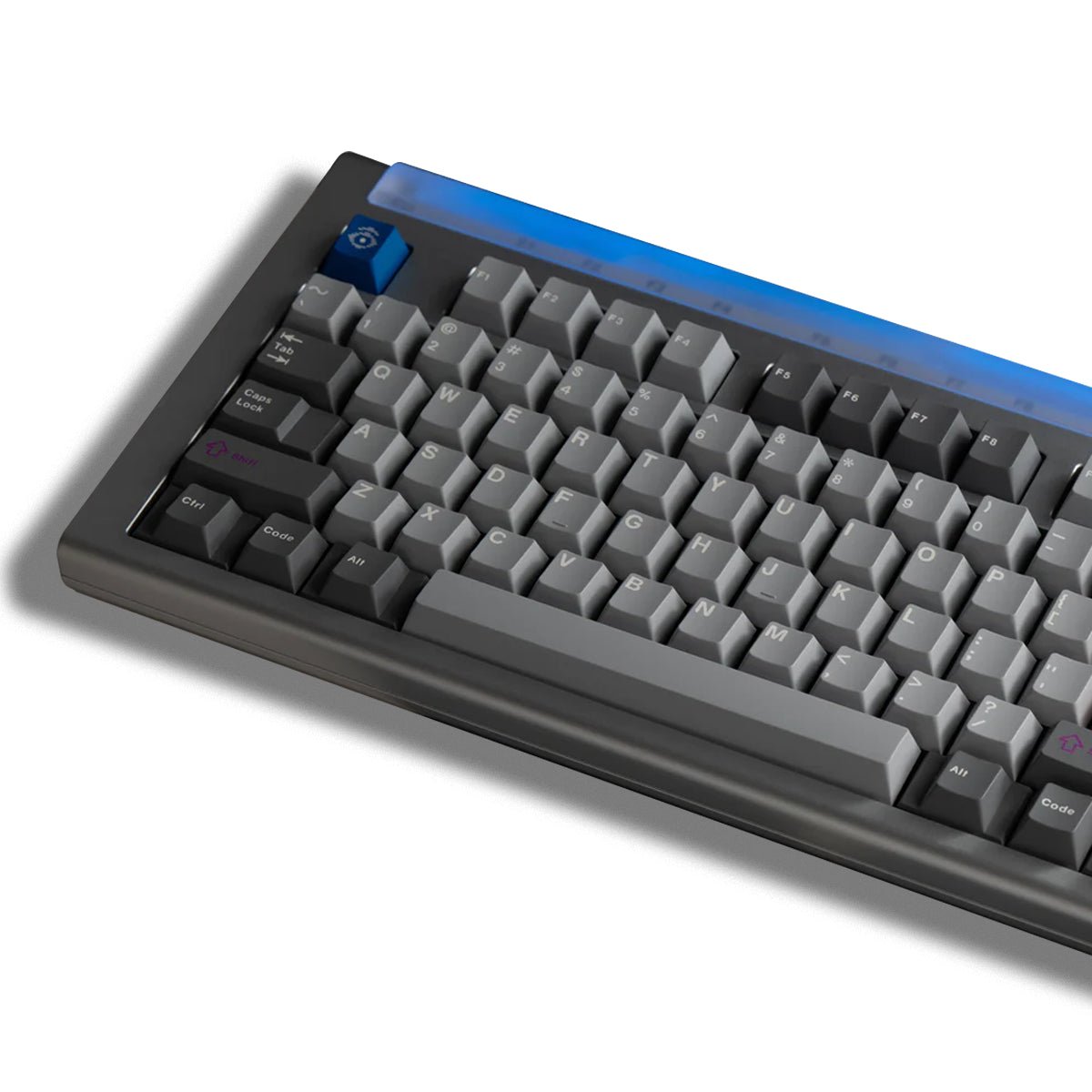

- Programmble RGB is possible to illuminate the PC blocker.
Front badge is able to be replaced with two switches if needed
Mount: PCB Gasket or Iso Top Mount
Case Material: 6063 Aluminum

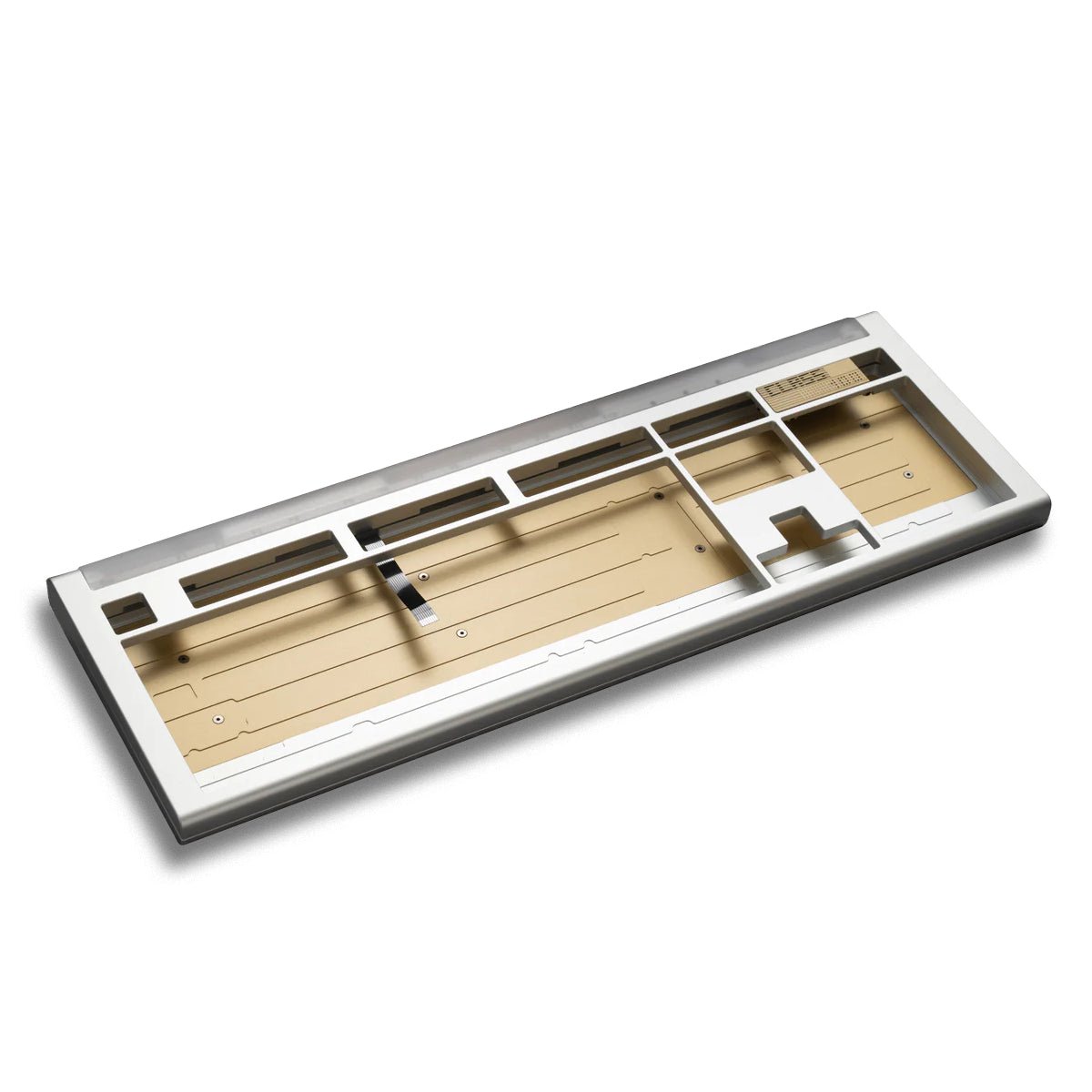

Internal Weight: Brass

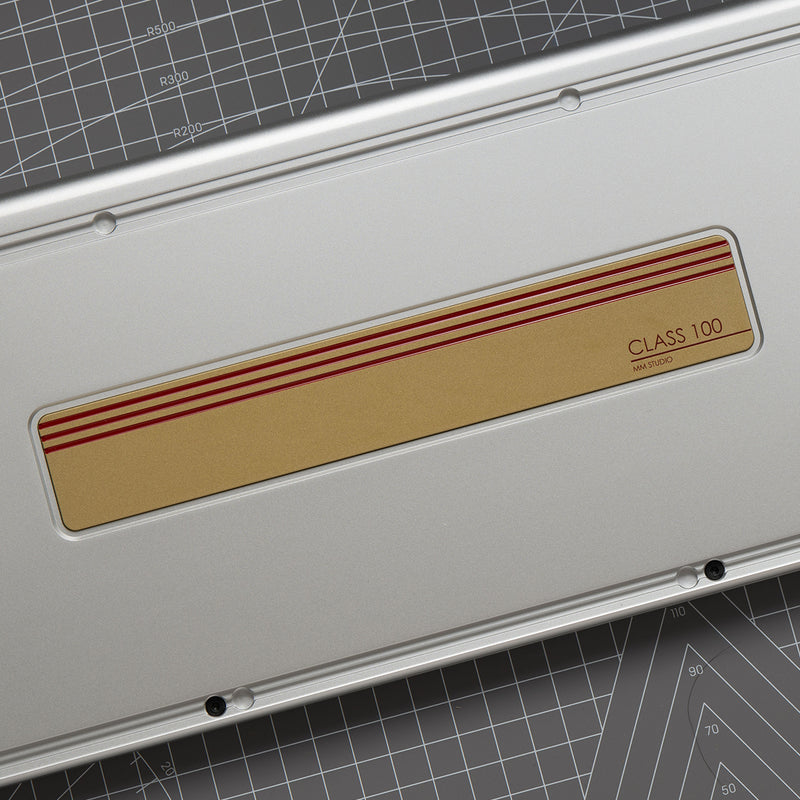

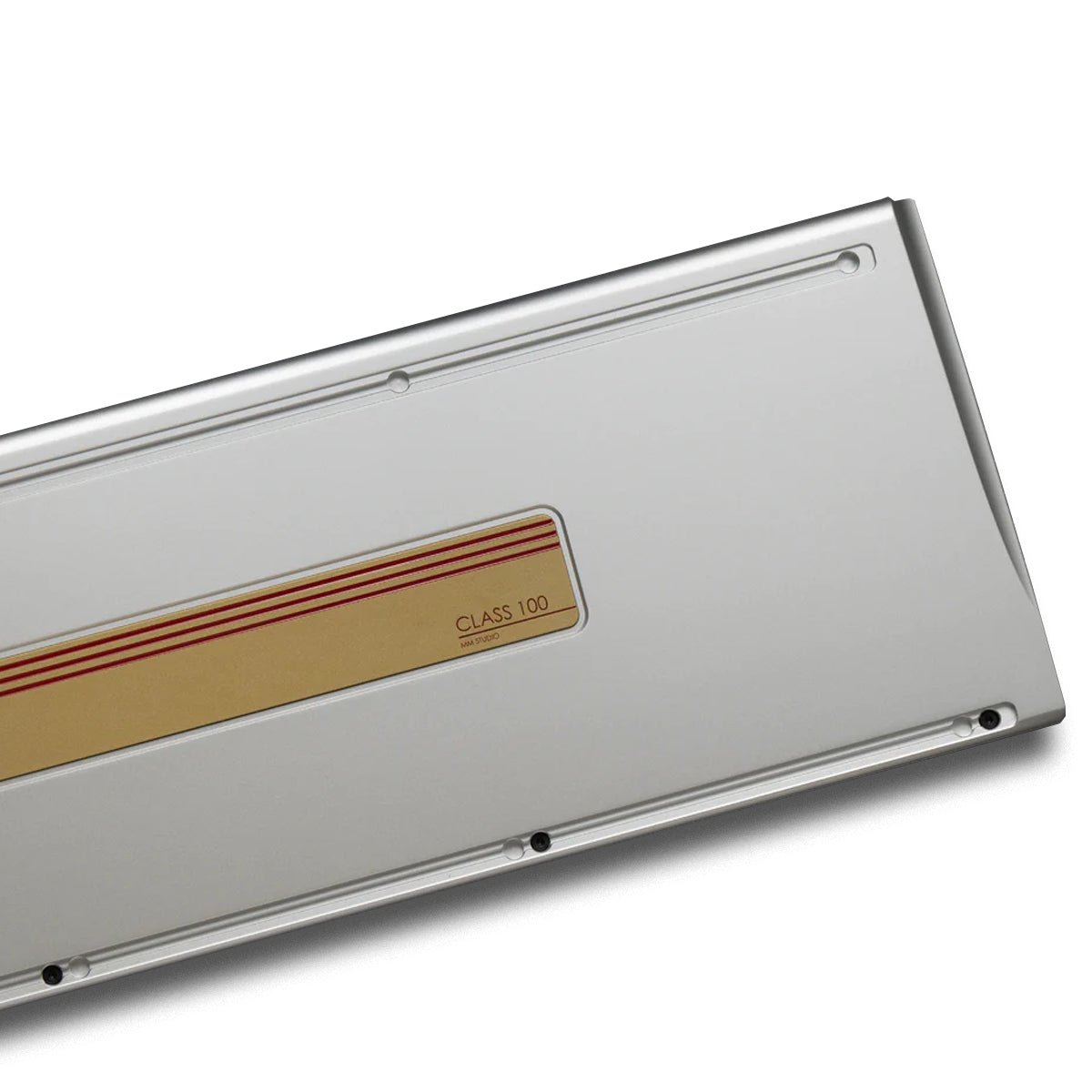

Back Weight: Brass
PCB: Wired Hotswap or Solder
Plate:
- Full Plate: PC, Aluminum, Brass, Copper
- Half Plate: Aluminum
- "Bikini" Plate: Aluminum (Only R1 and R5)
Software: QMK-VIAL
Weight: 3.5kg unbuilt (no PCB & Plate), 4kg Built
Typing Angle: 7°
Dimensions: 160.5mm x 459.6mm

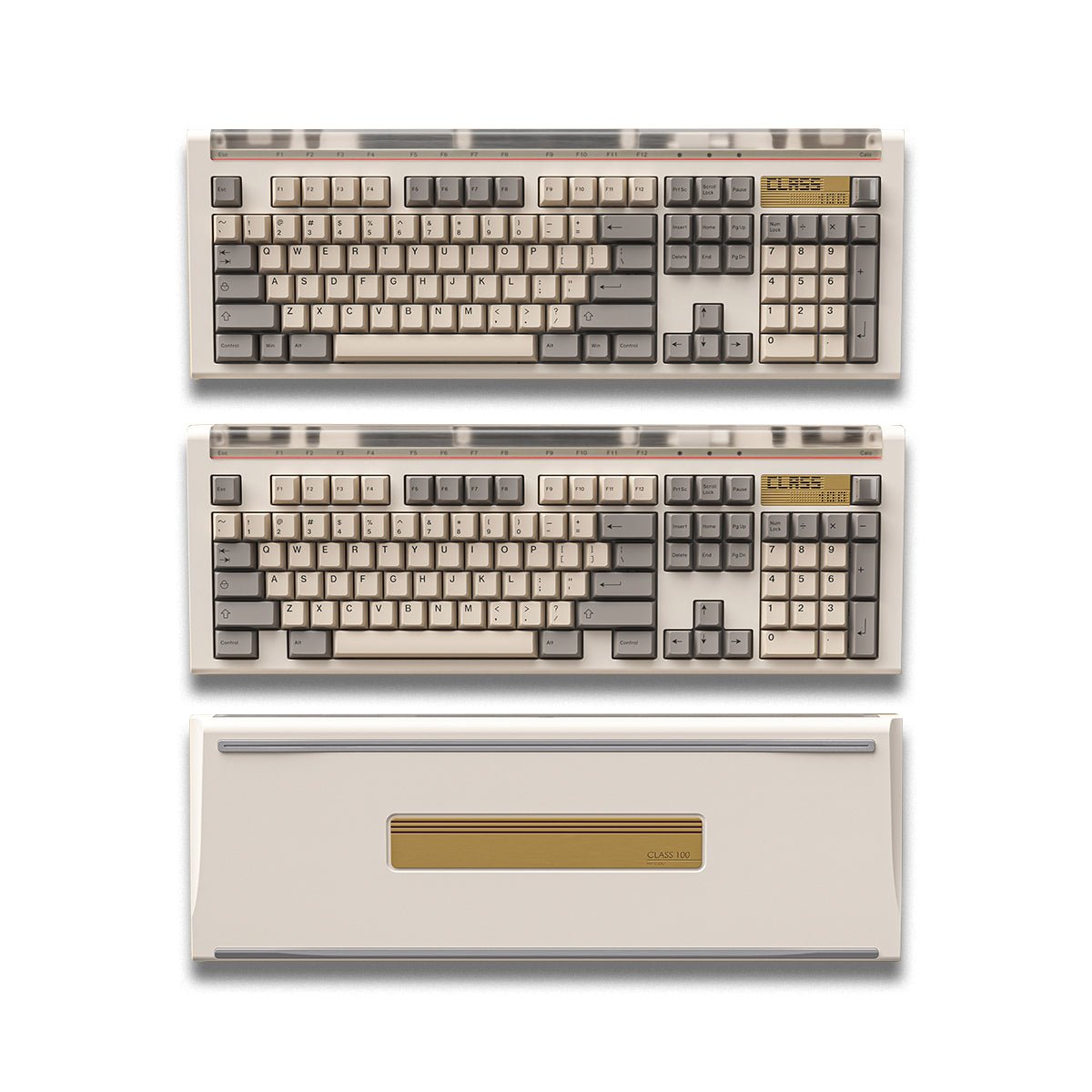

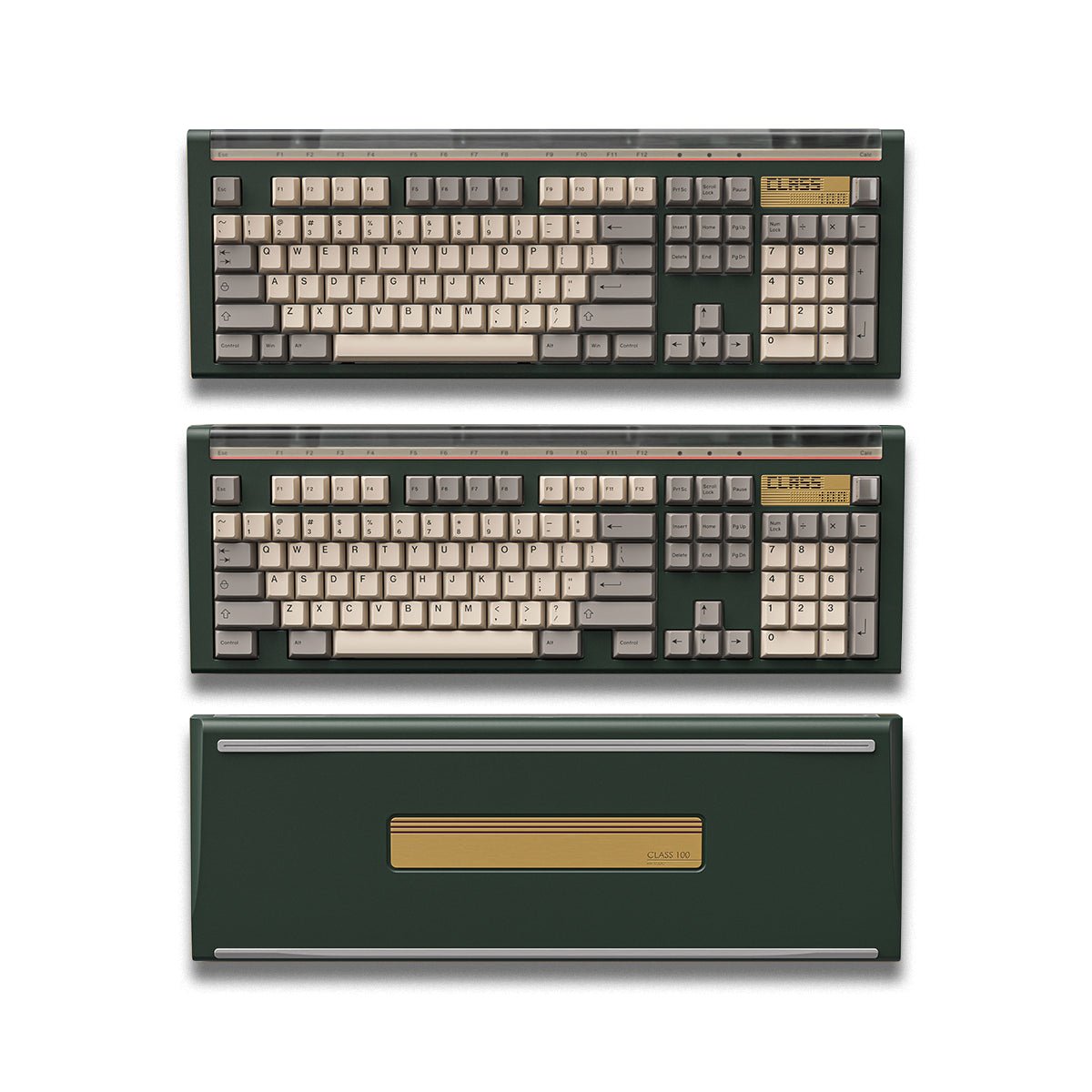

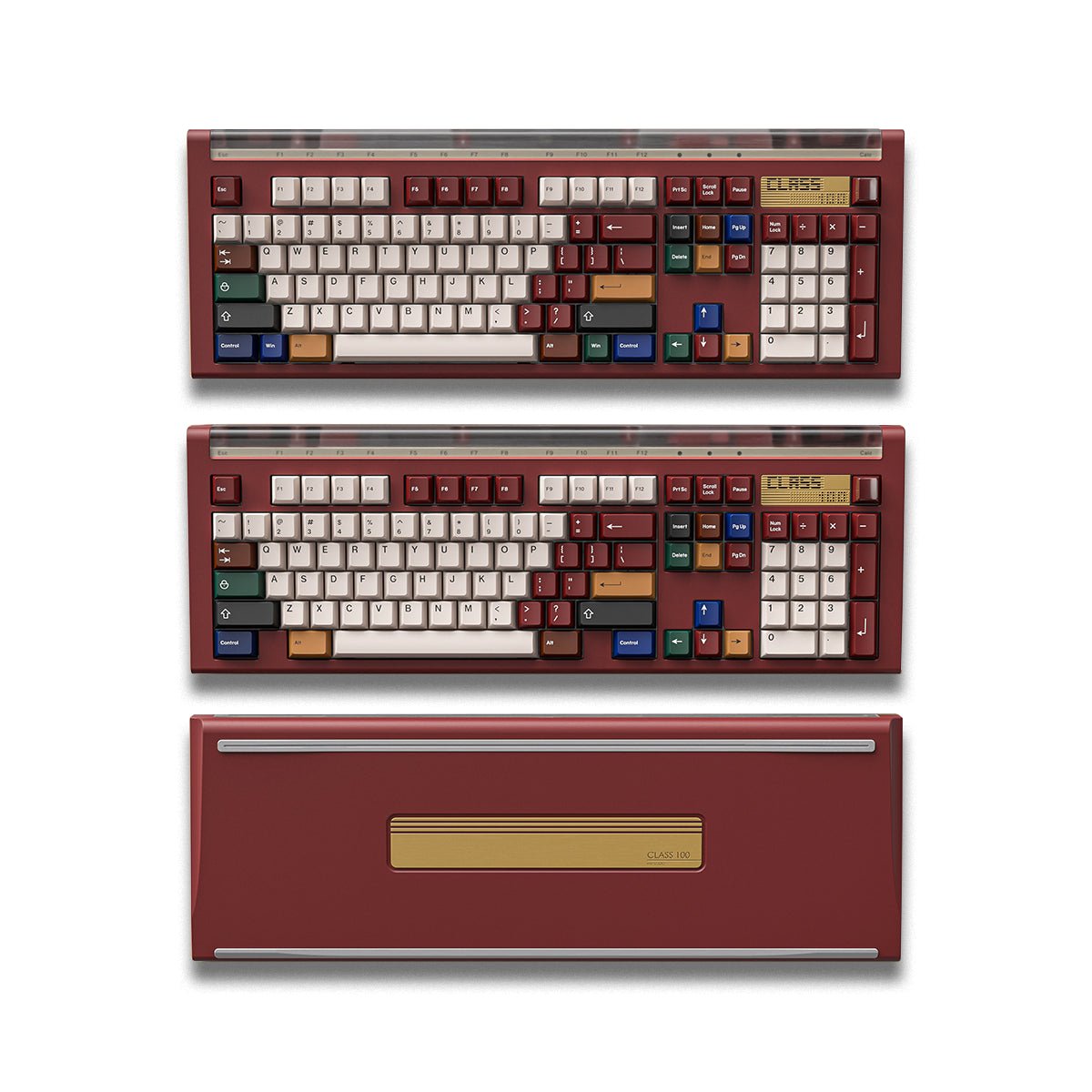

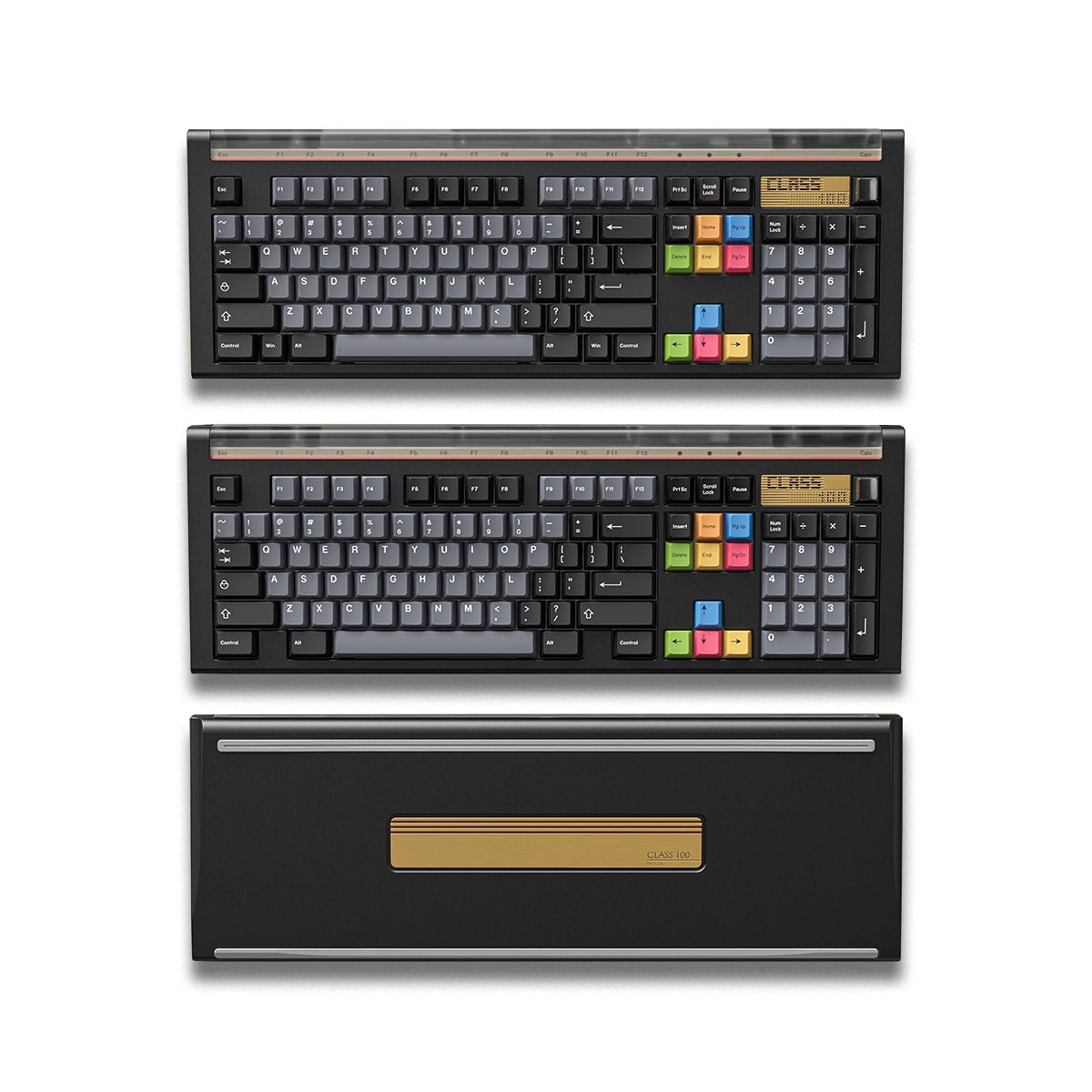

Colors: Retro White, Retro Green, Retro Red, Ano Silver, Ano Industrial Grey, Ano Black

Optional:

MM Studio Class 100 PCB, Plates, Accessories

Includes:

1 Keyboard Case
1 Internal Weight, Back Weight, & Badge
1 PCB
1 Plate
1 Solenoid & Buzzer Board
1 Set Screws
1 Set Feet (Black and Grey)
1 Foam Kit
1 Set Top Mount Parts
1 Screwdriver

Disclaimer: Groupbuy items may not be combined with In-Stock items. Free shipping does not apply to Groupbuy items. Please read our Shipping and Handling page for details prior to ordering.

MM Studios Class100 Keyboard

The Class100 returns to the roots with a classic 100% full-size layout.

Customizable top right module

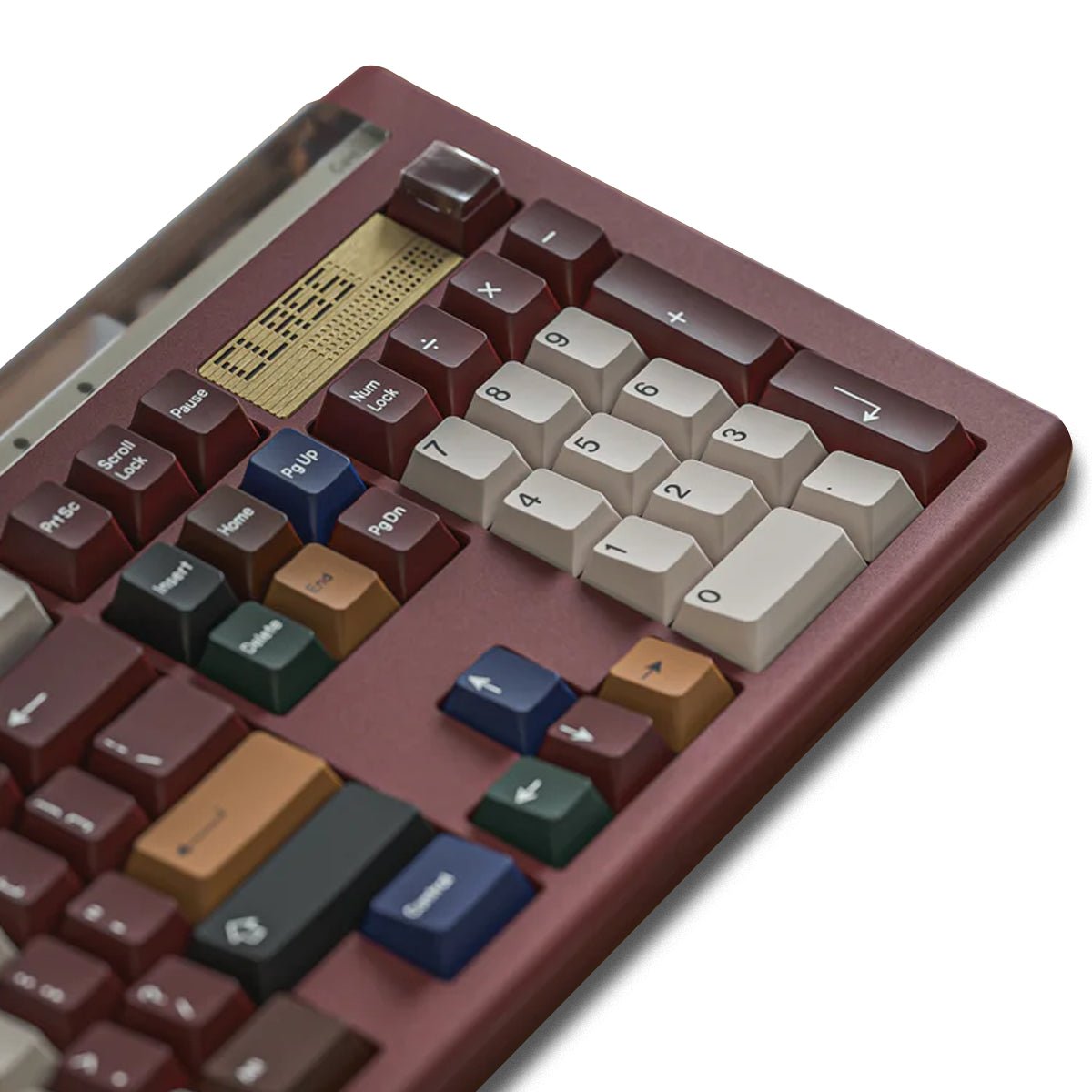

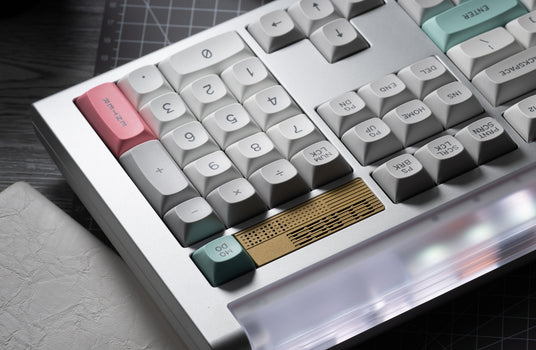

MM Studios designed a modular top right section that holds a 3u brass enamel badge, which you can swap for three functional 1u keys.

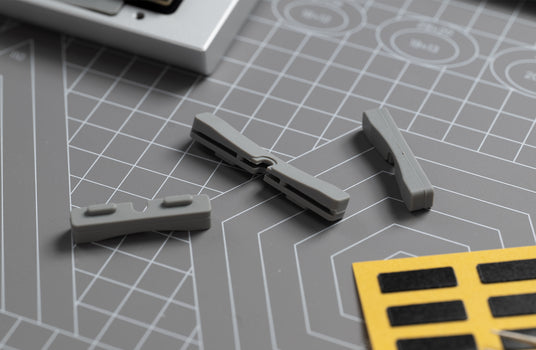

Custom Silicone Mounts

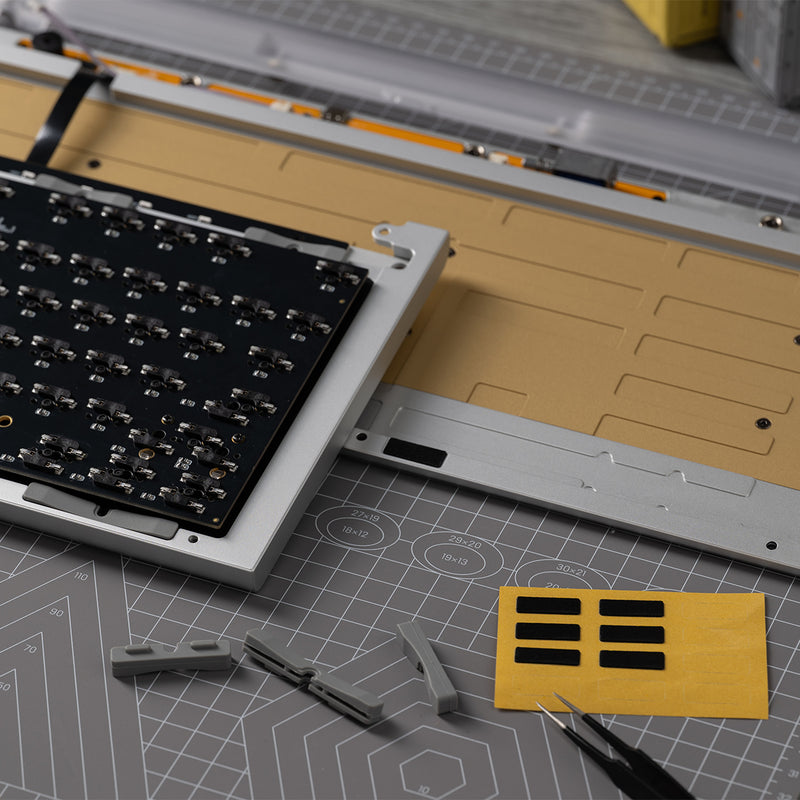

Class 100 uses a classic isolated top mount with custom molded silicone socks secured by shoulder limit screws for consistent alignment without adding stiffness. The design is flexible: leave some screws out and the silicone caps act like a gasket mount for a softer feel.

Equipped With Solenoid and Buzzer

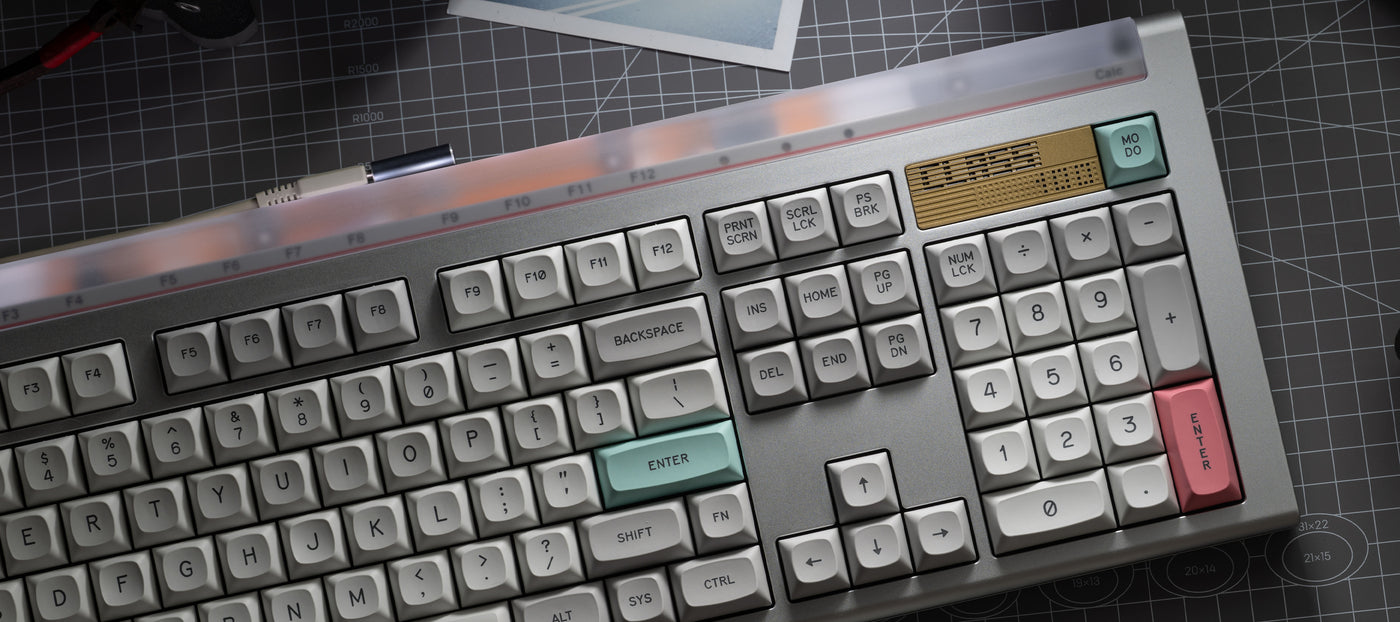

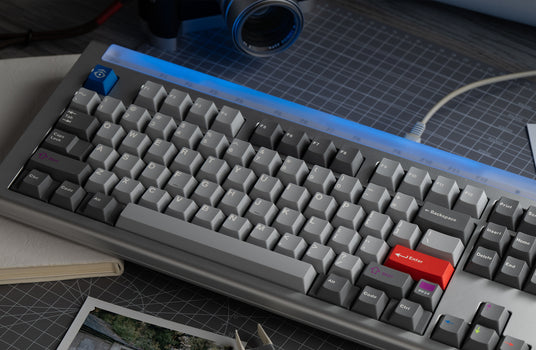

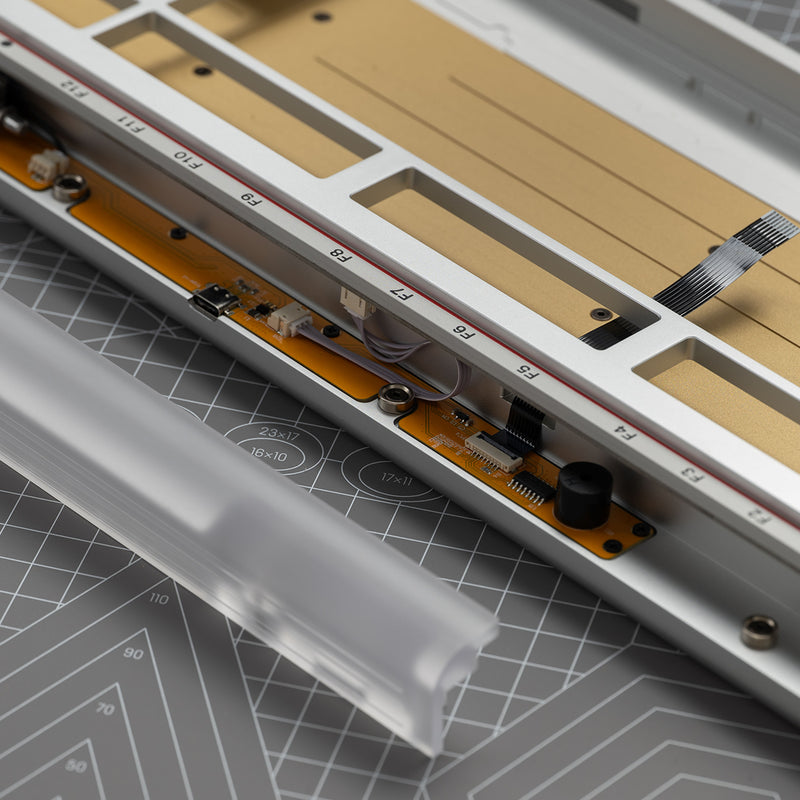

Features a polycarbonate accent strip with legend inserts inspired by the LK201, plus three classic indicator LEDs like old full size boards. MM Studio integrates a solenoid and buzzer on a Type C daughterboard beneath the top strip, with a custom orange spray coat that subtly shows through the translucent PC for a layered look.

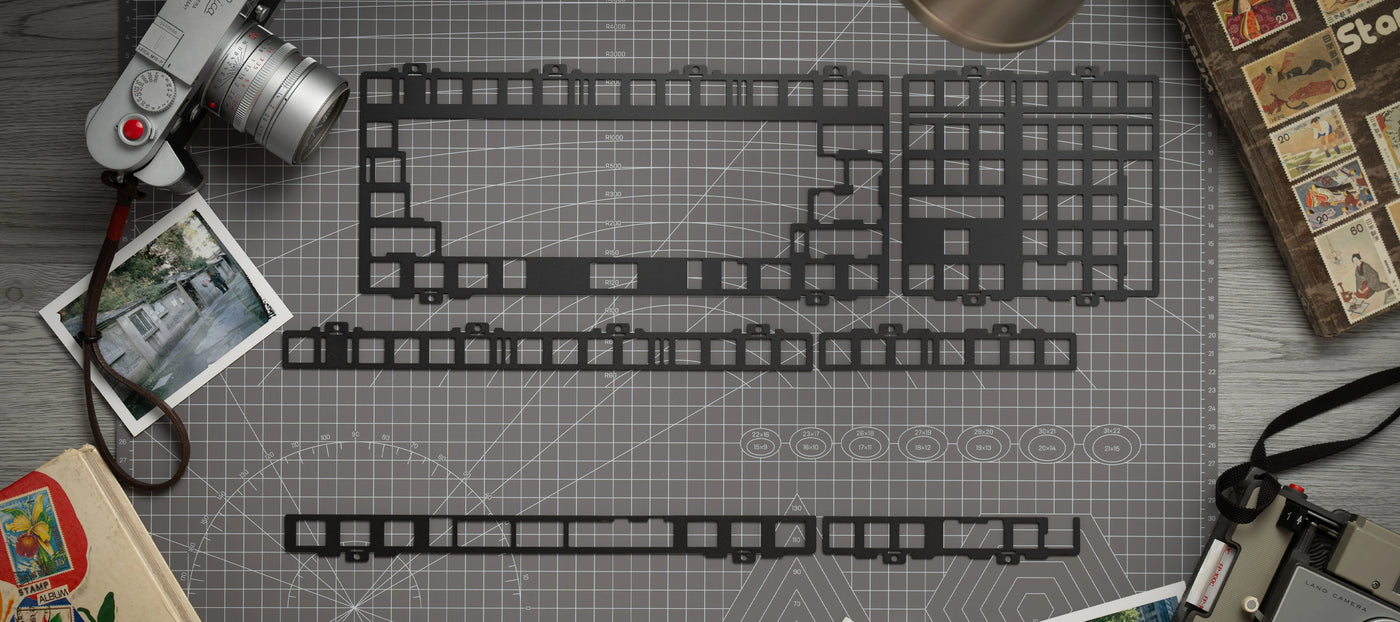

New Plate Designs

MM Studio introduces 2 different plate design to replicate the signature plateless typing experience:

Aluminum Half-Plate: Alphas are plateless while modifiers are supported by the aluminum plate
Aluminum "Bikini" Plate: Plates are available on only the top and bottom row to mount to the keyboard and support the PCB. Allowing for the rest of the keyboard to be plateless.
